BKMAE-ELPWT01Wireless Transmitter

Europe Operating frequency range: 2.4-2.483.5GHz: 1.25dBm EIRP, 2.4-2.483.5GHz: 19.97dBm EIRP, 5.15-5.25GHz: 19.98dBm EIRP Manufacturer: SEIKO EPSON CORPORATION Address: 3-5, Owa 3-chome, Suwa-shi, Nagano-ken 392-8502 Japan http://www.epson.com/ EU Importer: EPSON EUROPE B.V. Address: Atlas Arena, Asia Building, Hoogoorddreef 5, 1101 BA Amsterdam Zuidoost The Netherlands http://www.epson.com/ United Kingdom Operating frequency range: 2.4-2.483.5GHz: 1.25dBm EIRP, 2.4-2.483.5GHz: 19.97dBm EIRP, 5.15-5.25GHz: 19.98dBm EIRP Manufacturer: SEIKO EPSON CORPORATION Address: 3-5, Owa 3-chome, Suwa-shi, Nagano-ken 392-8502 Japan http://www.epson.com/ UK Importer: Epson (UK) Ltd. Address: Westside, London Road, Hemel Hempstead, Hertfordshire, HP3 9TD, United Kingdom http:// www.epson.co.uk Singapore Complies with IMDA Standards DB101624 Ukraine справжнім Seiko Epson Corporation заявляє, відповідає Технічному регламенту радіообладнання; повний текст декларації про відповідність доступний на веб-сайті за такою адресою: http://epson.ua/conformity 2.4-2.483.5GHz: 1.25dBm EIRP, 2.4-2.483.5GHz: 19.97dBm EIRP, 5.15-5.25GHz: 19.98dBm EIRP China 在无线连接下使用时的说明 不得擅自更改发射频率、加大发射功率 (包括额外加装射 频功率放大器)，不得擅自外接天线或改用其它发射天线。 使用时不得对各种合法的无线电通信业务产生有害干扰。 一旦发现有干扰现象时，应立即停止使用，并采取措施消 除干扰后方可继续使用。 使用微功率无线电设备，必须忍受各种无线电业务的干扰 或工业、科学及医疗应用设备的辐射干扰。 不得在飞机和机场附近使用。 安装、使用产品前请阅读使用说明。请妥善保管此使用说 明（保留备用）。 其他信息，可查看产品本身、产品包装和其他形式的资 料，包括爱普生网页（http://www.epson.com.cn）。 设备类型 5.8GHz/5.1GHz/2.4GHz无线局域 网 设备型号 ELPWT01 主要功能 数据传输 调制方式 BPSK/QPSK/16QAM/64QAM/256QAM /DBPSK/DQPSK/CCK/CESK 频率范围 5725－5850MHz 5150-5250MHz 2400-2483.5MHz 发射功率 ≦33dBm(EIRP), ≦23dBm(EIRP), 20dBm(EIRP), 占用带宽 ≦80MHz ≦40MHz ≦2MHz Regulatory Compliance Information Wireless transmitter Model: ELPWT01 Notices This document provides safety instructions and describes the specifications. Read this document carefully bef ore use to ensure your safety and product performance. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device is restricted to indoor operations only. Do not use the wireless communication function near automatically controlled devices such as automatic doors or fire alarms. The electromagnetic waves may cause electromagnetic interference with equipment or cause the equipment to malfunction. Japan 本製品を正しく使用するために、はじめにマニュアルをお読みください。お読みになった後は、大切に保管してく ださい。 警告 無線通信機能は、自動ドア、火災報知器などの自動制御機器の近くで使用しないでください。電波が機器に影響を 及ぼしたり、誤動作による事故の原因となるおそれがあります。 この機器の使用周波数帯では、電子レンジ等の産業・科学・医療用機器のほか工場の製造ライン等で使用されて いる移動体識別用の構内無線局（免許を要する無線局）及び特定小電力無線局（免許を要しない無線局）並びにア マチュア無線局（免許を要する無線局）が運用されています。 1. この機器を使用する前に、近くで移動体識別用の構内無線局及び特定小電力無線局並びにアマチュア無線局が 運用されていないことを確認して下さい。 2. 万一、この機器から移動体識別用の構内無線局に対して有害な電波干渉の事例が発生した場合には、速やかに 使用周波数を変更するか又は電波の発射を停止した上、弊社インフォメーションセンターにご連絡頂き、混信回避 のための処置等（例えば、パーティションの設置など）についてご相談して下さい。 3. その他、この機器から移動体識別用の特定小電力無線局あるいはアマチュア無線局に対して有害な電波干渉 の事例が発生した場合など何かお困りのことが起きたときは、弊社インフォメーションセンターへお問い合わせ下 さい。  2.4 HY PerúParaguay Modelo: ELPWT01 Marca: EPSON ID de FCC: BKMAE-WLPWT01 Fabricante del producto: Seiko Epson Corporation Dirección: 3-3-5 Owa Suwa-shi, Nagano-Ken 392-8502, Japón Importado por: Fastrax, S.A. Av. Peru esq. Rio de Janeiro, Barrios Las Mercedes, Asuncion, Paraguay Sol Control S.R.L. Av. Gral. Bernardino Caballero 810 esq. Celsa Speratti, Asuncion, Paraguay Brazil Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. Para maiores informações, consulte o site da ANATEL em www.anatel.gov.br. U.S. / Canada FCC ID: BKMAE-ELPWT01 IC: 1052D-ELPWT01 Operating frequency range: 2.412-2.462GHz (11b/g/n) 5.18-5.24GHz, 5.745- 5.825GHz (11a/ac) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of FCC Rules and Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only w…

Text truncated - open the document above for the full version.

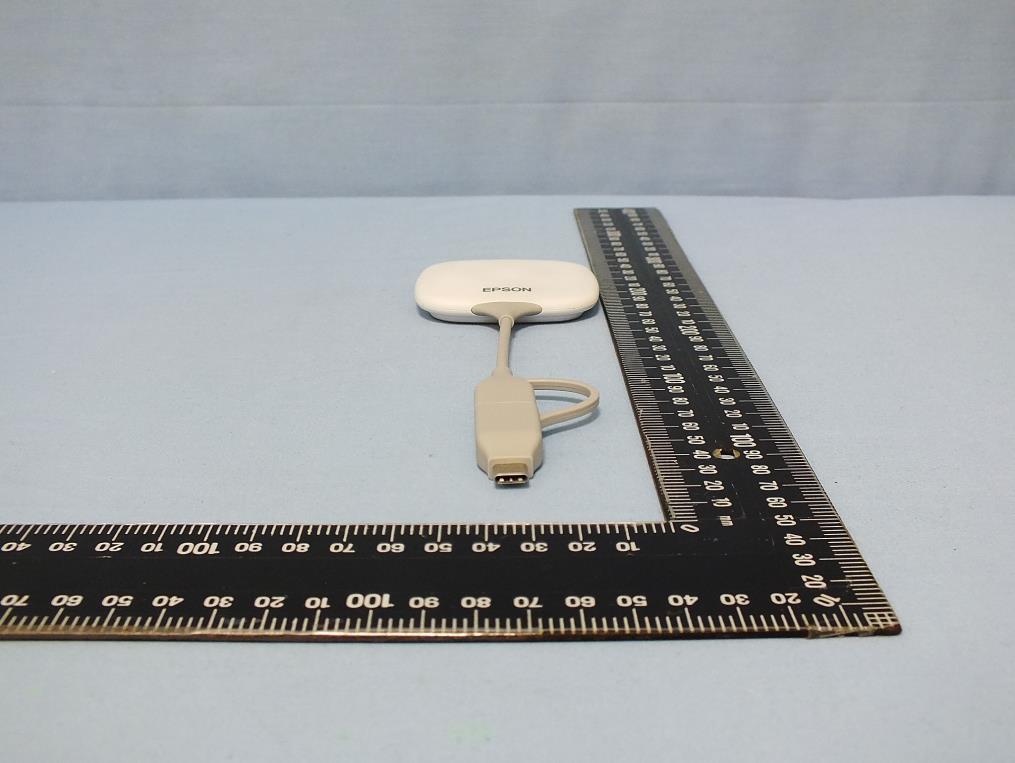

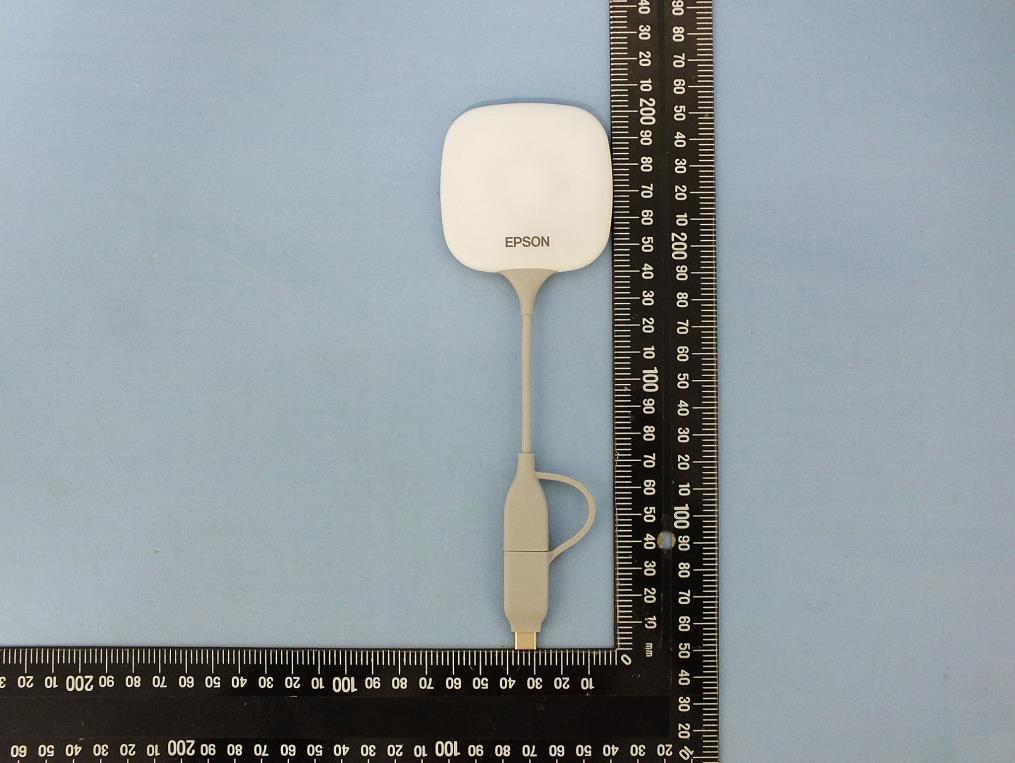

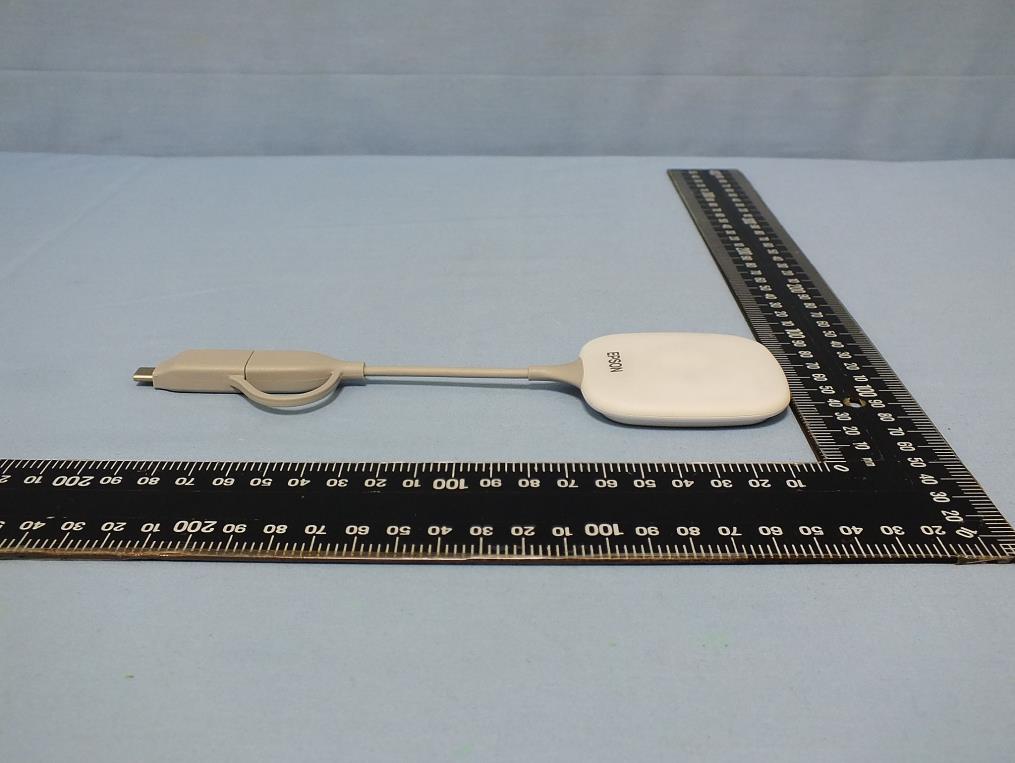

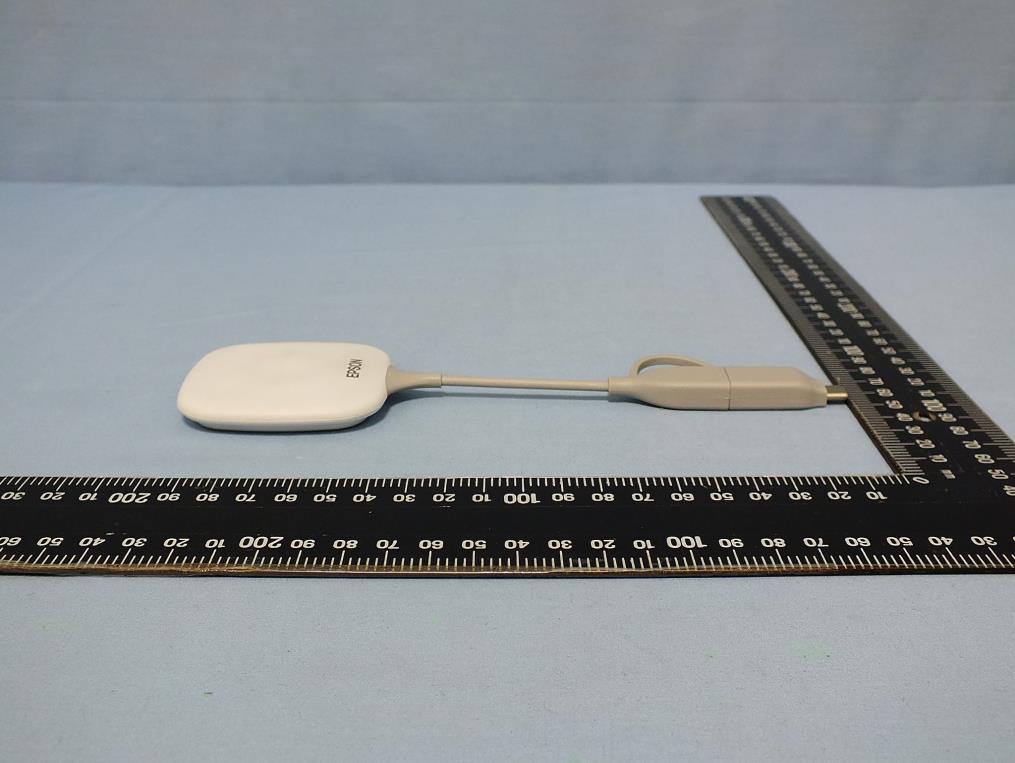

Project No.: 0D0401 Page No. : 1 of 8 Photographs of EUT Project No.: 0D0401 Page No. : 2 of 8 Project No.: 0D0401 Page No. : 3 of 8 Project No.: 0D0401 Page No. : 4 of 8 Project No.: 0D0401 Page No. : 5 of 8

付図2： GC-0089 Confidential 部品名 機種名 田中 HA41 HA41_1858939-A1-00_RATING LABEL_EAI_ETT.ai 1858939-A1-00 RATING LABEL,ELPWT01;A 2021.01.27 MODEL: ELPWT01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: BKMAE-ELPWT01 IC: 1052D-ELPWT01 ANATEL: IFT: C-xxxxx XXXXXXXXXXXX 0.5A5V 0.5A 5V Wireless Transmitter 商品名稱：無線傳輸器 製造 號碼： 製造 年份： S/N: 型號： x xxxxxxxx x xxxxxxxx FCC ID: BKMAE-ELPWT01 IC: 1052D-ELPWT01

Project No.: 0D0401 Page No. : 6 of 8 Project No.: 0D0401 Page No. : 7 of 8 Project No.: 0D0401 Page No. : 8 of 8

TEL : 886-3-327-3456 Page 1 of 23 FAX : 886-3-328-4978 Issued Date : Mar. 09, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA0D1542 FCC SAR TEST REPORT FCC ID : BKMAE-ELPWT01 Equipment : Wireless Transmitter Brand Name : EPSON Model Name : ELPWT01 Applicant : Seiko Epson Corporation 3-5, Owa 3-chome, Suwa-shi, Nagano-ken 392-8502 Japan Standard : FCC 47 CFR Part 2 (2.1093) The product was received on Feb. 01, 2021 and testing was started from Feb. 03, 2021 and completed on Feb. 03, 2021. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 23 FAX : 886-3-328-4978 Issued Date : Mar. 09, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA0D1542 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 4. RF Exposure Limits....................................................................................................................................................... 6 4.1 Uncontrolled Environment ...................................................................................................................................... 6 4.2 Controlled Environment .......................................................................................................................................... 6 5. Specific Absorption Rate (SAR) ................................................................................................................................... 7 5.1 Introduction ............................................................................................................................................................ 7 5.2 SAR Definition ........................................................................................................................................................ 7 6. System Description and Setup .................................................................................................................................... 8 6.1 Test Site Location ................................................................................................................................................... 8 6.2 E-Field Probe ......................................................................................................................................................... 9 6.3 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 6.4 Phantom ................................................................................................................................................................10 6.5 Device Holder........................................................................................................................................................ 11 7. Measurement Procedures ...........................................................................................................................................12 7.1 Spatial Peak SAR Evaluation ................................................................................................................................12 7.2 Power Reference Measurement............................................................................................................................13 7.3 Area Scan .............................................................................................................................................................13 7.4 Zoom Scan ............................................................................................................................................................14 7.5 Volume Scan Procedures ......................................................................................................................................14 7.6 Power Drift Monitoring ...........................................................................................................................................14 8. Test Equipment List .....................................................................................................................................................15 9. System Verification ......................................................................................................................................................16 9.1 Tissue Verification .................................................................................................................................................16 9.2 System Performance Check Results .....................................................................................................................16 10. RF Exposure Positions ...................................................…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page : A1 of A1 FAX : 886-3-328-4978 Issued Date : Mar. 09, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA0D1542 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/2/3 System Check_Head_2450MHz DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_210203 Medium parameters used : f = 2450 MHz; σ = 1.835 S/m; ε r = 39.501; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.52, 4.52, 4.52) @ 2450 MHz; Calibrated: 2020/9/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2020/7/21 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.4 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 106.1 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 29.3 W/kg SAR(1 g) = 14.1 W/kg; SAR(10 g) = 6.5 W/kg Maximum value of SAR (measured) = 18.3 W/kg 0 dB = 18.3 W/kg = 12.62 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/2/3 System Check_Head_5250MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5G_210203 Medium parameters used : f = 5250 MHz; σ = 4.771 S/m; ε r = 36.809; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(5.07, 5.07, 5.07) @ 5250 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2020/6/4 - Phantom: SAM_Right; Type: SAM; Serial: TP:1681 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 20.5 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 70.28 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 34.4 W/kg SAR(1 g) = 8.58 W/kg; SAR(10 g) = 2.45 W/kg Maximum value of SAR (measured) = 21.6 W/kg 0 dB = 21.6 W/kg = 13.34 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/2/3 System Check_Head_5750MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: HSL_5G_210203 Medium parameters used: f = 5750 MHz; σ = 5.314 S/m; ε r = 36.115; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(4.66, 4.66, 4.66) @ 5750 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2020/6/4 - Phantom: SAM_Right; Type: SAM; Serial: TP:1681 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 20.2 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 68.09 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 37.4 W/kg SAR(1 g) = 8.09 W/kg; SAR(10 g) = 2.27 W/kg Maximum value of SAR (measured) = 21.7 W/kg 0 dB = 21.7 W/kg = 13.36 dBW/kg

TEL : 886-3-327-3456 Page : B1 of B1 FAX : 886-3-328-4978 Issued Date : Mar. 09, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA0D1542 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/2/3 #01_WLAN2.4GHz_802.11b 1Mbps_Horizontal Down_5mm_Ch11 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_210203 Medium parameters used: f = 2462 MHz; σ = 1.845 S/m; ε r = 39.456; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.52, 4.52, 4.52) @ 2462 MHz; Calibrated: 2020/9/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2020/7/21 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (91x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.836 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.78 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.582 W/kg; SAR(10 g) = 0.314 W/kg Maximum value of SAR (measured) = 0.734 W/kg 0 dB = 0.734 W/kg = -1.34 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/2/3 #02_WLAN5GHz_802.11a 6Mbps_Vertical Back_5mm_Ch36 Communication System: 802.11a; Frequency: 5180 MHz;Duty Cycle: 1:1 Medium: HSL_5G_210203 Medium parameters used: f = 5180 MHz; σ = 4.7 S/m; ε r = 36.935; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(5.07, 5.07, 5.07) @ 5180 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2020/6/4 - Phantom: SAM_Right; Type: SAM; Serial: TP:1681 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.759 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 12.28 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.988 W/kg SAR(1 g) = 0.275 W/kg; SAR(10 g) = 0.105 W/kg Maximum value of SAR (measured) = 0.618 W/kg 0 dB = 0.618 W/kg = -2.09 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/2/3 #03_WLAN5GHz_802.11a 6Mbps_Vertical Back_5mm_Ch149 Communication System: 802.11a; Frequency: 5745 MHz;Duty Cycle: 1:1 Medium: HSL_5G_210203 Medium parameters used : f = 5745 MHz; σ = 5.31 S/m; ε r = 36.122; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(4.66, 4.66, 4.66) @ 5745 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2020/6/4 - Phantom: SAM_Right; Type: SAM; Serial: TP:1681 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.32 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 14.69 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 2.12 W/kg SAR(1 g) = 0.519 W/kg; SAR(10 g) = 0.197 W/kg Maximum value of SAR (measured) = 1.22 W/kg 0 dB = 1.22 W/kg = 0.86 dBW/kg

TEL : 886-3-327-3456 Page : C1 of C1 FAX : 886-3-328-4978 Issued Date : Mar. 09, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA0D1542 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. ~' In ColtDborstion with -TTL s P e a g ~ CALIBRATION LABORATORY Add: No.SI Xueyuan Road, Ha idian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E -mail: [email protected] http://www.chinattl.cn Client Sporton Certificate No: Z18-60326 CALIBRATION CERTIFICATE Object D2450V2 - SN: 736 Calibration Procedure(s) FF-211-003-01 Calibration Procedures for dipole validation kits Calibration date: August31, 2018 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements(SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature (22±3)"C and humidity<70%. Calibration Equipment used (M&TE critical for calibration) Primary Standards Power Meter NRVD Power sensor NRV-25 Reference Probe EX3DV4 DAE4 Secondary Standards Signal Generator E4438C NetworkAnalyzer E5071 C Calibrated by: Reviewed by: Approved by: ID# 102083 100542 SN 7464 SN 1524 ID# MY49071430 MY46110673 Name Zhao Jing Lin Hao Qi Dianyuan Cal Date(Calibrated by, Certificate No .) Scheduled Calibration 01-Nov-17 (CTTL, No.J17X08756) Oct-18 01-Nov-17 (CTTL, No.J17X08756) Oct-18 12-Sep-17(SPEAG,No.EX3-7464_Sep17) Sep-18 13-Sep-17(SPEAG,No.DAE4-1524_Sep17) Sep-18 Cal Date(Calibrated by, Certificate No.) Scheduled Calibration 23-Jan-18 (CTTL, No.J18X00560) Jan-19 24-Jan-18 (CTTL, No.J18X00561) Jan-19 Function $ ignature SAR Test Engineer ' :·, -~ {!· <.~ SAR Test Engineer .:_--~~:lb SAR Project Leader ~ Issued: September 3, 2018 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: Z I 8-60326 Page I ofs •• ....._, In Collaboration with -TTL s p e a g ~ CALIBRATION LABORATORY Add: No.5 I Xueyuan Road, Haidian District, Beijing, I 00191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mai l: [email protected] http://www.chinattl.cn Glossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORMx,y,z not applicable or not meas ured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques ", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, " Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proximity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 Syst em Handbook Methods Applied and Interpretation of Parameters: • Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. • Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented parallel to the body axis. • Feed Point Impedance and Return Loss: These parameters are measured with the dipole positioned under the liquid filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty required. • Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. • SAR measured: SAR measured at the stated antenna input power. • SAR normalized: SAR as measured, normalized to an input power of 1 Wat the antenna connector. • SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nominal SAR result. T he reported uncertainty of measurement is stated as the standard uncertainty of Measurement multiplied by the coverage factor k=2, which for a normal distributi on Corresponds to a coverage probability of approximately 95%. Certificate No: 2 18-60326 Page 2 of8 In Coll11boration with s p e a g CALIBRATION LABORATORY Add: No.SI Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: cttl @chinattl.com http://www.chinattl.cn Measurement Conditions DASY fi f svstem con 1Qurabon, as ar as not Q1ven on paQe 1. DASY Version DASY52 Extrapolation Advanced Extrapolation Phantom Triple Flat Phantom 5.1 C Distance Dipole Center -TSL 10mm Zoom Scan Resolution dx, dy, dz= 5 mm Frequency 2450 MHz ± 1 MHz Head TSL parameters Thfll" t dllf e o owinQ oarame ers an ca cu a ions were app11e . r d 52.10.1.1476 with Spacer Temperature Permittivity Conductivity Nominal Head TSL parameters 22.0 °C 39.2 1.80 mho/m Measured Head TSL parameters (22.0 ± 0.2) 0 c 38.8 ± 6 % 1.80 mho/m ± 6 % Head TSL temperature change during test <1.0 °C --- __ ,,,_ SAR result with Head TSL SAR averaged over 1 cm 3 (1 g) of Head TSL Condition SAR measured 250 mW input power 13.2 mW/ g SAR for nominal Head TSL parameters normalized to 1 W 52.7 mW /g ± 18.8 % (k=2) SAR averaged over 10 cm 3 (10 g) of Head TSL Condition SAR measured 250 mW input power 6.17 mW/ g SAR for nominal Head TSL parameters normalized to 1W 24.6 mW /g ± 18.7 % (k=2) Body TSL parameters Th f II . t d I I f e o owing parame ers an ca cu a ions were app 1e . I" d T…

Text truncated - open the document above for the full version.

EX3DV4- SN:3931 1SC T • ' Tot October 22, 2020 Receiving Pattern (<t>), 3 = 0° f=600 MHz,TEM 4(, ,,.,.--"#- -... -- ----. , • r • • ~ ·. >\:.• ... • • ':"-.. ~ 2 . 0 4 g.~ 08 . 1 . ·-- - -· ,, • • -• j • ·---:-- • X :t·o • y 0 • z Tot 135 . . :2s f=1800 MHz,R22 .... - '--, T x ·--·--.. . ' .. ' \ ,.... .. . . : - ~ : .. '; o~. 04 o_, 0 8 ·----- - . . i -•--- • 315 ,0 CE z 0.5 --------------------------------1----·-----·--·------+----·-------------· ------------·------- . . --------------------l------·-------------.,·----------- . . . . -0.5 . . . . ' ' . ' . ' ' . . ' : .-- ' ' . ' ' I ' ' ' ' . . : : : . . . - 150 00 100 MHz -100 -50 00 600 MHz 0 Roll[°] 50 100 ~ 1800 MHz Uncertainty of Axial Isotropy Assessment: ± 0.5% (k=2) 00 2500 MHz Certificate No: EX3-3931_0ct20 Page 7 of 22 EX3DV4- SN:3931 1 ro C .Q> (J) :5 a. C Dynamic Range f(SARhead) (TEM cell , f e va1= 1900 MHz) 10 5 10 4 10 3 . . 1 i illii : l . ·::::: l . : 111/l: 1 1 l \lliil : : : l ll lll 1 l i lllll .,.,.,-,-,,, --,• -r•rr,-..rr······,·• • .,. •• ,.,.,,,, • .••• • , ••• , •• , . ,.,v,u••••••r•••r ••,•·r•,· 1-.-.-r·····-.···,--,--.·,·r,, .• · ·•· 1··· 1 · :· t·: -;-~:: -~ - -: --:---{-:--:--:-:--:-· · ···--:---:- ·-:· --:---:·:--:--:~----·-:-.-: •. : · :·: -:-; : : · .. · --~ · -- ~ ··:- - : ·:·:--:-:-~ · .. · · --:· · · --:-· ~ --:: ! ·::: ' . . . ..... . . '...... . ' . . ..... . .. ''''" ' . '...... . . ..... . . . . . ..... . . '''"" . ' . ..... . . . . ..... . '' ...... . . . . . . . . ; ; ; :;1\ : : : :::::: : : : ::r:~i 1 : : :~:::: : : ~ ;1;::: ~ ; '. ;:::; 10 2 : i ii.tilt! : ;; iiilt ; .. H.1:.;::: ...... : .. ;. : :::::: : .. i ·\ ti lit : I ili.11 1 ' . . '..... . . '...... ' ' . ''"" ' . . ''''" ' ' . ...... ----· ... ' .. '.'. '.'" ... ''"" . . . ...... ' ' . . '"" . . . ...... ' '. ...... . . .... .. ··· i···H·i+:::-----i-i ii ii iii i : : ~: iiii i i iii ::::---··-i· : ! iii iii i i : ii iii ...... ; ... .... ·:·::·:::··· ·· : · : : :::::: : : : ; : : : : ... : : :::: .. ···: · .. · ::: :: ... ::::: 10-3 10-2 10- 1 100 10 1 10 2 SAR [mW/cm 3] [£1 not compensated 00 compensated .. : : ::::: . . . ...... ' . . . ... . . .. .. ' . ...... . . 103 11: ;·:/ : : I 111/ll 1 11 ]1)1 . .. ::::· .. J 111) 1 i 11 1 ~1t1r 11 ••• -2-r-~~~-,l-~~~-'--'-,l--~~-'--'-,l-~~~-'--'-il~-~~-'--'-il-~~~'-'-', 10-3 10-2 10-1 100 101 10~ 0 -1 SAR [mW/cm3] m rn not compensated co mpensat ed Uncertainty of Linearity Assessment: ± 0.6% (k=2) Certificate No: EX3-3931_0ct20 Page 8 of 22 October 22, 2020 EX3DV4- SN:3931 October 22, 2020 Conversion Factor Assessment f = 835 MHz.WGLS R9 (H_convF) f = 1 750 MHz,WGLS R22 (H_ convF) 4 o- \ J u-• ··· .... 1 5 1 0 05 -._ ----..... '.lO ::?S 10 ·--- \ . . \ . ---· 00---''--'--,-'--~-~~~~--'--......_----"-~-, 0+-'-'---,-'-_......--'--'------'----L---'--'----L-.- 0 IC, 15 20 25 30 35 4~ 0 10 =(mm) :II ID::3SUlcd Deviation from Isotropy in Liquid Error(«!>, 8-), f = 900 MHz 1.0 0.3 0.6 C 0.4 C -~ 0. 2 -~ 0.0 O -0 .2 -0.4 -1.0 -0.8 -0.6 -0.4 -0.2 0.0 0.2 0.4 0.6 0.3 1.0 Uncertainty of Spherical Isotropy Assessment: ± 2.6% (k=2) Certificate No: EX3-3931 Oct20 Page 9 of 22 35 40 EX3DV4- SN:3931 October 22, 2020 Appendix: Modulation Calibration Parameters UID Rev Communication System Name Group PAR Unc" (dB) (k=2) 0 cw cw 0.00 ±4.7 % 10010 CAA SAR Validation (Square, 100ms, 10ms) Test 10.00 ±9.6% 10011 CAB UMTS-FDD (WCDMA) WCDMA 2.91 ±9.6% 10012 CAB IEEE 802.11 b WiFi 2.4 GHz (DSSS, 1 Mbps) WLAN 1.87 ±9.6% 10013 CAB IEEE 802.11 g WiFi 2.4 GHz (DSSS-OFDM, 6 Mbps) WLAN 9.46 ±9.6% 10021 DAC GSM-FDD (TOMA, GMSK) GSM 9 .39 ±9.6% 10023 DAC GPRS- FDD (TOMA, GMSK, TN 0) GSM 9. 57 ±9.6 % 10024 DAC GPRS-FDD (TOM A, GMSK, T N 0-1) GSM 6. 56 ±9.6% 10025 DAC EDGE-FDD (TOMA, 8PSK, TN 0 ) GSM 12.62 ±9.6 % 10026 DAC EDGE-FDD (TOMA, 8PSK, TN 0-1) GSM 9.55 ±9.6 % 10027 DAC GPRS-FDD (TOMA, GMSK, TN 0-1-2) GSM 4.80 ±9.6 % 10028 DAC GPRS-FDD (TOMA, GMSK, TN 0-1-2-3) GSM 3.55 ±9.6% 10029 DAC EDGE-FDD (TDMA, 8PSK, TN 0-1-2) GSM 7.78 ±9.6% 10030 CAA IEEE 802.15.1 Bluetooth (GFSK, DH1) Bluetooth 5.30 ±9.6 % 10 031 CAA IEEE 802…

Text truncated - open the document above for the full version.
