BKMAE-RC4261804REMOTE CONTROLLER

1 / 24 Epson Home Projector EF-12 User’s Manual Index 1 Introduction to Your Projector 2 Setting Up the Projector 3 Adjusting the Projector Settings 4 Appendix 2 / 24 1 Introduction to Your Projector 1.1 Projector Parts - Front/Top Name Functions ① Remote receiver Receives signals from the remote control. ② Air intake vent Takes in air to cool the projector internally. ③ Lens Images are projected from here. ④ Air intake vent (air filter) Takes in air to cool the projector internally. ⑤ Security slot The security slot is compatible with the Microsaver Security System manufactured by Kensington. ⑥ AC adapter port Connects the AC adapter. ⑦ Speaker Outputs audio. ⑧ HDMI1 port Inputs video signals from HDMI compatible video. ⑨ HDMI2 (ARC) port Inputs video signals from HDMI compatible video. ⑩ USB-A port Connects a USB memory device or a digital camera. ⑪ Service port This port is not normally used. ⑫ Audio Out port Outputs audio from the current input source to headphones. ⑬ Status indicator Indicates the projector's status. ⑭ Control panel Operates the projector. 3 / 24 1.2 Projector Parts - Control Panel Name Functions ① Status indicator Indicates the projector's status. ② Power button Turns the projector on or off. ③ V mute button Turns the video on or off temporarily. ④ Bluetooth Speaker Mode button Enter the Bluetooth Speaker Mode. ⑤ Volume up/down buttons Adjusts the volume for the speaker and headphones. 4 / 24 1.3 Projector Parts – Base Name Functions ① Foot release lever Press the foot release lever to extend and retract the front adjustable foot. ② Mount plate fixing point Attach the optional or supplied mount plate here. ③ Rear feet (Mount plate fixing points) Loosen these feet by turning them counterclockwise, and then remove them to attach the optional or supplied mount plate. ④ Air filter cover Open to access the air filter. ⑤ Front adjustable foot When setup on a surface such as a desk, extend the foot to adjust the position of the image. 5 / 24 1.4 Projector Parts - Remote Control Name Functions ① Indicator Turns on when outputting signals from the remote control. ② YouTube button Starts the YouTube application. ③ Bluetooth Speaker Mode button Enter the Bluetooth Speaker Mode. ④ Directional pad Selects menu items on the projector. ⑤ Esc button Switches to the next input source. ⑥ Volume up/down buttons Adjusts the volume for the projector. 6 / 24 ⑦ Keystone button Corrects the projected image. ⑧ V mute button Turns the video on or off temporarily. ⑨ Projector Settings button Displays and closes the Projector Settings menu. You can use the projector's menus to adjust the settings that control how your projector works. ⑩ Home button Displays the Android TV™ home screen. ⑪ Mic button Allows you to operate your Android TV™ using voice commands. When you press this button, the remote control's microphone starts listening for voice commands. ⑫ Enter button Enters the current selection and moves to the next level while displaying the projector's menu. ⑬ Source Search button Switches to the next input source. ⑭ Apps button Displays a list of the applications available on the Android TV™. ⑮ Power button Turns the projector on or off. 7 / 24 2 Setting Up the Projector 2.1 Projector Placement You can place the projector on almost any flat surface to project an image. The projector can be installed at various angles. There is no vertical or horizontal limit to how the projector can be installed. 2.1.1 Projector Setup and Installation Options You can set up or install your projector in the following ways: Front (Standard) Front Ceiling (Upside down) 2.1.2 Projection Distance The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is 8 / 24 from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings. 2.2 Turning On the Projector 1. Connect the AC adapter to the projector's AC adapter port. 2. Connect the power code to the AC adapter 3. Plug the power cord into an electrical outlet. 4. Press the power button on the control panel or remote control to turn on the projector. 2.3 Turning Off the Projector 1. Press the power button on the control panel or remote control. The light source will turn off. 9 / 24 2.4 Pairing the Remote Control If the remote control and the projector have not been paired, follow the on-screen instructions and press and hold the Enter and Home buttons on the remote control to pair. 10 / 24 3 Adjusting the Projector Settings 3.1 Picture Setting Options Description Color Mode Dynamic Vivid Bright Cinema Cinema Natural Adjusts the vividness of image colors for various image types and environments. Light Output 50 % ~ 100 % Adjusts the brightness for the light source. Custom Settings Brightness Contrast Brightness: Lightens or darkens the overall image. 11 / 24 Saturation Tint Sharpness Contrast: Adjusts the difference between light and dark areas of the image. Saturation: Adjusts the intensity of the image colors. Tint: Adjusts the balance of green to magenta tones in the image. Sharpness: Adjusts the sharpness or softness of image details. Color Temperature 0 ~ 13 Adjusts the focus of the projected image manually. Dynamic Contrast High Speed Normal Off Selects the way the projector faces the screen so the image is oriented correctly. Noise Reduction Standard Strong Weak Off Reduces flickering in analog images. Detail Enhancement 0 ~ 100 Creates a more emphatic texture and material feel of the image. Aspect Ratio Normal Full Zoom Sets the aspect ratio (width-to-height ratio) for the input source. HDMI Video Range Auto Full Limited Sets the video range to match the setting of the device connected to the HDMI port. 12 / 24 3.2 Sound Setting Options Description Sound Mode Theatre TV Studio Stadium Concert Karaoke Mode Theatre: The surround effect recreates the acoustic environment of a movie theater. Allows you to enjoy realistic and power…

Text truncated - open the document above for the full version.

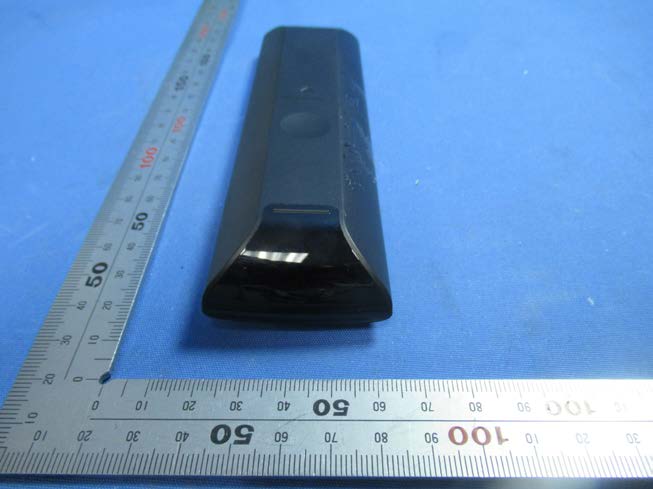

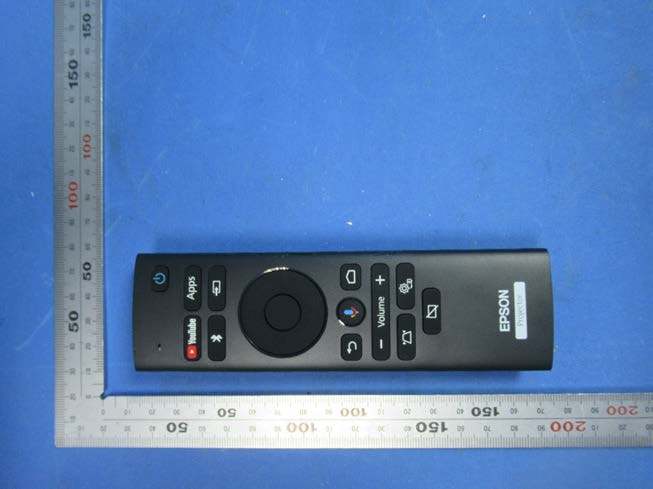

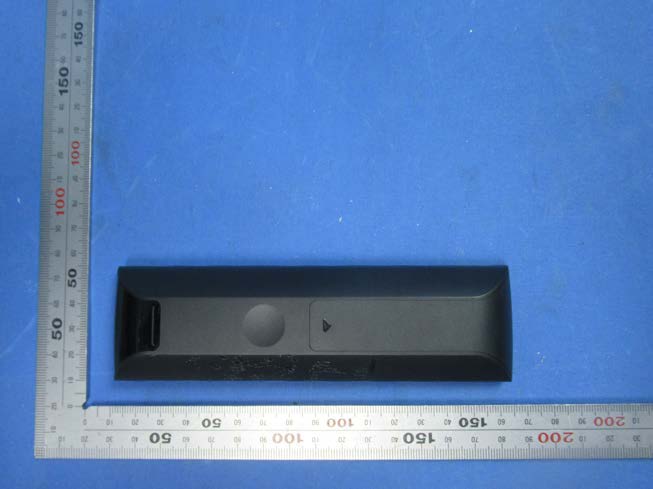

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 3 Page 1 of 3 External Photos Applicant: Seiko Epson Corporation Address of Applicant: 3-3 -5,Owa,Suwa-shi,Nagano-ken 392-8502 Japan Equipment Under Test (EUT): Product Name: REMOTE CONTROLLER Model No.: RC4261804 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 3 Page 2 of 3 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 3 Page 3 of 3 End

Label & Label location Remark：The product is small to place the FCC statement on the product and it be placed in the user manual which the device is marketed. 221032900 REMOTE CONTROLLER 型號 / Model: RC4261804 產品名稱 : 藍牙遙控器 IC: 1052D-RC4261804 FCC ID: BKMAE-RC4261804 生產國別 : 中國 생산의 나라 : 중국 3.0V 45mA R-R-EKL-EER-RC4261804 018-200243 CCA00000000000

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 3 Page 1 of 3 Internal Photos Applicant: Seiko Epson Corporation Address of Applicant: 3-3 -5,Owa,Suwa-shi,Nagano-ken 392-8502 Japan Equipment Under Test (EUT): Product Name: REMOTE CONTROLLER Model No.: RC4261804 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 3 Page 2 of 3 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 3 Page 3 of 3 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700632302 Page: 1 of 7 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure REPORT Application No.: SHEM2007006323CR FCC ID: BKMAE-RC4261804 Applicant: Seiko Epson Corporation Address of Applicant: 3-3-5,Owa,Suwa-shi,Nagano-ken 392-8502 Japan Factory: WUJIANG CENTURY BILLION ELECTRONIC TECHNOLOGY CO., LTD Address of Factory: No.149 West Tun Cun Road Tongli Town Wujiang Suzhou Jiangsu People's Republic of China 215216 Equipment Under Test (EUT): EUT Name: REMOTE CONTROLLER Model No.: RC4261804 Add Model No.: RC4261804/01R, RC4261805/01R, RC4261806/01R, RC426XXXX/XXR, RC426XXXX/XXBR ("X"=0-9."B"means packed with battery) Trade mark: EPSON Standard(s) : FCC Rules 47 CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2020-07-28 Date of Test: 2020-07-29 to 2020-08-12 Date of Issue: 2020-08-13 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700632302 Page: 2 of 7 Revision Record Version Description Date Remark 00 Original 2020-08-13 / Authorized for issue by: Bill Wu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700632302 Page: 3 of 7 2 Contents Page 1 COVER PAGE................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION .......................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 4 3.2 DETAILS OF E.U.T. .................................................................................................................................. 4 3.3 TEST LOCATION ....................................................................................................................................... 5 3.4 TEST FACILITY .......................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS .......................................................................... 6 5 MEASUREMENT AND CALCULATION .................................................................................................... 7 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 7 5.2 RF EXPOSURE CALCULATION ................................................................................................................. 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700632302 Page: 4 of 7 3 General Information 3.1 General Description of E.U.T. Power supply: DC 3V by 2*AAA size batteries Serial Number: 000121 Firmware Version: V0.9 3.2 Details of E.U.T. Antenna Gain: 0dBi Antenna Type: Integral Antenna Bluetooth Version: V4.2 LE Data rate: 1Mbps Channel Spacing: 2MHz Modulation Type: GFSK Number of Channels: 40 Operation Frequency: 2402MHz to 2480MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700632302 Page: 5 of 7 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • NVLAP (LAB CODE: 201034-0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP). • FCC (Designation Number: CN5033) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been recognized as an accredited testing laboratory. Test Firm Registration Number: 479755. • ISED (CAB Identifier: CN0020) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. EMC Laboratory has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. ISED#: 8617A. • VCCI (Member No.: 3061) The 3m Semi-anechoic chamber and Shielded Room of SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-13868, C-14336, T-12221, G-10830 respectively. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700632302 Page: 6 of 7 4 Test S…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700632301 Page: 1 of 47 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM2007006323CR FCC ID: BKMAE-RC4261804 Applicant: Seiko Epson Corporation Address of Applicant: 3-3-5,Owa,Suwa-shi,Nagano-ken 392-8502 Japan Factory: WUJIANG CENTURY BILLION ELECTRONIC TECHNOLOGY CO., LTD Address of Factory: No.149 West Tun Cun Road Tongli Town Wujiang Suzhou Jiangsu People's Republic of China 215216 Equipment Under Test (EUT): EUT Name: REMOTE CONTROLLER Model No.: RC4261804, RC4261804/01R, RC4261805/01R, RC4261806/01R, RC426XXXX/XXR, RC426XXXX/XXBR ("X"=0-9."B"means packed with battery) ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: EPSON Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-07-28 Date of Test: 2020-07-29 to 2020-08-12 Date of Issue: 2020-08-13 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700632301 Page: 2 of 47 Revision Record Version Description Date Remark 00 Original 2020-08-13 / Authorized for issue by: Bill Wu / Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700632301 Page: 3 of 47 2 Test Summary Item FCC Requirement Method Result Antenna Requirement 47 CFR Part 15, Subpart C 15.203 & 15.247(c) N/A Customer Declaration N/A: Not applicable Item FCC Requirement Method Result Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247a(2) ANSI C63.10 (2013) Section 11.8.1 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247(b)(3) ANSI C63.10 (2013) Section 11.9.1 Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247(e) ANSI C63.10 (2013) Section 11.10.2 Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247(d) ANSI C63.10 (2013) Section 11.13.3.2 Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247(d) ANSI C63.10 (2013) Section 11.11 Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.209 & 15.247(d) ANSI C63.10 (2013) Section 6.10.5 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.209 & 15.247(d) ANSI C63.10 (2013) Section 6.4,6.5,6.6 Pass Declaration of EUT Family Grouping: Note: There are series models mentioned in this report, and they are the similar in electrical and electronic characters. Only the model RC4261804 was tested since their differences were the model number and appearance. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700632301 Page: 4 of 47 3 Contents Page 1 COVER PAGE ............................................................................................................................................. 1 2 TEST SUMMARY ......................................................................................................................................... 3 3 CONTENTS .................................................................................................................................................. 4 4 GENERAL INFORMATION ......................................................................................................................... 5 4.1 DETAILS OF E.U.T. ................................................................................................................................ 5 4.2 DESCRIPTION OF SUPPORT UNITS........................................................................................................... 5 4.3 POWER LEVEL SETTING USING IN TEST: ................................................................................................... 5 4.4 MEASUREMENT UNCERTAINTY ................................................................................................................ 5 4.5 TEST LOCATION ..................................................................................................................................... 7 4.6 TEST FACILITY ....................................................................................................................................... 7 4.7 DEVIATION FROM STANDARDS ................................................................................................................ 7 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................... 7 5 EQUIPMENT LIST ....................................................................................................................................... 8 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ................................................................................... 9 6.1 ANTENNA REQUIREMENT ........................................................................................................................ 9 7 RADIO SPECTRUM MATTER TEST RESULTS ...................................................................................... 10 7.1 MINIMUM 6DB BANDWIDTH ................................................................................................................... 10 7.2 CONDUCTED PEAK OUTPUT POWER ..................................................................................................... 11 7.3 POWER SPECTRUM…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 4 Page 1 of 4 Test Setup Photos-FCC Applicant: Seiko Epson Corporation Address of Applicant: 3-3 -5,Owa,Suwa-shi,Nagano-ken 392-8502 Japan Equipment Under Test (EUT): Product Name: REMOTE CONTROLLER Model No.: RC4261804 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS .......................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ......................................................... 3 2.1 Radiated Emission Test Setup ...................................................................... 3 2.2 RF Conducted Test Setup ............................................................................. 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 4 Page 3 of 4 2 EQUIPMENT UNDER TEST PICTURES 2.1 Radiated Emission Test Setup 30MHz to 1GHz Above 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 4 Page 4 of 4 Zoom: 2.2 RF Conducted Test Setup End
