BKMAE-STI6200WLAN/BT Module

1 SMF2 WW/CN STI6 200 -D101(RoHS) Specification Rev. 0.3 (2020.7.22) 2 Table of Contents Revision History ............................................................................................................................................................... 3 Chapter 1. Application Outline and Scope ................................................................................................................... 4 Chapter 2. Hardware Specifications ............................................................................................................................. 5 2.1 Wi-Fi / Bluetooth / Antenna Specifications ............................................................................................................ 5 2.2 Antenna Information ............................................................................................................................................. 13 2.3 Global Compliance ............................................................................................................................................... 13 Chapter 3. Software Specifications .............................................................................................................................. 14 3.1 Launcher ............................................................................................................................................................... 14 3.2 OTA function ........................................................................................................................................................ 14 Chapter 4. Statement .................................................................................................................................................... 15 3 Revision History Revision Date Modified descriptions 0.1 2020. 1. 30 Preliminary version. 0.2 2020.4.30 Chapter structure changed 0.3 2020.7.22 Antenna Information added 4 Chapter 1. Application Outline and Scope SMF2 is an internet multi-stream interactive decoder. Mainly for Epson projector user entertainment usage. The main system CPU is a quad-core ARM Cortex-A53 CPU to improve decoder performance. An ARM G31 MP2 GPU handles all OpenGL ES 3.2 Vulkan 1.0 and OpenCL 2.0 graphic programs. The decoder supports multiple video/audio formats decoding such as MPEG-2 AV C /H.264 HEVC/H.265/MP3/AAC/RM/FLAC/Ogg/Dolby Digital / programmable with 7.1/5.1 down-mixing a Wi-Fi and Bluetooth module embedded. It supports globe WLAN standard and connects to internet to provide rich multi-media streaming experience. A remote control that meets ATV criteria and be able to connect decoder and control menu and programs selections. Displays up to 4K though HDMI 2.1. Android TV is build-in ATV standard launcher. The most popular entertainment apps (Amazon/Mango TV) which are pre-loaded allows to free upgrade. Detail description related to hardware/software/mechanical/quality are found in following chapters. 5 Chapter 2. Hardware Specifications 2.1 Wi-Fi / Bluetooth / Antenna Specifications 2.1.1 Wi-Fi (2.4G RF Specification) 6 7 2.1.2 Wi-Fi (5G RF Specification) 8 9 10 11 12 2.1.3 Bluetooth Specification 13 2.2 Antenna Information This module has been approved to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna Type Model Number Connector Gain(dBi) 2.4G 5G BT HONGBO 290-40488I- Pex2.34 5.29 - HONGBO 290-40488I- Pex2.74 4.50 2.74 2.3 Global Compliance Country Authorization Europe CE USA FCC Candan IC Japan VCCI JRF JRF JRF JRF JPA Aus/New Zealand RCM Taiwan NCC Brazil( 2 years) ANATEL Mexico (1 year) IFETEL India WPC Safety +EMC China SRRC (End product) Korea KC Argentina ENACOM Indonesia SDPPI (End Product) Chile SUBTEL Others including: Singapore / Thailand / Malaysia / Philippines / UAE / Israel / Vietnam / South Africa 14 Chapter 3. Software Specifications 3.1 Launcher 3.2 OTA function SMF2 is able to upgrade the FW by OTA method. Please refer to the OTAProcess (file name) to confirm the OTA process and manage process. 15 Chapter 4. Statement FCC Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled e…

Text truncated - open the document above for the full version.

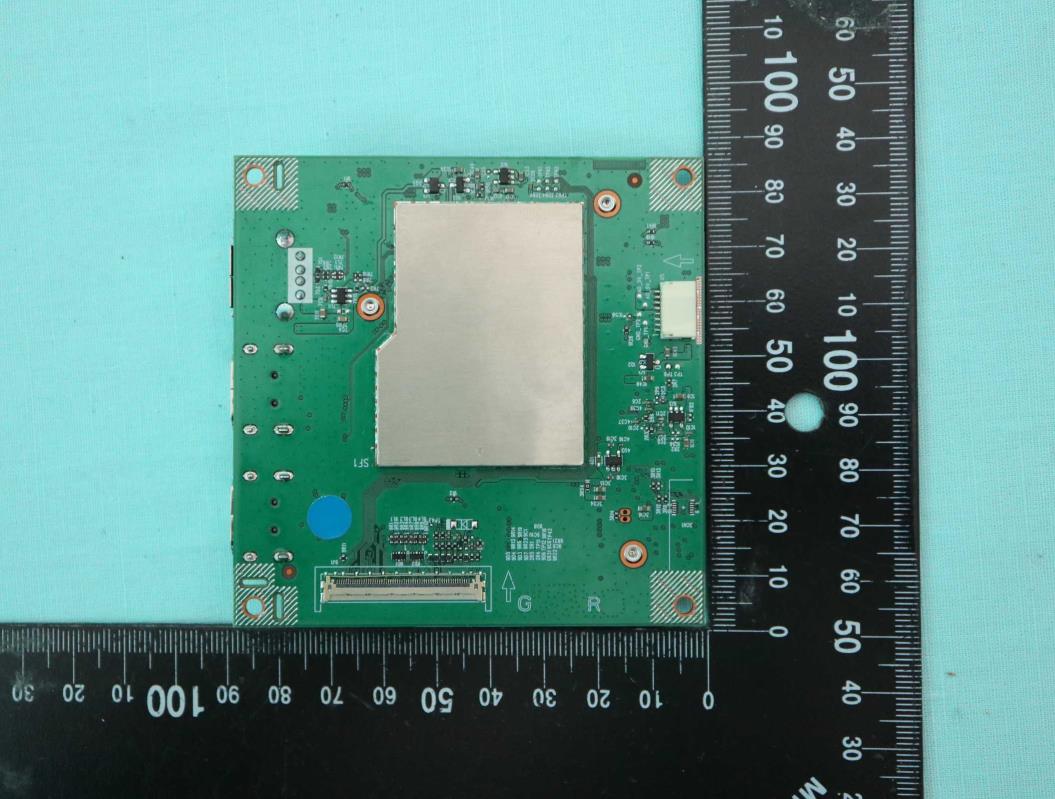

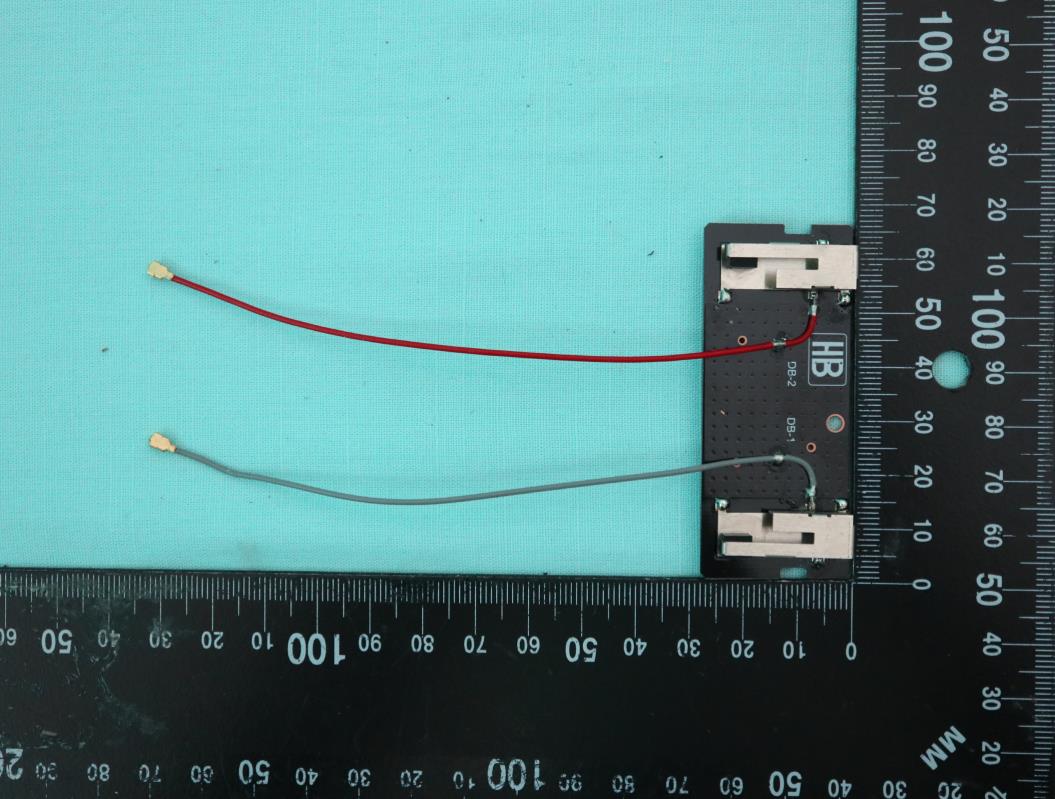

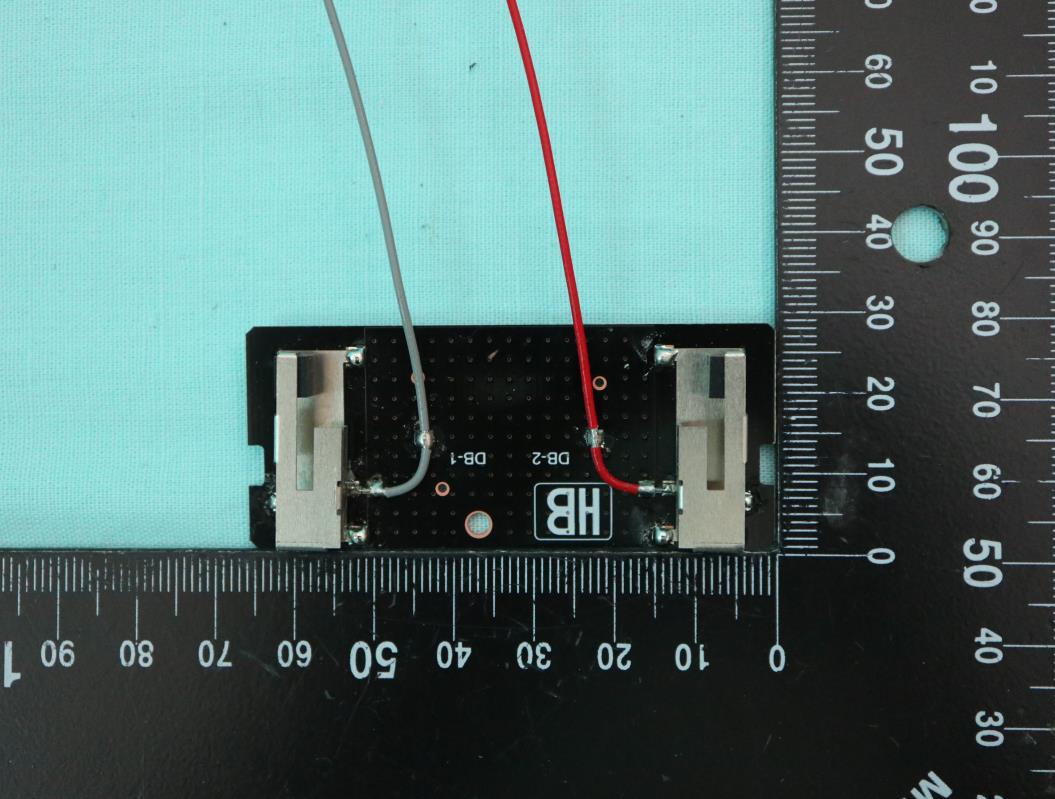

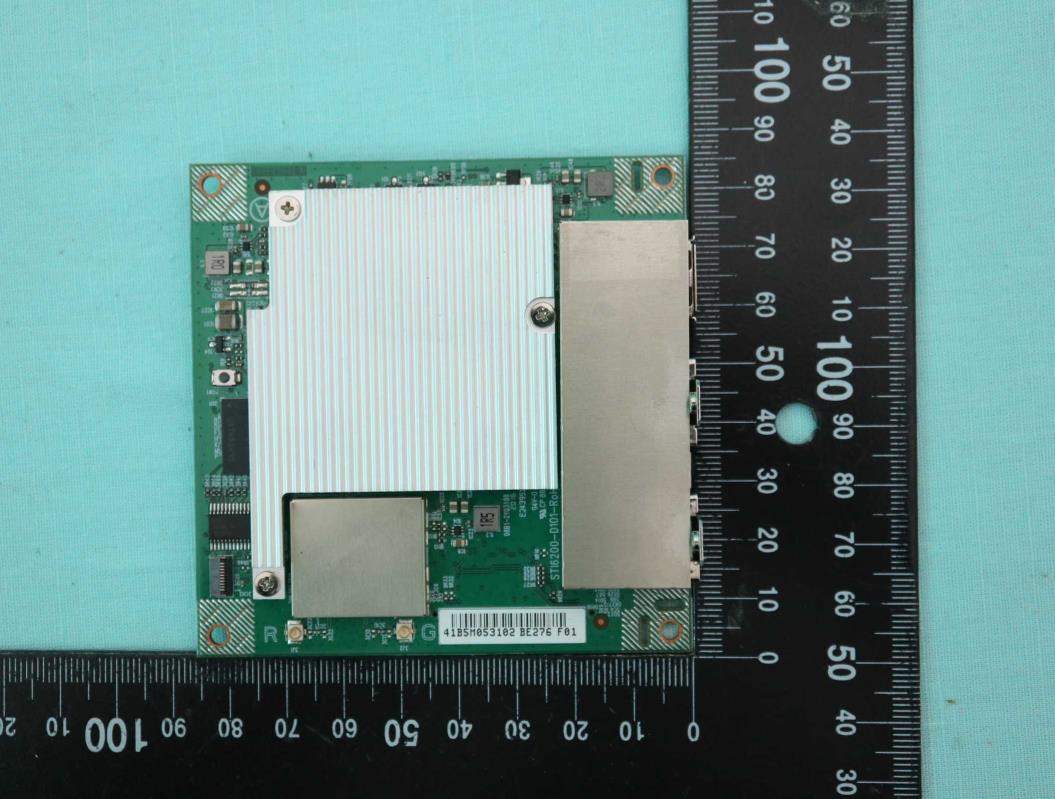

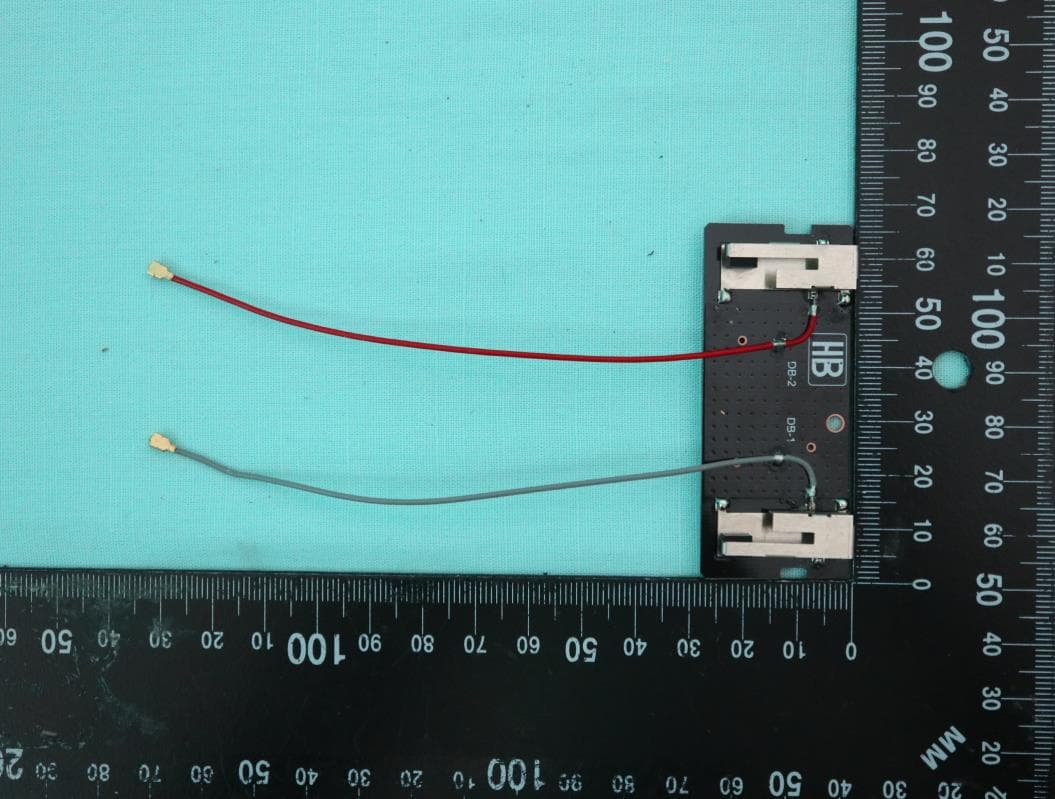

Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 1 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 2 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 3 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 15 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 16 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 17 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 DB1 Antenna Brand Name: HONGBO Model Name: 290-40488 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 18 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 DB2 Antenna Brand Name: HONGBO Model Name: 290-40488 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 19 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 20 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 ─────THE END────

Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 3 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 4 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 5 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 6 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 7 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 8 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 9 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 10 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 11 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 12 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 13 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 14 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 15 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 16 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 17 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 DB1 Antenna Brand Name: HONGBO Model Name: 290-40488 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 18 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 DB2 Antenna Brand Name: HONGBO Model Name: 290-40488 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 19 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 Photographs of EUT Report No. : EP070125 SPORTON International Inc. Page No. : 20 of 20 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jul. 16, 2020 ─────THE END────

Radio Exposure Evaluation Report Report No. : FA070125 TEL : 886-3-327-3456 Page Number : 1 of 7 FAX : 886-3-327-0973 Issued Date : Jul. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: BKMAE-STI6200 Radio Exposure Evaluation Report FCC ID : BKMAE-STI6200 Equipment : WLAN/BT Module Brand Name : EPSON Model Name : STI6200-D101 Applicant : SEIKO EPSON CORPORATION 3-3-5 Owa Suwa-shi Nagano-ken 392-8502 Japan Manufacturer : SEIKO EPSON CORPORATION 6925 Tazawa, Toyoshina Azumino-shi, Nagano 399-8285 Japan Standard : 47 CFR Part 2.1091 The product was received on Jun. 30, 2020, and testing was started from Jul. 06, 2020 and completed on Jul. 15, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR Part 2.1091 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of United States government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA070125 TEL : 886-3-327-3456 Page Number : 2 of 7 FAX : 886-3-327-0973 Issued Date : Jul. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: BKMAE-STI6200 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Testing Location ..................................................................................................................................... 5 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 6 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 6 2.2 MPE Calculation Method ........................................................................................................................ 6 2.3 Calculated Result and Limit .................................................................................................................... 7 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA070125 TEL : 886-3-327-3456 Page Number : 3 of 7 FAX : 886-3-327-0973 Issued Date : Jul. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: BKMAE-STI6200 History of this test report Report No. Version Description Issued Date FA070125 01 Initial issue of report Jul. 21, 2020 Radio Exposure Evaluation Report Report No. : FA070125 TEL : 886-3-327-3456 Page Number : 4 of 7 FAX : 886-3-327-0973 Issued Date : Jul. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: BKMAE-STI6200 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. Reviewed by: Sam Tsai Report Producer: Ann Hou Radio Exposure Evaluation Report Report No. : FA070125 TEL : 886-3-327-3456 Page Number : 5 of 7 FAX : 886-3-327-0973 Issued Date : Jul. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: BKMAE-STI6200 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 5GHz WLAN 5150-5250 5725-5850 5180-5240 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) Bluetooth 2400-2483.5 2402-2480 BR / EDR: FHSS (GFSK / π/4-DQPSK / 8DPSK) LE: DSSS (GFSK) 1.2 Testing Location Testing Location HWA YA ADD : No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 FAX : 886-3-327-0973 Test site Designation No. TW1190 with FCC. JHUBEI ADD : No.8, Ln. 724, Bo'ai St., Zhubei City, Hsinchu County, Taiwan (R.O.C.) TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Radio Exposure Evaluation Report Report No. : FA070125 TEL : 886-3-327-3456 Page Number : 6 of 7 FAX : 886-3-327-0973 Issued Date : Jul. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: BKMAE-STI6200 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR070125AN TEL : 886-3-3273456 Page Number : 1 of 25 FAX : 886-3-3270973 Issued Date : Jul. 24, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 02 FCC ID: BKMAE-STI6200 FCC Test Report FCC ID : BKMAE-STI6200 Equipment : WLAN/BT Module Brand Name : EPSON Model Name : STI6200-D101 Applicant : SEIKO EPSON CORPORATION 3-3-5 Owa Suwa-shi Nagano-ken 392-8502 Japan Manufacturer : SEIKO EPSON CORPORATION 6925 Tazawa, Toyoshina Azumino-shi, Nagano 399-8285 Japan Standard : 47 CFR FCC Part 15.407 The product was received on Jun. 30, 2020, and testing was started from Jul. 06, 2020 and completed on Jul. 15, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) FCC Test Report Report No. : FR070125AN TEL : 886-3-3273456 Page Number : 2 of 25 FAX : 886-3-3270973 Issued Date : Jul. 24, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 02 FCC ID: BKMAE-STI6200 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 8 1.3 Testing Location Information .................................................................................................................. 8 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 Test Condition ........................................................................................................................................ 9 2.2 Test Channel Mode ................................................................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Accessories .......................................................................................................................................... 11 2.5 Support Equipment ............................................................................................................................... 11 2.6 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 Emission Bandwidth ............................................................................................................................. 16 3.3 Maximum Conducted Output Power .................................................................................................... 17 3.4 Peak Power Spectral Density ............................................................................................................... 19 3.5 Unwanted Emissions ............................................................................................................................ 21 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 25 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF EMISSION BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF PEAK POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF UNWANTED EMISSIONS APPENDIX F. TEST RESULTS OF RADIATED EMISSION CO-LOCATION APPENDIX G. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Test Report Report No. : FR070125AN TEL : 886-3-3273456 Page Number : 3 of 25 FAX : 886-3-3270973 Issued Date : Jul. 24, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 02 FCC ID: BKMAE-STI6200 History of this test report Report No. Version Description Issued Date FR070125AN 01 Initial issue of report Jul. 21, 2020 FR070125AN 02 Revised typo (This report is the latest version replacing for the report issued on Jul. 21, 2020.) Jul. 24, 2020 FCC Test Report Report No. : FR070125AN TEL : 886-3-3273456 Page Number : 4 of 25 FAX : 886-3-3270973 Issued Date : Jul. 24, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 02 FCC ID: BKMAE-STI6200 Summary of Test Result Report Clause Ref. Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement P…

Text truncated - open the document above for the full version.

Test Photos Appendix G SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : G1 of G4 070125 1. Photographs of Conducted Emissions Test Configuration Front view Side view Test Photos Appendix G SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : G2 of G4 070125 Under table view Test Photos Appendix G SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : G3 of G4 070125 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Test Photos Appendix G SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : G4 of G4 070125 For radiated emissions above 1GHz Front view Rear view ─────THE END─────
