BKMAP001Runner's tool with GPS function

Thi Ca n USA The Can s Runn e nada. Ho A and Ca erefore th nada. er’s tool owever, u anada. here is no with G P users of t o existing PS funct this equi g user m tion is n ipment a anual for ot sold i are possib r market in USA ble to us t in USA and se in and

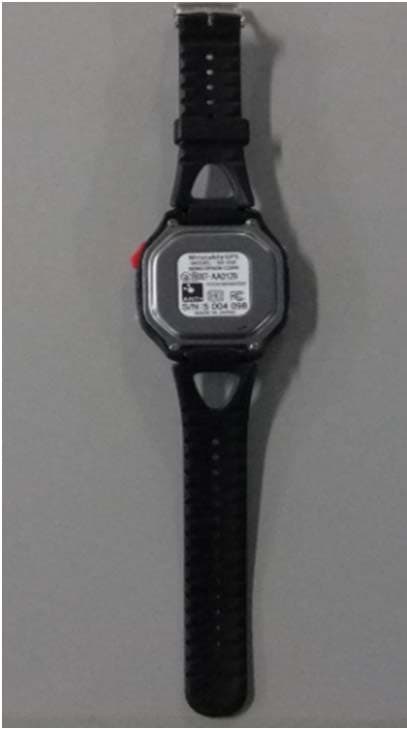

Not for sale:This is sample WristableGPS （Runner's tool with GPS function） Whole picture Back Front

FCC 20ｍｍ C LABE ｍ EL 20ｍ ｍ

※Model SS-700 uses the same board Front and the back of the radio circuit board Front Picture Antenna Ｂａｃｋ picture Internal product photograph WristableGPS （Runner's tool with GPS function）

Test report No. : 32IE0296-SH-01-A Page : 2 of 19 Issued date : June 29, 2012 Revised date : July 24, 2012 FCC ID : BKMAP001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32IE0296-SH-01-A Revision Test report No. Date Page revised Contents - (Original) 32IE0296-SH-01-A June 29, 2012 - - 1 32IE0296-SH-01-A July 20, 2012 1-2 4-5 6, 9, 11 13-15 P1-2: Update P4-5: Deletion of photo P6, 9, 11: Modification caused by data correction P13-15: Correction of data 2 32IE0296-SH-01-A July 24, 2012 1-2 6, 9, 11 14-15 P1-2: Update P6, 9, 11: Modification caused by data correction P14-15: Correction of data Test report No. : 32IE0296-SH-01-A Page : 3 of 19 Issued date : June 29, 2012 FCC ID : BKMAP001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 6 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Radiated emission ............................................................................................ 9 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ......................................... 10 Contents of APPENDIXES ................................................................................................... 11 APPENDIX 1: Test data ...................................................................................................... 12 APPENDIX 2: Test instruments .......................................................................................... 17 APPENDIX 3: Photographs of test setup ............................................................................ 18 Test report No. : 32IE0296-SH-01-A Page : 4 of 19 Issued date : June 29, 2012 Revised date : July 20, 2012 FCC ID : BKMAP001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Seiko Epson Corporation Address : 6925 Toyoshina-tazawa, Azumino-shi, Nagano-ken 399-8285 Japan Telephone Number : +81-263-73-5795 Facsimile Number : +81-263-73-5795 Contact Person : Manabu Komiyama SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Runner's tool with GPS function Model No. : SS-500 Serial No. : Refer to 4.2 of this report. Rating : DC3.7V Receipt Date of Sample : June 8, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Test report No. : 32IE0296-SH-01-A Page : 5 of 19 Issued date : June 29, 2012 Revised date : July 20, 2012 FCC ID : BKMAP001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 2.2 Product description Model: SS-500 (referred to as the EUT in this report) is a Runner's tool with GPS function. Clock frequency(ies) in the system : 16MHz Radio specification Equipment type : Transceiver Frequency of operation : 2457MHz Type of modulation : GFSK Antenna type : Chip Antenna connector type : None Operation temperature range : -5 to +50 deg.C. ITU code : F1D FCC 15.31 (e) This EUT provides stable voltage (DC3.0V and DC1.8V) constantly to RF transmitter regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement. Derived models of the EUT: SS-700 - Modules are common. Form and the colors of the case are different. (SS-500: Square type, SS-700: Round type) - The difference of appearance does not affect to the radio function. Test report No. : 32IE0296-SH-01-A Page : 6 of 19 Issued date : June 29, 2012 Revised date : July 24, 2012 FCC ID : BKMAP001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012, final revised on May 17, 2012 and effective June 18, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.249 Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz, and 24.0-24.25GHz *The revision on May 17, 2012 does not affect the test specification applied to the EUT. The EUT complies with FCC Part 15 Subpart B. Refer to the test report: 32IE0296-SH-01-B. 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.207 - N/A *1) N/A N/A 20dB bandwidth ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.215 ConductedN/A - - Electric field strength of fundamental emission ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.249 (a)(e), 15.209 Radiated N/A 11.0dB (for Average Limit) *3) Detector: Peak Polarization: Vertical Complied Electric field strength of spurious emission ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.205 (a)(b), 15.209, 15.249 (a)(d)(e) Radiated N/A 0.3dB (for Average Limit) *3)…

Text truncated - open the document above for the full version.

Test report No.: 32IE0296-SH-01-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front Rear 9kHz - 30MHz 30 - 1000MHz above 1GHz 18 Test report No.: 32IE0296-SH-01-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis 19/19
