BKMAP005Heart Rate Activity Monitor

©2014 Seiko Epson Corporation. All rights reserved. February 2014 printed in Japan. Thank you very much for purchasing the PS-100 Series. Read this guide carefully to use this product correctly. This guide describes how to set up and configure the product. See the User's Guide for more detailed information. You can download the guide from the following address. http://www.epson.jp/support/ It is prohibited to copy part or all of this guide without permission. Contact your store of purchase if there are any missing or damaged components. This product Charging cradleQuick Start Guide (this document) Warranty Booklet The AC adaptor is optional. Purchase separately if required. Checking the Package Contents 1. For Your Safety Before Getting Started Quick Start Guide Make sure you read the manuals (this document and the electronic manual "User's Guide") first to use this product safely. The product may malfunction, or an accident may occur if it is handled incorrectly. • Keep the manuals handy to help you resolve any problems. • When taking this product out of the country of purchase, check the laws and regulations in the destination country before you travel. • This product is not a medical device. Use this product as an indicator during physical exercise. Meaning of Symbols Manuals for this product use the following symbols to warn against dangerous operations and handling to prevent personal injury and property damage. Understand the meaning of the symbols before reading the explanation. Warning Ignoring this warning may cause serious personal injury or death. Caution Ignoring this warning may cause personal injury or property damage. This symbol indicates things you must do. This symbol indicates things you must not do. PS-100 Series Notes on Using PS-100 Series and Components Warning Exercise according to your physical condition. Avoid sudden bursts of activity and overly vigorous exercise. Stop exercising and consult your doctor if you feel unwell during exercise. This product is a highly accurate sensor and able to measure your pulse rate; however, this is not a medical device. If you have any concerns, consult our information center before using this product. Do not look at this product constantly while walking or exercising. You may fall or have an accident. Be aware of your surroundings. This product is composed of precision equipment and electronic parts. Do not use or store this product in the following environments. It may cause an electric shock or fire, or the product may malfunction or breakdown. • Locations where the temperature and humidity vary widely • Near volatile substances • Sooty or dusty places • Near a fire • Near a strong magnetic field (for example, near a speaker) Do not disassemble this product, and do not attempt to repair this product by yourself. It may cause an electric shock or accident. Do not leave this product within reach of young children. Caution Stop using the product immediately and consult your doctor if you have an allergic reaction or a rash while wearing it. Do not hold this product directly under a tap. Steam, soap, and hot spring agents may compromise the waterproof feature or cause corrosion. Notes on Using the Charging Cradle Warning Beware of the following when using the charging cradle, AC adaptor, and USB cable. Failure to note the following may result in an electric shock, a fire, or a malfunction. • Do not connect or disconnect the power cord with wet hands. • Do not use a damaged AC adaptor or USB cable. • Do not use them when they are emitting smoke or an unusual smell, or making noise. • Do not use them when any foreign substances or liquid such as water enters them. • Do not use the USB cable when any foreign substances such as dust is on the terminals. • Do not use any adaptor other than the specified adaptor for charging. Notes on Taking Care of PS-100 Series Do not attach the charging cradle when the product is wet. It may cause corrosion of the terminal section or a malfunction. When the product is wet from water or sweat, wipe it with a damp cloth, remove the moisture with a towel, and then dry naturally before attaching the charging cradle. 2. Wearing PS-100 Series Wear the product closely around your wrist without slack. Tighten the wristband if your pulse is not measured correctly while exercising. 1. Measure the circumference of your wrist, for example, using a string. Measure the circumference closely at the position indicated in the illustration without touching the ulna bone. 2. Place the string on the "Wristband adjustment hole finder" to find the hole number. Ulna S1S3S5S7S9L2L4L6L8L10 S2S4S6S8L1L3L5L7L9L11 0140102030405060708090100110120130150160170180190200210 mm Example: A piece of string that measures the circumference of your wrist. Align the end of the string to 0mm.Use hole number S8 Wristband adjustment hole finder 3. Unfasten the buckle of the wristband as shown below. 4. Insert the band fastener into the hole number you checked in step 2. 5. Put your hand through the wristband and fasten the buckle. When wearing the product, make sure it does not touch the ulna bone. Move the band fastener to a smaller hole number if the wristband is loose. Band fastener Insert the band fastener into the wristband adjustment hole Hole number Sensor (reads your pulse on the back of your wrist) Ulna 5. Contact Us 6. Service and Repair 4. Initial Configuration 3. Using PS-100 Series for the First Time 3. Detach the charging cradle from the product when charge is complete. Detach them by opening the part indicated with outwards and push the product from the other side. Charge the product as shown below when using it for the first time. The product turns on when charged. Make sure that charging is complete. 1. Attach the charging cradle to the product. A Align the EPSON logos on the product and charging cradle and tilt the product as shown. B Insert the protruding latch on the charging cradle into the hole on the side of the produ…

Text truncated - open the document above for the full version.

FCC/INDUSTRY CANADA NOTICE This device complies with Part 15 of FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against armful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note: This transmitter must not be co-located or operated in onjunction with any other antenna or transmitter. Note: FCC/INDUSTRY CANADA Radiation Exposure Statement: This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). FCC CAUTION Changes or modifications not expressly approved by Applicant's responsible for compliance could void the user's authority to operate the equipment. Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation du débit d’absorption spécifique (DAS).

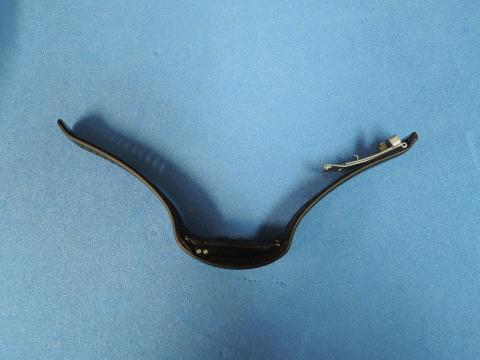

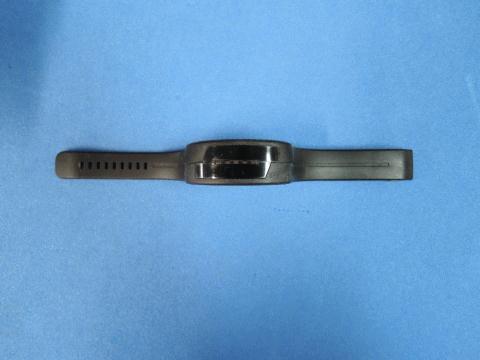

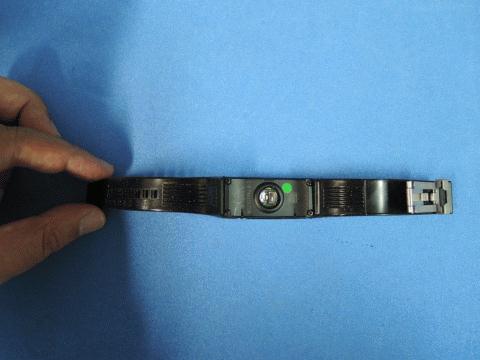

External Photographs of PS-100 <Front view> <Rear View> <Side view –Left side> <Side view –Right side>

Label information Label layout Location of label Above label is impressed on the wrist band. Note) Model name of this device can be found on the backside. Please refer to following picture.

Internal Photographs of PS-100 <Internal of enclosure> <Under the PWB (around of antenna)> <Top side of PCB> <Back side of PCB>

UL Japan, Inc. Head Office EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp January 29, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: BKMAP005 To whom it may concern, We, UL Japan, Inc, hereby declare that Heart Rate activity monitor, model: PS-100 (FCC ID: BKMAP005) of Seiko Epson Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(V05). KDB 447498D01(V05) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5mm was used in the calculation) and the maximum tune-up tolerance limit was 1.0 mW So for this device: 1.0 mW[maximum tune-up tolerance limit]/5mm[minimum separation distance]*√2.48 = 0.31 *This is less than 3.0, so no SAR is required. Thank you for your attention to this matter. Masanori Nishiyama Manager of Head Office EMC Lab. WiSE Japan UL Verification Service UL Japan, Inc.

Test report No. : 10085326H-A-R2 Page : 2 of 32 Issued date : January 29, 2014 Revised date : April 11, 2014 FCC ID : BKMAP005 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10085326H-A Revision Test report No. Date Page revised Contents - (Original) 10085326H-A January 29, 2014- - 1 10085326H-A-R1 April 10, 2014 P.1, 5 Update of FCC15 version 1 10085326H-A-R1 April 10, 2014 P.5 Correction of FCC 15.31 (e) sentence 1 10085326H-A-R1 April 10, 2014 P.18, 20 Addition of explanatory note for test data 1 10085326H-A-R1 April 10, 2014 P.21, 27 Addition of test date, test engineer, test environment, and test mode 2 10085326H-A-R2 April 11, 2014 P.1 Correction of date of test 2 10085326H-A-R2 April 11, 2014 P.22-25, 27 Correction of test date Test report No. : 10085326H-A-R2 Page : 3 of 32 Issued date : January 29, 2014 Revised date : April 11, 2014 FCC ID : BKMAP005 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 14 Maximum Peak Output Power .......................................................................................................... 16 Radiated Spurious Emission ............................................................................................................. 18 Conducted Spurious Emission .......................................................................................................... 22 Power Density ................................................................................................................................... 25 99%Occupied Bandwidth ................................................................................................................. 27 APPENDIX 2: Test instruments ............................................................................................................. 28 APPENDIX 3: Photographs of test setup ............................................................................................... 30 Conducted Emission ......................................................................................................................... 30 Radiated Spurious Emission ............................................................................................................. 31 Worst Case Position .......................................................................................................................... 32 Test report No. : 10085326H-A-R2 Page : 4 of 32 Issued date : January 29, 2014 Revised date : April 11, 2014 FCC ID : BKMAP005 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Seiko Epson Corporation Address : 3-3-5 Owa, Suwa-shi, Nagano-Ken, 392-8502 Japan Telephone Number : +81-266-61-0616 Facsimile Number : +81-266-61-2051 Contact Person : Naoshi Furuta SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Heart Rate activity monitor Model No. : PS-100 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC3.7V (Battery), AC100-240V, 50/60Hz (AC Adaptor) Receipt Date of Sample : December 18, 2013 Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 16MHz (for Bluetooth normal operation) 32.768kHz (for Bluetooth slow clock and MCU) Radio Specification Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : GFSK Bandwidth & Channel spacing : 1MHz & 2MHz Power Supply (radio part input) : DC1.2V Antenna Type : Printed inverted-F antenna Antenna Gain : -4dBi Test report No. : 10085326H-A-R2 Page : 5 of 32 Issued date : January 29, 2014 Revised date : April 11, 2014 FCC ID : BKMAP005 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2014, final revised on March 6, 2014 and effective April 7, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision o…

Text truncated - open the document above for the full version.

Test report No. : 10085326H-A-R2 Page : 30 of 32 Issued date : January 29, 2014 Revised date : April 11, 2014 FCC ID : BKMAP005 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10085326H-A-R2 Page : 31 of 32 Issued date : January 29, 2014 Revised date : April 11, 2014 FCC ID : BKMAP005 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10085326H-A-R2 Page : 32 of 32 Issued date : January 29, 2014 Revised date : April 11, 2014 FCC ID : BKMAP005 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Below 1GHz (Horizontal: with Cradle/ Vertical: with Cradle) Above 1GHz (Horizontal: Z/ Vertical: Y) X-axis with Cradle Y-axis Z-axis End of Report
