BKMAP007GPS Sports Monitor

Introduction Thank you very much for purchasing this GPS Sports Monitor "RUNSENSE". To use the device correctly, make sure you read the User Manual along with the supplied Quick Start Guide. Keep the supplied Quick Start Guide handy to help you resolve any problems. This device can measure three measure GPS functions of running distance, pace, and altitude, as well as elapsed time, and calories burnt. You can also upload recorded data to a dedicated website allowing you to look back over previous workouts. Descriptions in the User Manual c Important: Indicates things you must or must not do. Ignoring these instructions or mishandling this device could cause malfunction or operational problems to the device. Note: Indicates additional explanations and related information. Menu Name Indicates menu items displayed on the screen of the device. A/B/C/D Indicates the device buttons. U Indicates related pages. Click the link in blue text to display the related page. Trademarks EPSON and EXCEED YOUR VISION are registered trademarks of the Seiko Epson Corporation. Microsoft and Windows are registered trademarks of the Microsoft Corporation in the United States of America and other countries. The Bluetooth ® word mark and logos are the registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by the Seiko Epson Corporation is under licence. Other product names are the trademarks or registered trademarks of their respective companies. Caution: ❏Unapproved copying of part or all of this guide is strictly forbidden. ❏The content of this guide is subject to change without prior notice. ❏Although every effort has been made to ensure the accuracy of this guide, contact us if you have any questions or notice any errors in descriptions in the content of this guide. ❏Despite the preceding clause, we cannot accept any responsibility for mishandling due to errors in this guide. ❏We cannot accept any responsibility for malfunctions and so on that occur due to ignoring the content of this guide, the device being handled inappropriately, repairs or modifications performed by a third party that is not our company or appointed by our company. User Manual Introduction 2 Features Measurement function Allows you to measure running data such as distance and time. You can measure split and lap times, as well as using the GPS signal to measure distance and pace. U “Measuring Time, Distance, and Speed ” on page 34 Split Time: Elapsed time from the start Lap time: Time taken for each lap You can use the recall screen to check recorded measurement data. U “Checking Measurement Data” on page 44 Exercise measurement function Allows you to measure the burnt calories of all daily activities. Besides exercise, you can measure all burnt calories such as desk work, housework, sleeping, and so on. U “Checking Measurement Data” on page 44 Measure settings Allows you to change the measurement settings. ❏Automatically records laps when a distance set in advance has been reached (AT Lap function) U “Recording Laps Automatically (AT Lap Function)” on page 38 ❏Automatically stops measuring when you stop running, and resumes when you continue running (AT Pause function) U “Automatically Start/Stop Measuring (AT Pause Function)” on page 40 ❏Sets and measures the target time for one kilometre/mile (Target Pace function) U “Setting a Pace and Measuring (Target Pace Function)” on page 41 ❏Monitors heart rate with the heart rate monitor (Heart rate function) U “Measuring Heart Rate” on page 51 ❏You can change the items and layout of the measurement screen display (Screen settings function) U “Screen” on page 77 User Manual Introduction 3 Settings Allows you to change the settings for the device. ❏Communicates with external devices (Communication function) U “Comm. Settings” on page 74 ❏Adjusts the screen's contrast (Adjust contrast function) U “Sys. Settings” on page 75 ❏Turns on the light automatically when the screen changes (Auto Light function) U “Sys. Settings” on page 75 ❏Resets configuration information in the device's memory (Initialise function) U “Sys. Settings” on page 75 Other features ❏You can measure stride using the built-in stride sensor. U “Educating Your Stride Sensor” on page 31 ❏You can skip GPS positioning if it is taking too long. U “Skipping GPS positioning” on page 28 ❏You can take measurements without performing GPS positioning. U “Indoor mode” on page 29 ❏You can monitor, analyse, compare and share your recorded data using the dedicated Web application "RUNSENSE View". U “Data Management Using the Web Application (RUNSENSE View)” on page 55 User Manual Introduction 4 Contents Introduction Features................................. 3 Using this Device Safely Symbols in this Manual...................... 7 Notes on Usage............................ 8 Notes on using the product and components ..................................... 8 Notes on using the cradle.................. 8 Optional heart rate monitor................ 9 Notes on Electromagnetic Waves............... 9 Preparing and Basic Operations Checking the Items Provided................. 12 Basic Operations.......................... 13 Changing screens....................... 13 Function of each button.................. 15 Alarm................................ 19 Charging............................... 20 Before use............................. 20 Charging............................. 21 Initial Settings............................ 24 About the battery....................... 26 Specifying a GPS (GPS Positioning)............ 27 Measuring function for the device........... 27 GPS positioning........................ 28 Making precise measurements.............. 30 Educating Your Stride Sensor................ 31 About the stride sensor................... 31 Educating the stride sensor................ 31 Measurable Items......................... 32 Measure Measuring Time, Distance, and Speed .......... 34 What is the measurement function?.......... 34 M…

Text truncated - open the document above for the full version.

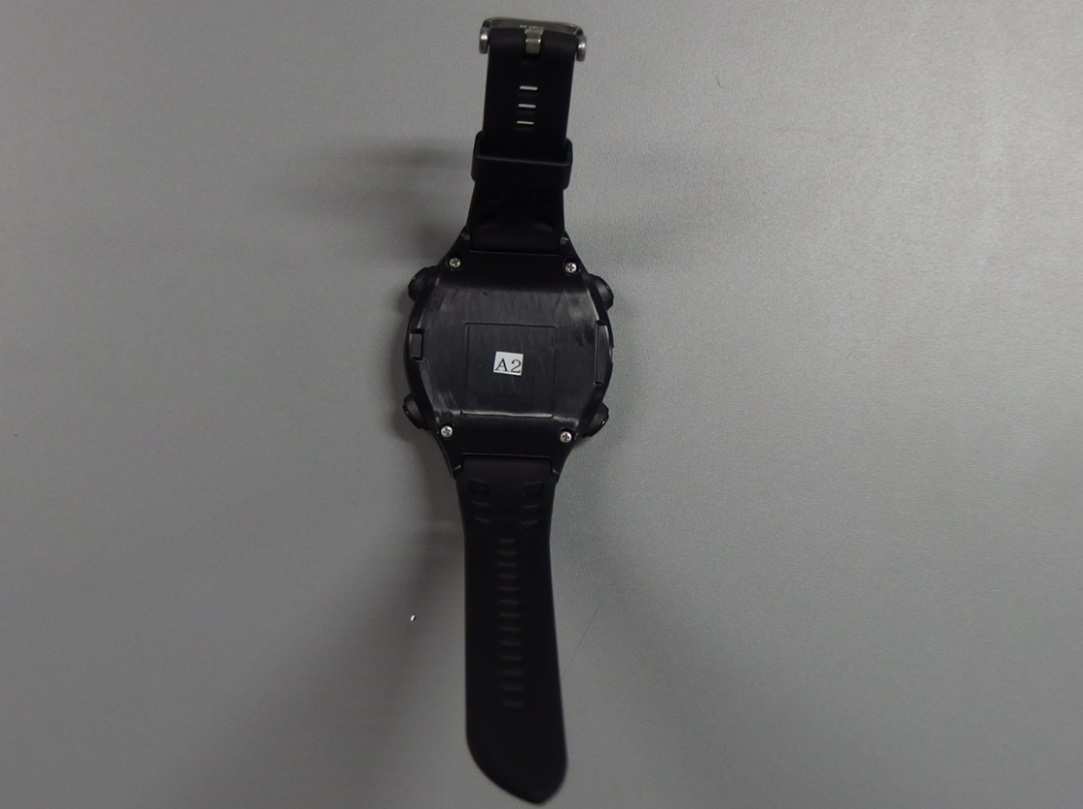

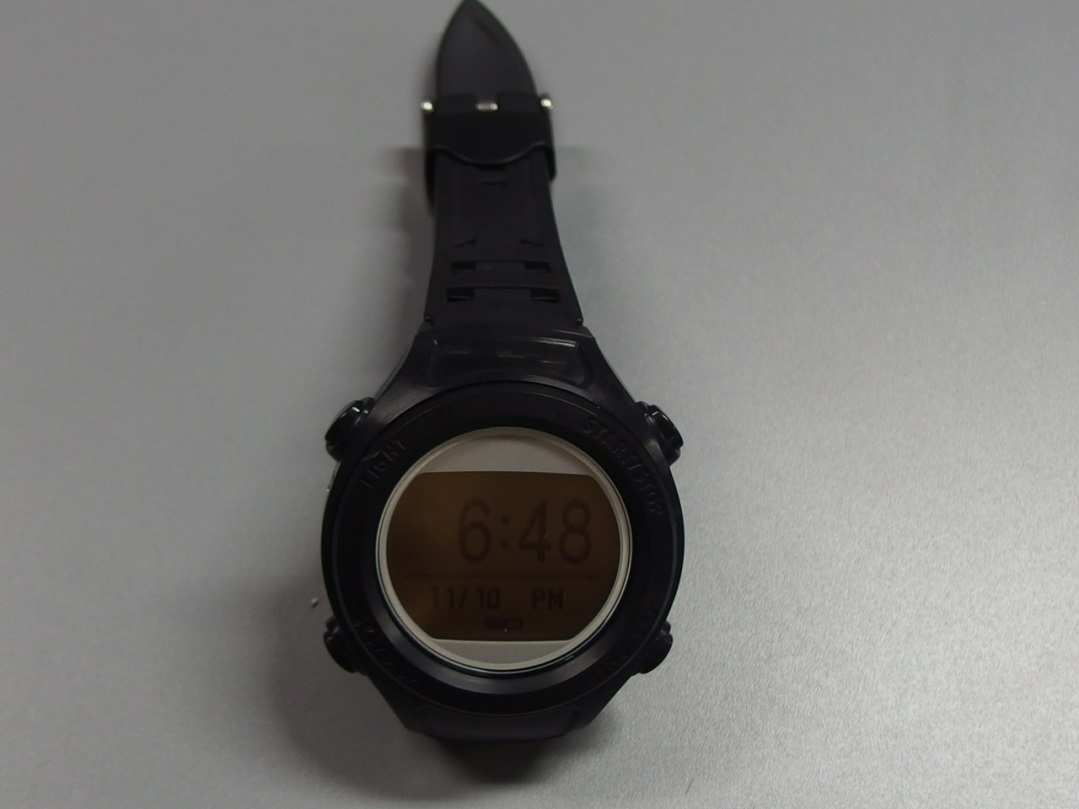

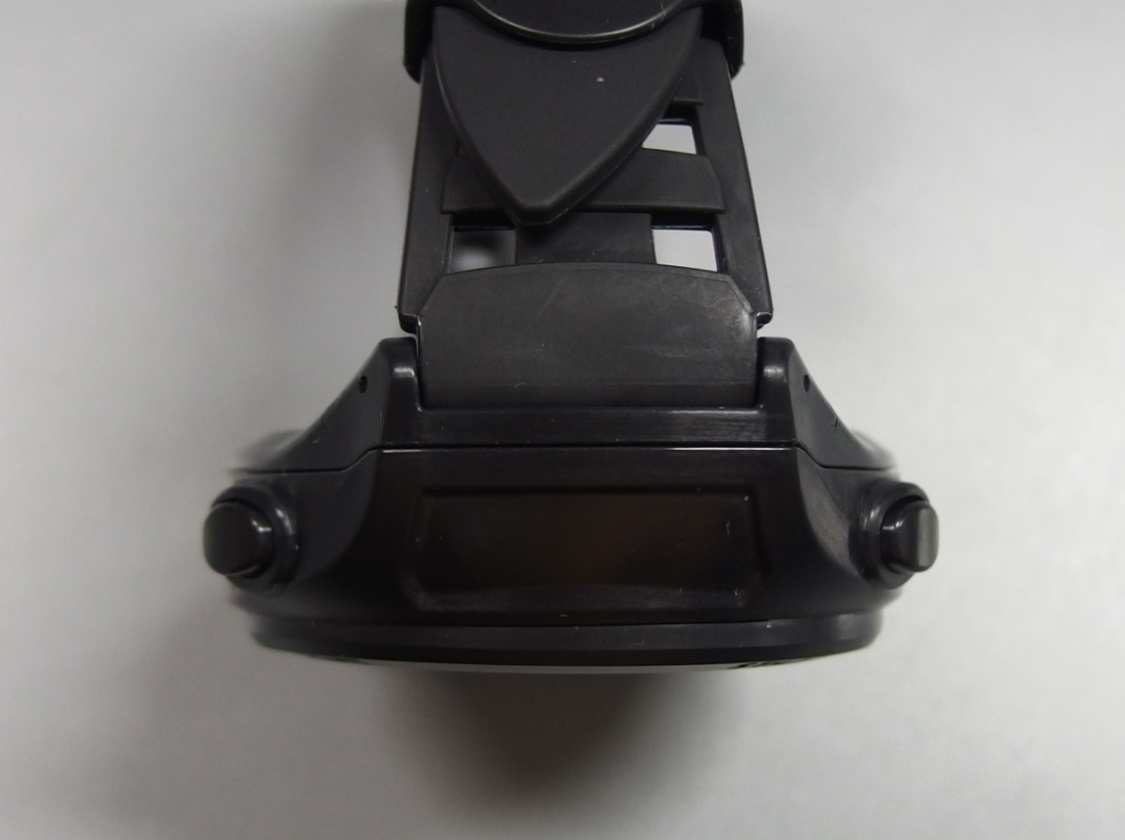

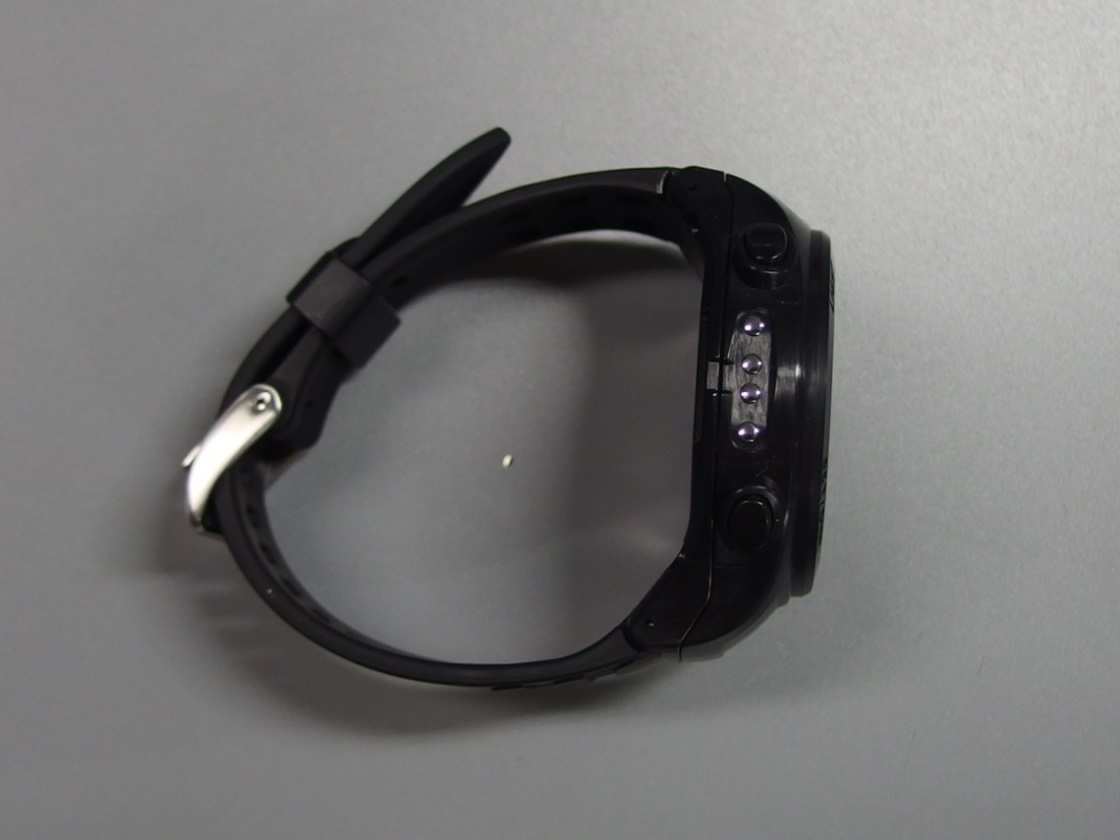

Front Rear Right Left Top Bottom

࣭Housing case color, black Labeling Position

Front Rear Antenna （BTLE） Antenna （GPS）

State within the case

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 January 15, 2015 UL Japan, Inc. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN FCC ID: BKMAP007 To whom it may concern, We, UL Japan, Inc., hereby declare that GPS Sports Monitor, model : SF-110 (FCC ID: BKMAP007) of SEIKO EPSON CORPORATION is exempt from RF exposure SAR evaluation as its outpu power meets the exclusion limits stated in FCC Part 2 §2.1093. KDB 447498D01(v05r02) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(measured maximum average output power(mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and <7.5 for 10g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are a pplicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the measured maximum average output power was 1 mW So for this device: 1 mW [measured maximum average output power] / 5 mm [minimum separation distance] * ( √ 2.48) = 0.3 *This is less than 3.0, so no SAR is required. Even takin g into account the tolerance, this device can be satisfied the limits. Thank you for your attention to this matter. Kenichi Adachi Engineer Consumer Technology Division UL Japan, Inc.

Test report No. : 10520101S-B Page : 2 of 26 Issued date : January 15, 2015 Revised date : February 12, 2015 FCC ID : BKMAP007 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10520101S-B Revision Test report No. Date Page revised Contents - (Original) 10520101S-B January 15, 2015 - - 1 10520101S-B February 9, 2015 4 Deletion of 32.768kHz and 16MHz from Clock frequency description 1 10520101S-B February 12, 20155 Correction of Remarks Test report No. : 10520101S-B Page : 3 of 26 Issued date : January 15, 2015 FCC ID : BKMAP007 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 7 SECTION 5: Radiated emission ............................................................................................... 8 SECTION 6: Out of band emissions (Antenna port conducted) ......................................... 10 SECTION 7: 6dB bandwidth & Occupied bandwidth (99%) .............................................. 10 SECTION 8: Maximum peak conducted output power ....................................................... 10 SECTION 9: Maximum power spectral density ................................................................... 10 Contents of APPENDIXES ....................................................................................................... 11 APPENDIX 1: Data of Radio tests .......................................................................................... 12 APPENDIX 2: Test instruments ............................................................................................. 24 APPENDIX 3: Photographs of test setup ............................................................................... 25 Test report No. : 10520101S-B Page : 4 of 26 Issued date : January 15, 2015 Revised date : February 9, 2015 FCC ID : BKMAP007 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : SEIKO EPSON CORPORATION Address : 281 Fujimi, Fujimi-machi, Suwa-gun, Nagano-ken 399-0293 Japan Telephone Number : +81-266-61-0618 Facsimile Number : +81-266-61-2045 Contact Person : Junichi Kiryu SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipmen t : GPS Sports Monitor Model No. : SF-110 Serial No. : Refer to Section 4.2 Rating : DC 3.7V Country of Mass- production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass- produced items.) Receipt Date of Sample : November 13, 2014 Modification of EUT : The test lab did not make the modification to the EUT supplied from the customer to have it pass the tests. 2.2 Product description Model: SF-110 (referred to as the EUT in this report) is a GPS Sports Monitor. Clock frequency(ies) in the system : 26MHz, 32MHz, 48MHz, 32kHz <Radio part> Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth / Channel spacing : 1MHz / 2MHz Type of modulation : GFSK Antenna type / Antenna connector type : Chip Antenna / None Antenna gain : 1.5dBi ITU code : F1D Operation temperature range : -5 to +50 deg.C FCC 15.31 (e) The EUT is a battery-operated device and test was performed with the full-charged battery. Therefore, the EUT complies with the requirement. FCC 15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement. Test report No. : 10520101S-B Page : 5 of 26 Issued date : January 15, 2015 Revised date : February 12, 2015 FCC ID : BKMAP007 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2014, final revised on December 23, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on December 23, 2014 does not affect the test specification applied to the EUT. * The EUT has been tested for compliance with FCC Part 15 Subpart B by the customer. 3.2 Procedures & Results Item Test Procedure SpecificationRemarksDeviationWorst Margin Results Conducted Emission ANSI C63.10:2009 FCC 15.207 - N/A *2) N/A N/A 6dB Bandwidth ANSI C63.10:2009 FCC 15.247 (a)(2) ConductedN/A * See data Complied Maximum Peak Conducted Output Power ANSI C63.10:2009 FCC 15.247 (b)(3) ConductedN/A Complied Out of Band Emission & Restricted Band Edges ANSI C63.10:2009 FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 6.4dB (12400.000MHz, AV, Horizontal, Tx 2480MHz, ) Complied Maximum Power Spectral Density ANSI C63.10:2009 FCC 15.247 (e) ConductedN/A * See data Complied Note: UL Japan’s EMI Work Procedures No.13-EM-W0420 and 13-EM-W0422. *1) These tests were also referred to KDB 558074 v03r02 (FCC), "Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247”. *2) The EUT operates with a battery. AC Line can be connected to the EUT via PC or AC a…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission (front) (rear, below 1GHz) (rear, above 1GHz) Test report No.: 10520101S-B 25 of 26 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis Test report No.: 10520101S-B 26 of 26
