BKMFBEU-62Bluetooth Unit

Proof Sign-off: M.Yamada CRE Kawakami J.Miyakoshi editor name R4CB56 BluetoothRev. B COVER.FMA5 size 10/29/02 R User’s Guide ® xxxxxxx-00 xxx Copyright © 2003 by SEIKO EPSON CORPORATION, Nagano, Japan. Printed in XXXX ii R4CB56 BluetoothRev. B BLUETOC.FMA5 size 10/29/02 L Proof Sign-off: M.Yamada CRE Kawakami J.Miyakoshi editor name Contents Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Warnings, Cautions, and Notes . . . . . . . . . . . . . . . . . . . . . . . . . 1 When using this product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 About This Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 About Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Names of Component Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Connecting with/disconnecting from a printer . . . . . . . . . . . . . . . . 4 Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Disconnecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Set Bluetooth preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Setting items and values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Setting up the Bluetooth Passkey (Bluetooth PIN). . . . . . . . . . 8 Print Settings and Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Print settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Specifications of This Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Basic specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Profiles supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Wireless Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . 13 Copyrights and Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 1 R4CB56 BluetoothRev. B BLUE.FMA5 size 10/29/02 R Proof Sign-off: M.Yamada CRE Kawakami J.Miyakoshi editor name Safety Instructions Before using this product, read all of the instructions in this section and also refer to the documentation packed with your printer. Warnings, Cautions, and Notes w Warnings must be followed carefully to avoid bodily injury. c Cautions must be observed to avoid damage to your equipment. Notes contain important information and useful tips on the operation of your printer. When using this product w Warning: ❏Do not use this product near medical equipment. Radio wave may adversely affect cardiac pacemakers and electrical medical equipment. Do not use this product inside medical facilities. ❏Use this product at least 22 cm away from the region where the cardiac pacemaker is implanted. Radio wave may adversely affect the functionality of the cardiac pacemaker. ❏Do not use this product near automatically controlled devices such as automatic doors and fire alarms. Radio wave may adversely affect these devices, and may cause accidents due to malfunctions. ❏Do not disassembly or modify this product. Doing so will cause injury, electric shock and/or fire. 2 R4CB56 BluetoothRev. B BLUE.FMA5 size 10/29/02 L Proof Sign-off: M.Yamada CRE Kawakami J.Miyakoshi editor name About This Product This product is a wireless communication module used to print from digital cameras and other devices with Bluetooth™ wireless technology without cables when connected with EPSON printers. The illustration above shows an image. Note: ❏While compatible with the Bluetooth wireless technology standard, this product has not been confirmed to be compatible with all products enabled with Bluetooth wireless technology. Further, this product cannot be guaranteed to work when connected with other products that are enabled with Bluetooth wireless technology. ❏To obtain technical support, refer to the documentation attached to the printer. ❏Although the wireless communication range of this product is approximately 10 meters, this may vary depending on conditions including obstacles between the communication devices, the electromagnetic signal quality, magnetic fields, static electricity and electromagnetic interference, software used, operating system, reception sensitivity of communicating devices, and antenna performance. 1. Execute printing from a device with Bluetooth wireless technology. 2. Print from a printer. 3 R4CB56 BluetoothRev. B BLUE.FMA5 size 10/29/02 R Proof Sign-off: M.Yamada CRE Kawakami J.Miyakoshi editor name About Profiles Profiles are standards for Bluetooth wireless communication. Multiple profiles are defined according to the features and purpose of each product. To perform Bluetooth wireless communication, the communicating devices must have mutually compatible profiles. Note: The profiles that can be used with this product are Basic Imaging Profile (BIP) and Hardcopy Cable Replacement Profile (HCRP). This product cannot communicate with products with Bluetooth wireless technology that cannot use BIP and HCRP. Names of Component Parts Light It is on when Bluetooth wireless communication can be performed. It flashes during data reception. Connector Insert this product into the Bluetooth port in the rear of the printer. 4 R4CB56 BluetoothRev. B BLUE.FMA5 size 10/29/02 L Proof Sign-off: M.Yamada CRE Kawakami J.Miyakoshi editor name Connecting with/disconnecting from a printer Connecting 1. Turn off the printer power. c Caution: Do not connect while the printer power is on. Doing so may cause the printer to malfunction. 2. Insert this product into the Bluetooth port in the rear of the printer. 3. Turn on the printer power. The power …

Text truncated - open the document above for the full version.

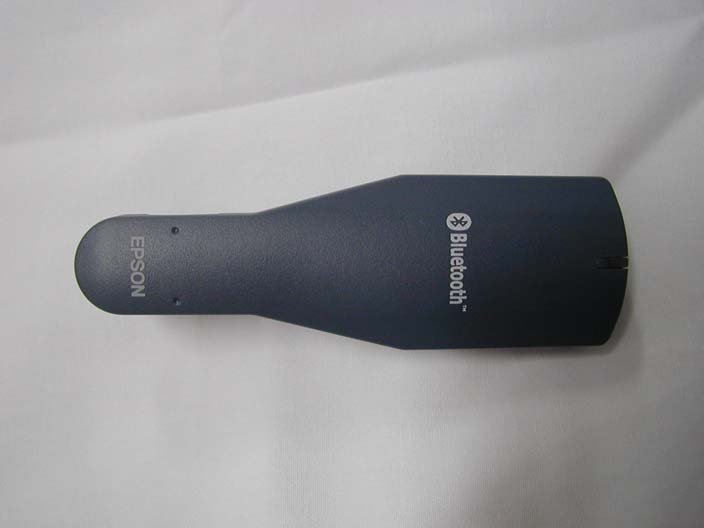

External Photo SEIKO EPSON CORPORATION Model: EU-62 FCC ID: BKMFBEU-62 Front View Back View Internal Photo SEIKO EPSON CORPORATION Model: EU-62 FCC ID: BKMFBEU-62 Side View

Internal Photo SEIKO EPSON CORPORATION Model: EU-62 FCC ID: BKMFBEU-62 Front View Back View Internal Photo SEIKO EPSON CORPORATION Model: EU-62 FCC ID: BKMFBEU-62 Open View

Operational Description 1. Reference oscillator Reference oscillator device (crystal oscillator X100) generates the reference frequency (32MHz). 2. Frequency synthesizer Frequency synthesizer composes it with the Reference oscillator device (crystal wave detector) and VCO/PLL part. The clock divider transforms the reference signal into 1MHz. The output frequency is 2402MHz to 2480MHz (1MHz interval). 3. Transmission The transmission circuit is to constitute with RFIC (U300) and balance/ unbalance transformation device (T100). GFSK modulation the data signal. The power supply of transmission part uses the power supply that stabilized (U2). 4. Receiver The receiver part is a direct conversion. The signal from the antenna passes BPF (FL100), and it is input to RFIC. GFSK demodulation the detect signal. And it is output to UART I/F. 5. Control The Control circuit is to constitute with the Link control, Base band control, and stabilized power supply. And, it does the following control. : PLL frequency setting : Output control of Transmission and Receiver data : Power supply of Transmission and Receiver part : Confirmation of ID, and Interference prevention : Memory storage of the distinction mark 6. Power supply The power supply is supplied from the printer (DC 4.75 to 5.25V). And, it stabilizes to 3.0V by IC (U2).

Test report No. : 23AE0021-HO-1 Page : 2 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Client information 3 SECTION 2: Equipment under test (E.U.T.) 3 SECTION 3: Test specification, procedures and results 5 SECTION 4: Operation of E.U.T. during testing 7 SECTION 5: Conducted emission, Section 15.207 8 SECTION 6: Carrier Frequency Separation, Section 15.247(a)(1) 8 SECTION 7: 20dB Bandwidth, Section 15.247(a)(1) 9 SECTION 8: Number of Hopping Frequency, Section 15.247(a)(1)(iii) 9 SECTION 9: Dwell time, Section 15.247(a)(1)(iii) 9 SECTION 10: Maximum Peak Output Power, Section 15.247(b)(1) 10 SECTION 11: Band Edge compliance, Section 15.247(c) 10 SECTION 12: Spurious Emission, Section 15.247(c) 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Data of EMI test 12 APPENDIX 3: Test instruments 12 Test report No. : 23AE0021-HO-1 Page : 3 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Client information Company name : SEIKO EPSON CORPORATION Brand name : EPSON Address : 80 Harashinden, Hirooka, Shiojiri-shi Nagano-ken 399-0785 Japan Telephone Number : +81-263-53-8909 Facsimile Number : +81-263-53-3702 Contact Person : Yukinori Soma SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth Unit Model No. : EU-62 Serial No. : 00110 Rating : DC 5.0V / 100mA Country of Manufacture : Japan Receipt Date of Sample : September 13, 2002 Condition of EUT : Engineering prototype Test report No. : 23AE0021-HO-1 Page : 4 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 2.2 Product Description SEIKO EPSON CORPORATION Model: EU-62(referred to as the EUT in this report) is a Bluetooth Unit. The clock frequency used in EUT is 32MHz. Frequency characteristics : from 2402MHz to 2480MHz Number of Channel / Channel spacing : 79 channels / 1MHz Modulation : FSK (Frequency Shift Keying) and FHSS (Frequency Hopping Spread Spectrum) Antenna Type : Internal Ceramic Antenna (AH104F245003) Antenna Gain : 2.044dBi ITU code : 79M3F1D *FCC Part 15.31 (e) The host device EU-62 provide the stable power supply DC 5.0V and the Bluetooth Unit complies power supply regulation. *FCC Part 15.203 Antenna requirement Bluetooth Unit and its antenna comply with this requirement since they are built in host device EU-62 when they are put up for sale and they are used with a particular antenna connector. Test report No. : 23AE0021-HO-1 Page : 5 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures and results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted Emissions Section 15.247 Operation within the Bands 902-928MHz, 2400-2483.5MHz and 5725-5850MHz 3.2 Procedures and results No. Item Test Procedure Specification Remarks Deviation Worst margin Results 1 Conducted emission ANSI C63.4:2000 Section 15.207 - N/A 12.7dB 150.0kHz, N Complied 2 Carrier Frequency Separation ANSI C63.4:2000 Section15.247(a)(1) Conducted N/A - Complied 3 20dB Bandwidth ANSI C63.4:2000 Section15.247(a)(1) Conducted N/A - Complied 4 Number of Hopping Frequency ANSI C63.4:2000 Section15.247(a)(1)(iii) Conducted N/A - Complied 5 Dwell time ANSI C63.4:2000 Section15.247(a)(1)(iii) Conducted N/A - Complied 6 Maximum Peak Output Power ANSI C63.4:2000 Section15.247(b)(1) Conducted N/A - Complied 7 Band Edge Compliance ANSI C63.4:2000 Section15.247(c) Conducted N/A - Complied 8 Spurious Emission ANSI C63.4:2000 Section15.247(c) Conducted/ Radiated N/A 7.2dB 960.00MHz Horizontal Complied *These tests were also referred to FCC Public Notice DA 00-705 "Guidance on Measurement for Frequency Hopping Spread Spectrum Systems". 3.3 Additions to Standards No addition, deviation or exclusion has been made from standards. 3.4 Confirmation A-Pex International hereby confirms that E.U.T., in the configuration tested, complies with the specifications FCC Part 15 Subpart C Section 15.207 and 247. Test report No. : 23AE0021-HO-1 Page : 6 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.5 Uncertainty Conducted Emission Test The measurement uncertainty (with a 95% confidence level) for this test was ±1.3dB. The data listed in this test report may exceed the test limit because it does not have enough margin. The data listed in this test report has enough margin, more than the site margin. Spurious Emission Test The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±5.2dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±6.6dB. The data listed in this test report may exceed the test limit because it does not have enough margin. The data listed in this test report has enough margin. Carrier Frequency Separation, 20dB Bandwidth, Number of Hopping Frequency, Dwell Time, Maximum Peak Output Power and Band Edge Compliance Test The measurement uncertainty (with a 95% confidence level) for this te…

Text truncated - open the document above for the full version.

Test report No. : 23AE0021-HO-1 Page : 67 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(22.05.01) APPENDIX 3: Test instruments EMI test equipment Control No. Instrument Manufacturer Model No Test Item Calibration Date * Interval(month) MAEC-01 Anechoic Chamber TDK Semi Anechioc Chamber 10m RE 2001/12/29 * 12 MAEC-02 Anechoic Camber TDK Semi Anechoic Chamber 3m RE/CE 2002/04/12 * 12 MCC-12 Coaxial Cable Fujikura/Agilent MCC-12-01(8D-2W-15m) MCC-12-02(5D-2W-0.7m) MCC-12-05(RF SW) MCC-12-03(5D-2W-0.8m) MCC-12-06(RF SW) MCC-12-04(5D-2W-1m) RE 2002/05/09 * 12 MCC-13 Coaxial Cable Fujikura/Agilent MCC-12-01(8D-2W-15m) MCC-12-02(5D-2W-0.7m) MCC-12-05(RF SW) MCC-12-03(5D-2W-0.8m) MCC-12-06(RF SW) MCC-12-04(5D-2W-1m) CE 2002/05/09 * 12 MLS-06 LISN Schwarzbeck NSLK8127 CEEUT 2002/03/19 * 12 MTR-02 Test Receiver Rohde & Schwarz ESCS30 RE/CE 2001/10/05 * 12 MSA-02 Spectrum Analyzer Advantest R3265A RE/CE 2001/10/11 * 12 MAT-07 Attenuator(6dB) Weinschel Corp 2 RE 2001/12/27 * 12 MTR-01 EMI TEST RECEIVER Rohde & Schwarz ESI40 RE 2001/11/13 * 12 MCC-05 Microwave Cable Storm 421-011 RE 2002/01/14 * 12 MCC-06 Microwave Cable Storm 421-011 RE 2002/01/14 * 12 MPA-01 Pre Amplifier Agilent 8449B RE 2002/02/09 * 12 MPA-04 Pre Amplifier Agilent 8747D RE 2002/03/13 * 12 MBA-03 Biconical Antenna Schwarzbeck BBA9106 RE 2002/05/02 * 12 MHA-01 Horn Antenna EMCO 3160-09 RE 2002/01/13 * 12 MHA-05 Horn Antenna Schwarzbeck BBHA9120D RE 2002/01/13 * 12 MBF-01 SHF Bandpass Filter M-City 5GHz BPF RE 2002/04/30 * 12 MLA-03 Logperiodic Antenna Schwarzbeck USLP9143 RE 2002/05/02 * 12 MCC-04 Microwave Cable Storm 421-011 RE 2002/01/14 * 12 MPA-02 Pre Amplifier Agilent 87405A RE 2001/12/27 * 12 All equipment is calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. Test Item CE: Conducted emission, RE: Radiated emission,

Test report No. : 23AE0021-HO-1 Page : 13 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted emission Test report No. : 23AE0021-HO-1 Page : 14 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Spurious emission Test report No. : 23AE0021-HO-1 Page : 15 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Carrier Frequency Separation, 20dB Bandwidth, Number of Hopping Frequency, Dwell Time, Maximum Peak Output Power and Band Edge Compliance Test

Test report No. : 23AE0021-HO-1 Page : 13 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted emission Test report No. : 23AE0021-HO-1 Page : 14 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Spurious emission Test report No. : 23AE0021-HO-1 Page : 15 of 67 Issued date : September 25 , 2002 FCC ID : BKMFBEU-62 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Carrier Frequency Separation, 20dB Bandwidth, Number of Hopping Frequency, Dwell Time, Maximum Peak Output Power and Band Edge Compliance Test
