BKMFBM224BBluetooth Interface Board

Bluetooth Interface Board User’s Manual 1 Bluetooth Interface Board User’s Manual Features The Bluetooth Interface board has the following features: 1) A built-in Bluetooth module 2) Bluetooth 2.1+EDR compatible 3) Power class: Class 2 4) External dimensions: 50 mm × 70 mm Manufacturer: Seiko Epson Corporation Model Name: M224B Product Name: Bluetooth Interface board for printer Integration to the end product The Bluetooth Interface Board has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Regulatory Information USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Bluetooth Interface Board User’s Manual 2 If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labelling The Bluetooth Interface board labelled as below. FCC ID:BKMFBM224B The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: BKMFBM224B” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Bluetooth Interface Board User’s Manual 3 Canada-Industry Canada (IC) This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of this device. L ‘ utilization de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif. The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met. Caution: Exposure to Radio Frequency Radiation. To comply with IC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Instructions to OEM Integrators A User manual provided to the end user must indicate the operating requirements and conditions that must be observed to ensure compliance with the above-mentioned FCC /IC RF Exposure guideline. If this module is intended for use in a portable device, integrators are responsible for separate evaluation and/or approval to satisfy FCC/IC RF Exposure requirements. If other radio devices are to be integrated with this module, an additional evaluation and FCC/IC submission may be required. Integrators are responsible for such additional evaluation and FCC/IC submission. Bluetooth Interface Board User’s Manual 4 Labelling The Bluetooth Interface board labelled as below. IC: 1052C-M224B The proposed IC ID label format is to be placed on the module. If IC ID is not visible when the module is installed into the system, “Contains IC: 1052C-M224B” shall be placed on the outside of final host system.

HEAD OFFICE 3-3-5 Owa, Suwa-shi, Nagano-ken 392-8502 JAPAN TEL 81-123-45-6789 FAX 81-123-45-6789 http://www.epson.jp Date: November 10, 2010 UL CCS Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services (UL CCS) and hereafter referred to as UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of UL CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division;

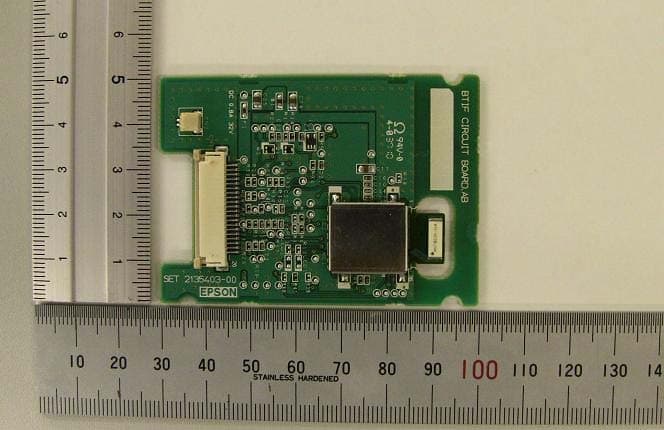

Applicant/Grantee Seiko Epson Corporation FCC ID: BKMFBM224B Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The device is equipped with Metal shielding to cover RF section. Refer to external photos Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. All inputs to the device are buffered through logic IC2 inputs. Refer to Schematic Diagram. Y 3 The modular transmitter must have its own power supply regulation. The device is equipped with Internal 3.3 V regulator. Refer to Block Diagram. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The device is equipped with the permanently attached antenna. Any connector isn’t used. Refer to Antenna specification ・ Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially The device was tested outside of the Laptop PC for full modular approval. Refer to setup photos. Y available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: BKMFBM224B” shall be placed on the outside of final host system. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to “User’s Guide” Exhibit Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The device complies with RF exposure compliance requirement Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

Bluetooth Interface board for printer Model: M224B FCC ID: BKMFBM224B IC: 1052C-M224B

Bluetooth Interface board for printer Model: M224B FCC ID: BKMFBM224B IC: 1052C-M224B

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR BLUETOOTH INTERFACE BOARD FOR PRINTER MODEL NUMBER: M224B FCC ID: BKMFBM224B IC: 1052C-M224B REPORT NUMBER: 10J13472-1, Revision A ISSUE DATE: NOVEMBER 23, 2010 Prepared for SEIKO EPSON CORPORATION 80 Harashinden Hirooka Shiojiri, Nagano, 399-0785, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 2 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 11/16/10 Initial Issue F. Ibrahim A 11/23/10 Updated Test Equipment Cal & Due Date T. Chan REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 3 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.....................................................................................5 2. TEST METHODOLOGY..........................................................................................................6 3. FACILITIES AND ACCREDITATION.....................................................................................6 4. CALIBRATION AND UNCERTAINTY....................................................................................6 4.1. MEASURING INSTRUMENT CALIBRATION................................................................6 4.2. SAMPLE CALCULATION...............................................................................................6 4.3. MEASUREMENT UNCERTAINTY.................................................................................6 5. EQUIPMENT UNDER TEST...................................................................................................7 5.1. DESCRIPTION OF EUT.................................................................................................7 5.2. MAXIMUM OUTPUT POWER........................................................................................7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS................................................................7 5.4. SOFTWARE AND FIRMWARE......................................................................................7 5.5. WORST-CASE CONFIGURATION AND MODE...........................................................7 5.6. DESCRIPTION OF TEST SETUP..................................................................................8 6. TEST AND MEASUREMENT EQUIPMENT........................................................................10 7. ANTENNA PORT TEST RESULTS......................................................................................11 7.1. BASIC DATA RATE GFSK MODULATION..................................................................11 7.1.1. 20 dB AND 99% BANDWIDTH.............................................................................11 7.1.2. HOPPING FREQUENCY SEPARATION.............................................................18 7.1.3. NUMBER OF HOPPING CHANNELS..................................................................20 7.1.4. AVERAGE TIME OF OCCUPANCY.....................................................................25 7.1.5. OUTPUT POWER.................................................................................................32 7.1.6. AVERAGE POWER..............................................................................................36 7.1.7. CONDUCTED SPURIOUS EMISSIONS..............................................................37 7.2. DQPSK MODULATION................................................................................................46 7.2.1. OUTPUT POWER.................................................................................................46 7.2.2. AVERAGE POWER..............................................................................................50 7.3. ENHANCED DATA RATE 8PSK MODULATION.........................................................51 7.3.1. 20 dB AND 99% BANDWIDTH.............................................................................51 7.3.2. HOPPING FREQUENCY SEPARATION.............................................................58 7.3.3. NUMBER OF HOPPING CHANNELS..................................................................60 7.3.4. AVERAGE TIME OF OCCUPANCY.....................................................................65 7.3.5. OUTPUT POWER.................................................................................................72 7.3.6. AVERAGE POWER..............................................................................................76 7.3.7. CONDUCTED SPURIOUS EMISSIONS..............................................................77 8. RADIATED TEST RESULTS................................................................................................86 8.1. LIMITS AND PROCEDURE..........................................................................................86 REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 4 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 8.2. TRANSMITTER ABOVE 1 GHz...................................................................................87 8.2.1. BASIC DATA RATE GFSK MODULATION.......................................................…

Text truncated - open the document above for the full version.

REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 117 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 118 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 119 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED BACK PHOTO REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 120 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS FRONT PHOTO REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 121 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. X-AXIS BACK PHOTO REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 122 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Y-AXIS FRONT PHOTO REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 123 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Y-AXIS BACK PHOTO REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 124 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Z-AXIS FRONT PHOTO REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 125 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Z-AXIS BACK PHOTO REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 126 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 10J13472-1A DATE: NOVEMBER 23, 2010 FCC ID: BKMFBM224B IC: 1052C-M224B Page 127 of 127 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
