BKMFBWLU63202.4GHz Wireless LAN MINI USB module

USA - Federal Communications Commission (FCC) FCC Radiation Exposure Statement Interference Statement These devices comply with Part 15 of the FCC Rules. Operation of the devices is subject to the following two conditions: (1) The devices may not cause harmful interference, and (2) The devices must accept any interference that might cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If the equipment is not installed and used in accordance with the instructions, the equipment might cause harmful interference to radio communications. There is no guarantee, however, that such interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by taking one or more of the following measures:  Relocate this device.  Increase the separation between the device and the receiver.  Connect the device into an outlet on a circuit different from that of other electronics.  Consult the dealer or an experienced radio technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: BKMFBWLU6320”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Canada. Industry Canada (IC) This device complies with RSS210 of Industry Canada. CAUTION: Exposure to Radio Frequency Radiation. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population. Consult Safety Code 6, obtainable from health Canada’s website www.hc-sc.ca/rpb. This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the Canada authorization is no longer considered valid and the IC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate Canada authorization. NOTE IMPORTANTE: Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations d'ordinateur portable ou de certaines co-localisation avec un autre émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de …

Text truncated - open the document above for the full version.

Seiko Epson Corporation 2.4GHz Wireless LAN MINI USB module WLU6320-D69(RoHS) OPERATION MANUAL Install driver Connect WLU6320-D69(RoHS) with cable to host device, and install driver from path “AARDVARK-6.30.225-WinXP-MFGTools” In the device manager, you can found a Broadcom 802.11n WLAN USB adaptor. Linking to Networks View Available Wireless Networks

FCC ID: BKMFBWLU6320 Report No.: RF131119C05 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch December 19, 2013 Dear Application Examiner, Seiko Epson Corporation, It’s a 2.4GHz Wireless LAN MINI USB module, FCC ID: BKMFBWLU6320 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM43143KMLG. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is BCM43143KMLG. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: BKMFBWLU6320 Report No.: RF131119C05 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Robert Huang Senior Engineer Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

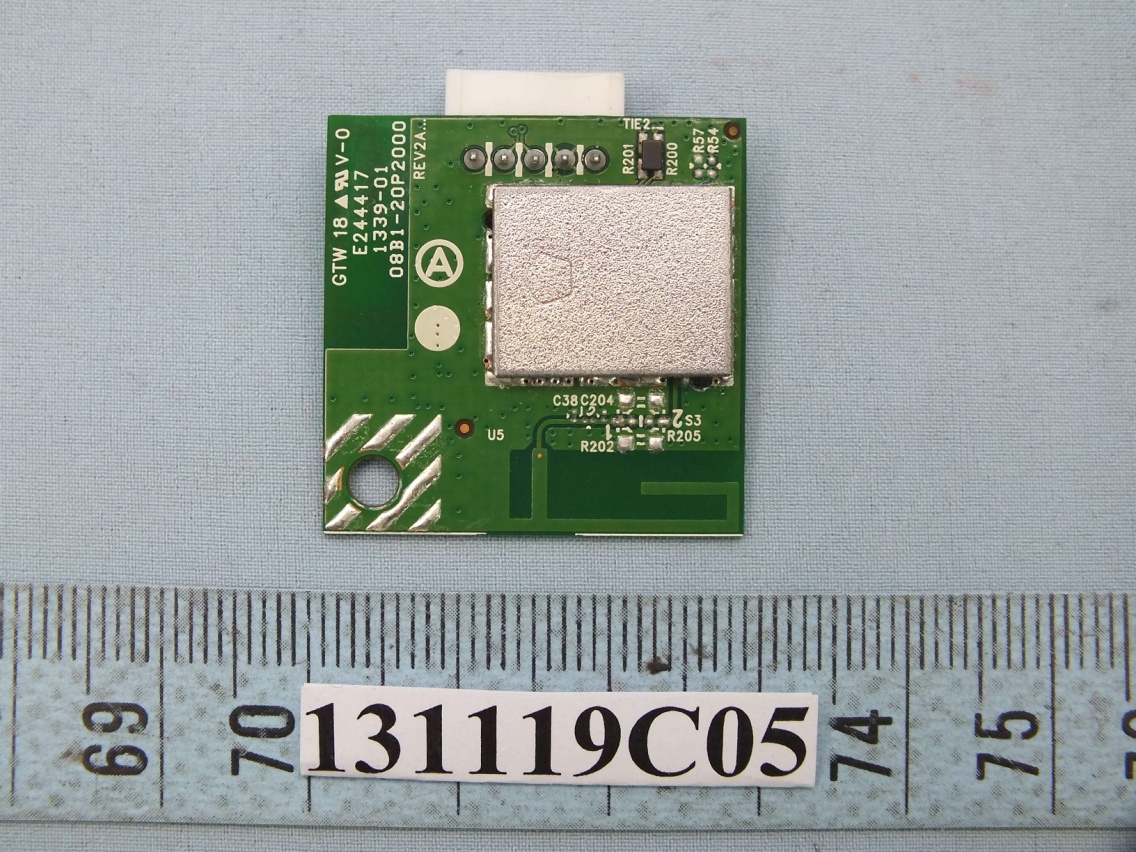

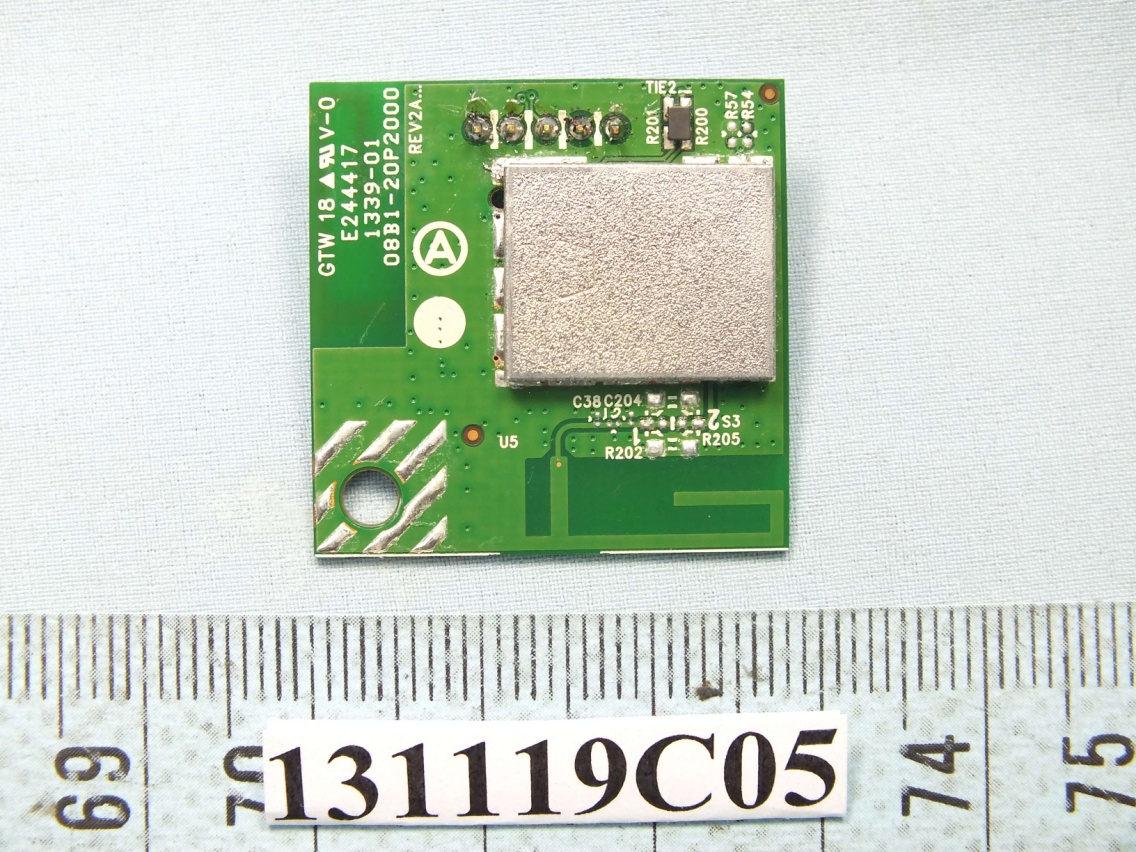

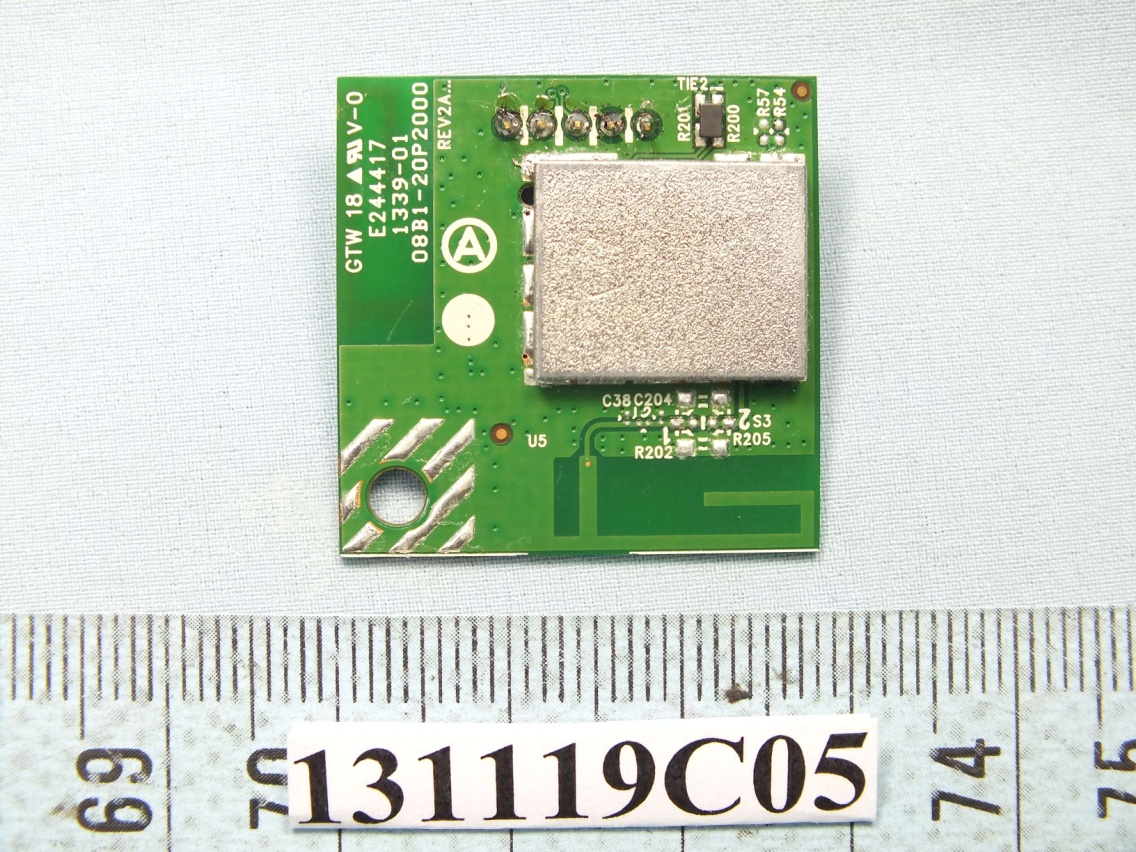

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

1mm 0.5R*4 1mm 14 mm 20 mm Rating 3.3V 500mA Model: WLU6320-D69(RoHS) 2.4GHz Wireless LAN MINI USB module SEIKO EPSON CORPORATION ASKEY COMPUTER CORP. MACNICA, Inc FCC ID: BKMFBWLU6320 IC: 1052C-WLU6320 Made in China Rating 3.3V 500mA Model: WLU6320-D69(RoHS) 2.4GHz Wireless LAN MINI USB module SEIKO EPSON CORPORATION ASKEY COMPUTER CORP. MACNICA, Inc FCC ID: BKMFBWLU6320 IC: 1052C-WLU6320 Made in China

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: BKMFBWLU6320 Report No.: RF131119C05 Operational Description This device is an 2.4GHz Wireless LAN MINI USB module, which operates in 2.4GHz band; the maximum data rate could be up to 72Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 72Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 3.3Vdc from host equipment. The antenna is Printing (PIFA) antenna without antenna connectors. The other instruction, please have a look at the users manual.

Report No.: SA131119C05 1 of 5 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA131119C05 MODEL NO.: WLU6320-D69(RoHS) FCC ID: BKMFBWLU6320 RECEIVED: Sep. 03, 2013 TESTED: Sep. 04 ~ Nov. 27, 2013 ISSUED: Dec. 02, 2013 APPLICANT: Seiko Epson Corporation ADDRESS: 3-3-5 Owa Suwa-shi, Nagano-Ken, 392-8502, Japan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. Report No.: SA131119C05 2 of 5 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1. CERTIFICATION ............................................................................................................................. 4 2. RF EXPOSURE ............................................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 5 2.2 MPE CALCULATION FORMULA .................................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................................. 5 Report No.: SA131119C05 3 of 5 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA131119C05 Original release Dec. 02, 2013 Report No.: SA131119C05 4 of 5 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: 2.4GHz Wireless LAN MINI USB module MODEL: WLU6320-D69(RoHS) BRAND: EPSON APPLICANT: Seiko Epson Corporation TESTED: Sep. 04 ~ Nov. 27, 2013 TEST SAMPLE: PRODUCTION SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: WLU6320-D69(RoHS)) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Dec. 02, 2013 Maggie Wu / Specialist APPROVED BY: , DATE :Dec. 02, 2013 Ken Liu / Senior Manager Report No.: SA131119C05 5 of 5 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 23.67 2.08 20 0.07477 1

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSIONS TEST 131119C05 131119C05 2 131119C05 3 RADIATED EMISSIONS TEST 131119C05 131119C05 4 131119C05
