BMW-72017TX27BATTLE WHEELS - TYR

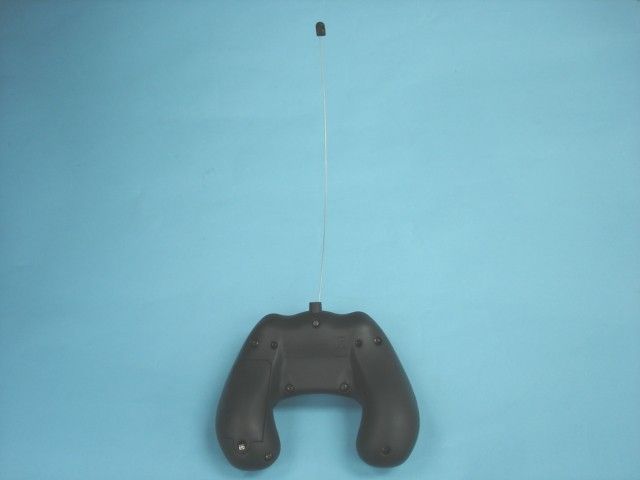

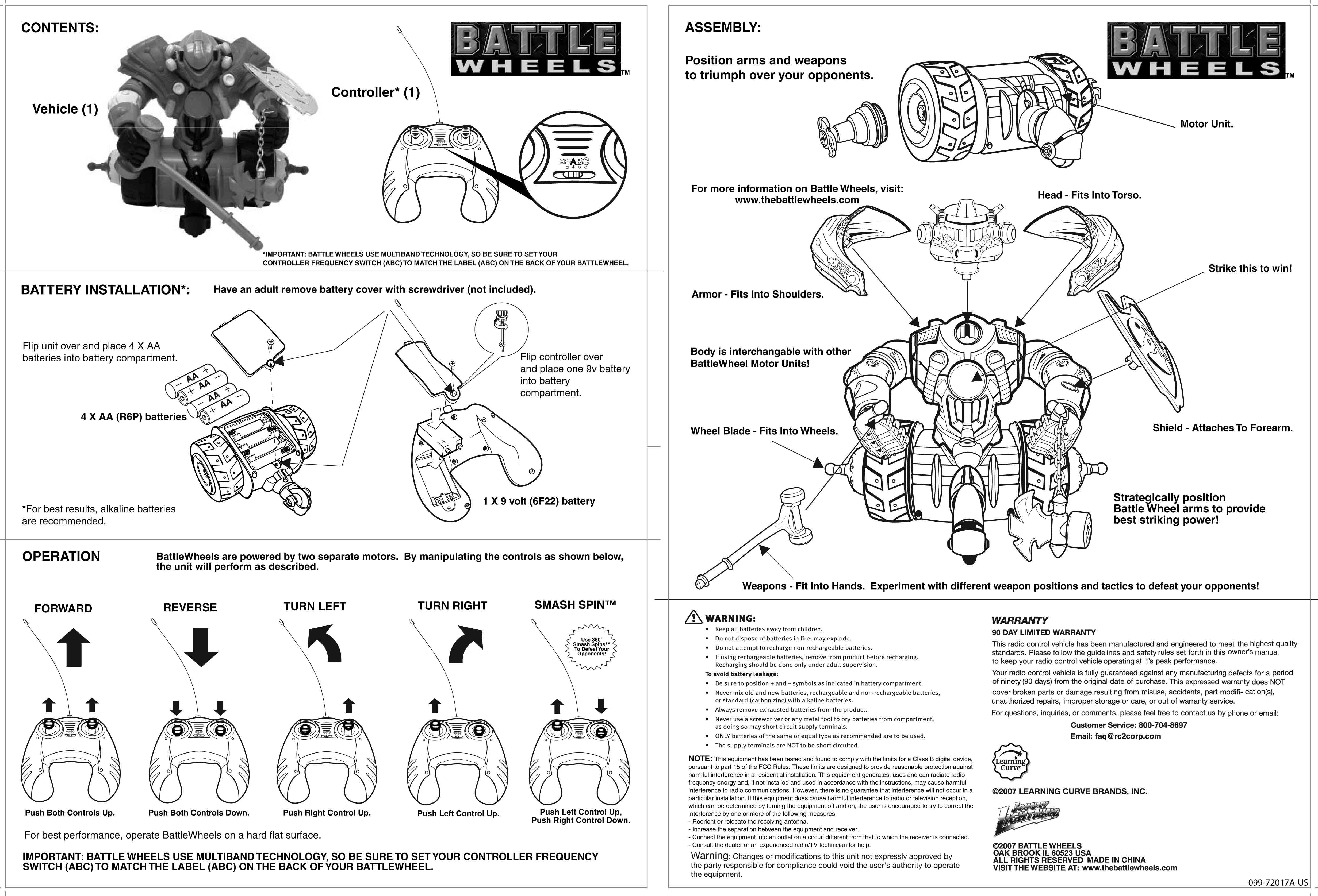

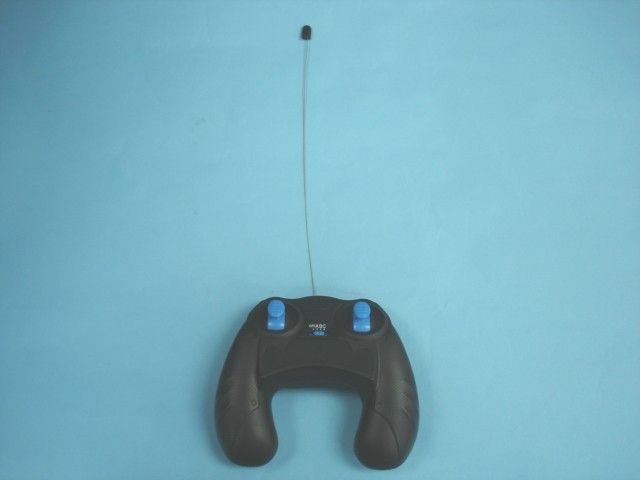

Operation Description The transmitter of Battle Wheel Warriors is powered by 1*9.0V battery, it has radio frequency 27MHz and 49MHZ. While push the left or the right controller sticks forward or backward, it will transmit a modulation signal for receiver to go left or right , When push both of the left and the right controller, the receiver will go forward or move backward. Refer to the transmitter circuit design, the circuit description is listed as below:

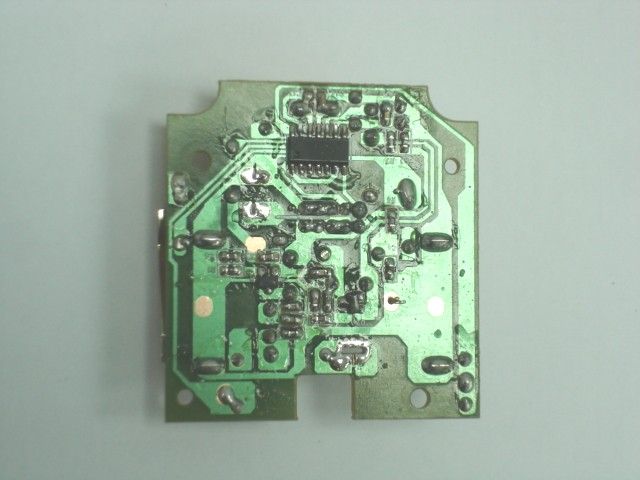

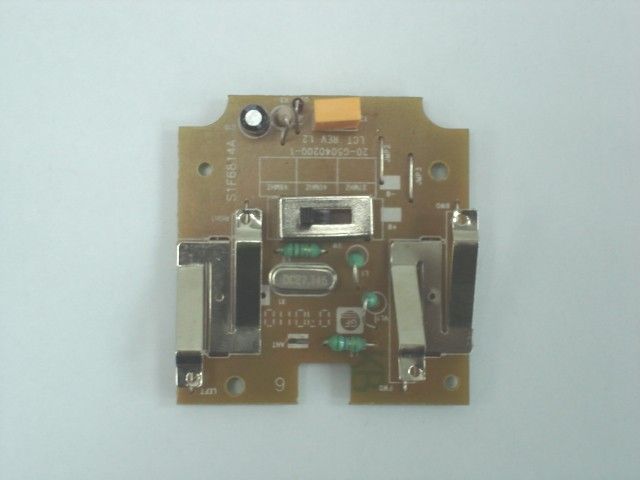

 X1, Q2 , and associate components are acted as local oscillator for modulation.
 Q1 and associate components are acted as RF power amplifier.
 U1 and associate components are acted as control signal encoder.

72016A TX 27MHZ.sch-1 - Sat Mar 03 14:01:59 2007

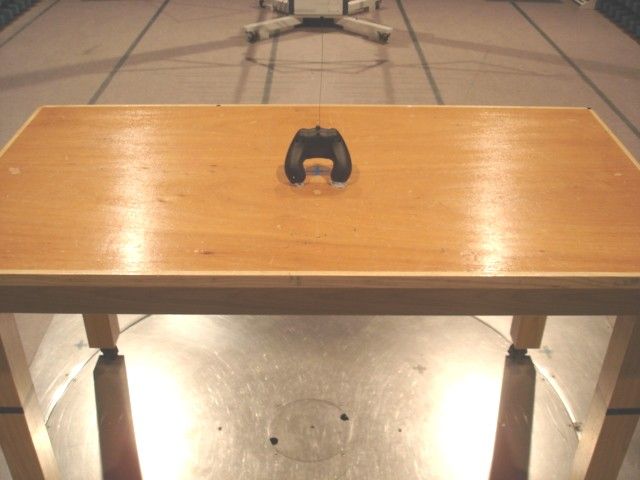

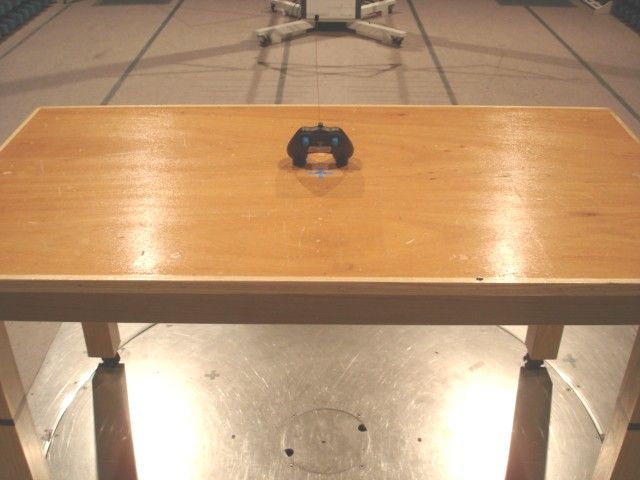

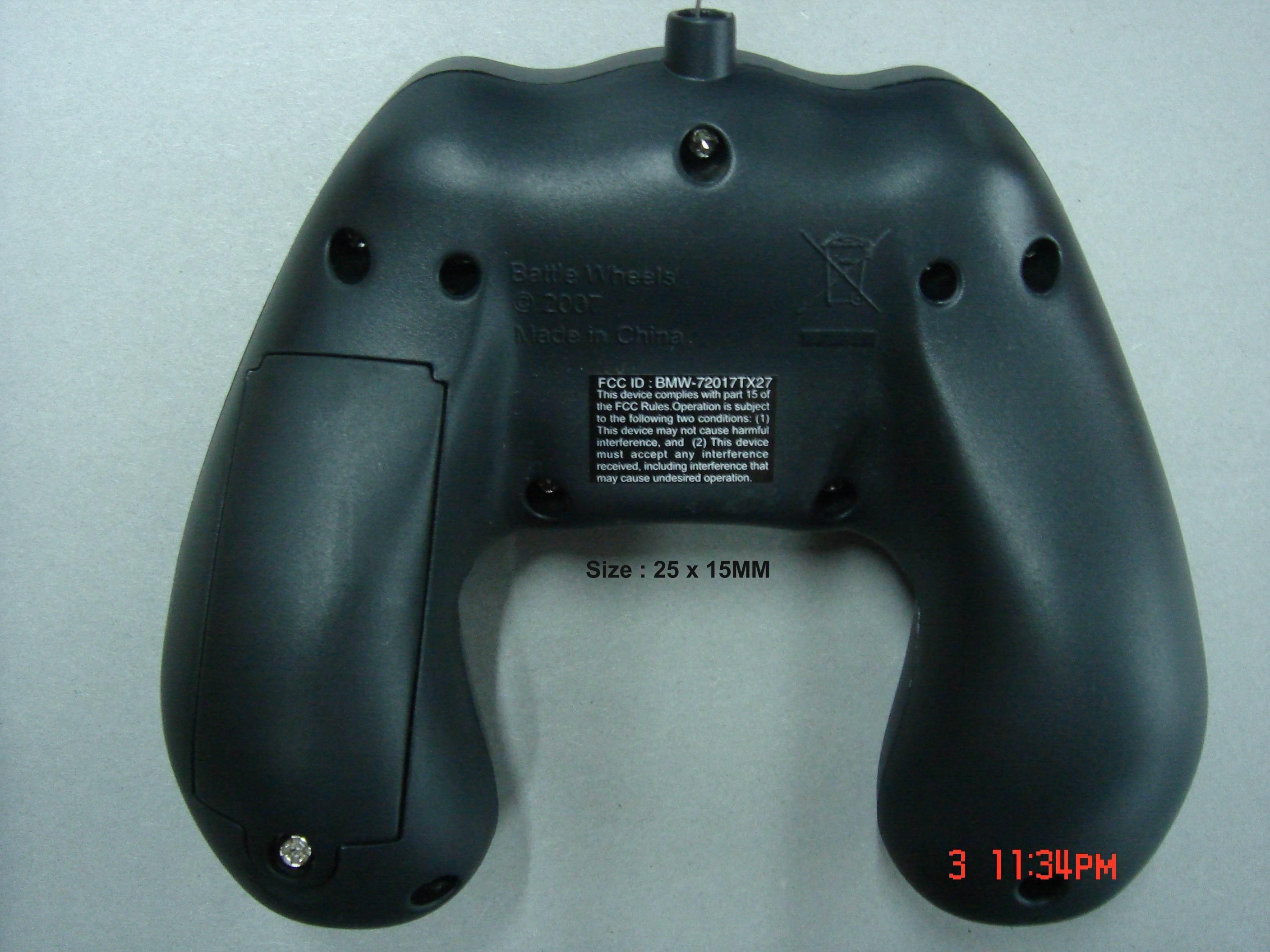

TEST REPORT Report No. : AJ002344-001 Date : 2007 April 16 Page 1 of 11 FCC ID: BMW-72017TX27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ203729(1) Client : Learning Curve Brands, Inc. 1111 W. 22nd Street Suite 320, Oak Brook, IL 60523, United States Sample Description : One(1) submitted sample(s) stated to be Battle Wheels - Tyr of Model No. 72017A Radio Frequency : 27.145MHz Transmitter Rating : 1 x 9V size battery No. of submitted sample : One (1) piece(s) *** Date Received : 2007 February 05 Test Period : 2007 February 07 ñ 2007 February 12 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ002344-001 Date : 2007 April 16 Page 2 of 11 FCC ID: BMW-72017TX27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data ........................................................................................7 3 Description of the Line-conducted Test...............................................................................................8 3.1 Test Procedure..............................................................................................................................8 3.2 Test Result....................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data .....................................................8 4 Photograph ...........................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ......................9 4.2 Photographs of the External and Internal Configurations of the EUT.........................................9 5 Supplementary document ...................................................................................................................10 5.1 Bandwidth ..................................................................................................................................10 5.2 Duty cycle ..................................................................................................................................10 5.3 Transmission Time .....................................................................................................................10 6 Appendices .........................................................................................................................................11 TEST REPORT Report No. : AJ002344-001 Date : 2007 April 16 Page 3 of 11 FCC ID: BMW-72017TX27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Battle Wheel Warriors. It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by a 9V size battery. There are two control sticks on the EUT. When the forward, backward, turn left or turn right stick is pressed, it will transmit different radio control signal to the receiver. The brief circuit description is saved with file name : OpDes.pdf - U1 and associated circuit act as an encoder. - X1, Q2 and associated circuit act as n oscillator. - Q1 and associated circuit act as RF amplifier. TEST REPORT Report No. : AJ002344-001 Date : 2007 April 16 Page 4 of 11 FCC ID: BMW-72017TX27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 Loca…

Text truncated - open the document above for the full version.

Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1

Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 3 Duty Cycle 4
