BMW-LC55702TX27CGT R/C Wilson MPA

Battery Replacement Instructions • Instructions pour le changement des piles • Batteriewechselanleitung • Instrucciones para la sustitución de las pilas Informatie om batterijen te vervangen • Istruzioni per la sostituzione delle batterie • Οδηγίες Αντικατάστασης Μπαταρίας Instruções para substituição de bateria U.S. FCC Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This Category II radiocommunication device complies with Industry Canada Standard RSS-310. Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310 d'Industrie Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. L’utilisation est soumise aux deux conditions suivantes : (1) l’appareil ne devrait pas provoquer d'interférence et (2) l’appareil accepte toute interférence, même celle provoquée par une utilisation inappropriée de l’appareil. Carrier frequency 27.145MHz, Field strength: 27.145 dBuV/m at 3m Fréquence 27.145MHz, niveau de portée: 27.145 dBuV/m à 3m. www.chuggington.comwww.LearningCurve.com © 2010 Learning Curve Brands, Inc. 1111 W. 22nd Street, Oak Brook, IL 60523, U.S.A. Learning Curve Hembury House, Pynes Hill, Rydon Lane, Exeter, EX2 5AZ UK 099-LC55702MPA Rev.0 Made in China • Fabriqué en Chine Hergestellt in China • Fabricado en China Vervaardigd in China • Fabbricato in Cina Κατασκευάστηκε στην Κίνα • Fabricado na China All Rights Reserved • Tous droits réservés. Alle Rechte vorbehalten. • Todos los derechos reservados. Alle rechten voorbehouden. • Tutti i diritti riservati. Όλα τα δικαιώματα διατηρούνται. • Todos os direitos reservados Patents Pending • Brevet en cours d'homologation schwebendes Patent • Patente pendiente Octrooi aangevraagd • Brevetto in corso di registrazione Εκκρεμεί Πατέντα • Patente pendente © Ludorum plc, Racing Champions International Limited, 2010 Chuggington® is a registered trademark of Ludorum plc Operation Instructions: • Manuel d’utilisation: • Gebruiksaanwijzing: • Instrucciones de funcionamiento: Instructies voor goed funtioneren: • Istruzioni per il funzionamento: • Οδηγίες Λειτουργίας: • Manual de instruções: GB: Battery Tips: • Do not use rechargeable batteries; • Batteries must be removed and inserted under adult supervision; • Non-rechargeable batteries are not to be recharged; • Batteries are to be inserted with the correct polarity; • Exhausted batteries are to be removed from the toy and disposed properly; • Supply terminals are not to be short-circuited; • Different types of batteries (e.g. alkaline, standard carbon-zinc or rechargeable) or new and used batteries are not to be mixed; • Do not dispose of batteries in fire, may explode or leak. FR: Conseils concernant les piles : • Ne pas utiliser de piles rechargeables; • Les piles doivent être remplacées sous la surveillance d'un adulte; • Les piles non rechargeables ne doivent pas être rechargées; • Respecter les polarités des piles; • Les piles usagées doivent être enlevées du jouet et déposées dans les boîtes de collecte adaptées; • Les bornes d'alimentation ne doivent pas être court-circuitées; • Ne pas mélanger des piles de type alkaline avec des piles standards (carbone-zinc) ou des piles rechargeables. Ne pas mélanger des piles neuves et usagées; • Ne jamais jeter de piles dans le feu sous risque d’explosion ou de fuite. DE: Batteries-Tipps: • Bitte benutzen Sie keine wiederaufladbaren Batterien; • Batterien müssen unter Aufsicht eines Erwachsenen entfernt und wieder eingesetzt werden; • Nicht aufladbare Batterien dürfen nicht wieder aufgeladen werden; • Batterien müssen gemäß ihrer korrekten Polarität eingesetzt werden; • Leere Batterien müssen aus den Spielzeug entfernt und korrekt entsorgt werden; • Die Anschlüsse der Batterien dürfen nicht kurzgeschlossen werden; • Verschiedene Batterietypen (z.B. Alkaline, Standard Zink-Kohle oder wiederaufladbare) oder neue und gebrauchte Batterien dürfen nicht gemischt werden; • Bitte werfen Sie Batterien nicht ins Feuer, sie können explodieren oder auslaufen. ES: Consejos sobre pilas: • No utilizar pilas recargables; • El cambio de las pilas ha de ser bajo la supervisión de un adulto; • Las pilas no recargables no deben recargarse; • Introducir las pilas con la polaridad correcta; • Las pilas gastadas deben extraerse del juguete y reciclarlas; • Las terminales no deben cortocircuitarse; • No mezclar diferentes tipos de pilas (alcali…

Text truncated - open the document above for the full version.

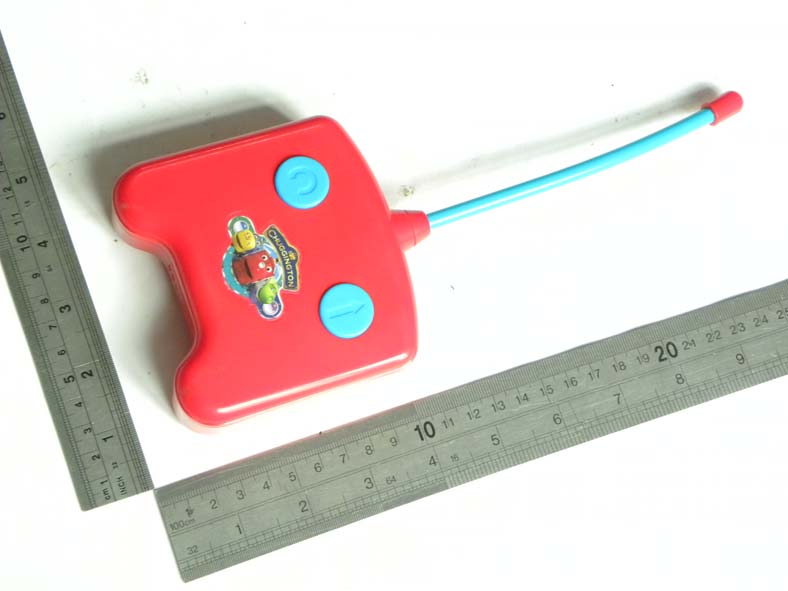

General Appearance of the EUT

FCC ID: BMW-LC55702TX27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID Lable Location On EUT

27.145MHZ Transmitter Operational Description LC55702 RC Wilson The transmitter of R/C Wilson is powered by 4.5V (3XAA) battery, it has radio frequency 27.145MHz. While push the controller right, it will transmitted a modulation signal for receiver to go forward. , When push the left key, the receiver will turning counter-clockwise. Refer to the transmitter circuit design, the circuit description is listed as below : ® X1, L2，Q2 and associate components are acted as local oscillator for modulation. ® Q1，L1，L3，L4 and associate components are acted as RF power amplifier. 27.145MHZ Receiver Operational Description LC55702 RC Wilson The receiver of R/C Wilson is powered by 4.5V (3XAA) battery. It also has radio frequency 27Mhz. When it receiver a modulation signal from the transmitter. it will move forward or turning counter-clockwise. Refer to the receiver circuit design, the circuit description is listed as below : ® Q2 and associate components are acted as RF receiver. ® U2 and associate components are acted as control signal decoder. ® Q17/Q18. Q23 ~ Q26 and associate components are acted as motor driving.

DONGGUAN EMTEK CO., LTD. REPORT NO:ED100706001E FCC ID: BMW-LC55702TX27 DATE: 07/15/2010 Page 1 of 20 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF CGT RC Wilson MPA (Transmitter) MODEL No.: LC55702MPA Trademark: N/A FCC ID: BMW-LC55702TX27 REPORT NO: ED100706001E ISSUE DATE: July 15, 2010 Prepared for LEARNING CURVE BRANDS. INC Unit 901-7, Tower One. Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, H.K Prepared by DONGGUAN EMTEK CO., LTD No.281,Guantai Road,Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 DONGGUAN EMTEK CO., LTD. REPORT NO:ED100706001E FCC ID: BMW-LC55702TX27 DATE: 07/15/2010 Page 2 of 20 VERIFICATION OF COMPLIANCE Applicant: LEARNING CURVE BRANDS. INC Unit 901-7, Tower One. Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, H.K Product Description: CGT RC Wilson MPA Trademark: Not Applicable Model Number: LC55702MPA FCC ID Number: BMW-LC55702TX27 Serial Number: N/A File Number: ED100706001E Date of Test: July 06, 2010 to July 15, 2010 We hereby certify that: The above equipment was tested by Dongguan EMTEK Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Approved By Nicol.Lee / Q.A. Manager DONGGUAN EMTEK CO., LTD. DONGGUAN EMTEK CO., LTD. REPORT NO:ED100706001E FCC ID: BMW-LC55702TX27 DATE: 07/15/2010 Page 3 of 20 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 4 1.1 Product Description................................................................................................................................. 4 1.2 Related Submittal(s) / Grant (s)............................................................................................................... 4 1.3 Test Methodology ................................................................................................................................... 4 1.4 Special Accessories ................................................................................................................................. 4 1.5 Equipment Modifications ........................................................................................................................ 4 1.6 Test Facility............................................................................................................................................. 5 2. System Test Configuration......................................................................................................6 2.1 EUT Configuration.................................................................................................................................. 6 2.2 EUT Exercise .......................................................................................................................................... 6 2.3 Test Procedure......................................................................................................................................... 6 2.4 Limitation ................................................................................................................................................ 6 2.5 Configuration of Tested System.............................................................................................................. 8 3. Summary Of Test Results........................................................................................................9 4. Description of test modes......................................................................................................... 9 5. Conducted Emissions Test (Not applicable in this report).............................................. 10 5.1 Measurement Procedure:....................................................................................................................... 10 5.2 Test SET-UP (Block Diagram of Configuration).................................................................................. 10 5.3 Measurement Equipment Used: ............................................................................................................ 10 5.4 Measurement Results: ........................................................................................................................... 10 5.5 Conducted Measurement Photos:.......................................................................................................... 10 6. Radiated Emission Test .........................................................................................................11 6.1 Measurement Procedure ........................................................................................................................ 11 6.2 Test SET-UP (Block Diagram of Configuration).................................................................................. 11 6.3 Measurement Equipment Used: ............................................................................................................ 12 6.4 Measurement Results ............................................................................................................................ 12 6.5 Radiated Measurement Photos: ............................................................................................................. 14 7. Occupied Bandwidth..............................................................................................................15 7.1 Measurement Procedure ....................................................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission Setup Photos
