BMWTFY3040C49MHz Transmitter Baby Unit

Y3040 QUICK START INSTRUCTIONS You’ll find detailed instructions inside. Please read the safety instructions on page 2. Set up the Parent’s Units • Install three AA batteries. Battery compartment is located on the side of unit. Slide button down to release cover. • Or, plug one of the three AC adapters provided into each Parent’s Unit. Set up the Child’s Unit • Place the unit near your child (within 6 feet, but well beyond child’s reach). • Position the antenna straight up. • Plug in the third AC adapter provided. • Slide the channel switch to A or B. • Press the ON/OFF button to turn on the unit. Use the Monitor (Parent’s Unit) • Slide the channel switch to the same channel as the Child’s Unit (A or B). • Rotate the volume dial clockwise to the on position. Adjust to desired volume level. • Keep the Parent’s Unit with you, and keep it positioned upright. • This product is a monitoring device designed to assist in the monitoring of children, not as a prevention for injury to or loss of child. • This product is not a substitute for adult supervision. All children should be monitored at all times by responsible adults. • This product is not a toy. Do not allow children to play with it. • To prevent electric shock, strangling by cord, choking, or eye injury, do not place the monitor in, or attach it to, a crib or playpen. • Never place these units within a child’s reach. WARNING: Two Receiver Monitor 49.83 MHz Clear Reception Warranty Our Limited Warranty and Warranty Period When we use the terms "we," "us" and "our," we are referring to Learning Curve Brands, Inc., and when we use the terms "you" and "your" we mean the original end-user customer. Our products are guaranteed to be free from defects in material and workmanship under normal and intended use for a period of 90 days from the date of your purchase. Repair/Replacement If our product fails to meet our limited warranty during the warranty period, we will, at our option, repair or replace the product free of charge. What Our Limited Warranty Does Not Cover We offer this limited warranty only when the product is used by the original end-user customer. We offer no other warranty. Additionally, while our warranty is excellent, there are other limits to it. We offer NO WARRANTY in cases of damage in transit, inadequate care, abuse, abnormal use, misuse, accidents, normal wear and tear, damage due to environmental or natural elements, failure to follow product instructions, immersion in water (except for products specifically identified by us in writing as intended for water use), battery leakage or improper storage or maintenance of the products. Disclaimer of Other Warranties: THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES. However, to the extent applicable law does not permit disclaimers of certain implied warranties, such warranties are limited to the warranty period identified above. Some states and countries do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Limitation on Damages: IN NO EVENT SHALL WE BE LIABLE FOR INCIDENTAL, COMPENSATORY, PUNITIVE, CONSEQUENTIAL, INDIRECT, SPECIAL OR OTHER DAMAGES. OUR AGGREGATE LIABILITY WITH RESPECT TO DEFECTIVE PRODUCTS IS LIMITED TO THE MONIES PAID TO US FOR THE DEFECTIVE GOOD. Some states and countries do not allow the exclusion or limitation of incidental, consequential or other damages, so the above limitation or exclusion may not apply to you. State Variations: This warranty gives you specific legal rights, and you may also have other rights which vary based on state, province or country. Contact Us: If you have a warranty claim or request, any customer care questions, please contact via our website www.learningcurve.com or call us at 1-800-704-8697. Questions? Comments? Contact Consumer Care www.learningcurve.com 800-704-8697 © 2011 Learning Curve Brands, Inc. Oak Brook, IL 60523 U.S.A. All Rights Reserved. Made in China. Y3040.04.12.10 WARNING: ! 4 To Set Up Child’s Unit 1. Position the Child’s Unit within approximately 6 feet of your child, yet out of the child’s reach. Do not place Child’s Unit in crib or attach to crib. (To prevent heat build-up, place on an open surface away from heat sources; do not place in an enclosed space.) 2. Position the antenna straight up, as shown. 3. Insert the AC adapter plug into the jack on the side of the unit, then plug the adapter into an electrical outlet. CAUTION: Parent’s Units To operate with batteries: 1. Press on the tab to release the battery compartment cover, then pull it open. 2. Insert three AA batteries. Position them so the + and - contacts are aligned with the corresponding contacts on the battery clip. 3. Close the battery compartment cover; be sure it clicks shut. 4. When it’s time to change the batteries, the power indicator light will turn red. Replace batteries with three new AA batteries at that time. To operate with AC adapter: Insert the AC adapter plug into the jack on the side of the unit, then plug the adapter into an electrical outlet. Always use the AC adapter(s) supplied with this product. Do not use any other adapter. Monitor could become damaged, and warranty would become void. For wall mounting (optional): 1. Securely fasten one #6 flat head wood screw on the wall. (For best results, use a 3/4-inch screw; mount in a solid wood panel, or use a screw anchor). 2. Leave the screw head protruding from the wall by at least 1/4-inch. 3. Fit the screw head slot (on the back of the unit) over the screw head and slide the unit down to seat it firmly. 4. To test that the unit is securely mounted, press on its edges. POWER ON/OFF POWER LED B A 5 1. Slide the channel A/B switch on the Child’s Unit to either A or B. Turn the unit on by pressing the ON/OFF button. 2. Slide the channel selector switch on the Parent’s Units to the same channel as the Child’s Unit (A or B). For the Monitor to work properly, both units must be s…

Text truncated - open the document above for the full version.

Request for Permanent Confidentiality Under FCC Part 15 Certification March 3, 2011 Re: FCC ID: BMWTFY3040C To whom it may concern, Request is hereby submitted by Learning Curve Brands, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Learning Curve Brands, Inc. reserves the right to discern which parties can obtain access to this information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Learning Curve Brands, Inc. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Joseph Gheith Product Integrity Manager

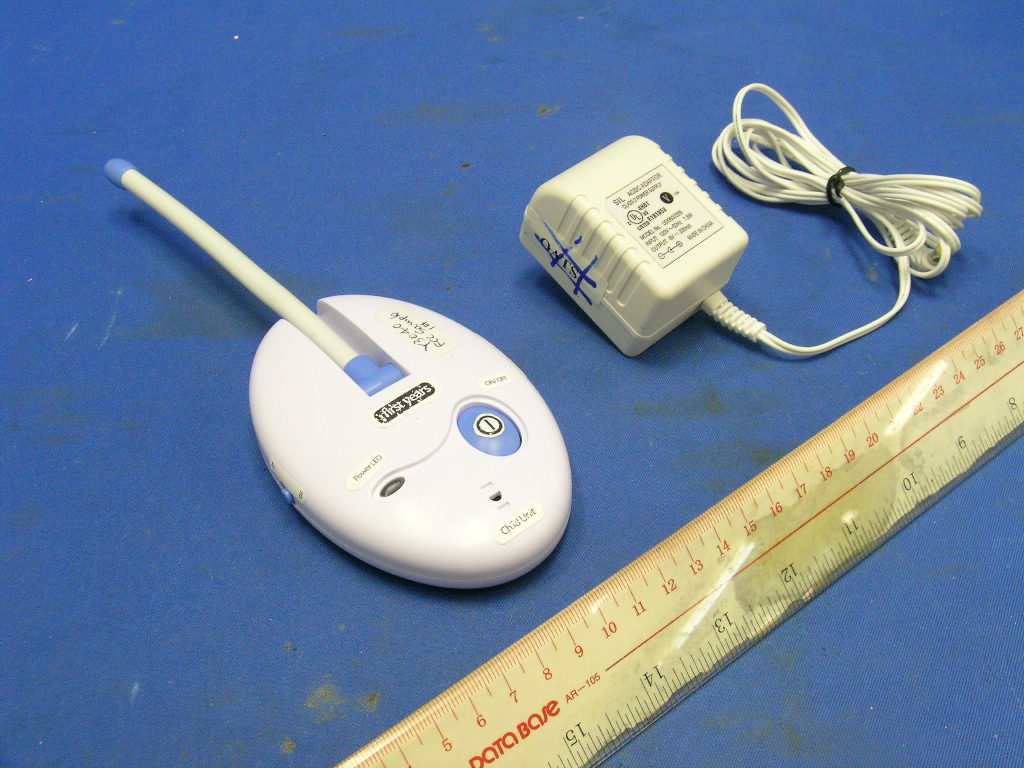

INTERTEK TESTING SERVICES External Photos FCC ID: BMWTFY3040C external photos - 1 of 1 External Photo - Front External Photo - Rear HK11020093 Job Number HK11020093 Job Number

Y3040 CHILD REV.06 3-09-11 Engraving: Debossed 0.3 mm Engraving: Embossed 0.3 mm Center Center ModelY3040: C 44.7 mm 2 7 . 8 m m FCC ID: BMWTFY3040C Canada 310

INTERTEK TESTING SERVICES Internal Photos FCC ID: BMWTFY3040C internal photos - 1 of 3 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal Photos FCC ID: BMWTFY3040C internal photos - 2 of 3 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal Photos FCC ID: BMWTFY3040C internal photos - 3 of 3 Internal Photo - 5

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: BMWTFY3040C be be - 1 of 1 Baby unit, Lowest channel Baby unit, Highest channel

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: HK11020093-1 Application for Original Grant of 47 CFR Part 15 Certification Category II Equipment of RSS-310 Issue 3 49MHz Transmitter (Baby Unit of Baby Monitor) FCC ID: BMWTFY3040C Prepared and Checked by: Approved by: Koo Wai Ip Nip Ming Fung, Melvin Lead Engineer Supervisor February 17, 2011 February 17, 2011 INTERTEK TESTING SERVICES Test Report Number: HK11020093-1 Page 1 of 20 FCC ID: BMWTFY3040C GENERAL INFORMATION Applicant Name: Learning Curve Brands, Inc. Applicant Address: 1111 W. 22 nd Street, Suite 320 Oak Brook, Illinois 60523 United States. FCC Specification Standard: FCC Part 15, October 1, 2009 Edition FCC ID: BMWTFY3040C FCC Model(s): Y3040C IC Specification Standard: RSS-Gen Issue 3, December 2010 RSS-310 Issue 3, December 2010 IC Model(s): Y3040C Type of EUT: Transmitter Description of EUT: 49MHz Transmitter - Baby Unit of Baby Monitor Serial Number: N/A Sample Receipt Date: January 17, 2011 Date of Test: January 18-20, 2011 Report Date: February 17, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: HK11020093-1 Page 2 of 20 FCC ID: BMWTFY3040C Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 4 1.1 Summary of Test Results ........................................................................................ 4 1.2 Statement of Compliance ........................................................................................ 4 2.0 General Description................................................................................................. 6 2.1 Product Description ................................................................................................. 6 2.2 Test Methodology.................................................................................................... 6 2.3 Test Facility............................................................................................................. 6 3.0 System Test Configuration...................................................................................... 8 3.1 Justification ............................................................................................................. 8 3.2 EUT Exercising Software......................................................................................... 9 3.3 Details of EUT and Description of Accessories...................................................... 10 3.4 Measurement Uncertainty ..................................................................................... 10 4.0 Test Results............................................................................................................ 12 4.1 Field Strength Calculation...................................................................................... 12 4.2 Radiated Emissions............................................................................................... 13 4.2.1 Radiated Emission Configuration Photograph ..................................................... 13 4.2.2 Radiated Emission Data ..................................................................................... 13 4.2.3 Transmitter Duty Cycle Calculation ..................................................................... 13 4.3 Radiated Emission on the Bandedge..................................................................... 15 4.4 AC Power Line Conducted Emission ..................................................................... 16 4.4.1 AC Power Line Conducted Emission Configuration Photograph.......................... 16 4.4.2 AC Power Line Conducted Emission Data .......................................................... 16 5.0 Equipment List...................................................................................................... 20 Appendix – Exhibits for Application of Certification INTERTEK TESTING SERVICES Test Report Number: HK11020093-1 Page 3 of 20 FCC ID: BMWTFY3040C EXHIBIT 1 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE INTERTEK TESTING SERVICES Test Report Number: HK11020093-1 Page 4 of 20 FCC ID: BMWTFY3040C 1.0 Test Results Summary & Statement of Compliance 1.1 Summary of Test Results Test Items FCC Part 15 Section RSS-210/ RSS-Gen # / RSS-310^ Section Results Details see section Antenna Requirement 15.203 7.1.2 # Pass 2.1 Radiated Emission Radiated Emission on the Bandedge 15.235(a) 15.235(b) 3.9^ Pass Pass 4.2 4.3 Radiated Emission in Restricted Bands 15.205 7.2.2 # Pass 4.2 AC Power Line Conducted Emission 15.207 & 15.107 7.2.4 # Pass 4.4 Note: Pursuant to FCC Part 15 Section 15.215(c), the 20dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which t…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: BMWTFY3040C config photos (radiated emission – baby unit) - 1 of 1 Radiated Emission – Baby Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmitting FCC ID: BMWTFY3040C config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmitting FCC ID: BMWTFY3040C config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
