BP9-MC110RJAPESMART DISPLAY

Car Multimedia System USER'S MANUAL Functions and services in this manual may differ from those in the actual vehicle. Thank you for purchasing this KIA Motors Car Multimedia System. This user’s manual explains how to use the KIA Motors Car Multimedia System. Before using the product, read the contents of this user’s manual carefully and use this product safely. ↟ The screens shown in this manual may differ from the actual screens of the product. ↟ The design and specification of this product may change without prior notification for product improvement. ↟ When transferring the vehicle to another individual, include this user’s manual so that the next driver can continue its use. 3 Table of Contents Table of Contents 3 Start Component Names and Functions 5 Using the System for the First Time 8 Home Screen 9 Media USB Music 11 USB Video 13 iPod ® Music 15 Bluetooth ® Audio 17 Radio Basic Screen 20 Listening to FM/AM radio 21 Phone Bluetooth ® Wireless Technology 23 Bluetooth ® Connection 24 Bluetooth ® Phone 26 Setup Starting mode 32 Sound 33 Display 35 Bluetooth ® 37 Connectivity 40 Custom button 41 Date and Time 42 System 43 Others Android Auto™ 46 Apple CarPlay 48 WebLink 50 Reference Precautions for Safety 58 Key Product Features 60 General Information 62 Specification 64 Trouble shooting 66 FCC Warning 68 Table of Contents 시작하기Start Component Names and Functions 5 Component Names and Functions 5 Component Names and Functions Head unit Head unit functions may vary for each model. For more detail, refer to the supplied simple manual. POWER PUSH or PWR / Volume knob ↟ Press to turn the power on. ↟ When power is on, press and hold to turn power off. ↟ When power is on, press to turn Audio off. ↟ Turn left/right to control volume. HOME button (AV only) ↟ Press to go to the home screen. PHONE button (AV only) ↟ Press to go to the phone screen. MAP button (AVN only) ↟ Press to display the map screen of the current location. ↟ Press to repeat the voice guidance on the map screen. (Voice guidance for road names and numbers is not supported in some countries.) NAV button (AVN only) ↟ Press to move to the Navigation menu screen. b (Reset hole) ↟ Press with a thin object to reset the unit when it does not operate normally. K (Custom button) ↟ Press to move to the [Custom button] menu. After setting a desired function, press to use the desired function. A SEEK/TRACK D (S/W) button When it is pressed for a short time. ↟ Radio mode: Plays previous/next available frequency or station. ↟ Media mode: Plays previous/next file. When it is pressed and held ↟ Radio mode: Plays previous/next available frequency or station. ↟ Media mode : Rewinds or fast forwards the file. Component Names and Functions 6 RADIO button ↟ Press to go to the radio screen. MEDIA button ↟ Press to go to the available media. SETUP button ↟ Press to go to the settings screen. Tune/Enter knob ↟ In Radio mode, turn left/right to change the frequency or station. ↟ In Media mode, turn left/right to change file and press to select the desired file. Steering Wheel Remote Control Steering wheel remote control functions may vary for each model. For more detail, refer to the supplied simple manual. C / MODE button ↟ Each time this button is pressed, the Radio or Media mode is changed. ↟ If the media is not connected, it is changed in the order FM > AM > FM. ↟ When it is pressed and held, move to Advanced settings "Steering wheel MODE button". W/S button When it is pressed for a short time ↟ Radio mode: Plays previous/next Favourites. ↟ Media mode: Plays previous/next file. When it is pressed and held ↟ AM mode: Plays previous/next available frequency or station ↟ Media mode: Rewinds or fast forwards the file. i (Voice Recognition button) ↟ Press to switch to voice recognition mode. ↟ To cancel it, press and hold the button again. W button Press to operate Bluetooth ® hands-free function. ↟ Press to accept a call. ↟ Press to make a call from last calls. ↟ Press and hold for redialing. Component Names and Functions 7 Z button ↟ Press to end the phone call during a call. ↟ Press to reject the call in the incoming call screen. ↟ Press to end Voice memo recording. J / I button ↟ Increases or decreases the volume level. d (Mute) ↟ Press to mute the sound. (It will be paused in some media modes.) Using the System for the First Time 8 Using the System for the First Time Turning the System On/Off Turning the System On Press the engine start button. If the brakes are not pressed, then the ACC and system will turn on. If the brakes are pressed, then the IGN and system will turn on and the ignition will start. In both instances, the following safety warning will be displayed. Pressing the PWR key on the head unit will display the safety warning page. Press the [Confirm] button to display the most recent mode. Turning the System Off Press the engine start button again or press and hold the power key on the head unit to turn the system off. , NOTE If the system is turned off while the Handsfree is being used, then the call will automatically switch back to the mobile phone. AV On/Off Press the PWR key on the head unit when the AV is on. Press the PWR key or press the menu key to turn on AV. While AV is turned off, the TUNE / ENTER knob will be disabled. Resetting the System This feature is used to reset the system in the occurrence of an unforeseen error or problem. Press the reset hole using a clip or pin. Home Screen 9 Home Screen Press > Press the menu button you want to use. 1 2 3 456 a Time bar ↟ Displays the current time. ↟ Touch the area to move to the date/time settings screen. b Time widget ↟ Displays the current time and date. ↟ Touch the area to move to the date/time settings screen. c AV widget ↟ Displays brief information of radio or media currently playing. ↟ Touch the area to move to the media screen currently playing. d All Menus ↟ Shows all of the items in the system menu. e Media ↟ Display the media screen. f Setup ↟ Moves to the settin…

Text truncated - open the document above for the full version.

MOTREX CO.,LTD. Seoyoung Bldg., 25, Hwangsaeul-ro 258beon-gil, Bundang-gu, Seognam-si, Gyeonggi-do, Korea. Date: March 31, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: BP9-MC110RJAPE Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT Exhibit Type File Name Part List Part List_MC110RJAPE.pdf Schematics Diagram(s) Schematics_MC110RJAPE.pdf Block diagram Block diagram_MC110RJAPE.pdf Operation description Operation description_MC110RJAPE.pdf And the above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Young Kwon / Manager MOTREX CO.,LTD.

MOTREX CO.,LTD. Seoyoung Bldg., 25, Hwangsaeul-ro 258beon-gil, Bundang-gu, Seognam-si, Gyeonggi-do, Korea. Date: March 31, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Young-Jin, Lee of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Young-Jin, Lee of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; MOTREX CO.,LTD. Seoyoung Bldg., 25, Hwangsaeul-ro 258beon-gil, Bundang-gu, Seognam-si, Gyeonggi-do, Korea. h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Young Kwon / Manager MOTREX CO.,LTD. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

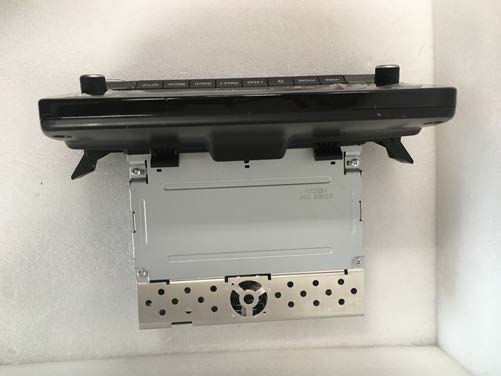

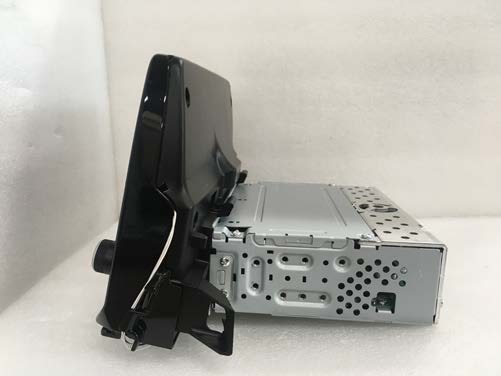

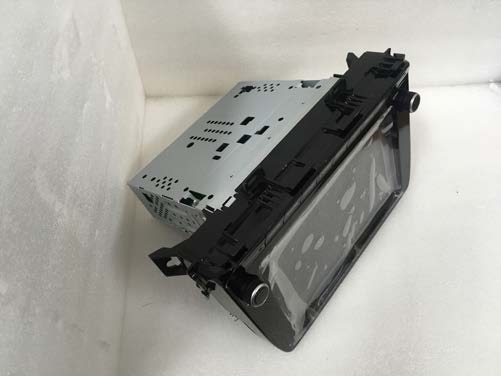

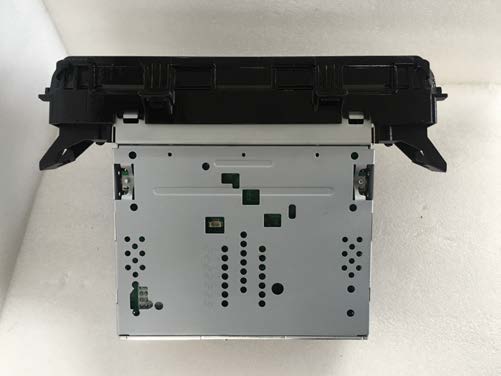

External photos FCC ID: BP9-MC110RJAPE Page 1 of 2 External photos FCC ID: BP9-MC110RJAPE Page 2 of 2

Label photo FCC ID: BP9-MC110RJAPE Page 1 of 1

Internal photos FCC ID: BP9-MC110RJAPE Page 1 of 2 Internal photos BLANK Chip Antenna FCC ID: BP9-MC110RJAPE Page 2 of 2

POWER1 Revised: Friday, February 28, 2020 Revision: Bill Of MatPage1 Item Quantity Reference PartPart_Number ______________________________________________ 11 BK1 BRKT_AMP02651-00022-2 21 BK2BRKT_73P 02651-00005-2 31 BK3BRKT_USB 02651-00024-2 41 BK4 BRKT_HIRO02651-00013-2 51 CE201 RXK332M1LDCT338N4X72 61 CE402 RXK332M1LDCT338N4X72 71 CT2504 ICT_0.5 - 8109 C10 100nF/16VLSCA104N2X70 C115 100nF/16VLSCA104N2X70 C118 100nF/16VLSCA104N2X70 C122 100nF/16VLSCA104N2X70 C134 100nF/16VLSCA104N2X70 C167 100nF/16VLSCA104N2X70 C201 100nF/16VLSCA104N2X70 C215 100nF/16VLSCA104N2X70 C222 100nF/16VLSCA104N2X70 C246 100nF/16VLSCA104N2X70 C280 100nF/16VLSCA104N2X70 C283 100nF/16VLSCA104N2X70 C302 100nF/16VLSCA104N2X70 C305 100nF/16VLSCA104N2X70 C307 100nF/16VLSCA104N2X70 C309 100nF/16VLSCA104N2X70 C310 100nF/16VLSCA104N2X70 C314 100nF/16VLSCA104N2X70 C315 100nF/16VLSCA104N2X70 C318 100nF/16VLSCA104N2X70 C321 100nF/16VLSCA104N2X70 C322 100nF/16VLSCA104N2X70 C323 100nF/16VLSCA104N2X70 C324 100nF/16VLSCA104N2X70 C402 100nF/16VLSCA104N2X70 C403 100nF/16VLSCA104N2X70 C409 100nF/16VLSCA104N2X70 C413 100nF/16VLSCA104N2X70 C429 100nF/16VLSCA104N2X70 C430 100nF/16VLSCA104N2X70 C431 100nF/16VLSCA104N2X70 C433 100nF/16VLSCA104N2X70 C440 100nF/16VLSCA104N2X70 C505 100nF/16VLSCA104N2X70 C506 100nF/16VLSCA104N2X70 C507 100nF/16VLSCA104N2X70 C508 100nF/16VLSCA104N2X70 C510 100nF/16VLSCA104N2X70 C513 100nF/16VLSCA104N2X70 C515 100nF/16VLSCA104N2X70 C517 100nF/16VLSCA104N2X70 C518 100nF/16VLSCA104N2X70 C519 100nF/16VLSCA104N2X70 C520 100nF/16VLSCA104N2X70 C522 100nF/16VLSCA104N2X70 C523 100nF/16VLSCA104N2X70 C524 100nF/16VLSCA104N2X70 C525 100nF/16VLSCA104N2X70 C526 100nF/16VLSCA104N2X70 C533 100nF/16VLSCA104N2X70 C534 100nF/16VLSCA104N2X70 C535 100nF/16VLSCA104N2X70 C538 100nF/16VLSCA104N2X70 C539 100nF/16VLSCA104N2X70 C540 100nF/16VLSCA104N2X70 C546 100nF/16VLSCA104N2X70 C547 100nF/16VLSCA104N2X70 C548 100nF/16VLSCA104N2X70 C550 100nF/16VLSCA104N2X70 C553 100nF/16VLSCA104N2X70 C554 100nF/16VLSCA104N2X70 C555 100nF/16VLSCA104N2X70 C559 100nF/16VLSCA104N2X70 C560 100nF/16VLSCA104N2X70 C561 100nF/16VLSCA104N2X70 C562 100nF/16VLSCA104N2X70 C563 100nF/16VLSCA104N2X70 C564 100nF/16VLSCA104N2X70 C565 100nF/16VLSCA104N2X70 C566 100nF/16VLSCA104N2X70 C567 100nF/16VLSCA104N2X70 C568 100nF/16VLSCA104N2X70 C569 100nF/16VLSCA104N2X70 C570 100nF/16VLSCA104N2X70 C571 100nF/16VLSCA104N2X70 C572 100nF/16VLSCA104N2X70 C573 100nF/16VLSCA104N2X70 C574 100nF/16VLSCA104N2X70 C575 100nF/16VLSCA104N2X70 C576 100nF/16VLSCA104N2X70 C577 100nF/16VLSCA104N2X70 C578 100nF/16VLSCA104N2X70 C579 100nF/16VLSCA104N2X70 C580 100nF/16VLSCA104N2X70 C581 100nF/16VLSCA104N2X70 C582 100nF/16VLSCA104N2X70 C583 100nF/16VLSCA104N2X70 C584 100nF/16VLSCA104N2X70 C585 100nF/16VLSCA104N2X70 C586 100nF/16VLSCA104N2X70 C587 100nF/16VLSCA104N2X70 C594 100nF/16VLSCA104N2X70 C595 100nF/16VLSCA104N2X70 C598 100nF/16VLSCA104N2X70 C608 100nF/16VLSCA104N2X70 C610 100nF/16VLSCA104N2X70 C622 100nF/16VLSCA104N2X70 C633 100nF/16VLSCA104N2X70 C636 100nF/16VLSCA104N2X70 C638 100nF/16VLSCA104N2X70 C1205 100nF/16VLSCA104N2X70 C1206 100nF/16VLSCA104N2X70 C1242 100nF/16VLSCA104N2X70 C1252 100nF/16VLSCA104N2X70 C1257 100nF/16VLSCA104N2X70 C1267 100nF/16VLSCA104N2X70 C1268 100nF/16VLSCA104N2X70 C1271 100nF/16VLSCA104N2X70 C1315 100nF/16VLSCA104N2X70 940 C1210nF/25V LSCA103N4X70 C2910nF/25V LSCA103N4X70 C279 10nF/25V LSCA103N4X70 C420 10nF/25V LSCA103N4X70 C421 10nF/25V LSCA103N4X70 C422 10nF/25V LSCA103N4X70 C423 10nF/25V LSCA103N4X70 C424 10nF/25V LSCA103N4X70 C425 10nF/25V LSCA103N4X70 C426 10nF/25V LSCA103N4X70 C432 10nF/25V LSCA103N4X70 C596 10nF/25V LSCA103N4X70 C742 10nF/25V LSCA103N4X70 C743 10nF/25V LSCA103N4X70 C1191 10nF/25V LSCA103N4X70 C1192 10nF/25V LSCA103N4X70 C1193 10nF/25V LSCA103N4X70 C1194 10nF/25V LSCA103N4X70 C1195 10nF/25V LSCA103N4X70 C1196 10nF/25V LSCA103N4X70 C1197 10nF/25V LSCA103N4X70 C1198 10nF/25V LSCA103N4X70 C1199 10nF/25V LSCA103N4X70 C1200 10nF/25V LSCA103N4X70 C1201 10nF/25V LSCA103N4X70 C1202 10nF/25V LSCA103N4X70 C1203 10nF/25V LSCA103N4X70 C1204 10nF/25V LSCA103N4X70 C1213 10nF/25V LSCA103N4X70 C1214 10nF/25V LSCA103N4X70 C1215 10nF/25V LSCA103N4X70 C1216 10nF/25V LSCA103N4X70 C1217 10nF/25V LSCA103N4X70 C1218 10nF/25V LSCA103N4X70 C1219 10nF/25V LSCA103N4X70 C1263 10nF/25V LSCA103N4X70 C1264 10nF/25V LSCA103N4X70 C1272 10nF/25V LSCA103N4X70 C1288 10nF/25V LSCA103N4X70 C1289 10nF/25V LSCA103N4X70 1013 C281nFLSCA102N5X70 C341nFLSCA102N5X70 C351nFLSCA102N5X70 C361nFLSCA102N5X70 C371nFLSCA102N5X70 C159 1nFLSCA102N5X70 C205 1nFLSCA102N5X70 C208 1nFLSCA102N5X70 C226 1nFLSCA102N5X70 C245 1nFLSCA102N5X70 C605 1nFLSCA102N5X70 C606 1nFLSCA102N5X70 C1207 1nFLSCA102N5X70 1125 C30 1uF/10V/1LSCC105N2X70 C31 1uF/10V/1LSCC105N2X70 C32 1uF/10V/1LSCC105N2X70 C33 1uF/10V/1LSCC105N2X70 C103 1uF/10V/1LSCC105N2X70 C111 1uF/10V/1LSCC105N2X70 C165 1uF/10V/1LSCC105N2X70 C236 1uF/10V/1LSCC105N2X70 C238 1uF/10V/1LSCC105N2X70 C240 1uF/10V/1LSCC105N2X70 C242 1uF/10V/1LSCC105N2X70 C244 1uF/10V/1LSCC105N2X70 C265 1uF/10V/1LSCC105N2X70 C427 1uF/10V/1LSCC105N2X70 C441 1uF/10V/1LSCC105N2X70 C542 1uF/10V/1LSCC105N2X70 C543 1uF/10V/1LSCC105N2X70 C637 1uF/10V/1LSCC105N2X70 C1248 1uF/10V/1LSCC105N2X70 C1278 1uF/10V/1LSCC105N2X70 C1279 1uF/10V/1LSCC105N2X70 C1280 1uF/10V/1LSCC105N2X70 C1281 1uF/10V/1LSCC105N2X70 C1282 1uF/10V/1LSCC105N2X70 C1283 1uF/10V/1LSCC105N2X70 1217 C38 220nF/25VLSCC224N4X70 C39 220nF/25VLSCC224N4X70 C40 220nF/25VLSCC224N4X70 C41 220nF/25VLSCC224N4X70 C123 220nF/25VLSCC224N4X70 C124 220nF/25VLSCC224N4X70 C135 220nF/25VLSCC224N4X70 C136 220nF/25VLSCC224N4X70 C152 220nF/25VLSCC224N4X70 C163 220nF/25VLSCC224N4X70 C164 220nF/25VLSCC224N4X70 C271 220nF/25VLSCC224N4X70 C1185 220nF/25VLSCC224N4X70 C1246 220nF/25VLSCC224N4X70 C1247 220nF/25VLSCC224N4X70 C1259 220nF/25VLSCC224N4X70 C1266 220nF/25VLSCC224N4X70 136 C47330pF/X LSCA330N5X70 C49330pF/X LSCA330N5X70 C70330pF/X LSCA330N5X70 C71330pF/X LSCA330N5X70 C1227 330pF/X LSCA330N5X70 C1235 330pF/X LSCA330N5X70 1421 C69330pF …

Text truncated - open the document above for the full version.

RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results (Worst case) Mode Max tune-up power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) FHSS -4 0.00 0.000 08 1 Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 6 1 500 – 100 000 -- -- 1 30 FCC ID: BP9-MC110RJAPE Page 1 of 1

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Report No.: KES-RF-20T0049 Page (2 ) of (51) Revision history Revision Date of issue Test report No. Description - 2020.03.31 KES-RF-20T0049 Initial This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Report No.: KES-RF-20T0049 Page (3 ) of (51) TABLE OF CONTENTS 1. General information ...................................................................................................................... 4 1.1. EUT description .............................................................................................................. 4 1.2. Test configuration ........................................................................................................... 5 1.3. Device modifications ...................................................................................................... 5 1.4. Frequency/channel operations ........................................................................................ 5 1.5. Accessory information .................................................................................................... 5 1.6. Software and Firmware description ................................................................................ 5 1.7. Measurement results explanation example ..................................................................... 6 1.8. Measurement Uncertainty ............................................................................................... 6 2. Summary of tests ........................................................................................................................... 7 3. Test results ..................................................................................................................................... 8 3.1. 20 ㏈ bandwidth............................................................................................................ 8 3.2. Output power ................................................................................................................ 12 3.3. Carrier frequency separation ......................................................................................... 16 3.4. Number of hopping frequency ...................................................................................... 18 3.5. Time of occupancy ........................................................................................................ 20 3.6. Radiated restricted band and emissions ........................................................................ 25 3.7. Conducted band edge and out of band emissions ......................................................... 45 Appendix A. Measurement equipment ............................................................................................... 50 Appendix B. Test setup photo ............................................................................................................ 51 This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Report No.: KES-RF-20T0049 Page (4 ) of (51) 1. General information Applicant: MOTREX CO., LTD. Applicant address: Seoyoung Bldg., 25, Hwangsaeul-ro 258beon-gil, Bundang-gu, Seognam-si, Gyeonggi-do, Korea. Test site: KES Co., Ltd. Test site address: 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea Test Facility FCC Accreditation Designation No.: KR0100, Registration No.: 444148 FCC rule part(s): 15.247 FCC ID: BP9-MC110RJAPE Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test SMART DISPLAY Frequency range 2 402 ㎒ ~ 2 480 ㎒ (BDR/EDR) Model MC110RJAPE Modulation technique GFSK, π/4DQPSK, 8DPSK Number of channels 79 ch(Non-AFH mode), 20 ch(AFH mode) Antenna specification Antenna type : Chip antenna, Peak gain : 0.00 ㏈i Power source DC 12 V 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted signals. 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Report No.: KES-RF-20T0049 Page (5 ) of (51) Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels.…

Text truncated - open the document above for the full version.

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel : +82-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Report No.: KES-RF-20T0049 Page (51 ) of (51) Appendix B. Test setup photo Radiated Blank The end of test report. This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4
