BP9-MC110RSU2ISMART DISPLAY

Car Multimedia System USER'S MANUAL Functions and services in this manual may differ from those in the actual vehicle. Thank you for purchasing this HYUNDAI Motors Car Multimedia System. This user’s manual explains how to use the HYUNDAI Motors Car Multimedia System. Before using the product, read the contents of this user’s manual carefully and use this product safely. 䠐The screens shown in this manual may differ from the actual screens of the product. 䠐The design and specification of this product may change without prior notification for product improvement. 䠐When transferring the vehicle to another individual, include this user’s manual so that the next driver can continue its use. 3 Table of Contents Table of Contents 3 Start Component Names and Functions 5 Using the System for the First Time 8 Home Screen 9 Media USB Music 11 USB Video 13 iPod® Music 15 Bluetooth® Audio 17 AUX 19 Radio Basic Screen 21 Listening to FM/AM radio 22 Phone Bluetooth® Wireless Technology 24 Bluetooth® Connection 25 Bluetooth® Phone 27 Setup Starting mode 33 Sound 34 Display 36 Bluetooth® 38 Connectivity 41 Date and Time 42 Language 43 System 44 Others Android Auto™ 47 Apple CarPlay 49 WebLink 51 Guide ME KSA (Android : Guide ME) 58 Reference Precautions for safety 63 Key Product Features 65 General Information 67 Specification 69 Troubleshooting 71 FCC Warning 73 Table of Contents 시작하기Start 5 Component Names and Functions Component Names and Functions Head unit Head unit functions may vary for each model. POWER PUSH or PWR / Volume knob 䠐Press to turn the power on. 䠐When power is on, press and hold to turn power off. 䠐When power is on, press to turn Audio off. 䠐Turn left/right to control volume. HOME button (AV only) 䠐Press to go to the home screen. PHONE button (AV only) 䠐Press to go to the phone screen. MAP button (AVN only) 䠐Press to display the map screen of the current location. 䠐Press to repeat the voice guidance on the map screen. (Voice guidance for road names and numbers is not supported in some countries.) NAV button (AVN only) 䠐Press to move to the Navigation menu screen. b (Reset hole) 䠐Press with a thin object to reset the unit when it does not operate normally. K (Custom button) 䠐Press to move to the [Custom button] menu. After setting a desired function, press to use the desired function. A SEEK/TRACK D (S/W) button When it is pressed for a short time. 䠐Radio mode: Plays previous/next available frequency or station. 䠐Media mode: Plays previous/next file. When it is pressed and held 䠐Radio mode: Plays previous/next available frequency or station. 䠐Media mode : Rewinds or fast forwards the file. 6 Component Names and Functions RADIO button 䠐Press to go to the radio screen. MEDIA button 䠐Press to go to the available media. SETUP button 䠐Press to go to the settings screen. Tune/Enter knob 䠐In Radio mode, turn left/right to change the frequency or station. 䠐In Media mode, turn left/right to change file and press to select the desired file. Steering Wheel Remote Control Steering wheel remote control functions may vary for each model. C / MODE button 䠐Each time this button is pressed, the Radio or Media mode is changed. 䠐If the media is not connected, it is changed in the order FM > AM > FM. 䠐When it is pressed and held, move to Advanced settings "Steering wheel MODE button". W/S button When it is pressed for a short time 䠐Radio mode: Plays previous/next favorites. 䠐Media mode: Plays previous/next file. When it is pressed and held 䠐Radio mode: Plays previous/next available frequency or station 䠐Media mode: Rewinds or fast forwards the file. i (Voice Recognition button) 䠐Press to switch to voice recognition mode. 䠐To cancel it, press and hold the button again. W button Press to operate Bluetooth® hands-free function. 䠐Press to accept a call. 䠐Press to make a call from last calls. 䠐Press and hold for redialing. 7 Component Names and Functions Z button 䠐Press to end the phone call during a call. 䠐Press to reject the call in the incoming call screen. 䠐Press to end Voice memo recording. J / I button 䠐Increases or decreases the volume level. d (Mute) 䠐Press to mute the sound. (It will be paused in some media modes.) 8 Using the System for the First Time Using the System for the First Time Turning the System On/Off Turning the System On Press the engine start button. If the brakes are not pressed, then the ACC and system will turn on. If the brakes are pressed, then the IGN and system will turn on and the ignition will start. In both instances, the following safety warning will be displayed. Pressing the PWR key on the head unit will display the safety warning page. Press the [Confirm] button to display the most recent mode. Turning the System Off Press the engine start button again or press and hold the power key on the head unit to turn the system off. , NOTE If the system is turned off while the Handsfree is being used, then the call will automatically switch back to the mobile phone. AV On/Off Press the PWR key on the head unit when the AV is on. Press the PWR key or press the menu key to turn on AV. While AV is turned off, the TUNE / ENTER knob will be disabled. Resetting the System This feature is used to reset the system in the occurrence of an unforeseen error or problem. Press the reset hole using a clip or pin. 9 Home Screen Home Screen Press > Press the menu button you want to use. 1 2 3 456 a Time bar 䠐Displays the current time. 䠐Touch the area to move to the date/time settings screen. b Time widget 䠐Displays the current time and date. 䠐Touch the area to move to the date/time settings screen. c AV widget 䠐Displays brief information of radio or media currently playing. 䠐Touch the area to move to the media screen currently playing. d All Menus 䠐Shows all of the items in the system menu. e Media 䠐Display the media screen. f Setup 䠐Moves to the setting screen. 시작하기Media 11 USB Music USB Music Playing USB Music Once a USB is connected, USB Music mode will operate automatically. Press [MEDIA] > [US…

Text truncated - open the document above for the full version.

MOTREX CO., LTD. Seoyoung Bldg., 25, Hwangsaeul-ro 258beon-gil, Bundang-gu, Seognam-si, Gyeonggi-do, Korea. Date: July 31, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: BP9-MC110RSU2I Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT Exhibit Type File Name Part List Part List_MC110RSU2i.pdf Schematics Diagram(s) Schematics_MC110RSU2i.pdf Block diagram Block diagram_MC110RSU2i.pdf Operation description Operation description_MC110RSU2i.pdf And the above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Young Kwon / Manager MOTREX CO., LTD.

MOTREX CO., LTD. Seoyoung Bldg., 25, Hwangsaeul-ro 258beon-gil, Bundang-gu, Seognam-si, Gyeonggi-do, Korea. Date: July 31, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Young-Jin, Lee of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Young-Jin, Lee of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; MOTREX CO., LTD. Seoyoung Bldg., 25, Hwangsaeul-ro 258beon-gil, Bundang-gu, Seognam-si, Gyeonggi-do, Korea. h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Young Kwon / Manager MOTREX CO., LTD. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

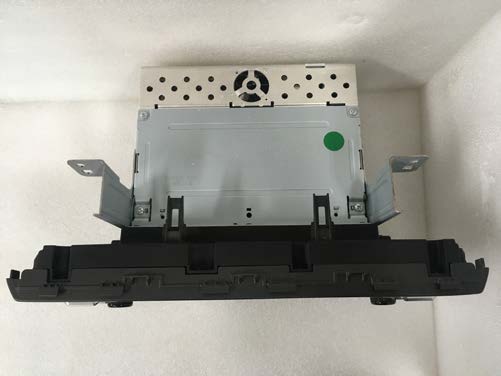

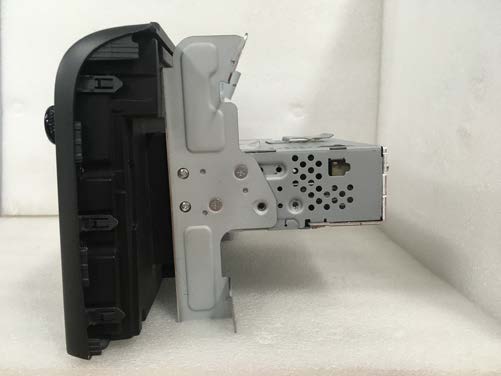

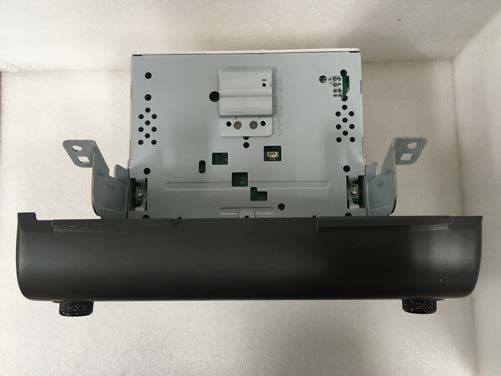

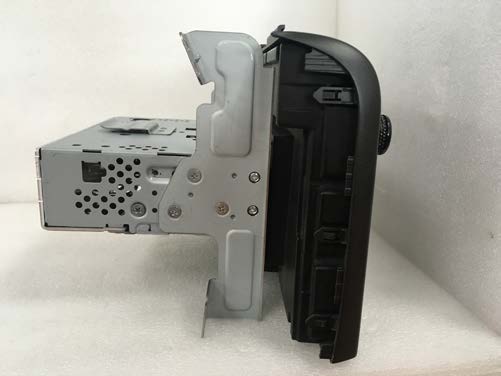

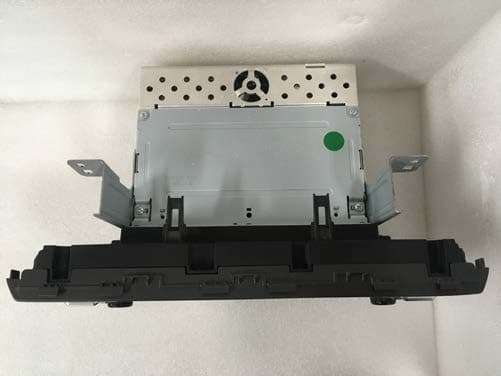

External photos FCC ID: BP9-MC110RSU2I Page 1 of 1

Label photo FCC ID: BP9-MC110RSU2I Page 1 of 1

Internal photos Chip Antenna FCC ID: BP9-MC110RSU2I Page 1 of 2 Internal photos FCC ID: BP9-MC110RSU2I Page 2 of 2

RF exposure According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 ㎒ to 6 ㎓ at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(㎓)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, Where; f(㎓) is the RF channel transmit frequency in ㎓ Power and distance are rounded to the nearest ㎽ and mm before calculation The result is rounded to one decimal place for comparison Results -FHSS Frequency (㎓) Distance (mm) Max tune-up power Calculation value Exclusion Threshold (㏈m) (㎽) 2.402 5 -5 0.32 0.10 ≤3.0 2.441 5 -5 0.32 0.10 ≤3.0 2.480 5 -5 0.32 0.10 ≤3.0 FCC ID: BP9-MC110RSU2I Page 1 of 1

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF1-20T0125 Page (2 ) of (47) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 Revision history Revision Date of issue Test report No. Description - 2020.07.31 KES-RF1-20T0125 Initial KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF1-20T0125 Page (3 ) of (47) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 TABLE OF CONTENTS 1. General information ...................................................................................................................... 4 1.1. EUT description .............................................................................................................. 4 1.2. Test configuration ........................................................................................................... 5 1.3. Device modifications ...................................................................................................... 5 1.4. Frequency/channel operations ........................................................................................ 5 1.5. Accessory information .................................................................................................... 5 1.6. Software and Firmware description ................................................................................ 5 1.7. Measurement results explanation example ..................................................................... 6 1.8. Measurement Uncertainty ............................................................................................... 6 2. Summary of tests ........................................................................................................................... 7 3. Test results ..................................................................................................................................... 8 3.1. 20 ㏈ bandwidth ........................................................................................................... 8 3.2. Output power ................................................................................................................ 12 3.3. Carrier frequency separation ......................................................................................... 14 3.4. Number of hopping frequency ...................................................................................... 16 3.5. Time of occupancy ........................................................................................................ 18 3.6. Radiated restricted band and emissions ........................................................................ 23 3.7. Conducted band edge and out of band emissions ......................................................... 41 Appendix A. Measurement equipment ............................................................................................... 46 Appendix B. Test setup photo ............................................................................................................ 47 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF1-20T0125 Page (4 ) of (47) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 1. General information Applicant: MOTREX CO., LTD. Applicant address: Seoyoung Bldg., 25, Hwangsaeul-ro 258beon-gil, Bundang-gu, Seognam-si, Gyeonggi-do, Korea. Test site: KES Co., Ltd. Test site address: 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea Test Facility FCC Accreditation Designation No.: KR0100, Registration No.: 444148 FCC rule part(s): 15.247 FCC ID: BP9-MC110RSU2I Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test SMART DISPLAY Frequency range 2 402 ㎒ ~ 2 480 ㎒ (BDR/EDR) Model MC110RSU2i Modulation technique GFSK, π/4DQPSK, 8DPSK Number of channels 79 ch(Non-AFH mode), 20 ch(AFH mode) Antenna specification Antenna type : Chip antenna, Peak gain : 0.00 ㏈i Power source DC 12 V 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted signals. 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF1-20T0125 Page (5 ) of (47) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report r…

Text truncated - open the document above for the full version.

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF1-20T0125 Page (47 ) of (47) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 Appendix B. Test setup photo Radiated Blank The end of test report.
