BRCPC1018tablet pc

MID User Manual 1 TABLET PC USER MANUAL (English) Brand Name: Kinwei Model Name: PC1018 FCC ID: BRCPC1018 MID User Manual 2 Content 1. Preface 2. Safety Notices 3. Ready to Use 3.1 Packing List 3.2 Instructions on Keys 3.3Features Overview 3.4 Technical Specifications 4. Quick Guides 4.1 Switch On/Off 4.2 Battery Management and Charging 4.3 Operation of the Function Icons 5. Operation Details 5.1.1 Music Player 5.1.2 Video 5.1.3 Gallery 5.1.4 Recording 5.1.5 File Manager 5.1.6 Web Browser 5.1.7 E-book reading 5.1.8 Calculator MID User Manual 3 5.1.9 Clock 5.2.0 Camera 5.2.1 tf (Micro sd) Card Storage 5.2.2 APK Install and Manage 5.2.3 External Keyboard & Mouse 5.2.4 Connect the HD and TV 6. System setting 6.1.1 WIFI Setting 6.1.2 External 3G USB Dongle 6.1.3 Sound 6.1.4 Display and wall paper 6.1.5 Storage 6.1.6 Battery 6.1.7 Apps 6.1.8 Location & security 6.1.9 Language & input 6.2.0 Backup & reset 6.2.1 Date & time 6.2.2 Accessibility 6.2.3 Developer options 6.2.4 About tablet 6.2.5 Add, Move or Delete Desktop Icon MID User Manual 4 6.2.6 Bluetooth 7. Movil Teacher (Optional) 7.1 Device setting 7.2 User’s interface 7.3 Navegacion 8. Firmware Upgrade 9. Troubleshooting and FAQ 1. Preface Dear Customers, Thanks very much for purchasing our product! This Tablet PC is a built-in high performance Wi-Fi receiver module, supporting an external 3G USB-DONGLE wireless network card, using broadband wireless networks, breaking through the restraint of network cables; it will bring you into the portable media player world and fulfill your entertainment needs. It also supports picture browsing, e-book reading, games, online chat and other functions; various settings will fully show your individuality. To operate this player easily, first, please read this User Manual included with the player. Then you will have a better understanding of the operations. Before operating this player, please carefully read all data we provide about the player, so that you will have a better understanding of the product and its operations. The Company will not be responsible for any loss of personal data and damage caused by incorrect operation of the Software/Hardware, artificial damages, replacement of batteries or any other accident. To avoid loss of your data, please backup your data to your computer at all times. Also, since we can not control any dispute from users’ misunderstanding or incorrect operation against the manual, the Company will not take any relevant responsibility for any accidental loss potentially occurring in the process of using this manual. Due to constant product development, the information in this manual is subject to change without any prior notice. This manual is protected by copyright and no part is permitted to be copied or reproduced in any way without prior written permission of the Company. The Company reserves the final explanation right of this manual, warranty as well as its related information. (Note: When compiling this manual, we are very careful to provide you completely reliable MID User Manual 5 information. However, there is inevitably some error and oversight, please understand, and we welcome your suggestions. If any problem occurs during your use of this product, please immediately contact your local seller) Thanks for your support and please pay attention to our other products。 2. Safety Notices 1) Please keep the Tablet PC away from strong magnetic fields in order to avoid damage to the product. 2) Please do not let the Tablet PC fall onto, rub against or knock against hard objects during use, because this may cause surface scratches on the Tablet PC, battery damage, data loss or other damage to the hardware. 3) Never let this product be exposed to a humid environment or rain as the water leaking into the Tablet PC could disable it to the extent of being beyond repair. 4) Never clean the Tablet PC with any chemicals or detergent, these will damage the product surface and corrode the finish. 5) You are recommended not to use the headset with the volume at its highest settings, please adjust the volume to an appropriate safe level and limit the amount of time you spend using headphones to avoid possible damage to your hearing. Excessive volume will cause permanent hearing damage. 6) Please do not cut off the power abruptly during software updates or downloading, because this may cause data loss or system errors. 7) Over-voltage, power cable strain and bending or squeezing of the power cable by heavy objects must be avoided to prevent the possibility of overheating or fire. 8) In order to eliminate the risk of electric shock, do not touch the cable power plug with wet hands. 9) Some movies, music and pictures are under the protection of copyright, unauthorized usage is deemed as an infringement to the laws of copyright. 10) Please don’t turn on the Tablet PC on in locations where wireless equipment is forbidden or when the usage of the Tablet PC will cause interference and possible danger. 11) All the wireless equipment is subject to external interference and this can affect its performance. 12) Please comply with any related restrictions and rules, wireless equipment can influence the flight of the plane; please consult the relevant airline company if you intend to use the Tablet PC on a plane. 13) Please don’t use the Tablet PC in a petrol station, or near to fuel or chemicals. 14) Please comply with any related restrictions and rules; do not use the Tablet PC where blasting operations are in progress. 15) Only qualified maintenance personnel can install or repair the Tablet PC. Opening the Tablet PC in any way will invalidate the warranty. 16) Please use the original accessories and battery provided with the Tablet PC, do not use the incompatible products. 17) The Tablet PC is not waterproof, please keep it dry. MID User Manual 6 18) For the sake of data safety, please back up any important information on the Tablet PC, or keep a handwritten record. 19) When the Tablet …

Text truncated - open the document above for the full version.

Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,China June 12, 2015 Eurofins Product Service GmbH Storkower Str. 38c 15526 Reichenwalde GERMANY Subject: Explanation of differences between product types FCC ID : BRCPC1018 Model Number: PC1018, PC1018ME, PC1018Y,PCXXXX(XXXX represents0000~9999),PCXXXXME(XXXX represents0000~9999),PCXXXXY(XXXX represents0000~9999;Yrepresents A~Z),KW-PC1018U,KW-PC1018,KW-PCXXXXU(XXXX represents0000~9999),KW-PCXXXX(XXXX represents0000~9999) To Whom It May Concern: We, The Kintech Co., Ltd. hereby declare that the model : PC1018ME, PC1018Y,PCXXXX(XXXX represents0000~9999),PCXXXXME(XXXX represents0000~9999),PCXXXXY(XXXX represents0000~9999;Yrepresents A~Z),KW-PC1018U,KW-PC1018,KW-PCXXXXU(XXXX represents0000~9999),KW-PCXXXX(XXXX represents0000~9999) is identical with the model : PC1018, except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Company Officer: Zhi Quan Company address： 1F-5F, Bldg 22, Chen Tian Industral Zone, Xi Xiang, Bao An District, Shenzhen, Guang Dong, China Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,China Email: [email protected]

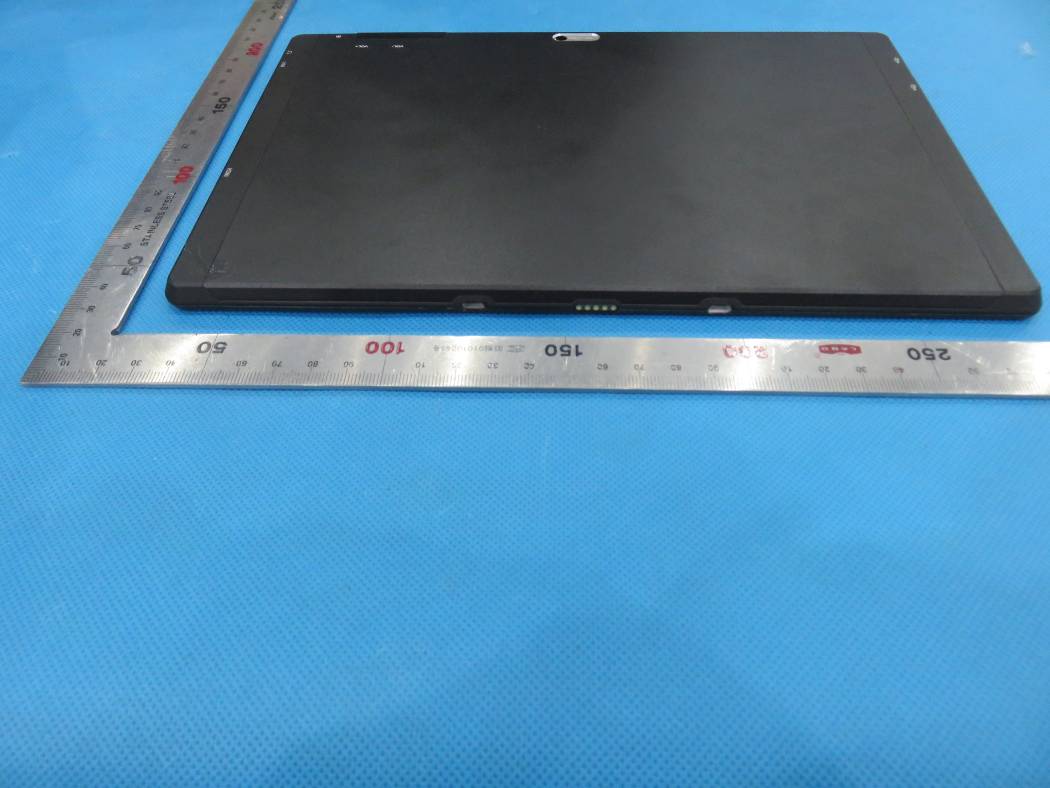

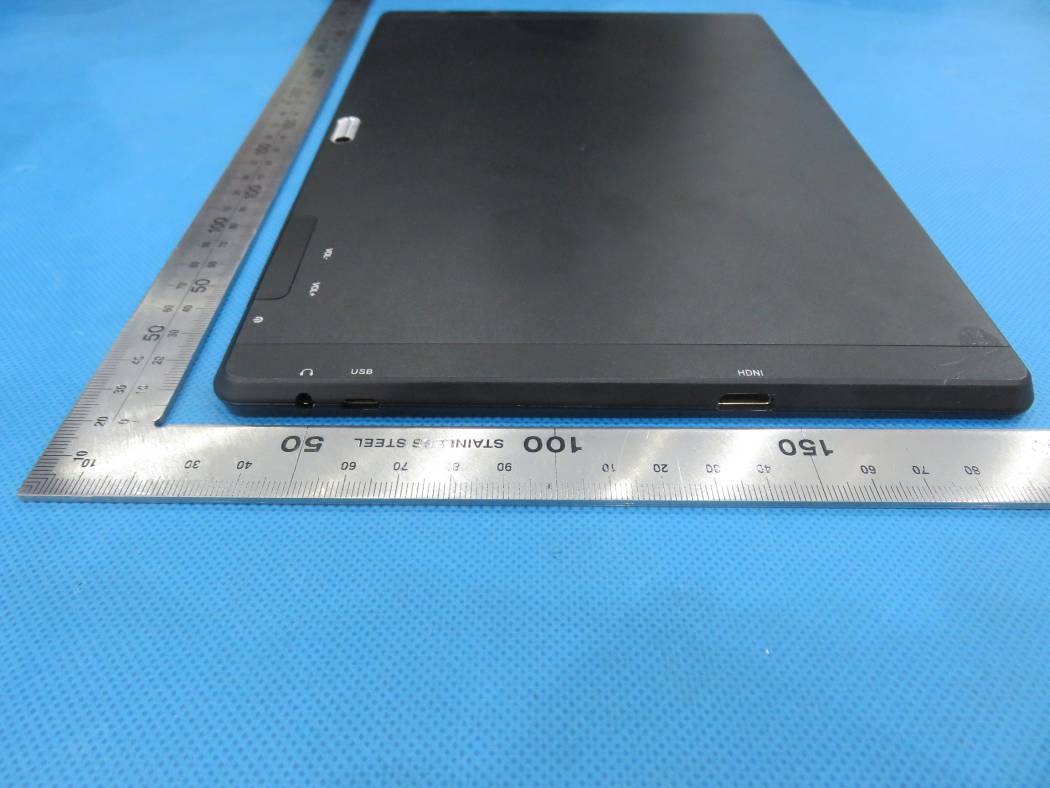

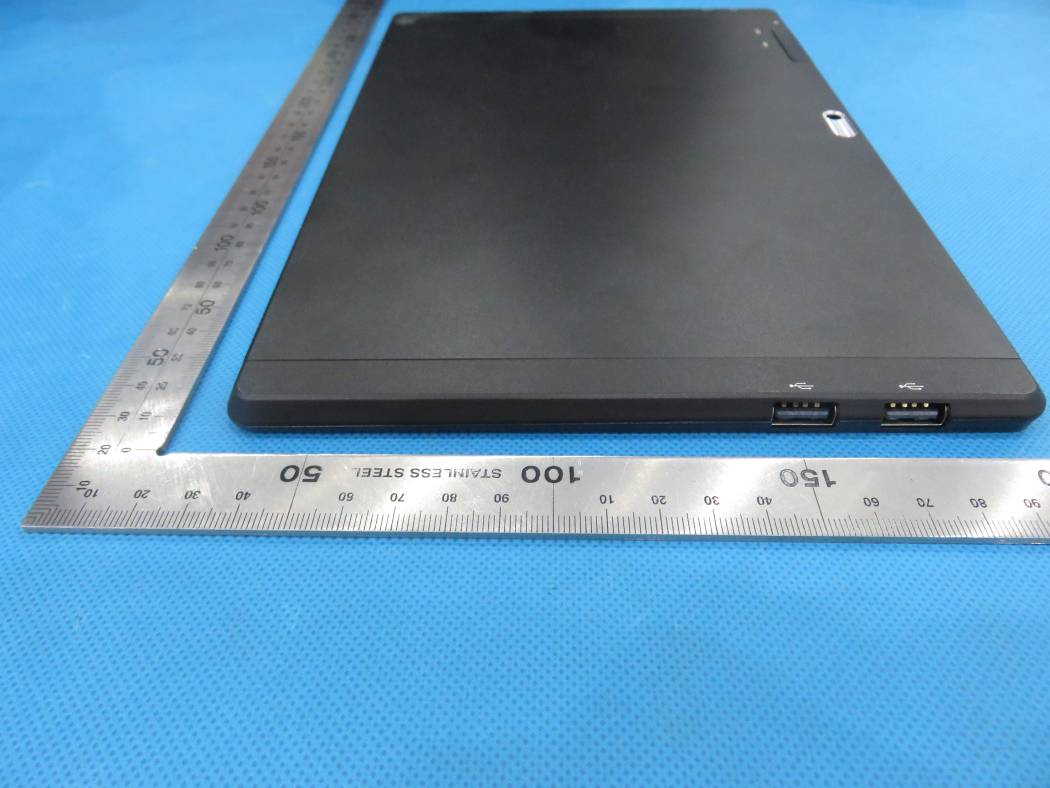

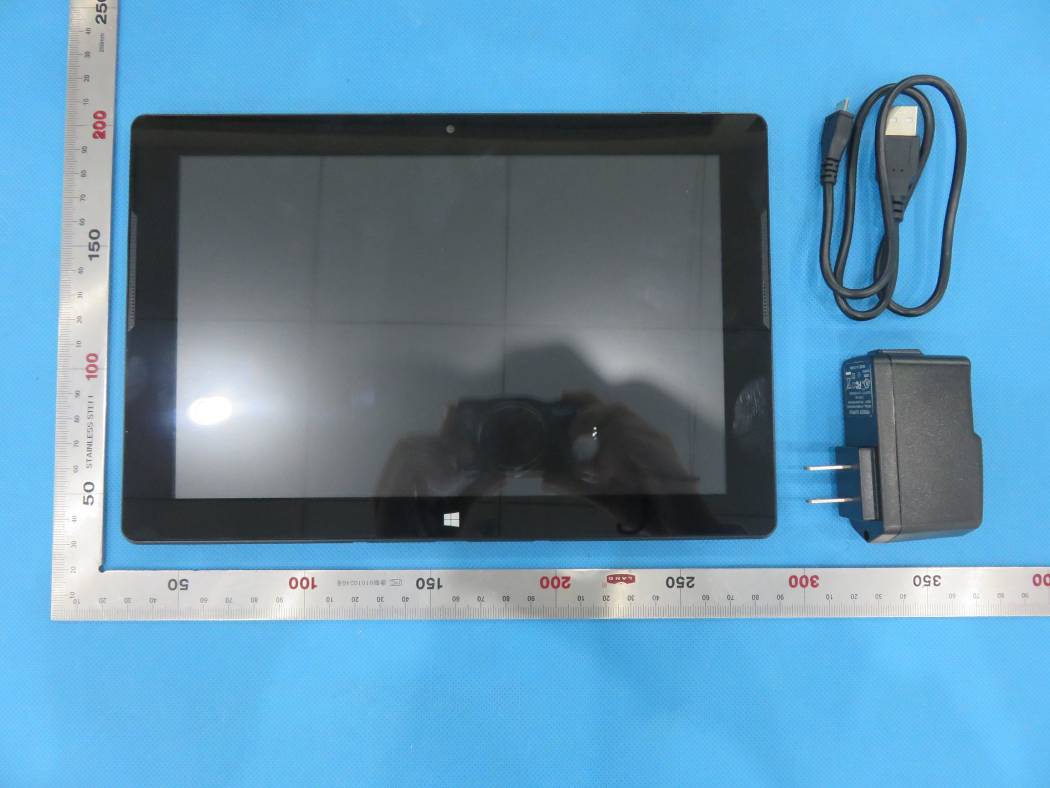

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location table pc Model: PC1018 Brand Name: Kinwei/Titan FCC ID: BRCPC1018 PC1018ME, PC1018Y, PCXXXX(XXXX represents 0000~9999), PCXXXXME(XXXX represents 0000~9999),PCXXXXY(XXXX represents 0000~9999; Y represents A~Z), KW‐PC1018U, KW‐PC1018, KW‐PCXXXXU(XXXX represents 0000~9999), KW‐PCXXXX(XXXX represents 0000~9999)

Page 1 of 40 FCC Test Report Report No.: AGC00119150401FE03 FCC ID : BRCPC1018 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : tablet pc BRAND NAME : Kinwei/Titan MODEL NAME : PC1018（Series model name please see page 4） CLIENT : Kintech Co., Ltd. DATE OF ISSUE : May.28, 2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00119150401FE03 Page 2 of 40 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / May.28, 2015 Valid Original Report Report No.: AGC00119150401FE03 Page 3 of 40 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCY ............................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 8 6. TEST FACILITY .................................................................................................................... 9 7. ALL TEST EQUIPMENT LIST .............................................................................................. 9 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT ................................................................................................................................... 10 8.3. TEST SETUP .............................................................................................................................. 13 8.4. TEST RESULT ............................................................................................................................ 15 9. BAND EDGE EMISSION .................................................................................................... 20 9.1. MEASUREMENT PROCEDURE ................................................................................................ 20 9.2 TEST SETUP ............................................................................................................................... 20 9.3 RADIATED TEST RESULT .......................................................................................................... 21 10. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 25 10.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 25 10.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................ 25 10.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 26 10.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 26 10.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ...................................................... 27 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 29 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 30 Report No.: AGC00119150401FE03 Page 4 of 40 1. VERIFICATION OF CONFORMITY Applicant Kintech Co., Ltd. Address 1F-5F, Bldg 22, Chen Tian Industral Zone, Xi Xiang, Bao An District, Shenzhen, Guang Dong, China Manufacturer Kintech Co., Ltd. Address 1F-5F, Bldg 22, Chen Tian Industral Zone, Xi Xiang, Bao An District, Shenzhen, Guang Dong, China Product Designation tablet pc Brand Name Kinwei/Titan Test Model PC1018 Series Model PC1018ME, PC1018Y,PCXXXX(XXXX represents0000~9999),PCXXXXME(XXXX represents0000~9999),PCXXXXY(XXXX represents0000~9999;Yrepresents A~Z),KW-PC1018U,KW-PC1018,KW-PCXXXXU(XXXX represents0000~9999),KW-PCXXXX(XXXX represents0000~9999) Difference description All the same except for the model name. Date of test May.20, 2015 to May.27, 2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Services(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Max Zhang May.28, 2015 Checked By Kidd Yang May.28, 2015 Authorized By Solger Zhang May.28, 2015 Report No.: AGC00119150401FE03 Page 5 of 40 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency(BT Module) 2.402 GHz to 2.480GHz Maximum field strength(BT Module) 91.37dBuV/m@3m(AV) Bluetooth Version(BT Module) V3.0 Modulation(BT Module) GFSK, π /4-DQPSK, 8DPSK Number of channels(BT Module) 79 Antenna Gain(BT Module) 1.2dBi Antenna Designation(BT Module) Integrated Antenna Met 15.203 Antenna requirement) …

Text truncated - open the document above for the full version.

Test Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
