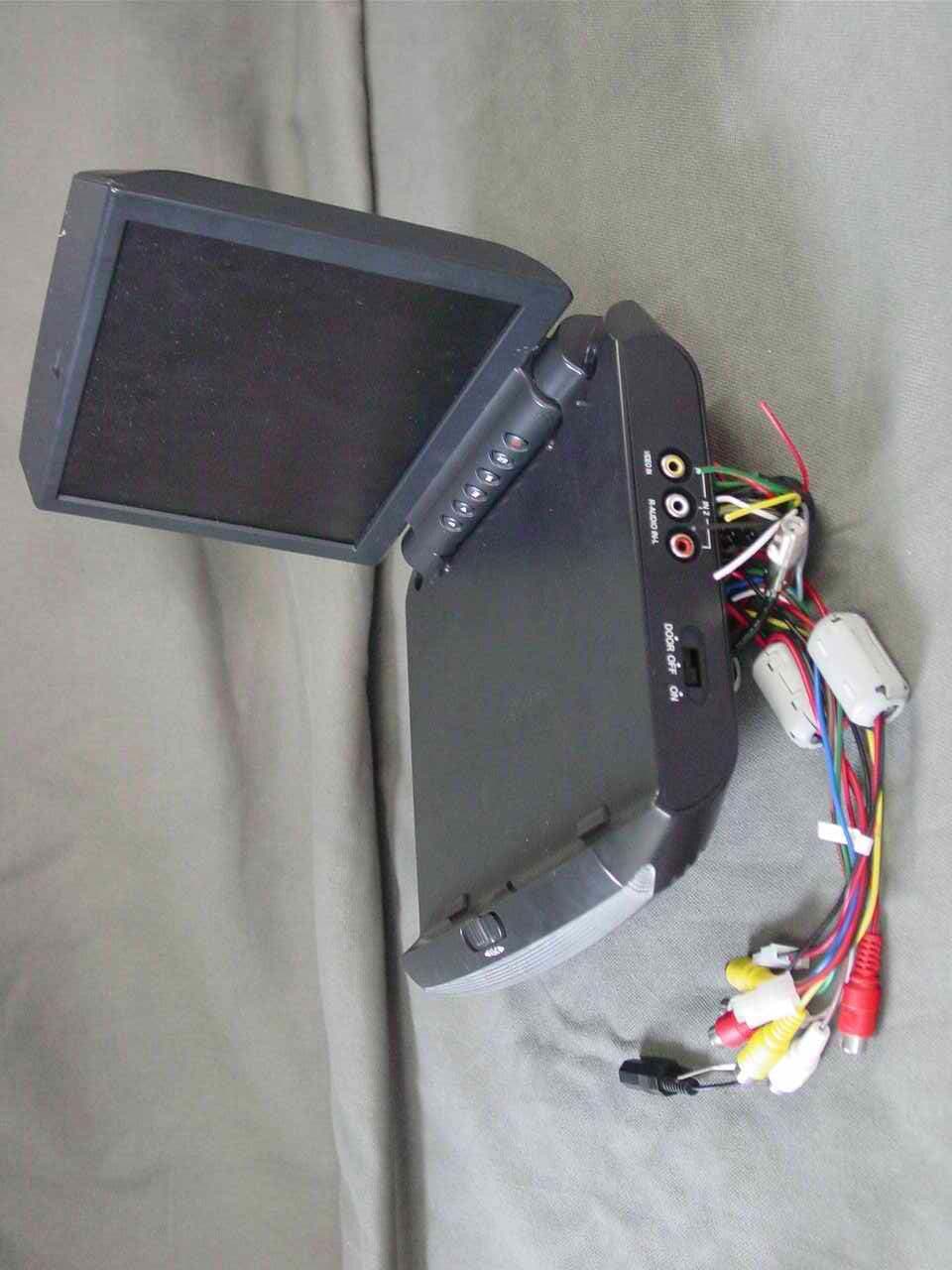

BRFLTD102AA10.2" LCD TV Receiver

THIS PRODUCT HAS BEEN DESIGNED, MANUFACTURED AND INSPECTED IN COMPLIANCE WITH THE ISO9001 QUALITY ASSURANCE SYSTEM. Part No. 11907070B 10.2” LCD INTEGRATED DVD MONITOR RECEIVER SYSTEM INSTALLATION INFORMATION & OPERATING INSTRUCTIONS IMPORTANT NOTE : WHEN USED IN A VEHICLE, THIS SYSTEM IS INTENDED PRIMARILY AS A MONITOR FOR THE BUILT-IN DVD PLAYER OR FOR AN EXTERNAL DVD PLAYER, VIDEOCASSETTE PLAYER, VIDEO GAME, OR CAMERA. TELEVISION BROADCAST RECEPTION WILL BE ADVERSELY AFFECTED BY CONDITIONS SUCH AS MOTION, CHANGE OF DIRECTION, ATMOSPHERIC ACTIVITY, AND LOCAL SURROUNDINGS. IT IS THEREFORE LIKELY THAT BROADCAST PICTURE QUALITY WILL BE MARGINAL WHEN THIS SYSTEM IS USED IN A MOBILE ENVIRONMENT. MOBILE APPLICATIONS MODEL: LVMD-102/LVMD-102S THIS PRODUCT IS INTENDED FOR PROFESSIONAL INSTALLATION ONLY FOR MOBILE-SPECIFIC 12 VOLT DC-ONLY OPERATION PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT CAUTIONS 2 FCC WARNINGS : This equipment may generate or use radio frequency energy. Change or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authorization to operate this equipment if an unauthorized change or modification is made. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOTOPEN ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL CAUTION : ANY CHANGES OR MODIFICATIONS IN THE CONSTRUCTION OF THIS DEVICE WHICH ARE NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. WARNINGS : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT OPEN THE CABINET. DANGEROUS HIGH VOLTAGE IS PRESENT. SERVICING SHOULD ONLY BE PERFORMED BY QUALIFIED PERSONNEL. THIS LCD VIDEO SYSTEM SHOULD ONLY BE OPERATED WITH 12V DC. GRAPHICAL SYMBOLS EXPLANATION This lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the appliance. IMPORTANT SAFEGUARDS 3 1. Read InstructionsAll safety & operating instructions should be read before operating the appliance. 2. Retain InstructionsThe safety and operating instructions should be retained for future reference. 3. Heed WarningsAdhere to ALL warnings on the product and in the operating instructions. 4. Follow InstructionsAll operating and use instructions should be followed. 5. CleaningUnplug this product from power cable connector before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6. AttachmentsDo not use attachments not recommended by the product manufacturer as they may cause hazards. 7. Water and MoistureDo not install this product near water - for example, near a bath tub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool and the like. 8. AccessoriesDo not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the equipment. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting approved by the manufacturer. 9.A product and cart combination should be moved with care. Quick stops, excessive force, and uneven sur- faces may cause the product and cart combination to overturn. 10. VentilationSlots and opening in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating and these should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a book- case or rack unless proper ventilation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to. 11.Power Sources This product should be operated only from the type of power source indicated on the marking label. lf you are not sure of the type of power supply to your car, consult your product dealer. For products intended to operate from battery power, or other source, refer to the operating instructions. 12.Servicing Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 13. Damage requiring Service Unplug this product the wall outlet and refer servicing to qualified service per- sonnel under the following conditions: a. When the power-supply cord or plug is damaged. b. lf liquid has been supplied, or objects have fallen into the product. c. lf the product has been exposed to rain or water. d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e. lf the product has been dropped, or the cabinet has been damaged. f. When the product exhibits a distinct change in performance-this indicates a need for service. 14. Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part.Unauthorized substitutions may result in fire, electric shock or other hazard…

Text truncated - open the document above for the full version.

KTV GLOBAL CORPORATION 149, Gongdan 1-Dong, Gumi-City, Kyungbuk, 730-031, Korea Tel: +82-54-467-3550 / Fax: +82-54-467-3569 Power of Attorney Date: December 08, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ONETECH Corp., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ONETECH Corp on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ONETECH Corp., as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, _________________________ Mr. Eui-Yeun, Kim / Team Leader KTV GLOBAL CORPORATION Tel: +82-54-467-3550 Fax: +82-54-467-3569 E-Mail: [email protected]

#505 SK Apt. Factory, 223-28 Sangdaewon1-Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do 462-705 Korea [TEL]031-746-8500 [FAX]031-746-8700 CBTL -002 (Rev. 2) KOLAS www.onetech.co.k r Date : 2006. 09. 27 Ref. No : To : Application Examiner / Reviewing Engineer FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 CC : Subject : Request for confidentiality per Section 0.459 of FCC Rules Applicant: KTV GLOBAL CORPORATION., FCC ID: BRFLTD102AA To whom it may concern, Request is hereby submitted, on behalf of my client, KTV GLOBAL CORPORATION., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagram Operational Description Rationale for request for confidentiality: KTV GLOBAL CORPORATION., has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, Y.K. Kwon / Chief Engineer Onetech Corp. Email: [email protected]

Subject: FW: Response to Inquiry to FCC (Tracking Number 834081) 12/13/2006 Inquiry: Permit but Ask List #1. FM band modulators / transmitters operating under 15.239 of the FCC rules New Application Grantee: KTV GLOBAL CORPORATION FCC ID: BRFLTD102AA EUT Description: 10.2 LCD TV RECEIVER (FM Transmitter) Equipment Class: DXX Rule Part: 15.239 Here I would provide the answers to the following FCC questions: 1. How does this device operate? It will be used in a car. 2. Provide information on the device and its antenna It is a 10.2 LCD TV RECEIVER that has a function for transmitting of FM broadcasting frequency range. The TX antenna used is internal wire antenna. 3. How is it installed? Install the unit to metal pillars in the car’s roof with 4 screws. 4. What test procedure was used? ANSI C 63.4: 2003 5. If tested in a car, how was it configured/tested? It was not tested in a car, it was tested in the chamber, because the device does not have external antenna input port. 6. Was the tuning range properly verified? Yes, the low channel is 88.3MHz, and the highest channel is 90.3MHz. Please refer to the statement and test data on page 12 of the test report. 7. Was the bandwidth properly tested with maximum audio input? The EUT has audio input port, so the input port was connected to a VCR and played a real movie, both AV signal comes from the VCR, when the volume control of VCR was set to maximum. 8. Provide a test report. The report is attached. Please advise if it is OK to file 731. Thank you, ---Reply from Customer on 12/12/2006--- What rule part allows you to substitute Quasi-peak measurements for average measurements? (Answer) Sorry the peak measurements are added into the test report. Please see page 8 of the revised test report. What are the differences in enclosures for the different models? (Answer) The different models have the same enclosure shape, are identical to each other, except for the brand name, model name and enclosure color. Please see page 4 of the revised test report. Response: The remark in Section 5.1 below should be deleted from the revised test report. Remark: The quasi-peak values at each frequency were investigated under average limit, so the average mode was not performed. Please ensure that this is done and grant. No need for further reply. Submit a copy of this correspondence in the filing. Thanks 12/13/2006

1 Helen Zhao Subject: FW: KTV GLOBAL CORPORATION, FCC ID: BRFLTD102AA, Assessment NO.: AN06T6193, Notice#1 -----Original Message----- From: ??? Sent: Thursday, November 30, 2006 10:49 PM To: Helen Zhao Subject: Re: KTV GLOBAL CORPORATION, FCC ID: BRFLTD102AA, Assessment NO.: AN06T6193, Notice#1 Dear Ms. Helen, Regarding the Assessment No. AN06T6193, we would like to submit the revised test report and seven questions. We are sorry that our response is too late. If you have any question, please feel free to contact us. Have a great day! Best Regards, S. C. Hong ----- Original Message ----- From: Helen Zhao To: Y.G. Gwon Sent: Wednesday, October 25, 2006 2:52 PM Subject: RE: KTV GLOBAL CORPORATION, FCC ID: BRFLTD102AA, Assessment NO.: AN06T6193, Notice#1 Dear YK, When the device has audio port that can be connect to an iPod or VCR, FCC expects to see in normal operation, when the volume control was set to maximum, what the bandwidth looks like. They don't want to see 1KHz audio signal to be used in this situation. Please retest bandwidth when VCR is playing a real movie, both AV signal comes from the VCR, when the volume control of VCR was set to maximum. You might get different results. Best Regards, Helen From: Y.G. Gwon Sent: Tue 10/24/2006 6:14 PM To: Helen Zhao Subject: RE: KTV GLOBAL CORPORATION, FCC ID: BRFLTD102AA, Assessment NO.: AN06T6193, Notice#1 Dear Helen, We played the Video tape has Color bar and 1 kHz audio signal during the test. If you need more questions, please inform me that. Best Regards, 2 Y. G. Gwon -----Original Message----- From: Helen Zhao [mailto:[email protected]] Sent: Wednesday, October 25, 2006 9:38 AM To: Y.G. Gwon Subject: RE: KTV GLOBAL CORPORATION, FCC ID: BRFLTD102AA, Assessment NO.: AN06T6193, Notice#1 Dear YK, Please advise for the bandwidth test, what audio signal was used from the VCR to the FM transmitter? Was the VCR playing video tape during the test? Thank you, Helen -----Original Message----- From: Y.G. Gwon Sent: Tuesday, October 24, 2006 5:32 AM To: Helen Zhao Subject: RE: KTV GLOBAL CORPORATION, FCC ID: BRFLTD102AA, Assessment NO.: AN06T6193, Notice#1 Dear Helen? Did you have a nice sleep? I would like to send some files to clear your comment for subject project, KTV Global Corp. Attached please find files for revised test report, confirmation letter and manual. Best Regards, Y. G. Gwon -----Original Message----- Sent: Friday, October 06, 2006 9:41 AM Subject: KTV GLOBAL CORPORATION, FCC ID: BRFLTD102AA, Assessment NO.: AN06T6193, Notice#1 Question #1: Starting from this project, please submit a cover letter to answer the following questions for all FM transmitter applications: 1) How does this device operate? 2) Provide information on the device and its antenna. - the user manual does not indicate it clearly. 3) How is it installed? - the user manual does not indicate clearly. 4) What test procedure was used? 5) If tested in a car, how was it configured/tested? 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. - 3 the report does not indicate clearly. 7) Was the bandwidth properly tested with maximum audio input? - the report does not indicate clearly. Please answer all the questions listed above. Thank you, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

FCC ID. : BRFLTD102AA Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : BRFLTD102AA Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904)

FCC ID. : BRFLTD102AA Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed to the rear side of the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : BRFLTD102AA FCC ID

FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : Error! Unknown document property name. Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 46…

Text truncated - open the document above for the full version.

FCC ID. : BRFLTD102AA Page 1 of 15 Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 3 0 7 -51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR FCC CERTIFICATION Test Report No. : E069R-007 AGR No. : A061A-049 Applicant : KTV GLOBAL CORPORATION Address : 357-55, Hosan-Dong, Dalseo-Gu, Daegu-Shi, 704-230, Korea Manufacturer : KTV GLOBAL CORPORATION Address : 357-55, Hosan-Dong, Dalseo-Gu, Daegu-Shi, 704-230, Korea Type of Equipment : 10.2" LCD TV RECEIVER (FM Transmitter) FCC ID. : BRFLTD102AA Model Name : LTD102AA Multiple Model Name : LVMD-102, LVMD-102S Serial number : N/A Total page of Report : 15 pages (including this page) Date of Incoming : January 05, 2006 Date of Issuing : September 05, 2006 SUMMARY The equipment complies with the regulation of FCC CRF 47 PART 15, SUBPART C, SECTION 15.239. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: Do-Seob, Choi / Project Engineer Gea-Won, Lee / Chief Engineer EMC Div. EMC Div. ONETECH Corp. ONETECH Corp. FCC ID. : BRFLTD102AA Page 2 of 15 Report No. : E069R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 3 0 7 -51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) CONTENTS Page 1. VERIFICATION OF COMPLIANCE .............................................................................................................................3 2. GENERAL INFORMATION............................................................................................................................................4 2.1 PRODUCT DESCRIPTION.................................................................................................................................................4 2.2 MODEL DIFFERENCES....................................................................................................................................................4 2.3 RELATED SUBMITTAL(S) / GRANT(S)............................................................................................................................4 2.4 TEST SYSTEM DETAILS..................................................................................................................................................4 2.5 TEST METHODOLOGY....................................................................................................................................................5 2.6 TEST FACILITY...............................................................................................................................................................5 3. SYSTEM TEST CONFIGURATION...............................................................................................................................6 3.1 JUSTIFICATION...............................................................................................................................................................6 3.2 EUT EXERCISE SOFTWARE............................................................................................................................................6 3.3 CABLE DESCRIPTION.....................................................................................................................................................6 3.4 EQUIPMENT MODIFICATIONS........................................................................................................................................6 3.5 CONFIGURATION OF TEST SYSTEM...............................................................................................................................7 3.6 ANTENNA REQUIREMENT..............................................................................................................................................7 4. PRELIMINARY TEST ......................................................................................................................................................7 4.1 AC POWER LINE CONDUCTED EMISSION TEST............................................................................................................7 4.2 RADIATED EMISSION TEST............................................................................................................................................7 5. FINAL RESULT OF MEASURMENT ............................................................................................................................8 5.1 RADIATED EMISSION TEST (WITHIN THE PERMITTED 200 KHZ BAND).......................................................................8 5.2 RADIATED EMISSION TEST (OUTSIDE OF THE SPECIFIED 200 KHZ BAND)...................................................................9 5.3 BANDWIDTH OF THE OPERATING FREQUENCY............................................................................................................10 5.4 TUNING RANGE OF THE OPERATING FREQUENCY.......................................................................................................12 6. FIELD STRENGTH CAL…

Text truncated - open the document above for the full version.
