BSORT100V8PetScan RT100-V8

26/02/2013 RT100 V8. ISO FDXB tag In/out button (1) Mini USB interface LED blue Bluetooth activated LED red charging battery LED green battery charged Display OLED 128×64 pixels Scroll up button (2) Mid button (4) ( Enter) Scroll down button (3) Battery charge level 26/02/2013 Reader characteristics Frequency 134.2kHz Read and write ISO 14223 Protocol ISO11784/5 FDX-A, FDX-B, EM4102, HDX Reading range ≥8 cm（12mm×2mm, glass tag） Display 128×64，black and white，OLED Keys 4 buttons Indication Battery charge control and Bluetooth . Buzzer USB port USB virtual comport，bluetooth virtual com.port Power supply Lithium battery，1400mAh，3.7V Dimension 155mm (L)×82(W)×33(H) Net weight 155g Charging mode Mini USB Accessories Mini USB cable, Product instructions. Battery. Compliance certifications FCC、CE certification Memory Up to 1000 ID numbers 26/02/2013 Bluetooth RT 100 V8 reader Externally, nothing distinguishes the Bluetooth version of the V8 reader from the basic version. To find the version of a reader, the user must switch on the V8 and then select the “Bluetooth” menu and activate the function. If the reader is equipped with Bluetooth transmission, a blue LED will flash. If not, the command will have no effect. The Bluetooth function consumes energy. It is therefore recommended to activate this function only for the time necessary for its use. To stop Bluetooth communication, simply select the “Bluetooth” menu and deactivate the function or else switch off the reader. Communication via Bluetooth is limited to around ten metres and depends on the environment of your PC. To activate Bluetooth on your PC, please consult your computer user manual. Don’t forget to deactivate the security of Bluetooth on your PC because the V8 don’t ask a security code. Data transmission by Bluetooth or via the USB cable To be able to transmit the tag numbers read or the numbers recorded in the memory (maximum 1200), via Bluetooth or using the USB cable, the user needs to have installed the appropriate driver* on his PC (Pl2303_Prolific_Driver Installer_v1210.exe). This driver can be downloaded free of charge from our website or from www.4shared.com/zip/wpeAz3PT/file.html Once the driver is installed on your PC you will need to have application software to view and potentially record the data sent by the reader. You can use Hyperterminal if your operating system is XP, or Datatransfer (Felixcan) or Realtrace Terminal with XP or Windows 7. Firstly, you will need to enter the communication parameters and the number of the USB port that your reader will be connected to. Please consult below the section in the chapter entitled: “How to find out which USB port the V8 is connected to”. The data to be entered are: - bits per second: 9600 - data bits: 8 - stop bits: 1 - parity: none - flow control: none * A driver is a program enabling an operating system, in this case Windows XP or Windows 7 on a PC, to recognise a hardware peripheral and use it. 26/02/2013 System « WOOSIT » Writing the animal owner’s telephone number(s) in the ISO tag Our wish to constantly innovate and improve our products has led us to offer vets the option of personalising the tag, if they wish, before implanting it in the animal. The main technological advance offered by this V8 reader is that it will allow reading and display of data which can be entered by the vet in the majority of the “tags” currently marketed worldwide, provided that they comply with the ISO standard. Realtrace has developed a system called “WOOSIT ® ” which is comprised of: - A reader /programmer the PetSCAN RT150 (1) which enables the vet to write additional information to the “chip” before injecting it into the animal (2) . - The PetSCAN V8 which now offers the possibility to read and display the ID number but also to display additional data recorded by the vet in the memory as the phone number of the owner. Due to the low memory capacity available in ISO chips (used up until then) the “WOOSIT” system is limited to the recording of one or two telephone numbers of 16 digits each. The vet and/or the owner of the animal may choose these numbers. This system is totally compliant with the ISO 11784/85 standard of 1996 in addition to the new 14223 standard* (May 2011) concerning the recording of data in advanced transponders. It protects the asepsis of the chip, as the writing of the data is carried out via the cap which protects the needle. If the owner prefers this, after the recording of one or two telephone numbers, the memory area used for this record can be blocked, making it impossible to delete or subsequently modify this information. With the “WOOSIT” system, finding the owner of an animal will be particularly easy as reading the “chip” with the V8 will provide the phone number(s) of the administrator of the database and/or the owner of the pet. Naturally, any pet owner who does not wish to use this service can simply enter nothing in the memory area of the chip, as is currently the case. . ID number and phones numbers (1)Patented (2)sous réserve que les blocks 3/9/10/11/12/13 (EM4305) ou 9/10/11/12/13/14/15 (EM 4569) ne soient pas verrouillés par le fournisseur de la « puce ». * L'ISO 14223-1:2011 spécifie l'interface hertzienne entre l'émetteur-récepteur et le transpondeur évolué utilisé pour l'identification des animaux par radiofréquence, à compatibilité ascendante totale avec les spécifications données dans l'ISO 11784 et l'ISO 11785. 26/02/2013 Synoptic Menu SCAN After 25 seconds After 60 seconds Reading 20 seconds max. No transponder found! FDXB 939 2784879521125 Bluetooth Charging indicator light SCAN NoTransponder found! 26/02/2013 Language Memory English English OK 5 seconds Français Français OK 5 seconds Español Español OK 5 seconds Italiano Portugues Deutsch Polish SCAN Italiano OK 5 seconds Portugues OK 5 seconds Deutsch OK 5 seconds Polish OK 5 seconds Synoptic Menu “Language” 26/02/2013 Synoptic Menu “Bluetooth 1” Bluetooth Enable Memory SCAN Enable Bluetoot…

Text truncated - open the document above for the full version.

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

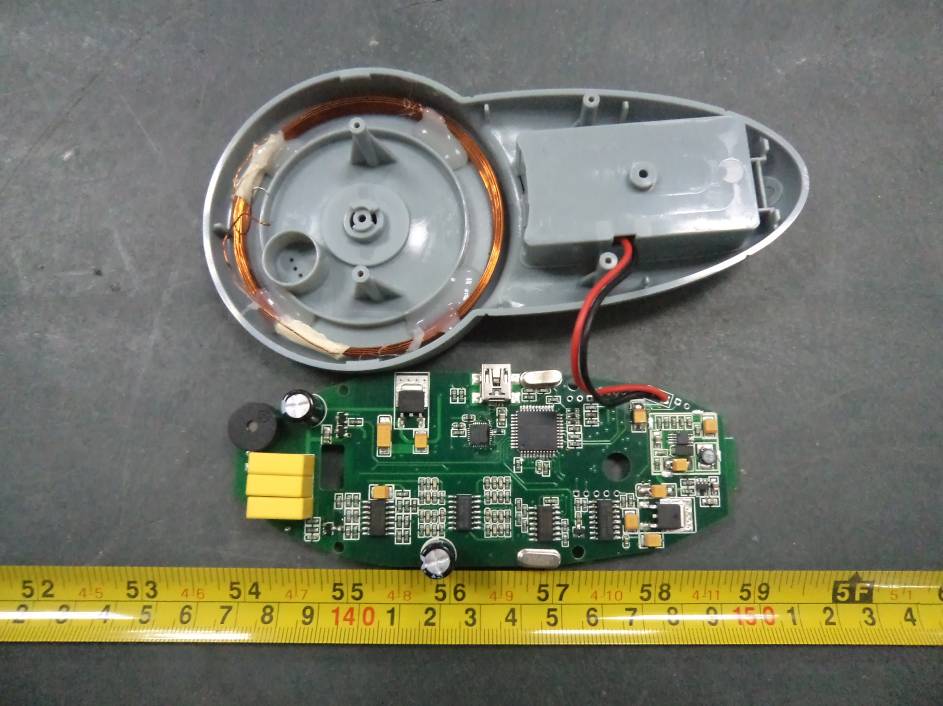

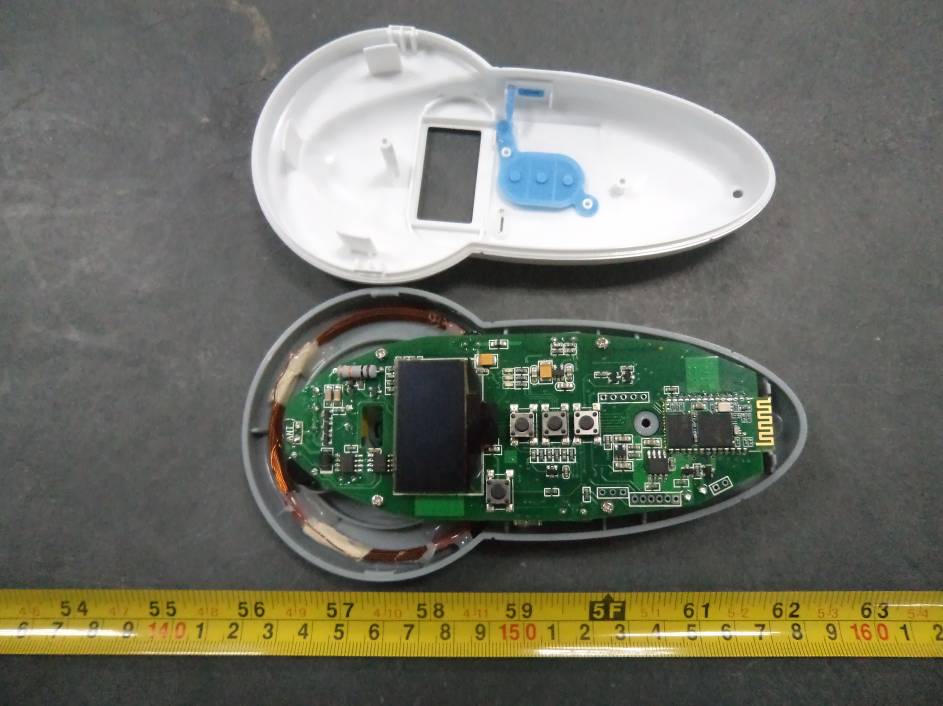

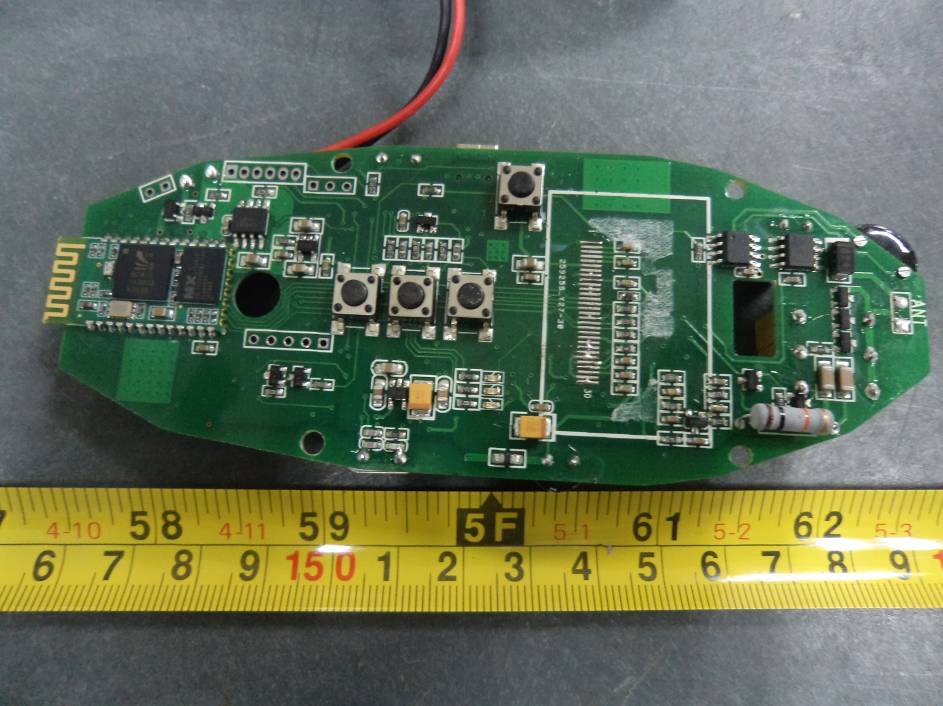

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View 1 BT Antenna RFID Antenna EUT – Cover off View 2 EUT – Main Board Top View EUT – Main Board Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15C TEST REPORT For REALTRACE 2, rue Georges Pompidou, 91140 VILLEBON SUR YVETTE. FRANCE FCC ID: BSORT100V8 Report Type: Original Report Product Type: PetScan RT100-V8 Test Engineer: Simon Wang Report Number: RSZ130325002-00B Report Date: 2013-04-15 Reviewed By: Sula Huang RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130325002-00B FCC Part 15C Page 2 of 9 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................4 SUMMARY OF TEST RESULTS...............................................................................................................................5 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................6 APPLICABLE STANDARD..............................................................................................................................................6 FCC §15.209 - SPURIOUS EMISSIONS ....................................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................8 TEST DATA..................................................................................................................................................................8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130325002-00B FCC Part 15C Page 3 of 9 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The REALTRACE’s product, model number: RT100 V8 (FCC ID: BSORT100V8) or the "EUT" in this report is a PetScan RT100-V8, which was measured approximately: 15.5 cm (L) x 8.2 cm (W) x 3.3 cm (H), rated input voltage: 3.7V rechargeable Li-ion battery. * All measurement and test data in this report was gathered from production sample serial number: 1303094 (Assigned by BACL, Shenzhen). The EUT was received on 2013-03-25. Objective This report is prepared on behalf of REALTRACE in accordance with Part 2-Subpart J, Part 15-Subparts A, B and C of the Federal Communication Commissions rules. The tests were performed in order to determine the compliance of EUT with FCC Part 15, Subpart C, and section 15.203, 15.207 and 15.209 rules. Related Submittal(s)/Grant(s) FCC Part 15.247 DSS submissions with FCC ID: BSORT100V8. Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2009, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All emissions measurement was performed and Bay Area Compliance Laboratories Corp. (Shenzhen). The radiated testing was performed at an antenna-to-EUT distance of 3 meters. The uncertainty of any RF tests which use conducted method measurement is ±0.96 dB, the uncertainty of any radiation on emissions measurement is 4.0 dB. Test Facility The Test site used by Bay Area Compliance Laboratories Corp.(Shenzh…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission View (9 kHz to 30 MHz) Radiated Emission View (30 MHz to 1 GHz)
