C3K-RF01XBox 360 RF Module

Important Safety Information Failure to properly set up, use, and care for the Xbox 360 video game and entertainment system can increase the risk of serious injury or death, or damage to the Xbox 360 video game and entertainment system. Read this manual and the manuals of any peripherals for important safety and health information. Keep all manuals for future reference. For replacement manuals, go to www.xbox.com/support or call the Xbox Customer Support number provided on the back cover. Before allowing children to use the Xbox 360 video game and entertainment system: 1. Determine how each child can use the Xbox 360 console (playing games, connecting to Xbox Live, replacing batteries, making electrical, AV cable, and network connections) and whether they should be supervised during these activities. 2. If you allow children to use the Xbox 360 console without supervision, be sure to explain all relevant safety and health information and instructions. This symbol identifies safety and health messages in this manual and Xbox 360 peripherals manuals. Your Xbox 360 Video Game and Entertainment System Thanks for purchasing your Xbox 360™ video game and entertainment system from Microsoft. You’re now at the center of a customizable experience that brings your games, your friends, and your digital entertainment together in one powerful package. • The Xbox 360 video game and entertainment system lets you play Xbox 360 games, DVD movies, and audio CDs. • With high-speed Internet service, connect to millions of gamers on Xbox Live®. Instantly be a part of a community where you can play together, talk to your friends, and download new content. • Stream pictures, music, and more to your Xbox 360 console by connecting to your Microsoft® Windows®-based PC or other devices such as digital cameras and portable music players. • Enjoy music and other content pre-installed with your Xbox 360 Hard Drive. For more information about the Xbox 360 Hard Drive, go to www.xbox.com . Select a Location for the Xbox 360 Console Prevent the Console from Falling If the Xbox 360 console falls and hits someone, especially a small child, it could cause serious injury. To reduce the risk of such injuries and damage to the Xbox 360 console, set it up according to these instructions and place it on a surface that: • Is flat and level. • Is stable and not likely to tip over. • Allows all four feet of the console to be in contact with the surface. • Is not likely to allow the console to slip or slide off. • Is clean and free of dust and debris. If the surface or console feet become dirty or dusty, clean them with a dry cloth. If the console is positioned vertically, put it on a surface where it is not likely to fall if it tips over. Arrange all cables and cords so that people and pets are not likely to trip over or accidentally pull on them as they move around or walk through the area. When the console is not in use, you may need to disconnect all cables and cords from the front and rear of the console to keep them out of the reach of children and pets. Do not allow children to play with cables and cords. Prevent the Console from Overheating Do not block any ventilation openings on the console or power supply. Do not place the console or power supply on a bed, sofa, or other soft surface that may block ventilation openings. Do not place the console or power supply in a confined space, such as a bookcase, rack, or stereo cabinet, unless the space is well ventilated. Do not place the console or power supply near any heat sources, such as radiators, heat registers, stoves, or amplifiers. Avoid Smoke and Dust Do not use the console in smoky or dusty locations. Smoke and dust can damage the console, particularly the DVD drive. Set Up Your Xbox 360 Video Game System Connect the Component HD AV Cable IMPORTANT Stationary images in video games can “burn” into some TV screens, creating a permanent shadow. Consult your TV owner's manual or manufacturer before playing games. To connect your Xbox 360 console to a TV with standard, composite input: 1. Connect the component HD AV cable connector to the AV port on the console. 2. Set the switch on the AV port connector to regular TV. 3. Connect the color-coded connectors to the corresponding jacks on the TV: yellow to yellow (video), red to red (right audio), and white to white (left audio). NOTE For monaural (mono) TVs, which have only one audio jack, connect either the right or left audio connector to the audio jack. 4. Select the appropriate video input on your TV (see "No Picture" under "Troubleshooting" on page ?? for further information). NOTE Your Xbox 360 Component HD AV Cable has two distinct sets of connectors on the TV end grouped by audio and video. Do not confuse the red connector from the audio group with the red connector from the video group. To connect your Xbox 360 console to a TV with component input: 1. Connect the Xbox 360 Component HD AV Cable connector to the AV port on the console. 2. Set the switch on the AV port connector to regular TV or HDTV. The HDTV position should be selected if your TV supports high definition resolutions such as 480p, 720p, or 1080i. 3. Connect the color-coded connectors in the video group to the corresponding jacks on the TV: red to red (red video), green to green (green video), and blue to blue (blue video). 4. Connect the color-coded connectors in the audio group to the corresponding jacks on the TV: red to red (right audio) and white to white (left audio). 5. Select the appropriate video input on your TV (see "No Picture" under "Troubleshooting" on page ?? for further information). See the Xbox 360 Warranty Manual (Volume 2) for information regarding static images and certain types of TVs. Other AV Input You can also connect to additional TV input types by using the Xbox 360 S-Video AV Cable or the Xbox 360 VGA HD AV Cable (both sold separately). For more information, go to www.xbox.com/hardware . Connect to a Digital Audio Optical AV Sy…

Text truncated - open the document above for the full version.

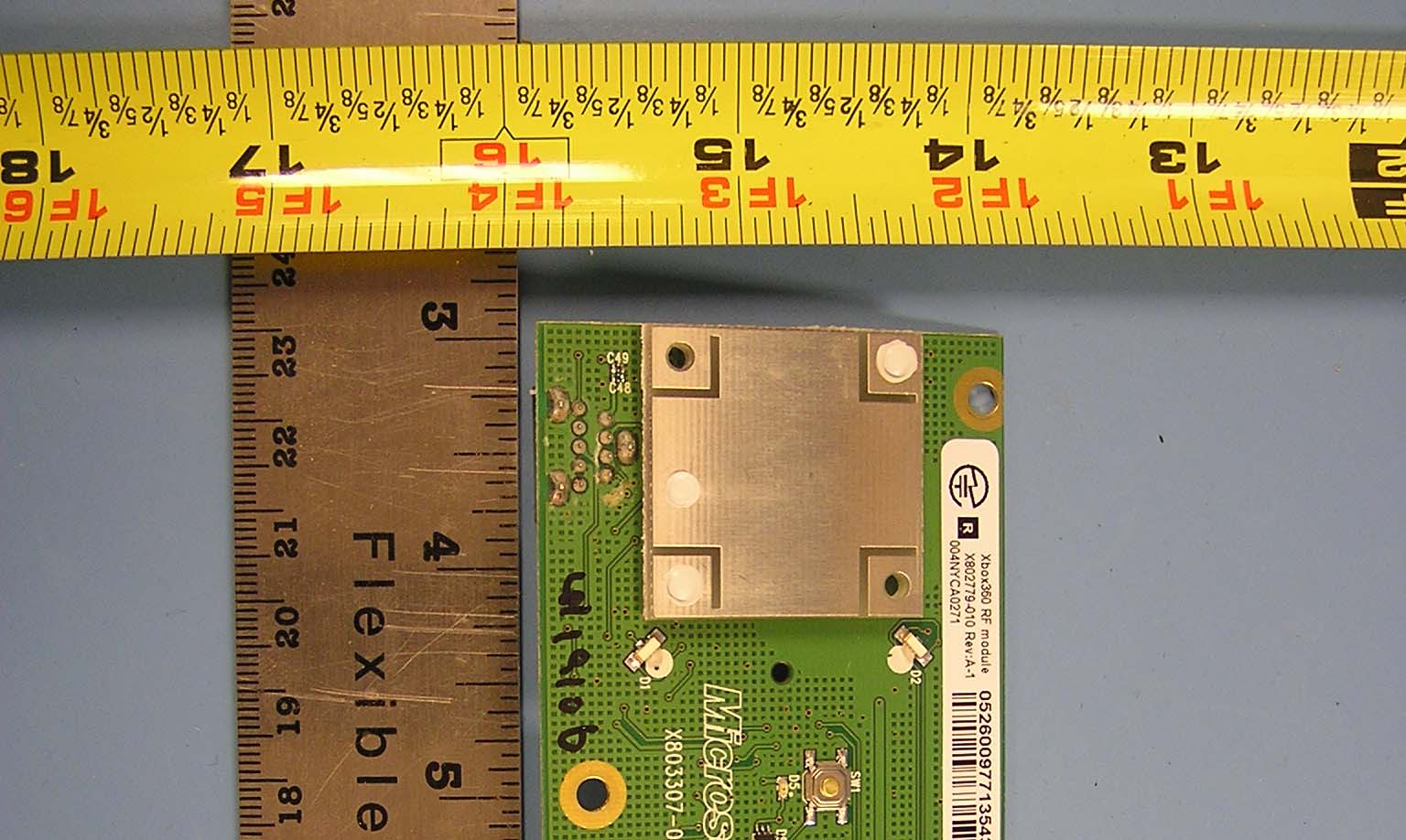

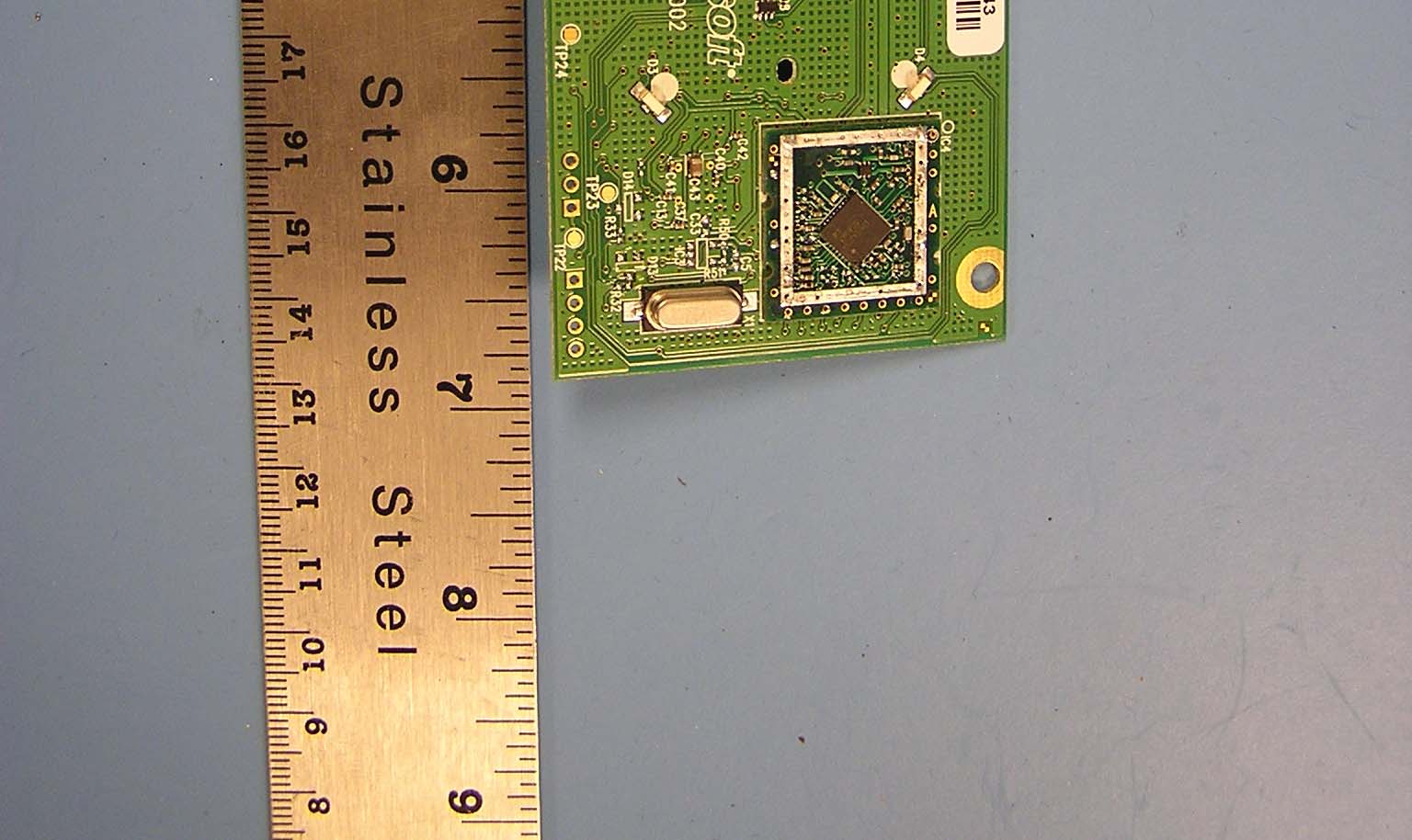

Microsoft Corporation FCC ID: C3K-RF01 Request for limited modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding This device does not have RF shielding, this device was tested as stand alone as well as inside the final host system ( xBox 360 console ). Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing This device was tested as stand alone as well as inside the final host system ( xBox 360 console ) for limited modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The device will only be labeled on the outside of Game console. Refer to FCC ID label format file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Manual” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Refer to RF exposure statement in the test report

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR XBOX 360 RF MODULE MODEL NUMBER: RF01 FCC ID: C3K-RF01 REPORT NUMBER: 06U10262-1 ISSUE DATE: MAY 4, 2006 Prepared for MICROSOFT CORPORATION ONE MICROSOFT WAY REDMOND, WA 98052-3699 U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06U10262-1 DATE: MAY 4, 2006 EUT: Xbox 360 RF Module FCC ID: C3K-RF01 Page 2 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By - 5/4/2006 Initial Issue A. Ilarina REPORT NO: 06U10262-1 DATE: MAY 4, 2006 EUT: Xbox 360 RF Module FCC ID: C3K-RF01 Page 3 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT .............................................................................. 11 7. LIMITS AND RESULTS ................................................................................................................. 12 7.1. ANTENNA PORT CHANNEL TESTS ......................................................................................... 12 7.1.1. 20 dB BANDWIDTH ......................................................................................................... 12 7.1.2. HOPPING FREQUENCY SEPARATION......................................................................... 16 7.1.3. NUMBER OF HOPPING CHANNELS ............................................................................. 18 7.1.4. AVERAGE TIME OF OCCUPANCY ............................................................................... 22 7.1.5. PEAK OUTPUT POWER .................................................................................................. 23 7.1.6. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 27 7.1.7. AVERAGE POWER........................................................................................................... 30 7.1.8. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 31 7.2. RADIATED EMISSIONS.............................................................................................................40 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 40 7.2.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ .......................................... 43 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 54 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 58 8. SETUP PHOTOS .............................................................................................................................. 62 REPORT NO: 06U10262-1 DATE: MAY 4, 2006 EUT: Xbox 360 RF Module FCC ID: C3K-RF01 Page 4 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: MICROSOFT CORPORATION ONE MICROSOFT WAY REDMOND, WA 98052-6399 EUT DESCRIPTION: XBOX 360 RF MODULE MODEL: RF01 SERIAL NUMBER: CS01727/05260092973543; 05260023604543 DATE TESTED: APPRL 23-24, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with most of the requirements set forth in the above standards. Testing the average time of occupancy is not feasible, therefore the demonstration of compliance with this requirement is based on the theory of operation as documented in this report. The test results show that the equipment tested is capable of demonstrating compliance with the remaining requirements as documented in this report. Note: The results documented in this report …

Text truncated - open the document above for the full version.

REPORT NO: 06U10262-1 DATE: MAY 4, 2006 EUT: Xbox 36 0 RF Module FCC ID: C3K-RF01 Page 62 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06U10262-1 DATE: MAY 4, 2006 EUT: Xbox 36 0 RF Module FCC ID: C3K-RF01 Page 63 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 06U10262-1 DATE: MAY 4, 2006 EUT: Xbox 36 0 RF Module FCC ID: C3K-RF01 Page 64 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 06U10262-1 DATE: MAY 4, 2006 EUT: Xbox 36 0 RF Module FCC ID: C3K-RF01 Page 65 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 06U10262-1 DATE: MAY 4, 2006 EUT: Xbox 36 0 RF Module FCC ID: C3K-RF01 Page 66 of 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
