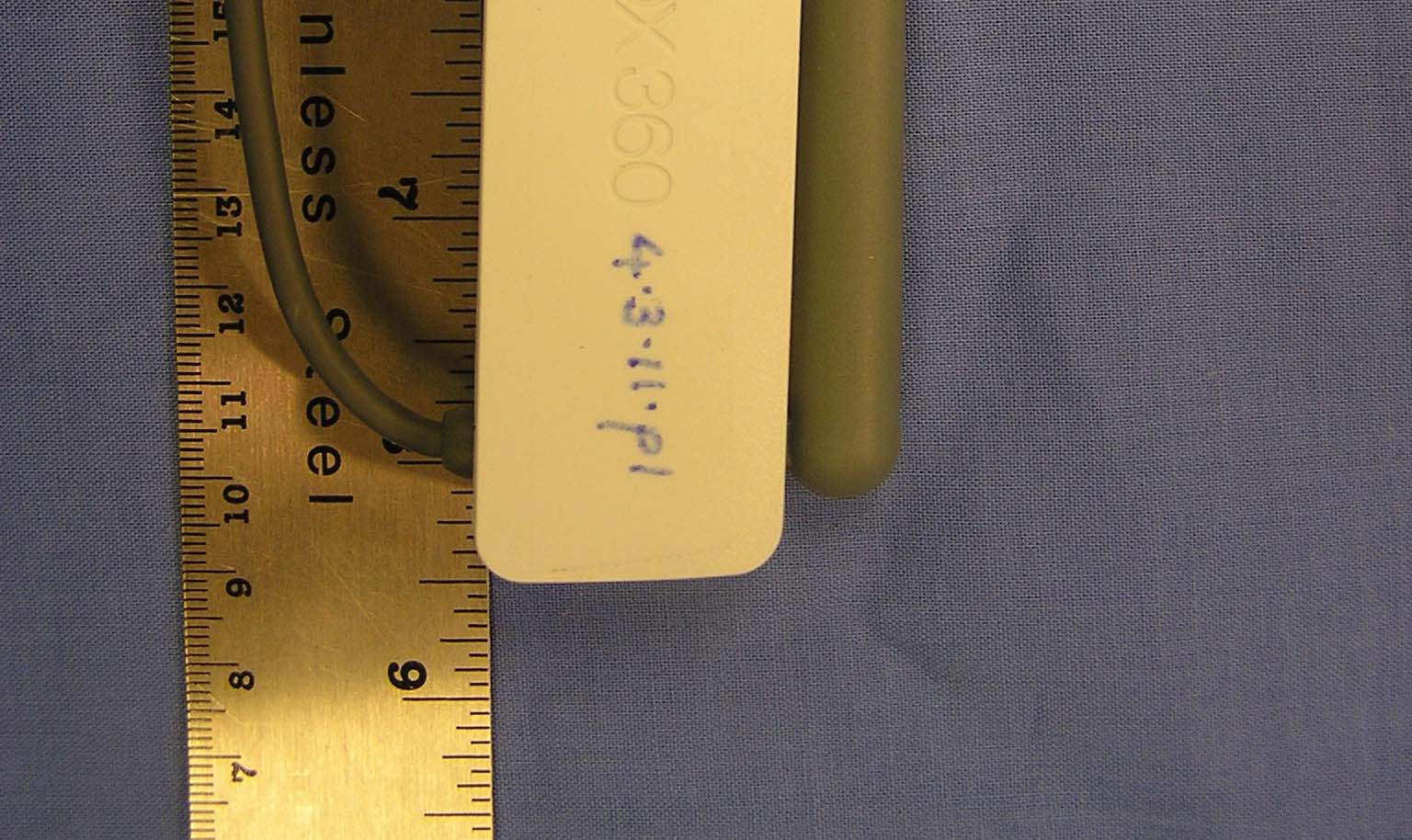

C3K-WKS168802.11 a/b/g USB 2.0 Wireless Networking Adapter

Microsoft Corporation

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Aug 30, 2005
Application Purpose: Original Equipment
Date of Application: Aug 30, 2005
Equipment Note: 802.11 a/b/g USB 2.0 Wireless Networking Adapter
Frequency Range: 5260.00000000 - 5320.00000000
Company: Microsoft Corporation
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Xbox 360 Wireless Networking Adapter The Xbox 360 Wireless Networking Adapter lets you play head-to-head wirelessly—on Xbox Live, or on your home network. It is for use exclusively with the Xbox 360™ video game and entertainment system. Your Xbox 360 Wireless Networking Adapter features: • Dual band 5-GHz and 2.4-GHz signal. • 802.11a/b/g wireless home network compatibility. • Radio collaboration with Xbox 360 wireless controllers for worry-free integration. To use the Xbox 360 Wireless Networking Adapter with Xbox Live®, you must have a high-speed Internet connection (cable or DSL). Note Not all Internet service providers (ISPs) allow you to share a broadband connection between multiple devices. Make sure you check with your ISP first. Important Information The limited warranty covering this peripheral is contained in the Xbox 360 Instruction Manual. Before using this product, read the Xbox 360 Instruction Manual for important safety information and health warnings. Keep all manuals for future reference. Dispose of this product in accordance with local and national disposal regulations (if any), including those governing the recovery and recycling of waste electrical and electronic equipment (WEEE). Attach the Adapter to Your Console Your wireless networking adapter is designed to attach directly to the back of your console. To attach your adapter: 1. Press the tabs on the adapter into the two slots on the back of the console. 2. Connect the USB connecter into the USB port next to the adapter. 3. Flip up the antenna. Note The antenna is designed to swivel on only one axis. Do not swivel the antenna in any direction other than parallel with the adapter. Set Up a New Wireless Home Network Home wireless networks are also called infrastructure networks. In an infrastructure network, a wireless access point, wireless gateway, or wireless router distributes your Internet connection to your wireless home computer and devices. With a wireless networking adapter, your console becomes one of the wireless devices on your home network. If you don't have an existing home wireless network yet, you'll want to make a few decisions before you get started. Specifically, you'll need to decide on the wireless standard you'll use, the network hardware you'll need, and your network security. Wireless Network Basics Your wireless networking adapter communicates by radio transmission. Radio waves travel in all directions, and can be transmitted through walls and floors. The radio signal weakens rapidly as it travels through structures, especially masonry, such as stone and brick. Metal objects, such as refrigerators and mirrors, reflect radio signals, preventing straight path communication. The layout of your home can be a factor in what wireless network standard you choose. Choose a Wireless Network Standard The Xbox 360 Wireless Networking Adapter conforms to all three current wireless network standards (802.11a, 802.11b, and 802.11g), and so works with networking devices that support any of these standards. (802.11 is a series of radio communication standards developed by the Institute of Electrical and Electronics Engineers (IEEE) for wireless local area networks.) The main features that distinguish these standards are connection speed and radio frequency. Standard Connection speed Radio frequency band 802.11a Up to 54 Mbps 5 GHz 802.11b Up to 11 Mbps 2.4 GHz 802.11g Up to 54 Mbps 2.4 GHz Note Connection speeds are quoted only in reference to IEEE standards. The speeds quoted are the maximum attainable under ideal environmental conditions and at close distances. In addition, the standards specify usable payload data rates that are less than half of the connection speed. Your usable connection speed will be significantly lower than the IEEE standards quote. When selecting your wireless network, keep a few guidelines in mind: 1. The 802.11a standard offers the same speed as 802.11g. A 5-GHz band (802.11a) is also less susceptible to interference from common devices, such as 2.4-GHz cordless telephones, cell phones, and microwave ovens. Further, in areas where neighboring wireless networks can be detected, interference can be a problem. Because of the limited number of channels and the popularity of 2.4-GHz networks, a 5-GHz network is likely to experience less interference from a neighboring wireless network than a 2.4-GHz network and provide a better overall wireless connection. 2. An 802.11g wireless network is compatible with both 802.11g and 802.11b devices. However, any 802.11b devices operating on your 802.11g network will slow it down. If you have a dual-band router (with both 802.11a and 802.11g bands), try using your Xbox 360 console and wireless network adapter on the 802.11a band and your other devices on the 802.11g and 802.11b bands. The Xbox 360 console in this configuration will have the maximum bandwidth while remaining networked with other devices on 802.11g or 802.11b. 3. If you use wireless controllers, you may get better performance using 802.11a (5-GHz band) for your network connection, since the wireless controllers operate on the 2.4-GHz band. Choose Your Network Hardware Consider the following guidelines when purchasing network hardware: • Use an Xbox 360 compatible access point or router (802.11 A+G recommended). For more information about approved Xbox compatible access points or routers, go to www.xbox.com/connect . • Some Xbox compatible routers are dual-band A+G (dual-band 2.4-GHz/5-GHz, 802.11a + 802.11g/b). Using a dual-band router lets you configure your console to achieve maximum bandwidth and the best possible connection. This is particularly important if you are using Microsoft® Windows® XP Media Center or Windows Media Connect with your console for activities like watching TV. For more information, go to www.xbox.com/pcsetup . • When using a dual A+G access point or router, make sure the 802.11a and 802.11g networks have unique network names (SSIDs). Make Your Wireless Net…

Text truncated - open the document above for the full version.

ID Label/Location Info

̈ X80xxxx-001 PART NUMBER SCALE 1:1 SOFTWARE / VERSION Illustrator CS DESCRIPTION Label, Xbox360 Wireless Networking Adapter DRAWN BY / DATE Lawrence / 07.19.05 ARTWORK NUMBER COLOR SPECIFICATIONS PMS7541 and medium fusion PROPRIETARY NOTE THE INFORMATION CONTAINED HEREON IS CONFIDENTIAL, IS SUBMITTED IN CONFIDENCE,AND IS PROPRIETAR Y INFORMATION OF MICROSOFT CORPORA- TION,AND SHALL ONL Y BE USED IN THE FURTHERANCE OF, THE CONTRACT OF WHICHTHIS DRAWING FORMS A PART, AND SHALL NOT, WITHOUT MICROSOFT CORPORATION ÕS PRIOR WRITTEN APPROVAL, BE REPRODUCED OR IN ANY WAY USED IN WHOLE OR IN PAR T IN CONNECTION WITH SERVICES OR EQUIPMENT HEREON MA Y NOT BE DISCLOSED TOA THIRD PARTY WITHOUT CONSENT OF MICROSOFT CORPORATION,ANDTHEN, ONL Y PURSUANTTOA MICROSOFT APPROVED NONDISCLOSURE AGREEMENT . AW80xxxx(.ai)A REVISION Omni: DV1 Part Number X801977-00x This is not final artwork, but this shows logo’s which will have soon. Note the missing file numbers 000D3A7ADD87 12345678901234 LISTED ITE ACCESSORY 27FC 5V 100mA XBOX360 WIRELESS NETWORKING ADAPTER MICROSOFT CORPORATION For use with XBOX360 Console MADE IN CHINA 000D3A7ADD87 12345678901234 000D3A7ADD87 12345678901234 XBOX360 WIRELESS NETWORKING ADAPTER MICROSOFT CORPORATION For use with XBOX360 Console MADE IN CHINA XBOX360 WIRELESS NETWORKING ADAPTER MICROSOFT CORPORATION For use with XBOX360 Console MADE IN CHINA 5V 100mA XBOX360 WIRELESS NETWORKING ADAPTER MICROSOFT CORPORATION For use with XBOX360 Console MADE IN CHINA 000D3A7ADD87 12345678901234

Parts List/Tune Up Info

Confidential PRODUCT SPECIFICATION Page 1 of (1 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Specification for Centurion External Multi-band Antenna For Microsoft Omni Reference Part Number MAF94081 Customer P/N : XXXXXXXXXXX(TBD) Specification is subject to change without notice A 5 Nov 04 Initial EL Kua CS Por KC Lim Rev. Issue Date Changes Initiator Approval Approval Confidential PRODUCT SPECIFICATION Page 2 of (2 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Print MAF94081 Specification Summary Electrical Specification Frequency : 2.4-2.5 GHz, 4.9 - 6 GHz VSWR : < 2.0:1 across both bands Gain : > 0 dBi (peak) in all bands Omni-directional pattern in Azimuth (Free Space) Mechanical Specification Elbow cycle: 180 degrees movement, 500x, acceptance criteria is antenna remains in 0, 90, 180 position attached to the Omni module after cycling Drop : 6x at 1 meter onto hard floor attached to Omni module only, 1x on each axis Temperature : Operating temp 0 to 50 C Storage temp -40 to 70 C Confidential PRODUCT SPECIFICATION Page 3 of (3 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Electrical Performance The antenna is a center feed modified half-wavelength dipole fed with 1.13mm coaxial cable. Performance is as given here: General Information Customer: Microsoft Date: 3 Nov 2004 Frequency Bands: 2400-2500 MHz, 4900 – 5875 MHz Antenna Type: External Input Connection: Coaxial terminated with IPEX MHF connector Prepared by: CS Por G:\\CHAMBER\ANTSPEC\CWC0049_MS-Omni\Specification MAF94081 (3 Nov 2004).doc Comments: Electrical Performance Summary: VSWR Specification < 2:1 Measurement Configuration Data Antenna measured as is without device Freq. (MHz) VSWR Freq. (MHz) VSWR 2400 1.61 2500 1.25 4900 1.74 5250 2.00 5875 1.56 Electrical Performance Summary: Peak Gain, Azimuth Specification As measured nominal performance Measurement Configuration Data Antenna measured as is without device Freq. (MHz) Peak Gain (dBi) Freq. (MHz) Peak Gain (dBi) 2400 1.6 5150 4.0 2450 2.0 5250 4.0 2500 0.9 5350 4.4 4900 3.8 5750 3.9 5000 4.5 5875 4.6 Confidential PRODUCT SPECIFICATION Page 4 of (4 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Electrical Performance Summary: Average Gain, Azimuth Specification As measured nominal performance Measurement Configuration Data Antenna measured as is without device Freq. (MHz) Ave Gain (dBi) Freq. (MHz) Ave Gain (dBi) 2400 0.1 5150 1.3 2450 1.3 5250 1.3 2500 0.3 5350 1.5 4900 1.2 5750 0.9 5000 1.8 5875 1.5 CH1S22 SWR1 /REF -2 START2000. 000000MHzSTOP6000. 000000MHz C PRm 3 Nov 2004 16:02:20 1 2 3 4 5 5 : 1 . 56015875. 000000MHz CH1Markers 1 : 1 . 6057 2 . 40000GHz 2 : 1 . 2463 2 . 50000GHz 3 : 1 . 7366 4 . 90000GHz 4 : 2 . 0039 5 . 25000GHz VSWR data Confidential PRODUCT SPECIFICATION Page 5 of (5 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Gain Plots Confidential PRODUCT SPECIFICATION Page 6 of (6 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Confidential PRODUCT SPECIFICATION Page 7 of (7 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Confidential PRODUCT SPECIFICATION Page 8 of (8 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Confidential PRODUCT SPECIFICATION Page 9 of (9 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Confidential PRODUCT SPECIFICATION Page 10 of (10 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A In Situ Performance Confidential PRODUCT SPECIFICATION Page 11 of (11 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Confidential PRODUCT SPECIFICATION Page 12 of (12 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Electrical Performance Summary: Return-loss Specification < -10dB Measurement Configuration Data Antenna measured with device Freq. (MHz) Return- loss (dB) 2400 -19.39 2500 -13.31 5150 -15.62 5350 -19.31 Electrical Performance Summary: Peak Gain, Azimuth Specification As measured nominal performance Measurement Configuration Data Antenna measured with device Freq. (MHz) Peak Gain (dBi) Freq. (MHz) Peak Gain (dBi) 2400 4.1 5150 2.1 2450 3.8 5250 2.6 2500 2.9 5350 2.7 4900 2.6 5750 3.0 5000 3.0 Electrical Performance Summary: Average Gain,Azimuth Specification As measured nominal performance Measurement Configuration Data Antenna measured with device Freq. (MHz) Ave Gain (dBi) Freq. (MHz) Ave Gain (dBi) 2400 -0.1 5150 -0.3 2450 0.9 5250 -0.7 2500 1.3 5350 -1.1 4900 0.1 5750 -1.6 5000 0.6 Confidential PRODUCT SPECIFICATION Page 13 of (13 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Return-loss Confidential PRODUCT SPECIFICATION Page 14 of (14 27) Specification No. Description PS-CWC-0049 Antenna, External Multi-band (MS_Omni) Customer Date Rev Reference Microsoft 2004-11-05 A F44018 Rev.A Gain Plots Confidential PRODUCT SPECIFICATION Page 15 o…

Text truncated - open the document above for the full version.

RF Exposure Info

REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 20 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.1.3. MAXIMUM PERMISSIBLE EXPOSURE LIMITS §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 21 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d = √ ((30 * P * G) / (3770 * S)) Changing to units of Power to mW and Distance to cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 * √ ((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 * √ (P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yields d = 0.282 * 10 ^ ((P + G) / 20) / √ S where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Rearranging terms to calculate the power density at a specific distance yields S = .0795 * 10 ^ ((P + G) / 10) / (d^2) Equation (1) REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 22 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. LIMITS From §1.1310 Table 1 (B), the maximum S = 1.0 mW/cm^2 RESULTS No non-compliance noted: NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. ModeMPEOutputAntennaPower DistancePowerGainDensity (cm)(dBm)(dBi)(mW/cm^2) 802.11a20.017.062.600.02

Test Report

FCC CFR47 PART 15 SUBPART E CERTIFICATION TEST REPORT FOR WIRELESS NETWORKING ADAPTER MODEL NUMBER: XBOX 360 WIRELESS NETWORKING ADAPTER FCCID: C3K-WKS168 REPORT NUMBER: 05U3581-2 ISSUE DATE: JULY 15, 2005 Prepared for MICROSOFT CORPORATION ONE MICROSOFT WAY REDMOND, WA 98052-3699 U.S.A. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 2 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By A Initial Issue YZ A.1 07/20 • Additional antenna gain info in section 5.3 • Confirm FCC ID number , Model Name and Product Description • Added software setting in section 7.1.4 average output power MK A.2 07/21 • Disclose internal antenna info in section 5.3 MK REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 3 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 7 DESCRIPTION OF TEST SETUP ............................................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT .............................................................................. 10 7. LIMITS AND RESULTS ................................................................................................................. 11 7.1. CHANNEL TESTS FOR THE 5150 TO 5350 MHz BAND ......................................................... 11 7.1.1. EMISSION BANDWIDTH ................................................................................................ 11 7.1.2. PEAK POWER ................................................................................................................... 15 7.1.3. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 20 7.1.4. AVERAGE POWER........................................................................................................... 23 7.1.5. PEAK POWER SPECTRAL DENSITY ............................................................................ 24 7.1.6. PEAK EXCURSION .......................................................................................................... 29 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 33 7.2. RADIATED EMISSIONS.............................................................................................................37 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 37 7.2.2. TRANSMITTER ABOVE 1 GHZ FOR 5150 TO 5350 MHz BAND ............................... 40 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 49 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 53 8. SETUP PHOTOS .............................................................................................................................. 57 REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 4 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: MICROSOFT CORPORATION ONE MICROSOFT WAY REDMOND, WA 98052-6399 EUT DESCRIPTION: Wireless Networking Adapter MODEL: Xbox 360 Wireless Networking Adapter SERIAL NUMBER: 000D3A7ADE40 DATE TESTED: JULY 05-08, 2005 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART E NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented…

Text truncated - open the document above for the full version.

Test Setup Photos

REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 57 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 58 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 59 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 60 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 05U3581-2 DATE: JULY 15, 2005 EUT: Wireless Networking Adapter FCC ID:C3K-WKS168 Page 61 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A.2 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO

Contact Information

Applicant

Hasnain Syed(SR. DIR EMC/SI&RF COMPLIANCE)

[email protected]+1(425)-707-1039Fax: +1(425)-936-7329

Test Firm

Compliance Certification Services IncSteve Cheng

[email protected]408-463-0085Fax: 408-463-0888

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15E	5.26 GHz - 5.32 GHz	50.82 mW

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. Device is restricted to indoor use only for 5.15-5.25 GHz band. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.
