C3K1003Dongle with Bluetooth Transceiver

m Part No. XXX-XXXXX m Getting Started Microsoft ® Desktop Set with Bluetooth™ Wireless Technology www.microsoft.com/hardware HEALTH WARNING Use of a keyboard or mouse may be linked to serious injuries or disorders. When using a computer, as with many activities, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. However, if you experience symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensation, or stiffness, DO NOT IGNORE THESE WARNING SIGNS. PROMPTLY SEE A QUALIFIED HEALTH PROFESSIONAL, even if symptoms occur when you are not working at your computer. Symptoms like these can be associated with painful and sometimes permanently disabling injuries or disorders of the nerves, muscles, tendons, or other parts of the body. These musculoskeletal disorders (MSDs) include carpal tunnel syndrome, tendonitis, tenosynovitis, and other conditions. While researchers are not yet able to answer many questions about MSDs, there is general agreement that many factors may be linked to their occurrence, including: overall health, stress and how one copes with it, medical and physical conditions, and how a person positions and uses his or her body during work and other activities (including use of a keyboard or mouse). The amount of time a person performs an activity may also be a factor. Some guidelines that may help you work more comfortably with your computer and possibly reduce your risk of experiencing an MSD can be found in the “Healthy Computer Guide” installed with this device’s software. If this device did not come with software, see the “Healthy Computing Guide” section of the “Getting Started” manual. You can also access the “Healthy Computing Guide” at www.microsoft.com/hardware or (in the United States only) by calling 1 (800) 360 7561 to request a CD at no charge. If you have questions about how your own lifestyle, activities, or medical or physical condition may be related to MSDs, see a qualified health professional. About Your Rights and Obligations This Microsoft ® wireless desktop set is comprised of a keyboard, mouse, and receiver and is sold as a single unit and may not be separated for use on more than one computer. The software with this product is licensed, not sold. You must either agree to the license contract in the software Setup screens or promptly return this Microsoft wireless desktop set, comprised of the keyboard, mouse, and receiver, along with the software, for a refund, excluding the return costs. After you install the software, you may consult the license and the Limited Warranty for the product at any time by looking in the “Legal Information” section of the software Help files. You may also print copies for your records. Information in this document, including URL and other Internet Web site references, is subject to change without notice. Unless otherwise noted, the example companies, organizations, products, domain names, e-mail addresses, logos, people, places and events depicted herein are fictitious, and no association with any real company, organization, product, domain name, e-mail address, logo, person, place or event is intended or should be inferred. Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the express written permission of Microsoft Corporation. Microsoft may have patents, patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. Except as expressly provided in any written license agreement from Microsoft, the furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property. Microsoft Corporation grants the purchaser of this product the right to reproduce one (1) copy of this “Getting Started” printed guide for each Hardware Suite you purchased in the package. ©2003 Microsoft Corporation. All rights reserved. Microsoft, IntelliMouse, Natural, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Patents pending. 1 Welcome Congratulations on your purchase of a Microsoft ® desktop set with Bluetooth™ wireless technology. This complete desktop solution includes a wireless keyboard, a wireless mouse, and a Wireless Transceiver. Setting up the devices takes a few simple steps, and then you can enjoy the freedom of Bluetooth wireless technology and the convenience of a clutter-free desktop. 1 Run the Setup Wizard First The Setup Wizard installs the required software and helps you set up your Bluetooth devices. Important • You must leave your current keyboard and mouse connected in order to complete Setup. • Make sure you run the installation CD that has the same software language as your operating system. To run the Setup Wizard 1. Insert the software installation CD that contains your operating system language into the computer’s CD drive. If the Setup screen does not appear automatically, do the following: • Click the Start button, and then click Run. • Type [drive]:setup. For example, if your CD drive is drive D, type d:setup 2. Click Install Microsoft IntelliType Pro to begin the keyboard software installation. Follow the Setup Wizard instructions on the screen. Depending on the Bluetooth software components your system requires, you may be prompted to restart your computer during software installation. 3. After IntelliType Pro software is installed and the computer …

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST LETTER Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 April 12, 2004 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Cetecom Inc. on behalf of Microsoft Corporation requests confidentiality for the following products: FCC ID Number Product Model C3K1003 1003 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) PCB layout 4) BOM (Parts List) 5) Operational Description No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Microsoft trade secrets and proprietary information that could be of benefit to competitors. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Harpreet Sidhu EMC & Radio Engineer CETECOM, Inc. 411 Dixon Landing Rd. Milpitas, CA 95035 USA

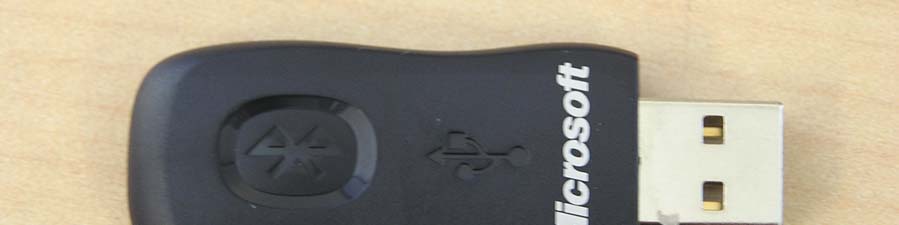

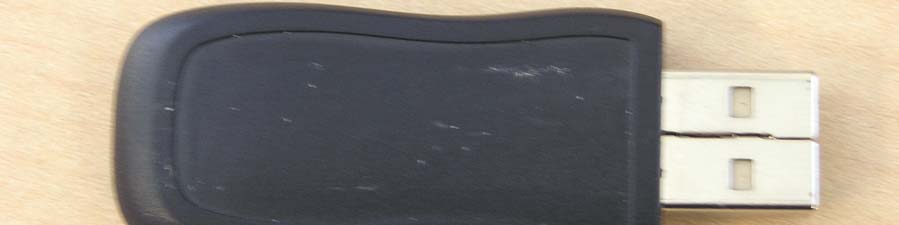

External photos Dongle model# 1003 EUT Top view External photos Dongle model# 1003 EUT - Bottom view

EUT will be labeled with FCC ID: C3K1003 & IC ID: 3048A-1003 Label Location Artwork NUMBERDESCRIPTIONPROPRIETARY NOTETOLERENCES DWN./DATE SOFTWARE VERSION DRAWING NUMBERREVISION THE INFORMATION CONTAINED HEREON IS CONFIDENTIAL, IS SUBMITTED IN CONFIDENCE, AND IS PROPRIETARY INFORMATION OF MICROSOFT CORPORA- TION, AND SHALL ONLY BE USED IN THE FURTHERANCE OF, THE CONTRACT OF WHICH THIS DRAWING FORMS A PART, AND SHALL NOT, WITHOUT MICROSOFT CORPORATION'S PRIOR WRITTEN APPROVAL, BE REPRODUCED OR IN ANY WAY USED IN WHOLE OR IN PART IN CONNECTION WITH SERVICES OR EQUIPMENT OFFERED FOR SALE OF FURNISHED TO OTHERS, THE INFORMATION CONTAINED HEREON MAY NOT BE DISCLOSED TO A THIRD PARTY WITHOUT CONSENT OF MICROSOFT CORPORATION, AND THEN, ONLY PURSUANT TO A MICROSOFT APPROVED NONDISCLOSURE AGREEMENT. Artwork, Prodcut Label Transceiver- Europe AWX09-62586-01 Gerald Olive 4/17/2003 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS Adobe Illustrator 8.0 INDUSTRIAL DESIGN FILE NAME AWX09-62586-01.ai Scale 1:1 Scale 2:1 Part outline is shown for reference only Model: 1003 Microsoft Corporation - Made in China (E) P/N X09-62586 Product ID See Software User's Guide for Patent Information 5V 500mA Wireless Transceiver for Bluetooth 2.0 USB Compatible Model: 1003 Microsoft Corporation - Made in China (E) P/N X09-62586 Product ID See Software User's Guide for Patent Information 5V 500mA Wireless Transceiver for Bluetooth 2.0 USB Compatible

Internal photos Dongle model# 1003 PCB Top view Internal photos Dongle model# 1003 PCB - Bottom view

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_597FCC15.247_2003_1003 FCC Part 15.247 for FHSS systems / CANADA RSS-210 Model: 1003 FCC ID: C3K1003 IC: 3048A-1003 Test report no.: EMC_597FCC15.247_2003_1003 Issue date: 2004-02-26 Page 2 (57) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_597FCC15.247_2003_1003 Issue date: 2004-02-26 Page 3 (57) 1.3 Details of applicant Name : Microsoft Corporation Street : One Microsoft Way City / Zip Code : Redmond 98052 Country : USA Contact : Robert Lawrence Telephone : +1 425 705 5369 Tele-fax : +1 425 939 7329 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2003-12-15 Date of test : 2003-12-15/16, 2004-01-05 to 26 1.5 Test item Manufacturer : Flextronics Industrial (Shenzhen) Company Ltd. Street : Block C9, 2 nd Industrial Zone City / Zip Code Xixang Shenzhen Guangdong 51826 Country People’s Republic of China Marketing Name : Microsoft® Wireless Transceiver for Bluetooth® 2.0 Model No. : 1003 Description : Bluetooth Transceiver (Dongle) FCC-ID : C3K1003 IC ID : 3048A-1003 Additional information Test Sample : #221 for Radiated measurements #159 for Conducted measurements Frequency : 2402MHz – 2480MHz Type of modulation : GFSK Number of channels : 79 Antenna : PCBA Printed Power supply : 5 Volts: USB Port Power Output power : 3.9dBm (2.45mW) conducted peak power Extreme vol. Limits : Critical: 4.4V, Max: 5.25V Extreme temp. Tolerance : 0ºC-40ºC 1.6 Test standards: FCC Part 15 §15.247 (DA00-705) / RSS 210 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_597FCC15.247_2003_1003 Issue date: 2004-02-26 Page 4 (57) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2004-02-26 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2004-02-26 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_597FCC15.247_2003_1003 Issue date: 2004-02-26 Page 5 (57) 2.2 Test report TEST REPORT Test report no.: EMC_597FCC15.247_2003_1003 (Model: 1003) Test report no.: EMC_597FCC15.247_2003_1003 Issue date: 2004-02-26 Page 6 (57) TEST REPORT REFERENCE LIST OF MEASUREMENTS PAGE TEST & OPERATING MODES 7 CARRIER FREQUENCY SEPERATION §15.247(a) 7 NUMBER OF HOPPING CHANNELS §15.247(a) 9 TIME OF OCCUPANCY (DWELL TIME) §15.247(a) 13 SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 16 POWER SPECTRAL DENSITY §15.247 (d) 20 MAXIMUM PEAK OUTPUT POWER §15.247 (b) (1) 24 BAND EDGE COMPLIANCE §15.247 (c) 29 EMISSION LIMITATIONS § 15.247 (c) 33 CONDUCTED EMISSIONS § 15.107/207 48 RECEIVER SPURIOUS RADIATION § 15.209 49 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 55 BLOCK DIAGRAMS 56 Test report no.: EMC_597FCC15.247_2003_1003 Issue date: 2004-02-26 Page 7 (57) TEST & OPERATING MODES TEST MODES For all under listed test modes EUT remains plugged into USB port of Desktop PC (Dell S/No. DBM7N21) Test mode-1(Transmitting at single frequency) EUT is set to Transmit at particular channel frequency with highest output power using test software “Bluetooth Tools” Test mode-2 (Hopping mode) EUT is set to enter into special test mode using test software “Bluetooth Tools”. This test mode enables EUT to establish an air link with BT test system CMU-200. After the link being established, EUT is forced into hopping mode from CMU-200 with choice of different packet types. (DHI, DH3, DH5) Test mode-3 (Normal operation) EUT is set to communicate with Bluetooth Mouse (model# 1001) & Bluetooth Keyboard (model# 1002) over an air link. BT link between EUT and Mouse is evidenced by cursor drawing a diamond shape continuously in Mousetrap window on monitor (Dell S/No. 8164560) screen. BT link between EUT and Keyboard is evidenced by repetitive typing of following characters in notepad on monitor screen, “BT RF test pattern” Test mode-4 (Receive/standby mode) For BT devices this mode corresponds to transmitter standby mode. EUT is set to receive mode by putting transmitter into standby mode using test software “Bluetooth Tools” OPERATING MODES Op. mode-1 Transmit @ 2402MHz Op. mode-2 Transmit @ 2441 MHz Op. mode-3 Transmit @ 2480MHz Op. mode-4 Hopping mode Op. mode-5 Norma…

Text truncated - open the document above for the full version.

Test setup photos Dongle model# 1003 Test setup – Radiated Emissions Dongle Test setup photos Dongle model# 1003 Test setup – Radiated Emissions Test setup photos Dongle model# 1003 Test setup – Conducted Measurements Test setup photos Dongle model# 1003 Test setup – Conducted Measurements Test setup photos Dongle model# 1003 Test setup – AC Line conducted emissions
