C3K1050Optical Mouse

M www.microsoft.com/hardware M 2 31 Getting Started Microsoft ® Wireless Mouse Products 0505 Part No. X11-27312 X1127312cvr.indd 15/12/2005 9:49:54 AM Welcome Congratulations on your purchase of a Microsoft ® wireless mouse, which includes: 123 45 1 Wireless mouse 2 Receiver (desktop or notebook version, depending on your mouse model) 3 One or more batteries for your wireless mouse, depending on your mouse model 4 CD with Microsoft IntelliPoint mouse software 5 This Getting Started manual Important ● Check the system requirements (located on the packaging) to make sure that your system is compatible with the product that you purchased. ● If you don’t already have a mouse, you can install the IntelliPoint software after you have completed Steps 2 through 5 and your Microsoft wireless mouse is working. HEALTH WARNING Use of a keyboard or mouse may be linked to serious injuries or disorders. When using a computer, as with many activities, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. However, if you experience symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensation, or stiffness, DO NOT IGNORE THESE WARNING SIGNS. PROMPTLY SEE A QUALIFIED HEALTH PROFESSIONAL, even if symptoms occur when you are not working at your computer. Symptoms like these can be associated with painful and sometimes permanently disabling injuries or disorders of the nerves, muscles, tendons, or other parts of the body. These musculoskeletal disorders (MSDs) include carpal tunnel syndrome, tendonitis, tenosynovitis, and other conditions. While researchers are not yet able to answer many questions about MSDs, there is general agreement that many factors may be linked to their occurrence, including: overall health, stress and how one copes with it, medical and physical conditions, and how a person positions and uses his or her body during work and other activities (including use of a keyboard or mouse). The amount of time a person performs an activity may also be a factor. Some guidelines that may help you work more comfortably with your computer and possibly reduce your risk of experiencing an MSD can be found in the “Healthy Computing Guide” installed with this device’s software. If this device did not come with software, see the “Healthy Computing Guide” section of the “Getting Started” manual. You can also access the “Healthy Computing Guide” at www.microsoft.com/hardware or (in the United States only) by calling 1 (800) 360-7561 to request a CD at no charge. If you have questions about how your own lifestyle, activities, or medical or physical condition may be related to MSDs, see a qualified health professional. About Your Rights and Obligations The software included with this product is licensed, not sold. You must either agree to the license contract in the software Setup screen or promptly return the entire product for a refund, excluding the return costs. After you install the software, you may consult the license and the Limited Warranty for the product at any time by looking in the “Legal Information” section of the software Help files. You may also print a copy for your records. X1127312bdy.indd 15/12/2005 9:49:18 AM 1 Welcome Congratulations on your purchase of a Microsoft ® wireless mouse, which includes: 123 45 1 Wireless mouse 2 Receiver (desktop or notebook version, depending on your mouse model) 3 One or more batteries for your wireless mouse, depending on your mouse model 4 CD with Microsoft IntelliPoint mouse software 5 This Getting Started manual Important ● Check the system requirements (located on the packaging) to make sure that your system is compatible with the product that you purchased. ● If you don’t already have a mouse, you can install the IntelliPoint software after you have completed Steps 2 through 5 and your Microsoft wireless mouse is working. 0505 Part No. X11-27312 X1127312bdy.indd 15/12/2005 9:49:19 AM 2 1 Install IntelliPoint Mouse Software IntelliPoint software enables the unique features of your mouse. To install IntelliPoint software (Microsoft Windows ® operating system) 1 Insert the software CD into your computer’s CD drive. If the Setup screen doesn’t appear automatically, do the following: ● Click Start, and then click Run . ● Type [drive]:setup. For example, if your CD drive is drive E, type e:setup 2 On the Setup screen, click Install, and then follow the Setup Wizard instructions on the screen. Restart the computer, if prompted to do so. To install IntelliPoint software (Macintosh) 1 Insert the software CD into your computer’s CD drive. 2 Double-click the Microsoft-Desktop.dmg file. 3 Double-click the Microsoft Desktop.mpkg icon, and then follow the on-screen instructions. Restart the computer, if prompted to do so. 2 Insert the Batteries Whenever you insert batteries, always make sure that each of them is new. Alkaline batteries provide maximum battery life and are included in the package. Desktop MouseNotebook Mouse 1 Remove the battery compartment cover. 2 Insert the batteries, making sure to properly orient the positive (+) and negative (–) ends as specified by the battery compartment labels. 1 Press the Open button on the bottom of the mouse, and then pull the battery compartment out. 2 Insert the battery, making sure to properly orient the positive (+) and negative (–) ends as specified by the battery compartmen t labels. X1127312bdy.indd 25/12/2005 9:49:21 AM 3 2 Insert the Batteries Whenever you insert batteries, always make sure that each of them is new. Alkaline batteries provide maximum battery life and are included in the package. Desktop MouseNotebook Mouse 1 Remove the battery compartment cover. 2 Insert the batteries, making sure to properly orient the positive (+) and negative (–) ends as specified by the battery compartment labels. 1 Press the Open button on the bottom of the mouse, and then pull the battery compartment out. 2 Insert t…

Text truncated - open the document above for the full version.

Microsoft Corporation is an equal opportunity employer. June 3, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia , Maryland 21046 Subject: Confidentiality request regarding application for certification of FCC ID: C3K1050 TO WHOM IT MAY CONCERN Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: • Block Diagram • Schematics • Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Stephen M. Stegner EMC/Safety Engineer Microsoft Corporation TEL: (425) 706-2697 FAX: (425) 936-7329 E-mail: [email protected] Microsoft Corporation is an equal opportunity employer. Microsoft Corporation is an equal opportunity employer. June 3, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia , Maryland 21046 Subject: Short-term confidentiality request regarding application for certification of FCC ID: C3K1050 TO WHOM IT MAY CONCERN Pursuant to DA 04-1705 of the Commission’s public notice, we request short- term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: • External Photos • Label drawing • Test Setup Photos • Block Diagram • Schematics • User’s Manual • Internal Photos • Operational Description Sincerely, Stephen M. Stegner EMC/Safety Engineer Microsoft Corporation TEL: (425) 706-2697 FAX: (425) 936-7329 E-mail: [email protected]

Microsoft Corporation is an equal opportunity employer. June 13, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 AGENCY AUTHORIZATION LETTER To whom it may concern, We, the undersigned, Microsoft® Corporation hereby authorize Advance Data Technology Corp. (ADT) of Taiwan, to act on our behalf, as our agent, in all matters relating to all processes required according to FCC Part 15C for the Microsoft® Corporation product: Model: 1050/FCC ID:C3K1050 Any act carried out by Advance Data Technology Corp. (ADT) of Taiwan within the scope of this authorization shall have the same affect as our own. This Letter of Authorization will expire on June 13, 2006, unless earlier revoked in writing. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, Stephen M. Stegner EMC/Safety Engineer Microsoft Corporation TEL: (425) 706-2697 FAX: (425) 936-7329 E-mail: [email protected]

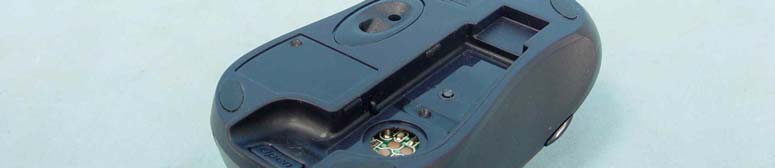

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID Label Location (FCC ID: C3K1050)

Page 2 Page 3 Page 4

FCC ID: C3K1050 Report No.: RF940609L011Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940609L01 MODEL NO.: 1050 RECEIVED: Jun. 09, 2005 TESTED: Jun. 09 ~ Jun. 14, 2005 ISSUED: Jun. 21, 2005 APPLICANT : Microsoft Corporation ADDRESS : One Microsoft Way, Redmond, WA 98052-6399, U.S.A. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 23 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: C3K1050 Report No.: RF940609L012Report Format Version 2.0.2 Table of Contents 1CERTIFICATION ......................................................................................................... 3 2SUMMARY OF TEST RESULTS................................................................................. 4 2.1MEASUREMENT UNCERTAINTY .............................................................................. 4 3GENERAL INFORMATION ......................................................................................... 5 3.1GENERAL DESCRIPTION OF EUT............................................................................ 5 3.2DESCRIPTION OF TEST MODES.............................................................................. 7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............................. 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................. 8 3.4DESCRIPTION OF SUPPORT UNITS........................................................................ 8 4TEST PROCEDURE AND RESULT ............................................................................ 9 4.1CONDUCTED EMISSION MEASUREMENT .............................................................. 9 4.2RADIATED EMISSION MEASUREMENT ................................................................... 9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................................ 9 4.2.2TEST INSTRUMENT................................................................................................. 10 4.2.3TEST PROCEDURE ................................................................................................. 11 4.2.4TEST SETUP ............................................................................................................ 12 4.2.5EUT OPERATING CONDITION ................................................................................ 12 4.2.6TEST RESULTS ........................................................................................................ 13 4PHOTOGRAPHS OF THE TEST CONFIGURATION ............................................... 22 5INFORMATION ON THE TESTING LABORATORIES .............................................. 23 FCC ID: C3K1050 Report No.: RF940609L013Report Format Version 2.0.2 1 CERTIFICATION PRODUCT : Optical Mouse BRAND NAME : Microsoft ® MODEL NO. : 1050 APPLICANT : Microsoft Corporation TESTED : Jun. 09 ~ Jun. 14, 2005 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 15, Subpart C (Section 15.227) Canada RSS-210, 2001, Issued 5, Amend 1 ANSI C63.4:2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY :, DATE :Jun. 21, 2005 ( Suntee Liu ) TECHNICAL ACCEPTANCE :, DATE :Jun. 21, 2005 Responsible for RF ( Gary Chang ) APPROVED BY :, DATE :Jun. 21, 2005 ( Cody Chang, Deputy Manager ) FCC ID: C3K1050 Report No.: RF940609L014Report Format Version 2.0.2 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestNA Power supply is 1.5Vdc from batteries 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is -16.45dB at 84.43MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MEASUREMENTFREQUENCYUNCERTAINTY Conducted emissions9kHz~30MHz2.44 dB 30MHz ~ 200MHz3.55 dB 200MHz ~1000MHz3.58 dB 1GHz ~ 18GHz1.10 dB Radiated emissions 18GHz ~ 40GHz0.91 dB FCC ID: C3K1050 Report No.: RF940609L015Report Format Version 2.0.2 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Optical Mouse MODEL NO. 1050 POWER SUPPLY 1.5Vdc from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045, 27.145 MHz NUMBER OF CHANNEL 2 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA NOTE: 1. The EUT is a wireless mouse. FCC ID: C3K1050 Report No.: RF940609L017Report Format Version 2.0.2 3.2 DESCRIPTION OF TEST MODES There are 2 channels provided to the EUT. ChannelFrequency (MHz) 027.045 127.145 There are 3 sets of identical samples tested and presented in the report under Microsoft’s request. Mouse Serial Number Crystal Vender HRT-DV-004/019Chen Moun HRT-DV-004/020HKC HRT-DV-013/065Chen Moun 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST EUT *Test table (Power from battery) FCC ID: C3K1050 Report No.: RF940609L018Report Format Version 2.0.2 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL Applicable to EUT Configure Mode PLCRE<1G Description 1NotevHRT-DV-004/019, operat…

Text truncated - open the document above for the full version.

FCC ID: C3K1050 Report No.: RF940609L0122Report Format Version 2.0.2 4 PHOTOGRAPHS OF THE TEST CONFIGURATION Radiated Emission Test
