C3K1058Microsoft Wireless Laser Mouse 5000

M www.microsoft.com/hardware M 2 31 Getting Started Microsoft ® Wireless Mouse Products 0505 Part No. X11-27312 X1127312cvr.indd 15/12/2005 9:49:54 AM Welcome Congratulations on your purchase of a Microsoft ® wireless mouse, which includes: 123 45 1 Wireless mouse 2 Receiver (desktop or notebook version, depending on your mouse model) 3 One or more batteries for your wireless mouse, depending on your mouse model 4 CD with Microsoft IntelliPoint mouse software 5 This Getting Started manual Important ● Check the system requirements (located on the packaging) to make sure that your system is compatible with the product that you purchased. ● If you don’t already have a mouse, you can install the IntelliPoint software after you have completed Steps 2 through 5 and your Microsoft wireless mouse is working. HEALTH WARNING Use of a keyboard or mouse may be linked to serious injuries or disorders. When using a computer, as with many activities, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. However, if you experience symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensation, or stiffness, DO NOT IGNORE THESE WARNING SIGNS. PROMPTLY SEE A QUALIFIED HEALTH PROFESSIONAL, even if symptoms occur when you are not working at your computer. Symptoms like these can be associated with painful and sometimes permanently disabling injuries or disorders of the nerves, muscles, tendons, or other parts of the body. These musculoskeletal disorders (MSDs) include carpal tunnel syndrome, tendonitis, tenosynovitis, and other conditions. While researchers are not yet able to answer many questions about MSDs, there is general agreement that many factors may be linked to their occurrence, including: overall health, stress and how one copes with it, medical and physical conditions, and how a person positions and uses his or her body during work and other activities (including use of a keyboard or mouse). The amount of time a person performs an activity may also be a factor. Some guidelines that may help you work more comfortably with your computer and possibly reduce your risk of experiencing an MSD can be found in the “Healthy Computing Guide” installed with this device’s software. If this device did not come with software, see the “Healthy Computing Guide” section of the “Getting Started” manual. You can also access the “Healthy Computing Guide” at www.microsoft.com/hardware or (in the United States only) by calling 1 (800) 360-7561 to request a CD at no charge. If you have questions about how your own lifestyle, activities, or medical or physical condition may be related to MSDs, see a qualified health professional. About Your Rights and Obligations The software included with this product is licensed, not sold. You must either agree to the license contract in the software Setup screen or promptly return the entire product for a refund, excluding the return costs. After you install the software, you may consult the license and the Limited Warranty for the product at any time by looking in the “Legal Information” section of the software Help files. You may also print a copy for your records. X1127312bdy.indd 15/12/2005 9:49:18 AM 1 Welcome Congratulations on your purchase of a Microsoft ® wireless mouse, which includes: 123 45 1 Wireless mouse 2 Receiver (desktop or notebook version, depending on your mouse model) 3 One or more batteries for your wireless mouse, depending on your mouse model 4 CD with Microsoft IntelliPoint mouse software 5 This Getting Started manual Important ● Check the system requirements (located on the packaging) to make sure that your system is compatible with the product that you purchased. ● If you don’t already have a mouse, you can install the IntelliPoint software after you have completed Steps 2 through 5 and your Microsoft wireless mouse is working. 0505 Part No. X11-27312 X1127312bdy.indd 15/12/2005 9:49:19 AM 2 1 Install IntelliPoint Mouse Software IntelliPoint software enables the unique features of your mouse. To install IntelliPoint software (Microsoft Windows ® operating system) 1 Insert the software CD into your computer’s CD drive. If the Setup screen doesn’t appear automatically, do the following: ● Click Start, and then click Run . ● Type [drive]:setup. For example, if your CD drive is drive E, type e:setup 2 On the Setup screen, click Install, and then follow the Setup Wizard instructions on the screen. Restart the computer, if prompted to do so. To install IntelliPoint software (Macintosh) 1 Insert the software CD into your computer’s CD drive. 2 Double-click the Microsoft-Desktop.dmg file. 3 Double-click the Microsoft Desktop.mpkg icon, and then follow the on-screen instructions. Restart the computer, if prompted to do so. 2 Insert the Batteries Whenever you insert batteries, always make sure that each of them is new. Alkaline batteries provide maximum battery life and are included in the package. Desktop MouseNotebook Mouse 1 Remove the battery compartment cover. 2 Insert the batteries, making sure to properly orient the positive (+) and negative (–) ends as specified by the battery compartment labels. 1 Press the Open button on the bottom of the mouse, and then pull the battery compartment out. 2 Insert the battery, making sure to properly orient the positive (+) and negative (–) ends as specified by the battery compartmen t labels. X1127312bdy.indd 25/12/2005 9:49:21 AM 3 2 Insert the Batteries Whenever you insert batteries, always make sure that each of them is new. Alkaline batteries provide maximum battery life and are included in the package. Desktop MouseNotebook Mouse 1 Remove the battery compartment cover. 2 Insert the batteries, making sure to properly orient the positive (+) and negative (–) ends as specified by the battery compartment labels. 1 Press the Open button on the bottom of the mouse, and then pull the battery compartment out. 2 Insert t…

Text truncated - open the document above for the full version.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device also complies with Part 15 of the U.S. Federal Communications Commission (FCC) rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Microsoft hardware device(s) that accompanies this software can radiate radio frequency (RF) energy. If not installed and used in strict accordance with the instructions given in the printed documentation and Online User's Guide, the device may cause harmful interference with other radio- communications devices (for example AM/FM radios, televisions, baby monitors, cordless phones, etc.). Any cable that is connected to the device must be a shielded cable that is properly grounded. There is, however, no guarantee that RF interference will not occur in a particular installation. Your Microsoft hardware device has been tested, and it complies with the limits for a Class B digital device in accordance with the specifications in Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful RF interference in a residential installation. To determine if your hardware device is causing interference to other radio-communications devices, disconnect the device from your computer. If the interference stops, it was probably caused by the device. If the interference continues after you disconnect the hardware device, turn the computer off and then on again. If the interference stopped when the computer was off, check to see if one of the input/output (I/O) devices or one of the computer's internal accessory boards is causing the problem. Disconnect the I/O devices one at a time and see if the interference stops. If this hardware device does cause interference, try the following measures to correct it: z Relocate the antenna of the other radio-communications device (for example AM/FM Radios, televisions, baby monitors, cordless phones, etc) until the interference stops. z Move the hardware device farther away from the radio or TV, or move it to one side or the other of the radio or TV. z Plug the computer into a different power outlet so that the hardware device and radio or TV are on different circuits controlled by different circuit breakers or fuses. z If necessary, ask your computer dealer or an experienced radio-TV technician for more suggestions. You may find helpful information about interference issues at the following FCC website: http://www.fcc.gov/cgb/consumerfacts/interference.html or call the FCC at 1-888-CALL FCC to request from the operator "Interference and Telephone Interference" fax sheets Note Any changes or modifications not expressly approved by Microsoft could void the user's authority to operate this device. Quick Start Guide United States and Canada Radio and TV Interference Regulations For use with UL Listed and GS approved personal computers. Not intended for use in machinery or industrial applications. Tested to comply with FCC standards. For home and office use. Model Number: Wheel Mouse (all models), IntelliMouse (all models), IntelliMouse TrackBall (all models), IntelliMouse with IntelliEye (all models), Wheel Mouse Optical (all models), IntelliMouse Web (all models), IntelliMouse Optical (all models), IntelliMouse Explorer (all models), Trackball Optical (all models), Trackball Explorer (all models), Cordless Wheel Mouse and receiver (all models), Wireless IntelliMouse Explorer and receiver (all models), Optical Mouse (all models), Wireless Optical Mouse and receiver (all models) In addition, the following models have been approved under FCC certification rather than under the FCC Declaration of Conformity Process: C3KMS9, C3KMS8, C3KMS7, C3KMS6, C3KZB2, C3KTB3, C3KKS9, C3KKS8, C3KKS2, C3KKMP5, C3KKMP1, C3KAZB1. Important note about wireless pointing devices The Microsoft Wireless IntelliMouse Explorer (all models) and Cordless Wheel Mouse (all models) can emit radio frequency (RF) energy, much like an AM/FM radio, whenever the batteries are installed, even if the mouse is not in operation. For radio interference information regarding any specific medical device or equipment, consult with the manufacturer of such product or with your physician before use. To stop interference, remove the batteries or follow the instructions above. The Microsoft Wireless IntelliMouse Explorer (all models) and Cordless Wheel Mouse (all models) should not be used on any aircraft. Before boarding any aircraft, remove the batteries to ensure that there is no RF transmission. Microsoft Corporation One Microsoft Way Redmond, WA 98052-6399. (800) 426-9400 (United States) (800) 933-4750 (Canada) www.microsoft.com/mouse/

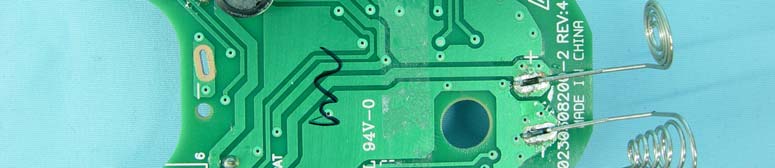

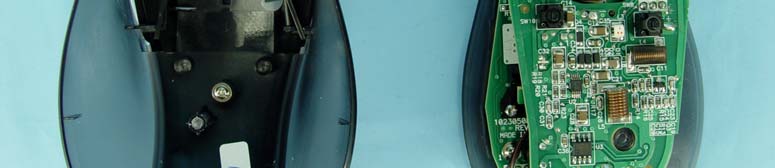

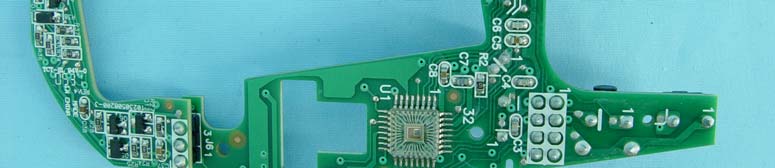

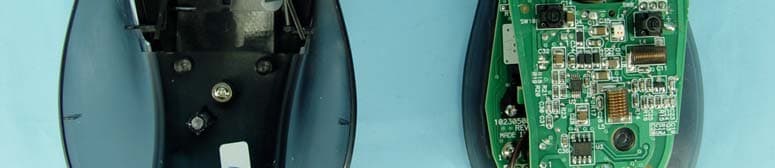

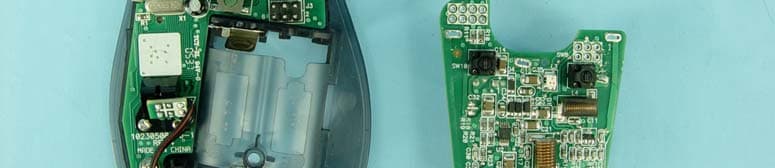

Page 1 CONSTRUCTION PHOTOS OF EUT

Label location

ARTWORK NUMBERDESCRIPTION PROPRIETARY TOLERENCES DWN./D ATE SOFTWARE VERSION DRAWING NUMBERREVISION THE INFORMATION CONTAINED HEREON IS CONFIDENTIAL, IS SUBMITTED IN CONFIDENCE, AND IS PROPRIETARY INFORMATION OF MICROSOFT CORPORA- TION, AND SHALL ONLY BE USED IN THE FU RTHERANCE OF, THE CONTRACT OF WHICH THIS DRAWING FORMS A PART, AND SHALL NOT, WITHOUT MICROSOFT CORPORATION'S PRIOR WRITTEN APPROVAL, BE REPRODUCED OR IN ANY WAY USED IN WHOLE OR IN PART IN CONNECTION WITH SERVICES OR EQUIPMENT OFFERED FOR SALE OF FURNISHED TO OTHERS, THE INFORMATION CONTAINED HEREON MAY NOT BE DISCLOSED TO A THIRD PARTY WITHOUT CONSENT OF MICROSOFT CORPORATION, AND THEN, ONLY PURSUANT TO A MICROSOFT APPROVED NONDISCLOSURE AGREEMENT. John Silverman 10/14/2005 N/AA UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS Adobe Illustrator 11.0 FILE NAME 2:1 1:1 AW806584-001 AW806584-001_OUTLINE.pdf Outline Does Not Print For Reference Only ARTWORK, LABEL, AGENCY, WIRELESS LASER MSE 5000

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: C3K1058 Report No.: RF941004L181Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF941004L18 MODEL NO.: 1058 RECEIVED: Oct. 04, 2005 TESTED: Oct. 07 ~ Oct. 11, 2005 ISSUED: Oct. 14, 2005 APPLICANT : Microsoft Corporation ADDRESS : One Microsoft Way, Redmond, WA 98052-6399, U.S.A. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 23 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: C3K1058 Report No.: RF941004L182Report Format Version 2.0.2 Table of Contents 1CERTIFICATION.............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 2.1MEASUREMENT UNCERTAINTY..................................................................4 3GENERAL INFORMATION.............................................................................5 3.1GENERAL DESCRIPTION OF EUT................................................................5 3.2DESCRIPTION OF TEST MODES..................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.............................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................8 3.4DESCRIPTION OF SUPPORT UNITS............................................................8 4TEST PROCEDURE AND RESULT................................................................9 4.1CONDUCTED EMISSION MEASUREMENT..................................................9 4.2RADIATED EMISSION MEASUREMENT.......................................................9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................9 4.2.2TEST INSTRUMENT.....................................................................................10 4.2.3TEST PROCEDURE......................................................................................11 4.2.4TEST SETUP................................................................................................12 4.2.5EUT OPERATING CONDITION....................................................................12 4.2.6TEST RESULTS............................................................................................13 4 INFORMATION ON THE TESTING LABORATORIES..................................23 APPENDIX-A............................................................................................................24 FCC ID: C3K1058 Report No.: RF941004L183Report Format Version 2.0.2 1 CERTIFICATION PRODUCT : Microsoft ® Wireless Laser Mouse 5000 BRAND NAME : Microsoft ® MODEL NO. : 1058 APPLICANT : Microsoft Corporation TESTED : Oct. 07 ~ Oct. 11, 2005 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 15, Subpart C (Section 15.227) Canada RSS-310, 2005, Issue 1 ANSI C63.4:2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE :Oct. 14, 2005 ( Jessie Wang ) TECHNICAL ACCEPTANCE:, DATE :Oct. 14, 2005 Responsible for RF ( Gary Chang ) APPROVED BY:, DATE :Oct. 14, 2005 ( Cody Chang, Deputy Manager ) FCC ID: C3K1058 Report No.: RF941004L184Report Format Version 2.0.2 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestNA Power supply is 1.5Vdc from batteries 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is -13.16dB at 319.64MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MeasurementFrequencyUncertainty Conducted emissions9kHz~30MHz2.44 dB 30MHz ~ 200MHz3.63 dB 200MHz ~1000MHz3.65 dB 1GHz ~ 18GHz2.20 dB Radiated emissions 18GHz ~ 40GHz1.88 dB FCC ID: C3K1058 Report No.: RF941004L185Report Format Version 2.0.2 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Microsoft ® Wireless Laser Mouse 5000 MODEL NO. 1058 POWER SUPPLY 1.5Vdc from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045, 27.145 MHz NUMBER OF CHANNEL 2 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA NOTE: 1. The EUT is a wireless mouse. 2. Contender Configuration Information Configuration #:Comments: EV phase Mouse unit for formal report Manufacturer Component type Part no. Revision no. Description BOM (if known) MicrosoftMouseModel: 1058 ST Optical Sensor 11300398000A CHIP IC Aviator ASIC TQFP-32L 11300398000 ST Microcontroll er 11300398000A CHIP IC Aviator ASIC TQFP-32L 11300398000 ULMLaserULM850NAVCSEL (850nm) 10740114200 Microsoftfirmware Contender_0_36_33_ d73c_initial PCB102305082004 SPCB,Contender10230508200 KYEPCB Assy20000738201A PCBA,CONTENDER,TX20000738201 Case tooling MerrichTOP KEY15130638201T1 K/C,CONTENDER,TOP KEY,MANTHRACI, 15130638201 MerrichSkirt15102340201T1 TOP,CONTENDER,SKIRT, ATRANSLUC 15102340201 MerrichBottom Case15120534201T1 BOTTOM,CONTENDER,A TRANSLUC 15120534201 MerrichSide Buttons 15130639201 15130640201 T1 K/C,CONTENDER,SIDE KEY-R/L,PLATINUM, 15130639201 15…

Text truncated - open the document above for the full version.

FCC ID: C3K1058 Report No.: RF941004L1822Report Format Version 2.0.2 4 PHOTOGRAPHS OF THE TEST CONFIGURATION Radiated Emission Test
