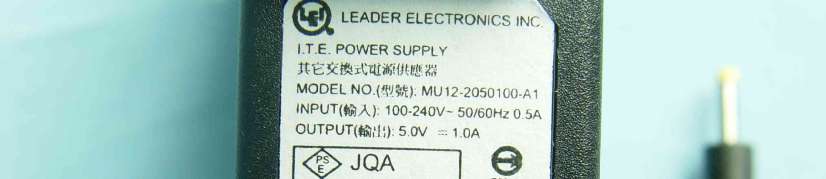

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Microsoft ® 1062 Label Location Location

ARTWORK NUMBERDESCRIPTION PROPRIETARY NOTE TOLERENCES DWN./DATE SOFTWAREVERSION DRAWING NUMBERREVISION THE INFO RMATION CONTAINED HEREON IS CONFIDENTIAL, IS SUBMITTEDIN CONFIDENCE,AND IS PROPRIETARY INFORMATIONOFMICROSOFTCORPORA- TION,AND SHALL ONLY BE USED IN THEFURTHERANCEOF,THE CONTRACTOF WHICHTHIS DRAWING FORMS A PART,AND SHALL NOT, WITHOUTMICROSOFT CORPORATION'S PRIOR WRITTENAPPROVAL, BE REPRODUCEDORINANYWAY USED IN WHOLEOR IN PARTIN CONNECTION WITH SERVICES OR EQUIPMENT OFFEREDFOR SALE OF FURNISHED TO OTHERS,THE INFORMATIONCONTAINED HER EONMAY NOT BE DISCLOSEDTOATHIRDPARTY WITHOUT CONSENTOF MICROSOFT CORPORATION,AND THEN, ONLY PURSUANTTOAMICROSOFT APPROVED NONDISCLOSURE AGREEMENT. UNLESS OTHERWISE SPECIFIED DIMENSIONSARE IN MILLIMETERS FILE NAME 1 inch x 1 inch reference John Silverman04/17/2006 N/AA Adobe Illustrator 11.0 AW808509-001_OUTLINE.pdf AW808509-001 2:1 1:1 ARTWORK,LABEL,AGENCY,MICROSOFT, WIRELESS LASER MOUSE 8000 OUTLINE DOES NOT PRINT

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: C3K1062 Report No: SA950615L13 1 RF EXPOSURE REPORT REPORT NO.:SA950615L13 MODEL NO.:1062 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Microsoft Corporation ADDRESS:One Microsoft Way, Redmond WA 98052- 6399,U.S.A ISSUED BY:Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION:No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: C3K1062 Report No: SA950615L13 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: C3K1062 Report No: SA950615L13 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: C3K1062 Report No: SA950615L13 4 5 Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.585 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power2.2601.683 EIRP Power0.2101.050 *Note: The antenna is PCB antenna with –2.05dBi gain. Threshold for no SAR evaluation is 24.585mW Transmitter power is 1.683mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF950615L13Report Format Version 2.0.41 FCC TEST REPORT REPORT NO.: RF950615L13 MODEL NO.: 1062 RECEIVED: Jun. 16, 2006 TESTED: Jun. 24 ~ Jun. 26, 2006 ISSUED: Jun. 29, 2006 APPLICANT:Microsoft Corporation ADDRESS:One Microsoft Way, Redmond, WA 98052-6399, U.S.A. ISSUED BY:Advance Data Technology Corporation LAB ADDRESS:No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION:No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 Report No.: RF950615L13Report Format Version 2.0.42 TABLE OF CONTENTS 1.CERTIFICATION.................................................................................... .................. 4 2.SUMMARY OF TEST RESULTS............................................................... ................... 5 2.1MEASUREMENT UNCERTAINTY ............................................................................................ 6 3.GENERAL INFORMATION..................................................................... .................... 7 3.1 GENERAL DESCRIPTION OF EUT.......................................................................................... 7 3.2 DESCRIPTION OF TEST MODES............................................................................................ 9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................................... 10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................................... 11 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS......................................................... 13 3.2.4 DESCRIPTION OF SUPPORT UNITS .................................................................................... 13 4.TEST TYPES AND RESULTS................................................................. ................... 14 4.1 CONDUCTED EMISSION MEASUREMENT .......................................................................... 14 4.2 RADIATED EMISSION MEASUREMENT ............................................................................... 14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ............................................................ 14 4.2.2 TEST INSTRUMENTS............................................................................................................. 15 4.2.3 TEST PROCEDURES ............................................................................................................. 16 4.2.4 DEVIATION FROM TEST STANDARD ................................................................................... 16 4.2.5 TEST SETUP........................................................................................................................... 17 4.2.6 EUT OPERATING CONDITIONS ............................................................................................ 17 4.2.7 TEST RESULTS ...................................................................................................................... 18 4.3 NUMBER OF HOPPING FREQUENCY USED....................................................................... 34 4.3.1 LIMIT OF HOPPING FREQUENCY USED ............................................................................. 34 4.3.2 TEST INSTRUMENTS............................................................................................................. 34 4.3.3 TEST PROCEDURES ............................................................................................................. 34 4.3.4 DEVIATION FROM TEST STANDARD ................................................................................... 35 4.3.5 TEST SETUP........................................................................................................................... 35 4.3.6 TEST RESULTS ...................................................................................................................... 35 4.4 DWELL TIME ON EACH CHANNEL ....................................................................................... 37 4.4.1 LIMIT OF DWELL TIME USED................................................................................................ 37 4.4.2 TEST INSTRUMENTS............................................................................................................. 37 4.4.3 TEST PROCEDURES ............................................................................................................. 37 4.4.4 DEVIATION FROM TEST STANDARD ................................................................................... 37 4.4.5 TEST SETUP........................................................................................................................... 38 4.4.6 TEST RESULTS ...................................................................................................................... 38 4.5 CHANNEL BANDWIDTH......................................................................................................... 40 4.5.1 LIMITS OF CHANNEL BANDWIDTH ...................................................................................... 40 4.5.2 TEST INSTRUMENTS............................................................................................................. 40 4.5.3 TEST PROCEDURE................................................................................................................ 40 4.5.4 DEVIATION FROM TEST STANDARD ................................................................................... 41 4.5.5 TEST SETUP..............................................................................................…

Text truncated - open the document above for the full version.

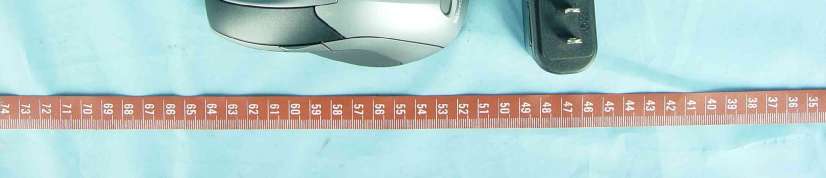

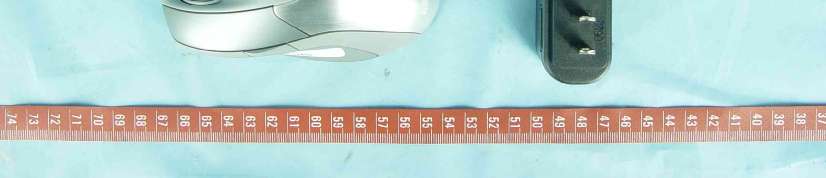

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST _ TEST MODE A, B, C 2 RADIATED EMISSION TEST _ TEST MODE D
