C3K1066Wireless Keyboard

 M Contents Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Guia de Introdução . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Mise en route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Introducción . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 International Technical Support Numbers (partial list only) . . . . . . . . . .61 Microsoft Product Guide Read this guide for important safety and health information and the terms of the Warranty that cover the Microsoft ® device that you have purchased. Warning Failure to properly set up, use, and care for this product can increase the risk of serious injury or death, or damage to the device or devices. Read this guide and keep all printed guides for future reference. For replacement guides, go to www.microsoft.com/hardware or refer to the Microsoft Help and Support section for contact information. This document includes important information about many Microsoft products. Refer to sections that apply to the features of your device: Important Safety Information AC-Powered Devices Battery-Powered Devices Wireless Devices Keyboard and Mouse Devices Devices with Laser Pointers All Devices Healthy Computing Guide Laser and LED Specifications Regulatory Information Radio Frequency Technical Specifications Radio and TV Interference Regulations Disposal of Waste Electrical and Electronic Equipment Patent Information Microsoft Help and Support Limited Warranty 0306 Part No. X2- 69 2-0 X121691201mnl.indb 13/16/2006 10:05:34 AM 2 This symbol identifies safety and health messages in this Product Guide and other product manuals . Important Safety Information AC-Powered Devices These precautions apply to all products that plug into a standard wall power outlet. Failure to take the following precautions can result in serious injury or death from electric shock or fire or in damage to the device. To select an appropriate power source for your device: ● Use only the power supply unit and AC power cord that came with your device or that you received from an authorized repair center. ● Confirm that your electrical outlet provides the type of power indicated on the power supply unit (in terms of voltage [V] and frequency [Hz]). If you are not sure of the type of power supplied to your home, consult a qualified electrician. ● Do not use non-standard power sources, such as generators or inverters, even if the voltage and frequency appear acceptable. Only use AC power provided by a standard wall outlet. ● Do not overload your wall outlet, extension cord, power strip, or other electrical receptacle. Confirm that they are rated to handle the total current (in amps [A]) drawn by the device (indicated on the power supply unit) and any other devices that are on the same circuit. To avoid damaging the power cords and power supply: ● Protect the power cords from being walked on. ● Protect cords from being pinched or sharply bent, particularly where they connect to the power outlet, the power supply unit, and the device. ● Do not jerk, knot, sharply bend, or otherwise abuse the power cords. ● Do not expose the power cords to sources of heat. ● Keep children and pets away from the power cords. Do not allow them to bite or chew on them. ● When disconnecting the power cords, pull on the plug—do not pull on the cord. If a power cord or power supply becomes damaged in any way, stop using it immediately. Unplug your device during lightning storms or when unused for long periods of time. For devices with an AC power cord that connects to the power supply, always connect the power cord according to the following instructions: 1 Plug the AC power cord into the power supply until it stops. 2 Plug the other end of the AC power cord into the wall outlet. Battery-Powered Devices These precautions apply to all products that use rechargeable or disposable batteries. Improper use of batteries may result in battery fluid leakage, overheating, or explosion. Released battery fluid is corrosive and may be toxic. It can cause skin and eye burns, and is harmful if swallowed. X121691201mnl.indb 23/16/2006 10:05:35 AM 3 To reduce the risk of injury: ● Keep batteries out of reach of children. ● Do not heat, open, puncture, mutilate, or dispose of batteries in fire. ● Do not mix new and old batteries or batteries of different types (for example, carbon-zinc and alkaline batteries). ● Do not allow metal objects to touch the battery terminals on the device; they can become hot and cause burns. ● Remove the batteries if they are worn out or before storing your device for an extended period of time. ● Always remove old, weak, or worn-out batteries promptly and recycle or dispose of them in accordance with Local and National Disposal Regulations. ● If a battery leaks, remove all batteries, taking care to keep the leaked fluid from touching your skin or clothes. If fluid from the battery comes into contact with skin or clothes, flush skin with water immediately. Before inserting new batteries, thoroughly clean the battery compartment with a damp paper towel, or follow the battery manufacturer’s recommendations for cleanup. Disposable (non-rechargeable) batteries only: ● Caution Risk of explosion if battery is replaced by an incorrect type. Use and replace only with correct size and type (alkaline, zinc-carbon, or zinc-chloride) of batteries. Rechargeable batteries only: ● Caution Risk of explosion if battery is replaced by an incorrect type. Use and replace only with the same type and rating as the batteries provided. ● Charge only with the recharger provided with the product. Wireless Devices Before boarding any aircraft or packing a wireless device in luggage that will be checked, remove the batteries from the wireless device or turn the wireless device off (if it has an on/off switch). W…

Text truncated - open the document above for the full version.

From: [email protected] [mailto:[email protected]] Sent: Friday, April 14, 2006 2:57 AM To: [email protected] Cc: [email protected] Subject: FCC Application forms for C3K1066 Dear Steve: I had upload the following two documents to server, please find them: 1. Confidential request letter 2. Revised Bandege Plot Thank you. Best Regards, Annie Chang (張嘉宴) LinKou Documentation & Certification Dept. of ADT Corp. web site: www.adt.com.tw E-mail: [email protected] tel: 886-2-26052180 Ext. 1176 fax: 886-2-26051924 From: steve.cheng [mailto:[email protected]] Sent: Friday, March 31, 2006 1:37 AM To: '[email protected]' Cc: '[email protected]' Subject: RE: Application forms for FCC ID: C3K1066 TCB Review Comments for (Microsoft, FCC ID: C3K1066) -EMC- Question #1: Please confirm if short-term confidentiality is desired for components and schematic. Question #2: Please supply bandedge plots to demonstrate Tx signals are staying inside the designated band. Thanks. Best regards, Steve Cheng Curtis Straus LLC

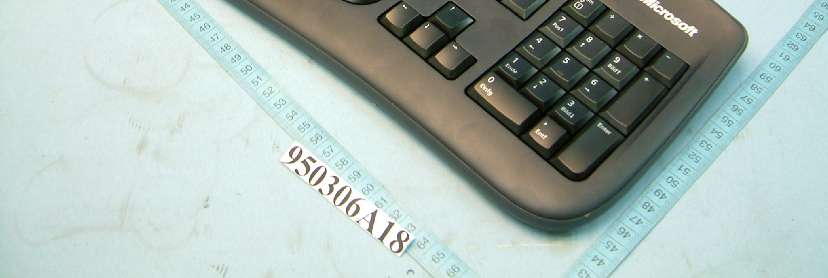

Page 1 CONSTRUCTION PHOTOS OF EUT

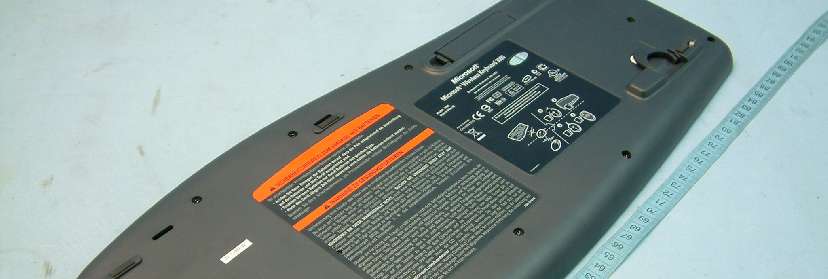

FCC ID: C3K1066 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 2 Page 3 Page 4 Page 5

Report No.: RF950306A181Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950306A18 MODEL NO.: 1066 RECEIVED: Feb. 20, 2006 TESTED: Mar. 14, 2006 ISSUED: Mar. 17, 2006 APPLICANT:MICROSOFT CORPORATION ADDRESS: ONE MICROSOFT WAY REDMOND, WA 98052-6399, U.S.A ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950306A182Report Format Version 2.0.5 Table of Contents 1CERTIFICATION.............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 2.1MEASUREMENT UNCERTAINTY..................................................................4 3GENERAL INFORMATION.............................................................................5 3.1GENERAL DESCRIPTION OF EUT................................................................5 3.1DESCRIPTION OF TEST MODES..................................................................6 3.2CONFIGURATION OF SYSTEM UNDER TEST.............................................6 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................8 3.4DESCRIPTION OF SUPPORT UNITS............................................................8 4TEST PROCEDURE AND RESULT................................................................9 4.1CONDUCTED EMISSION MEASUREMENT..................................................9 4.2RADIATED EMISSION MEASUREMENT.......................................................9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................9 4.2.2TEST INSTRUMENT.....................................................................................10 4.2.3TEST PROCEDURE......................................................................................11 4.2.4TEST SETUP................................................................................................12 4.2.5EUT OPERATING CONDITION....................................................................12 4.2.6TEST RESULT..............................................................................................13 5PHOTOGRAPHS OF THE TEST CONFIGURATION....................................22 6INFORMATION ON THE TESTING LABORATORIES..................................23 APPENDIX-A....................................................................................................A-1 Report No.: RF950306A183Report Format Version 2.0.5 1 CERTIFICATION PRODUCT: Wireless Keyboard BRAND NAME: Microsoft ® MODEL NO.: 1066 APPLICANT: MICROSOFT CORPORATION TEST SAMPLE: ENGINEERING SAMPLE TESTED: Mar. 14, 2006 STANDARDS: FCC Part 15, Subpart C (Section 15.227), ANSI C63.4 -2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Mar. 17, 2006 ( Jessica Cheng ) TECHNICAL ACCEPTANCE:, DATE:Mar. 17, 2006 Responsible for RF ( Ken Liu ) APPROVED BY:, DATE:Mar. 17, 2006 ( Gary Chang / Supervisor ) Report No.: RF950306A184Report Format Version 2.0.5 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3Vdc from batteries 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –13.15dB at 41.66MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. MeasurementUncertainty Radiated emissions3.86 dB Report No.: RF950306A185Report Format Version 2.0.5 3 GENERAL INFORMATION 3.1GENERAL DESCRIPTION OF EUT PRODUCT Wireless Keyboard MODEL NO. 1066 FCC ID C3K1066 POWER SUPPLY 3.0Vdc from batteries MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.195 MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is a Wireless keyboard which is a transmitter 2. The EUT has 3 samples, which are defined as their serial no. as follows: Model No.Serial no. DV-TC-564-02 DV-TC-564-211066 DV-TC-564-42 3. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. Report No.: RF950306A186Report Format Version 2.0.5 3.1 DESCRIPTION OF TEST MODES One channel was provided to this EUT ChannelFrequency (MHz) 127.195MHz Three sets of identical samples are tested and presented in the report. Serial Number DV-TC-564-02 DV-TC-564-21 DV-TC-564-42 3.2 CONFIGURATION OF SYSTEM UNDER TEST Test Table (Powered from batteries) (EUT) Wireless Keyboard Report No.: RF950306A187Report Format Version 2.0.5 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL Applicable to EUT configure mode PLCRE<1G Description ANote√Keyboard serial number: DV-TC-564-02 (operating) BNote√Keyboard serial number: DV-TC-564-02 (standby) CNote√Keyboard serial number: DV-TC-564-21 (operating) DNote√Keyboard serial number: DV-TC-564-21 (…

Text truncated - open the document above for the full version.

Report No.: RF950306A1822Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
