C3K1067Wireless Mouse

1 1205 Part No. X11-xxxxx-01 Contents Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74 X11xxxxx01mnl_multi.indd 111/21/2005 11:05:38 AM 2 HEALTH WARNING Use of a keyboard or mouse may be linked to serious injuries or disorders. When using a computer, as with many activities, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. However, if you experience symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensation, or stiffness, DO NOT IGNORE THESE WARNING SIGNS. PROMPTLY SEE A QUALIFIED HEALTH PROFESSIONAL, even if symptoms occur when you are not working at your computer. Symptoms like these can be associated with painful and sometimes permanently disabling injuries or disorders of the nerves, muscles, tendons, or other parts of the body. These musculoskeletal disorders (MSDs) include carpal tunnel syndrome, tendonitis, tenosynovitis, and other conditions. While researchers are not yet able to answer many questions about MSDs, there is general agreement that many factors may be linked to their occurrence, including: overall health, stress and how one copes with it, medical and physical conditions, and how a person positions and uses his or her body during work and other activities (including use of a keyboard or mouse). The amount of time a person performs an activity may also be a factor. Some guidelines that may help you work more comfortably with your computer and possibly reduce your risk of experiencing an MSD can be found in the “Healthy Computing Guide” installed with this device’s software. If this device did not come with software, see the “Healthy Computing Guide” section of the “Getting Started” manual. You can also access the “Healthy Computing Guide” at www.microsoft.com/hardware or (in the United States only) by calling 1 (800) 360-7561 to request a CD at no charge. If you have questions about how your own lifestyle, activities, or medical or physical condition may be related to MSDs, see a qualified health professional. Warning To protect against risk of fire, bodily injury, electric shock or damage to the equipment: ● Do not immerse any part of this product in water or other liquid. ● Do not spray liquid on this product or allow excess liquid to drip inside. ● Do not use this product if it has sustained any type of damage. ● Disconnect this product or remove its batteries before cleaning. X11xxxxx01mnl_multi.indd 211/21/2005 11:05:39 AM 3 Welcome Congratulations on your purchase of a Microsoft ® wireless mouse, which includes: 12 34 1 Wireless mouse 2 Receiver (desktop or notebook version, depending on your mouse model) 3 One or more batteries for your wireless mouse, depending on your mouse model 4 This Getting Started manual Important Check the system requirements (located on the packaging) to make sure that your system is compatible with the product that you purchased. X11xxxxx01mnl_multi.indd 311/21/2005 11:05:41 AM 4 1 Insert the Batteries Whenever you insert batteries, always make sure that each of them is new. Alkaline batteries provide maximum battery life and are included in the package. Desktop MouseNotebook Mouse 1 Remove the battery compartment cover. 2 Insert the batteries, making sure to correctly orient the positive (+) and negative (–) ends as specified by the battery compartment labels. 1 Press the Microsoft Optical Technology Logo button on the top of the mouse, and then remove the battery compartment cover. 2 Insert the battery, making sure to correctly orient the positive (+) and negative (–) ends as specified by the battery compartmen t labels. X11xxxxx01mnl_multi.indd 411/21/2005 11:05:43 AM 5 2 Position the Wireless Mouse and Receiver For optimum performance, position the receiver away from any items that might cause interference, such as computer monitors, large metal objects (including metal furniture), desktop fans, or fluorescent lights. Make sure that the distance between the mouse and receiver is within the wireless range specified in the following graphics. 2.5 1m Desktop mouse positioningNotebook mouse positioning X11xxxxx01mnl_multi.indd 511/21/2005 11:05:44 AM 6 3 Connect the Receiver to the Computer ● Turn on your computer, and then plug the rectangular USB connector into your computer’s rectangular USB port. Important If you’re running Windows ® 98, you may be prompted to insert the Windows 98 CD when you plug the connector into your computer’s USB port. The required USB driver is located in the Win98 folder of the Windows 98 CD. 4 Test the Mouse Try using the mouse. If it doesn’t work as expected, make sure that you completed the following procedures as specified earlier in these instructions: ● The battery or batteries are new and inserted correctly. ● The receiver and mouse are correctly positioned within their wireless range and there are no nearby items that might cause interference. ● The receiver is correctly connected to the computer. If the mouse is still not working, try reconnecting the mouse to the receiver. To reconnect the mouse to the receiver 1 Make sure that the mouse and receiver are positioned as specified earlier in this manual. 2 Press the button on the receiver, and then immediately press the Connect button on the bottom of the mouse. Using the tip of a pen may …

Text truncated - open the document above for the full version.

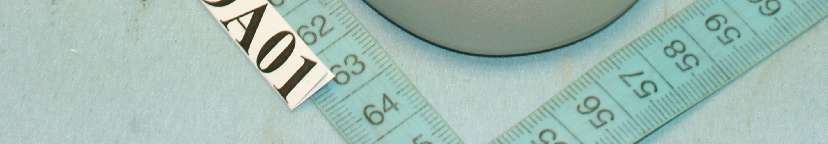

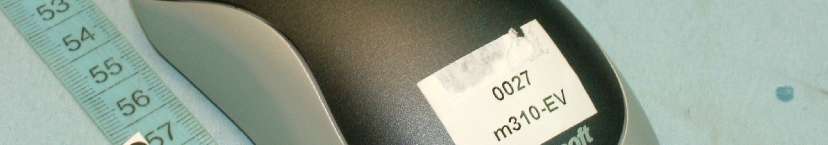

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: C3K1067 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

ARTWORK NUMBERDESCRIPTIONPROPRIETARY NOTETOLERENCES DWN./DATE SOFTWARE VERSION DRAWING NUMBER REVISION THE INFORMATION CONTAINED HEREON IS CONFIDENTIAL, IS SUBMITTED IN CONFIDENCE, AND IS PROPRIETARY INFORMATION OF MICROSOFT CORPORA- TION, AND SHALL ONLY BE USED IN THE FURTHERANCE OF, THE CONTRACT OF WHICH THIS DRAWING FORMS A PART, AND SHALL NOT, WITHOUT MICROSOFT CORPORATION'S PRIOR WRITTEN APPROVAL, BE REPRODUCED OR IN ANY WAY USED IN WHOLE OR IN PART IN CONNECTION WITH SERVICES OR EQUIPMENT OFFERED FOR SALE OF FURNISHED TO OTHERS, THE INFORMATION CONTAINED HEREON MAY NOT BE DISCLOSED TO A THIRD PARTY WITHOUT CONSENT OF MICROSOFT CORPORATION, AND THEN, ONLY PURSUANT TO A MICROSOFT APPROVED NONDISCLOSURE AGREEMENT. ARTWORK,LABEL,PRODUCT, WRLS OPTCL MSE 2000 AW806944-001 AW806944-001_OUTLINE.pdf John Silverman 12/20/05NAA UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS Adobe Illustrator 11.0 INDUSTRIAL DESIGN FILE NAME 1:1 2:1 Outline does not print ARTWORK NUMBERDESCRIPTIONPROPRIETARY NOTETOLERENCES DWN./DATE SOFTWARE VERSION DRAWING NUMBER REVISION THE INFORMATION CONTAINED HEREON IS CONFIDENTIAL, IS SUBMITTED IN CONFIDENCE, AND IS PROPRIETARY INFORMATION OF MICROSOFT CORPORA- TION, AND SHALL ONLY BE USED IN THE FURTHERANCE OF, THE CONTRACT OF WHICH THIS DRAWING FORMS A PART, AND SHALL NOT, WITHOUT MICROSOFT CORPORATION'S PRIOR WRITTEN APPROVAL, BE REPRODUCED OR IN ANY WAY USED IN WHOLE OR IN PART IN CONNECTION WITH SERVICES OR EQUIPMENT OFFERED FOR SALE OF FURNISHED TO OTHERS, THE INFORMATION CONTAINED HEREON MAY NOT BE DISCLOSED TO A THIRD PARTY WITHOUT CONSENT OF MICROSOFT CORPORATION, AND THEN, ONLY PURSUANT TO A MICROSOFT APPROVED NONDISCLOSURE AGREEMENT. AW806945-001 AW806945-001_OUTLINE.pdf John Silverman 12/23/05NAA UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS Adobe Illustrator 11.0 FILE NAME ARTWORK,AGENCY LABEL,WRLS OPTCL MSE 2000 1:1 4:1 Outline does not print ARTWORK NUMBERDESCRIPTIONPROPRIETARY NOTETOLERENCES DWN./DATE SOFTWARE VERSION DRAWING NUMBER REVISION THE INFORMATION CONTAINED HEREON IS CONFIDENTIAL, IS SUBMITTED IN CONFIDENCE, AND IS PROPRIETARY INFORMATION OF MICROSOFT CORPORA- TION, AND SHALL ONLY BE USED IN THE FURTHERANCE OF, THE CONTRACT OF WHICH THIS DRAWING FORMS A PART, AND SHALL NOT, WITHOUT MICROSOFT CORPORATION'S PRIOR WRITTEN APPROVAL, BE REPRODUCED OR IN ANY WAY USED IN WHOLE OR IN PART IN CONNECTION WITH SERVICES OR EQUIPMENT OFFERED FOR SALE OF FURNISHED TO OTHERS, THE INFORMATION CONTAINED HEREON MAY NOT BE DISCLOSED TO A THIRD PARTY WITHOUT CONSENT OF MICROSOFT CORPORATION, AND THEN, ONLY PURSUANT TO A MICROSOFT APPROVED NONDISCLOSURE AGREEMENT. AW807036-001 AW807036-001_OUTLINE.pdf John Silverman 12/20/05NAA UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS Adobe Illustrator 11.0 FILE NAME ARTWORK,LABEL,PRODUCT, MS WRLS MSE RCVR V1.0 5V 100mA Canada 310 LISTED ACCESSORY ITE E145346 Model: 1053 Microsoft Corporation - Made in China (W) Designed in Redmond, WA USA R See Printed Manual for Patent Information Microsoft ® Wireless Mouse Receiver v1.0 N1364 Z396 인증번호: MSK-1053 R31264 5V 100mA Canada 310 LISTED ACCESSORY ITE E145346 Model: 1053 Microsoft Corporation - Made in China (W) Designed in Redmond, WA USA R See Printed Manual for Patent Information Microsoft ® Wireless Mouse Receiver v1.0 N1364 Z396 인증번호: MSK-1053 R31264

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

Ref 87 dBpV *RBW 10 kHz Marker 1 [ T1 ] *VBW 30 kHz 43.87 dBpV *Att 0 dB *SWT 200 ms 27.048000000 MHz Center 27.12 MHz 50 kHz/ Span 500 kHz *RBW 10 kHz Marker 1 [ T1 ] *VBW 30 kHz 44.84 dBpV Ref 87 dBpV *Att OdB *SWT 200 ms 27.142000000 MHz Center 27.12 MHz 50 kHz/ Span 500 kHz * RBW 10 kHz Marker 1 [ T1 ] *VBW 30 kHz 46.40 dBpV Ref 87 dBpV *Att 0 dB *SWT 200 ms 27.048000000 MHz Center 27.12 MHz 50 kHz/ ; Span 500 kHz 26.DEC.2005 17:58:10 * RBW 10 kHz Marker 1 [ T1 ] *VBW 30 kHz 47.24 dBpV Ref 87 dBpV *Att 0 dB *SWT 200 ms 27.141000000 MHz Date Center 27.12 MHz 50 kHz/ 26.DEC.2005 18:00:49 Span 500 kHz Date : Ref 87 dBpV * RBW 10 kHz Marker 1 [ TI ] *VBW 30 kHz 47.07 dBpV *Att 0 dB *SWT 200 ms 27.048000000 MHz Center 27 -12 MHz 50 kHz/ Span 500 kHz * RBW 10 kHz Marker 1 [ TI ] *VBW 30 kHz 47.18 dBpV Ref 87 dBpV *Att 0 dB *SWT 200 ms 27.142000000 MHz Center 27.12 MHz 50 kHz/ Span 500 kHz Date : 26.DEC.2005 18:01:50

FCC ID: C3K1067 Report No.: RF930310A04A1Report Format Version 2.0.4 Reference No.: 941219A01 FCC TEST REPORT REPORT NO.: RF930310A04A MODEL NO.: 1067 RECEIVED: Dec. 20, 2005 TESTED: Dec. 22 ~ 29, 2005 ISSUED: Jan. 2, 2006 APPLICANT:MICROSOFT CORPORATION ADDRESS: ONE MICROSOFT WAY REDMOND, WA 98052-6399, U.S.A ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 31 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 No. 2177-01 FCC ID: C3K1067 Report No.: RF930310A04A2Report Format Version 2.0.4 Reference No.: 941219A01 Table of Contents 1CERTIFICATION.............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 2.1MEASUREMENT UNCERTAINTY..................................................................4 3GENERAL INFORMATION.............................................................................5 3.1GENERAL DESCRIPTION OF EUT................................................................5 3.1DESCRIPTION OF TEST MODES..................................................................6 3.2CONFIGURATION OF SYSTEM UNDER TEST.............................................6 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................8 3.4DESCRIPTION OF SUPPORT UNITS............................................................8 4TEST PROCEDURE AND RESULT................................................................9 4.1CONDUCTED EMISSION MEASUREMENT..................................................9 4.2RADIATED EMISSION MEASUREMENT.......................................................9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................9 4.2.2TEST INSTRUMENT.....................................................................................10 4.2.3TEST PROCEDURE......................................................................................11 4.2.4TEST SETUP................................................................................................12 4.2.5EUT OPERATING CONDITION....................................................................12 4.2.6TEST RESULT..............................................................................................13 5PHOTOGRAPHS OF THE TEST CONFIGURATION....................................28 6INFORMATION ON THE TESTING LABORATORIES..................................30 APPENDIX-A....................................................................................................A-1 FCC ID: C3K1067 Report No.: RF930310A04A3Report Format Version 2.0.4 Reference No.: 941219A01 1 CERTIFICATION PRODUCT: Microsoft ® Wireless Optical Mouse 2000 BRAND NAME: Microsoft ® MODEL NO.: 1067 APPLICANT: MICROSOFT CORPORATION TEST SAMPLE: ENGINEERING SAMPLE TESTED: Dec. 22 ~ 29, 2005 STANDARDS: FCC Part 15, Subpart C (Section 15.227), ANSI C63.4 -2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Jan. 2, 2006 ( Annie Chang ) TECHNICAL ACCEPTANCE:, DATE:Jan. 2, 2006 Responsible for RF ( Ken Liu ) APPROVED BY:, DATE:Jan. 2, 2006 ( Gary Chang / Supervisor ) FCC ID: C3K1067 Report No.: RF930310A04A4Report Format Version 2.0.4 Reference No.: 941219A01 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 1.5Vdc from battery 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –6.35dB at 359.80MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. MeasurementFrequencyUncertainty 30MHz ~ 200MHz (Horizontal)3.47 dB 30MHz ~ 200MHz (Vertical)3.62 dB 200MHz ~1000MHz (Horizontal)3.64 dB Radiated emissions 200MHz ~1000MHz (Vertical)3.62 dB FCC ID: C3K1067 Report No.: RF930310A04A5Report Format Version 2.0.4 Reference No.: 941219A01 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Microsoft ® Wireless Optical Mouse 2000 MODEL NO. 1067 POWER SUPPLY 1.5Vdc from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045, 27.145 MHz NUMBER OF CHANNEL 2 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is a Wireless Optical Mouse which is a transmitter 2. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. FCC ID: C3K1067 Report No.: RF930310A04A6Report Format Version 2.0.4 Reference No.: 941219A01 3.1 DESCRIPTION OF TEST MODES Two channels were provided to this EUT ChannelFrequency (MHz) 027.045MHz 127.145MHz Three sets of identical samples are tested and presented in the report. Mouse Serial Number 0081 0082 0083 3.2 CONFIGURATION OF SYSTEM UNDER TEST For operating mode: For Standby mode: Test Table (Power from battery) Mechanical tool (EUT) Wireless Mouse Test Table …

Text truncated - open the document above for the full version.

FCC ID: C3K1067 Report No.: RF930310A04A28Report Format Version 2.0.4 Reference No.: 941219A01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST (Operating Mode) FCC ID: C3K1067 Report No.: RF930310A04A29Report Format Version 2.0.4 Reference No.: 941219A01 RADIATED EMISSION TEST (Standby Mode)
