C3K1074Wireless Keyboard

 Microsoft Product Guide Read this guide for important safety and health information and the terms of the Warranty that cover the Microsoft ® device that you have purchased. Warning Failure to properly set up, use, and care for this product can increase the risk of serious injury or death, or damage to the device or devices. Read this guide and keep all printed guides for future reference. For replacement guides, go to www.microsoft.com/hardware or refer to the Microsoft Help and Support section for contact information. This document includes important information about many Microsoft products. Refer to sections that apply to the features of your device: Important Safety Information AC-Powered Devices Battery-Powered Devices Wireless Devices Keyboard and Mouse Devices Devices with Laser Pointers All Devices Laser and LED Specifications Regulatory Information Radio Frequency Technical Specifications Radio and TV Interference Regulations Disposal of Waste Electrical and Electronic Equipment Patent Information Microsoft Help and Support This symbol identifies safety and health messages in this Product Guide and other product manuals. Important Safety Information AC-Powered Devices These precautions apply to all products that plug into a standard wall power outlet. Failure to take the following precautions can result in serious injury or death from electric shock or fire or in damage to the device. 0206 Part No. X00-00000 M 2 To select an appropriate power source for your device: ● Use only the power supply unit and AC power cord that came with your device or that you received from an authorized repair center. ● Confirm that your electrical outlet provides the type of power indicated on the power supply unit (in terms of voltage [V] and frequency [Hz]). If you are not sure of the type of power supplied to your home, consult a qualified electrician. ● Do not use non-standard power sources, such as generators or inverters, even if the voltage and frequency appear acceptable. Only use AC power provided by a standard wall outlet. ● Do not overload your wall outlet, extension cord, power strip, or other electrical receptacle. Confirm that they are rated to handle the total current (in amps [A]) drawn by the device (indicated on the power supply unit) and any other devices that are on the same circuit. To avoid damaging the power cords and power supply: ● Protect the power cords from being walked on. ● Protect cords from being pinched or sharply bent, particularly where they connect to the power outlet, the power supply unit, and the device. ● Do not jerk, knot, sharply bend, or otherwise abuse the power cords. ● Do not expose the power cords to sources of heat. ● Keep children and pets away from the power cords. Do not allow them to bite or chew on them. ● When disconnecting the power cords, pull on the plug—do not pull on the cord. If a power cord or power supply becomes damaged in any way, stop using it immediately. Unplug your device during lightning storms or when unused for long periods of time. For devices with an AC power cord that connects to the power supply, always connect the power cord according to the following instructions: 1 Plug the AC power cord into the power supply until it stops. 2 Plug the other end of the AC power cord into the wall outlet. Battery-Powered Devices These precautions apply to all products that use rechargeable or disposable batteries. Improper use of batteries may result in battery fluid leakage, overheating, or explosion. Released battery fluid is corrosive and may be toxic. It can cause skin and eye burns, and is harmful if swallowed. To reduce the risk of injury: ● Keep batteries out of reach of children. ● Do not heat, open, puncture, mutilate, or dispose of batteries in fire. ● Do not mix new and old batteries or batteries of different types (for example, carbon-zinc and alkaline batteries). ● Do not allow metal objects to touch the battery terminals on the device; they can become hot and cause burns.  ● Remove the batteries if they are worn out or before storing your device for an extended period of time. ● Always remove old, weak, or worn-out batteries promptly and recycle or dispose of them in accordance with Local and National Disposal Regulations. ● If a battery leaks, remove all batteries, taking care to keep the leaked fluid from touching your skin or clothes. If fluid from the battery comes into contact with skin or clothes, flush skin with water immediately. Before inserting new batteries, thoroughly clean the battery compartment with a damp paper towel, or follow the battery manufacturer’s recommendations for cleanup. Disposable (non-rechargeable) batteries only: ● Caution Risk of explosion if battery is replaced by an incorrect type. Use and replace only with correct size and type (alkaline, zinc-carbon, or zinc-chloride) of batteries. Rechargeable batteries only: ● Caution Risk of explosion if battery is replaced by an incorrect type. Use and replace only with the same type and rating as the batteries provided. ● Charge only with the recharger provided with the product. Wireless Devices Before boarding any aircraft or packing a wireless device in luggage that will be checked, remove the batteries from the wireless device or turn the wireless device off (if it has an on/off switch). Wireless devices can transmit radio frequency (RF) energy, much like a cellular telephone, whenever batteries are installed and the wireless device is turned on (if it has an on/off switch). Keyboard and Mouse Devices Health Warning Use of a keyboard or mouse may be linked to serious injuries or disorders. When using a computer, as with many activities, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. However, if you experience symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensation, or stiffness, DO NOT IGNORE THESE WARNING SIGNS. PROMPTLY SEE A …

Text truncated - open the document above for the full version.

From: [email protected] [mailto:[email protected]] Sent: Tuesday, April 25, 2006 1:57 AM To: steve.cheng Subject: Re : TCB Review Comments for (C06-0424a- C3K1074- Microsoft keyboard) Dear Steve: I had upload the modified user's manual to server. Please find it. Thank you. Best Regards, Annie Chang (張嘉宴) LinKou Documentation & Certification Dept. of ADT Corp. web site: www.adt.com.tw E-mail: [email protected] tel: 886-2-26052180 Ext. 1176 fax: 886-2-26051924 "steve.cheng" <[email protected]> 2006/04/25 上午 01:18 收件人 [email protected] 副本抄 送 [email protected] 主旨 TCB Review Comments for (C06-0424a- C3K1074- Microsoft keyboard) TCB Review Comments for (C06-0424a- C3K1074- Microsoft keyboard) -EMC- Question #1: Per FCC Section 15.105 Information to the user, following info is required to the user in manual or related document. Please supply. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Best regards, Steve Cheng Curtis-Straus LLC

FCC ID: C3K1074 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

ARTWORK NUMBERDESCRIPTION PROPRIETARY NOTE TOLERENCES DWN./DATE SOFTWAREVERSION DRAWING NUMBERREVISION THE INFO RMATION CONTAINED HEREON IS CONFIDENTIAL, IS SUBMITTEDIN CONFIDENCE,AND IS PROPRIETARY INFORMATIONOFMICROSOFTCORPORA- TION,AND SHALL ONLY BE USED IN THEFURTHERANCEOF,THE CONTRACTOF WHICHTHIS DRAWING FORMS A PART,AND SHALL NOT, WITHOUTMICROSOFT CORPORATION'S PRIOR WRITTENAPPROVAL, BE REPRODUCEDORINANYWAY USED IN WHOLEOR IN PARTIN CONNECTION WITH SERVICES OR EQUIPMENT OFFEREDFOR SALE OF FURNISHED TO OTHERS,THE INFORMATIONCONTAINED HER EONMAY NOT BE DISCLOSEDTOATHIRDPARTY WITHOUT CONSENTOF MICROSOFT CORPORATION,AND THEN, ONLY PURSUANTTOAMICROSOFT APPROVED NONDISCLOSURE AGREEMENT. UNLESS OTHERWISE SPECIFIED DIMENSIONSARE IN MILLIMETERS FILE NAME 1 inch x 1 inch reference John Silverman RMB Vivid, Inc. 3/31/2006 N/AA Adobe Illustrator 11.0 AW806611-001_OUTLINE.pdf AW806611-001 1:1 ARTWORK,PRODUCT LABEL,PIPELINE OUTLINE DOES NOT PRINT

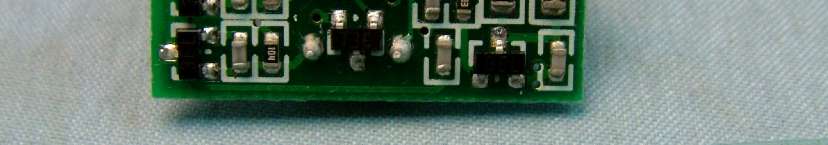

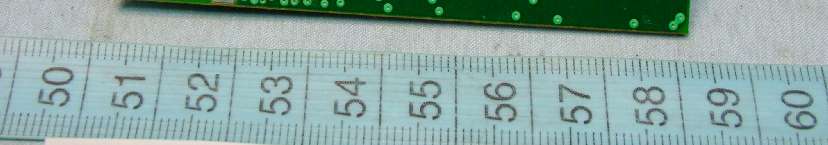

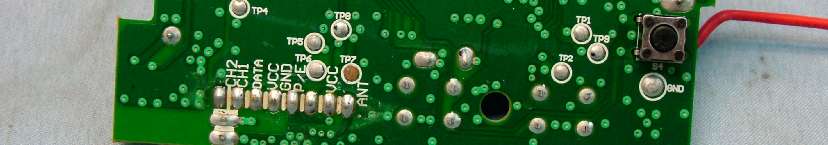

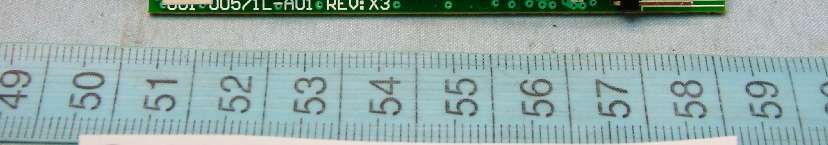

Page 2 Page 3 Page 4 Page 5 Page 6

Report No.: RF950331A051Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950331A05 MODEL NO.: 1074 RECEIVED: Mar. 31, 2006 TESTED: Apr. 14, 2006 ISSUED: Apr. 18, 2006 APPLICANT:MICROSOFT CORPORATION ADDRESS: ONE MICROSOFT WAY REDMOND, WA 98052-6399, U.S.A ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 30 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950331A052Report Format Version 2.0.5 Table of Contents 1CERTIFICATION.............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 2.1MEASUREMENT UNCERTAINTY..................................................................4 3GENERAL INFORMATION.............................................................................5 3.1GENERAL DESCRIPTION OF EUT................................................................5 3.1DESCRIPTION OF TEST MODES..................................................................6 3.2CONFIGURATION OF SYSTEM UNDER TEST.............................................6 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................8 3.4DESCRIPTION OF SUPPORT UNITS............................................................8 4TEST PROCEDURE AND RESULT................................................................9 4.1CONDUCTED EMISSION MEASUREMENT..................................................9 4.2RADIATED EMISSION MEASUREMENT.......................................................9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................9 4.2.2TEST INSTRUMENT.....................................................................................10 4.2.3TEST PROCEDURE......................................................................................11 4.2.4TEST SETUP................................................................................................12 4.2.5EUT OPERATING CONDITION....................................................................12 4.2.6TEST RESULT..............................................................................................13 5PHOTOGRAPHS OF THE TEST CONFIGURATION....................................28 6INFORMATION ON THE TESTING LABORATORIES..................................29 APPENDIX-A....................................................................................................A-1 Report No.: RF950331A053Report Format Version 2.0.5 1 CERTIFICATION PRODUCT: Wireless Keyboard BRAND NAME: Microsoft ® MODEL NO.: 1074 APPLICANT: MICROSOFT CORPORATION TEST SAMPLE: ENGINEERING SAMPLE TESTED: Apr. 14, 2006 STANDARDS: FCC Part 15, Subpart C (Section 15.227), ANSI C63.4 -2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Apr. 18, 2006 ( Jessica Cheng ) TECHNICAL ACCEPTANCE:, DATE:Apr. 18, 2006 Responsible for RF ( Ken Liu ) APPROVED BY:, DATE:Apr. 18, 2006 ( Gary Chang / Supervisor ) Report No.: RF950331A054Report Format Version 2.0.5 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3Vdc from batteries 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –12.02dB at 45.55MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. MeasurementUncertainty Radiated emissions3.86 dB Report No.: RF950331A055Report Format Version 2.0.5 3 GENERAL INFORMATION 3.1GENERAL DESCRIPTION OF EUT PRODUCT Wireless Keyboard MODEL NO. 1074 FCC ID C3K1074 POWER SUPPLY 3.0Vdc from batteries MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.095 MHz, 27.195 MHz NUMBER OF CHANNEL 2 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is a Wireless keyboard which is a transmitter 2. The EUT has 3 samples, which are defined as their serial no. as follows: Model No.Serial no. EV2-K0571-038 EV2-K0571-0951074 EV2-K0571-108 3. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. Report No.: RF950331A056Report Format Version 2.0.5 3.1 DESCRIPTION OF TEST MODES Two channels were provided to this EUT ChannelFrequency (MHz) 127.095MHz 227.195MHz Three sets of identical samples are tested and presented in the report. Serial Number EV2-K0571-038 EV2-K0571-095 EV2-K0571-108 3.2 CONFIGURATION OF SYSTEM UNDER TEST Test Table (Powered from batteries) (EUT) Wireless Keyboard Report No.: RF950331A057Report Format Version 2.0.5 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL Applicable to EUT configure mode PLCRE<1G Description ANote√serial number: EV2-K0571-038 (operating)-27.095 MHz BNote√serial number: EV2-K0571-038 (operating)-27.195 MHz CNote√serial number: EV2-K0571-038 (standby) -27.095 MHz DNot…

Text truncated - open the document above for the full version.

Ref 87 dBpV *RBW 10 kHz Marker 1 [TI ] *VBW 30 kHz 51.59 d~pV *Att OdB SWT 5 ms 27.096000000 MHz Center 27.115 MHz Span 500 kHz Ref 87 dBpV * RBW 10 kHz Marker 1 [ T1 ] *VBW 30 kHz 51.94 dBpV *Att OdB SWT 5 ms 27.097000000 MHz Center 27.115 MHz 50 kHz/ Span 500 kHz Ref 87 dBpV *RBW 10 kHz Marker 1 [Tl ] *VBW 30 kHz 52.51 dBpV *Att 0 dB SWT 5 ms 27.095000000 MHz Date : Center 27.115 MHz 50 kHz/ 6.APR.2006 17:54:43 Span 500 kHz Ref 87 dBpV RBW 10 kHz Marker 1 [ T1 ] *VBW 30 kHz 52.40 dBpV *Att 0 dB SWT 5 ms 27.197000000 MHz Center 27.115 MHz 50 kHz/ Span 500 kHz *RBW 10 kHz Marker 1 [ T1 ] *VBW 30 kHz 52.84 dBpV Ref 87 dBpV *Att 0 dB SWT 5 ms 27.196000000 MHz Center 27.115 MHz 50 kHz/ Date : 6.APR.2006 17:55:41 Span 500 kHz *RBW 10 kHz Marker 1 [Tl ] *VBW 30 kHz 51.27 dBpV Ref 87 dBpV *Att 0 dB SWT 5 ms 27.196000000 MHz Center 27.115 MHz 50 kHz/ Span 500 kHz Date : 6.APR.2006 17:56:04

Report No.: RF950331A0528Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
