C3K1400802.11 b/g/n WLAN Client Module

Microsoft Corporation
802.11 b/g/n WLAN Client Module - FCC ID C3K1400 - Microsoft Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 08, 2010
Application Purpose
Original Equipment
Date of Application
Mar 30, 2010
Equipment Note
802.11 b/g/n WLAN Client Module
Frequency Range
2412.00000000 - 2462.00000000
Company
Microsoft Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗
↗

ID Label/Location Info

↗
↗

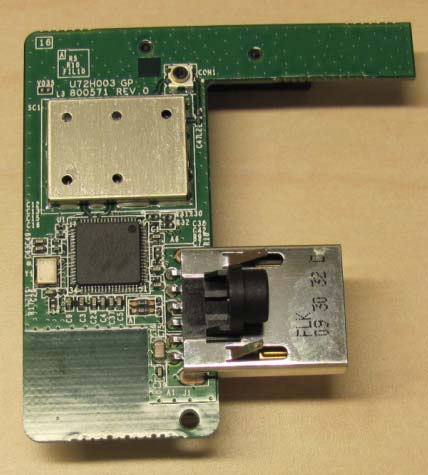

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 English 10 Français 19 Español 1 english English Important Safety InformatIon This document contains your warranty and other important information about your Xbox 360™ video game and entertainment system and Xbox 360 accessories. WARNING Failure to properly set up, use, and care for the Xbox video game and entertainment system can increase the risk of serious injury or death or damage to the Xbox 360 video game and entertainment system. Read the Xbox 360 console manuals and the manuals of any peripherals for important safety and health information. Keep all manuals for future reference. For replacement manuals, go to www.xbox.com/support or call the Xbox Customer Support number provided on the back cover. 1 Important Safety Information 2 Care and Cleaning 3 Interference and Radio Frequency Regulations 5 Limited Warranty and Return Information 9 Specifications 29 Customer Support 2 english Cleaning If you clean the Xbox 360 console: • Clean the outside of the Xbox 360 console only. Make sure that no objects are inserted into ventilation openings. • Use a dry cloth—do not use abrasive pads, detergents, scouring powders, solvents (for example, alcohol, gasoline, paint thinner, or benzene), or other liquid or aerosol cleaners. • Do not use compressed air. • Do not use DVD head cleaner devices. • Do not attempt to clean connectors. • Clean the console feet and the surface on which the Xbox 360 console rests with a dry cloth. To clean Xbox 360 game discs or audio CDs: • Hold discs by the edges; do not touch the disc surface with your fingers. • Clean discs using a soft cloth, lightly wiping from the center outward. • Do not use solvents; they can damage the disc. proper Storage of Discs Always return discs to their storage containers when they are not in the disc drive. Do not store discs in direct sunlight or near a heat source. Always handle discs by their edges. product Disposal Information Dispose of the Xbox 360 console and accessories in accordance with local and national disposal regulations (if any), including those governing the recovery and recycling of waste electrical and electronic equipment (WEEE). Care anD CleanIng 3 english InterferenCe anD raDIo frequenCy regulatIonS for Customers in the uSa This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment offend on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION Any changes or modifications made on the system not expressly approved by the manufacturer could void the user’s authority to operate the equipment. CAUTION exposure to radio frequency radiation To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. model no:Xbox 360 Console trade name:Microsoft Corp. responsible party:Microsoft Corporation address:One Microsoft Way Redmond, WA 98052 U.S.A. telephone no.:(800) 4MY-XBOX 4 english for Customers in Canada This Class B digital apparatus complies with Canadian ICES-003. This device complies with RSS 210 of Industry Canada (IC). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. CAUTION exposure to radio frequency radiation The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website at www.hc-sc.gc.ca/rpb. 5 english lImIteD Warranty anD return InformatIon Do not attempt repairs Do not attempt to take apart, open, service, or modify the Xbox 360 console, power supply, or accessories. Doing so could present the risk of electric shock, fire, or damage to your Xbox 360 console. Any evidence of any attempt to open and/or modify the Xbox 360 console, including any peeling, puncturing, or removal of any of the labels, will void the Limited Warranty and render the Xbox 360 console ineligible for authorized repair. a. WarrantIeS • One Year Express Warranty on Console (three years for three lights flashing red). Subject to the terms and conditions of this Limited Warranty, Microsoft warrants to you only (the original retail purchaser) that, during the Warranty Period and under normal use and service, the Xbox® Console will substantially conform with the printed user instruction materials packaged with the Console. • 90 Day Express Warranty on accessories Subject to the terms and conditions of this Limited Warranty, Microsoft warrants to you only (the original r…

Text truncated - open the document above for the full version.

Cover Letter(s)

Microsoft Corporation FCC ID: C3K1400 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 The module has its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 All modulation and data input(s) are buffered. All inputs to the modules are buffered through logic or microprocessor inputs. 3 The module has its own power supply regulation and local reference oscillator. Internal 1.8V power regulator. 40 MHz crystal provides reference frequency to SoC to generate LO frequencies. 4 Comply with antenna requirements of Section 15.203 and 15.204(c) Antennas are permanently connected and non replaceable by the user. 5 The host device, as a stand-alone unit without any separately certified modules, complies with all applicable Radio Standards Specifications. Device was tested standalone with Laptop as support device. See setup photographs 6 The host device complies with the certification labeling requirements of each of the modules it contains. Refer to label format exhibit. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. There are no adjustments or user accessible controls in hardware or software that will influence operation of the transmitter. 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4) Refer to RF exposure calculation exhibit.

External Photos

Microsoft, Model: 1400

ID Label/Location Info

Microsoft Corporation Model 1400 FCC label location

ID Label/Location Info

Microsoft Corporation Model 1400 FCC Label content for module Host system FCC Label Content for PCB module

RF Exposure Info

REPORT NO: 09U12915-1C DATE: MARCH 25, 2010 FCC ID: C3K1400 IC: 3048A-1400 Page 200 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 10. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 09U12915-1C DATE: MARCH 25, 2010 FCC ID: C3K1400 IC: 3048A-1400 Page 201 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. REPORT NO: 09U12915-1C DATE: MARCH 25, 2010 FCC ID: C3K1400 IC: 3048A-1400 Page 202 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. EQUATIONS Power density is given by: S = EIRP / (4 * Pi * D^2) where S = Power density in W/m^2 EIRP = Equivalent Isotropic Radiated Power in W D = Separation distance in m Power density in units of W/m^2 is converted to units of mWc/m^2 by dividing by 10. Distance is given by: D = SQRT (EIRP / (4 * Pi * S)) where D = Separation distance in m EIRP = Equivalent Isotropic Radiated Power in W S = Power density in W/m^2 For multiple colocated transmitters operating simultaneously in frequency bands where the limit is identical, the total power density is calculated using the total EIRP obtained by summing the Power * Gain product (in linear units) of each transmitter. Total EIRP = (P1 * G1) + (P2 * G2) + ... + (Pn * Pn) where Px = Power of transmitter x Gx = Numeric gain of antenna x In the table(s) below, Power and Gain are entered in units of dBm and dBi respectively and conversions to linear forms are used for the calculations. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 From IC Safety Code 6, Section 2.2 Table 5 Column 4, S = 10 W/m^2 REPORT NO: 09U12915-1C DATE: MARCH 25, 2010 FCC ID: C3K1400 IC: 3048A-1400 Page 203 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RESULTS BandModeSeparationOutputAntennaIC PowerFCC Power DistancePowerGainDensityDensity (m)(dBm)(dBi)(W/m^2)(mW/cm^2) 2.4 GHzWLAN0.2025.794.061.920.192

Test Report

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR 802.11 b/g/n WLAN CLIENT MODEL NUMBER: 1400 FCC ID: C3K1400 IC: 3048A-1400 REPORT NUMBER: 09U12915-1, Revision B ISSUE DATE: DECEMBER 08, 2009 Prepared for MICROSOFT CORPORATION One Microsoft Way, Redmond, WA 98052, U.S.A Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 2 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 11/13/09 Initial Issue F. Ibrahim A 11/25/09 Revised FCC ID, IC ID, and Applicant information A. Zaffar B 12/08/09 Added tabulated Band edge data F. Ibrahim REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 3 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................. 5 2. TEST METHODOLOGY................................................................................................. 6 3. FACILITIES AND ACCREDITATION ............................................................................. 6 4. CALIBRATION AND UNCERTAINTY ............................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 6 4.2. SAMPLE CALCULATION.............................................................................................. 6 4.3. MEASUREMENT UNCERTAINTY................................................................................ 6 5. EQUIPMENT UNDER TEST .......................................................................................... 7 5.1. DESCRIPTION OF EUT................................................................................................ 7 5.2. MAXIMUM OUTPUT POWER....................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 7 5.4. SOFTWARE AND FIRMWARE..................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 5.6. DESCRIPTION OF TEST SETUP................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ................................................................ 10 7. ANTENNA PORT TEST RESULTS ............................................................................. 11 7.1. 802.11b MODE IN THE 2.4 GHz BAND...................................................................... 11 7.1.1. 6 dB BANDWIDTH .............................................................................................. 11 7.1.2. 99% BANDWIDTH .............................................................................................. 15 7.1.3. OUTPUT POWER ............................................................................................... 19 7.1.4. AVERAGE POWER ............................................................................................ 23 7.1.5. POWER SPECTRAL DENSITY .......................................................................... 24 7.1.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 28 7.2. 802.11g MODE IN THE 2.4 GHz BAND...................................................................... 35 7.2.1. 6 dB BANDWIDTH .............................................................................................. 35 7.2.2. 99% BANDWIDTH .............................................................................................. 39 7.2.3. OUTPUT POWER ............................................................................................... 43 7.2.4. AVERAGE POWER ............................................................................................ 47 7.2.5. POWER SPECTRAL DENSITY .......................................................................... 48 7.2.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 52 7.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND............................................................ 59 7.3.1. 6 dB BANDWIDTH .............................................................................................. 59 7.3.2. 99% BANDWIDTH .............................................................................................. 63 7.3.3. OUTPUT POWER ............................................................................................... 67 7.3.4. AVERAGE POWER ............................................................................................ 71 7.3.5. POWER SPECTRAL DENSITY .......................................................................... 72 7.3.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 76 7.4. 802.11n HT40 MODE IN THE 2.4 GHz BAND............................................................ 83 REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 4 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.4.1. 6 dB BANDWIDTH ..........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 204 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 205 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 206 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 207 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS FRONT PHOTO REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 208 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS FRONT PHOTO REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 209 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Z-AXIS FRONT PHOTO REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 210 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 09U12915-1B DATE: DECEMBER 08, 2009 FCC ID: C3K1400 IC: 3048A-1400 Page 211 of 211 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO

Contact Information

Applicant

Hasnain Syed(SR. DIR EMC/SI&RF COMPLIANCE)
[email protected]+1(425)-707-1039Fax: +1(425)-936-7329

Technical Contact

Microsoft CorporationStephen Stegner
[email protected]425 936 7329

One Microsoft Way · Redmond · United States

Test Firm

Compliance Certification ServicesThu Chan
[email protected]510-771-1122Fax: 510-661-0888

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz379.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular Approval. Power Output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
