C3K14092.4 GHZ SHORT RANGE RF MODULE

1 English 10 Français 19 Español 1 english English Important Safety InformatIon This document contains your warranty and other important information about your Xbox 360™ video game and entertainment system and Xbox 360 accessories. WARNING Failure to properly set up, use, and care for the Xbox video game and entertainment system can increase the risk of serious injury or death or damage to the Xbox 360 video game and entertainment system. Read the Xbox 360 console manuals and the manuals of any peripherals for important safety and health information. Keep all manuals for future reference. For replacement manuals, go to www.xbox.com/support or call the Xbox Customer Support number provided on the back cover. 1 Important Safety Information 2 Care and Cleaning 3 Interference and Radio Frequency Regulations 5 Limited Warranty and Return Information 9 Specifications 29 Customer Support 2 english Cleaning If you clean the Xbox 360 console: • Clean the outside of the Xbox 360 console only. Make sure that no objects are inserted into ventilation openings. • Use a dry cloth—do not use abrasive pads, detergents, scouring powders, solvents (for example, alcohol, gasoline, paint thinner, or benzene), or other liquid or aerosol cleaners. • Do not use compressed air. • Do not use DVD head cleaner devices. • Do not attempt to clean connectors. • Clean the console feet and the surface on which the Xbox 360 console rests with a dry cloth. To clean Xbox 360 game discs or audio CDs: • Hold discs by the edges; do not touch the disc surface with your fingers. • Clean discs using a soft cloth, lightly wiping from the center outward. • Do not use solvents; they can damage the disc. proper Storage of Discs Always return discs to their storage containers when they are not in the disc drive. Do not store discs in direct sunlight or near a heat source. Always handle discs by their edges. product Disposal Information Dispose of the Xbox 360 console and accessories in accordance with local and national disposal regulations (if any), including those governing the recovery and recycling of waste electrical and electronic equipment (WEEE). Care anD CleanIng 3 english InterferenCe anD raDIo frequenCy regulatIonS for Customers in the uSa This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment offend on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION Any changes or modifications made on the system not expressly approved by the manufacturer could void the user’s authority to operate the equipment. CAUTION exposure to radio frequency radiation To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. model no:Xbox 360 Console trade name:Microsoft Corp. responsible party:Microsoft Corporation address:One Microsoft Way Redmond, WA 98052 U.S.A. telephone no.:(800) 4MY-XBOX 4 english for Customers in Canada This Class B digital apparatus complies with Canadian ICES-003. This device complies with RSS 210 of Industry Canada (IC). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. CAUTION exposure to radio frequency radiation The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website at www.hc-sc.gc.ca/rpb. 5 english lImIteD Warranty anD return InformatIon Do not attempt repairs Do not attempt to take apart, open, service, or modify the Xbox 360 console, power supply, or accessories. Doing so could present the risk of electric shock, fire, or damage to your Xbox 360 console. Any evidence of any attempt to open and/or modify the Xbox 360 console, including any peeling, puncturing, or removal of any of the labels, will void the Limited Warranty and render the Xbox 360 console ineligible for authorized repair. a. WarrantIeS • One Year Express Warranty on Console (three years for three lights flashing red). Subject to the terms and conditions of this Limited Warranty, Microsoft warrants to you only (the original retail purchaser) that, during the Warranty Period and under normal use and service, the Xbox® Console will substantially conform with the printed user instruction materials packaged with the Console. • 90 Day Express Warranty on accessories Subject to the terms and conditions of this Limited Warranty, Microsoft warrants to you only (the original r…

Text truncated - open the document above for the full version.

Microsoft Corporation is an equal opportunity employer. March 29, 2010 American Telecommunication Body Inc. 6731 Whittier Avenue | Suite C110 | McLean, VA 22101 Subject: AUTHORIZATION LETTER FOR TCB, FCC ID: C3K1409 To whom it may concern: I, the undersigned, hereby authorize Marianne Bosley, Customer Service Representative of American Telecommunication Body Inc., and hereafter referred to as ATCB, to act on our behalf in all manners relating to application for equipment authorization for the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Marianne Bosley on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ATCB as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Microsoft Corporation is an equal opportunity employer. f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Stephen M. Stegner Compliance Engineer Microsoft Corporation TEL: (425) 706-2697 FAX: (425) 936-7329 E-mail: [email protected]

Microsoft Corporation FCC ID: C3K1409 Request for transmitter Limited modular approval Transmitter Module Characteristics Item Requirements EUT 1 The module has its own RF shielding Device does not have its own RF shielded. Radiated & conducted emissions (15.205,15.209,15.207) testing outside and installed in host system. 2 All modulation and data input(s) are buffered. All inputs to the modules are buffered through logic or microprocessor inputs. 3 The module has its own power supply regulation and local reference oscillator. Internal 1.8V power regulator. 12 MHz crystal provides reference to generate LO frequencies. 4 Comply with antenna requirements of Section 15.203 and 15.204(c) Antennas are permanently connected and non replaceable by the user. 5 The host device, as a stand-alone unit without any separately certified modules, complies with all applicable Radio Standards Specifications. Device was tested both standalone with Laptop as support device and installed in the host system. 6 The host device complies with the certification labeling requirements of each of the modules it contains. Refer to label format exhibit. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. There are no adjustments or user accessible controls in hardware or software that will influence operation of the transmitter. 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4) Refer to RF exposure calculation exhibit.

Microsoft Corporation Model 1409 FCC Label content for module Host system FCC Label Content for PCB module

Microsoft Corporation Model 1409 FCC label location

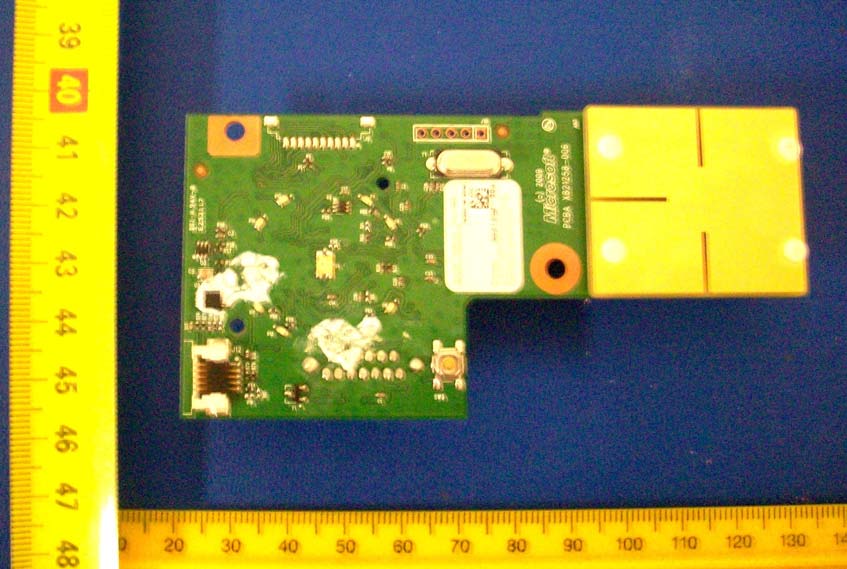

EUT: 2.4 GHz Short Range RF Module 第 14 頁 EUT Photos(Microsoft, Model 1409) EUT Name: 2.4 GHz Short Range RF Module EUT Model: 1409 Brand: Microsoft Board Connector

REPORT NO: 09U12932-8A DATE: FEBRUARY 17, 2010 FCC ID: C3K1409 IC: 3048A-1409 Page 55 of 58 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 10. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 09U12932-8A DATE: FEBRUARY 17, 2010 FCC ID: C3K1409 IC: 3048A-1409 Page 56 of 58 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. REPORT NO: 09U12932-8A DATE: FEBRUARY 17, 2010 FCC ID: C3K1409 IC: 3048A-1409 Page 57 of 58 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations, rearranging the terms to express the distance as a function of the remaining variables, changing to units of Power to mW and Distance to cm, and substituting the logarithmic form of power and gain yields: d = 0.282 * 10 ^ ((P + G) / 20) / √ S where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Rearranging terms to calculate the power density at a specific distance yields S = 0.0795 * 10 ^ ((P + G) / 10) / (d^2) The power density in units of mW/cm^2 is converted to units of W/m^2 by multiplying by a factor of 10. REPORT NO: 09U12932-8A DATE: FEBRUARY 17, 2010 FCC ID: C3K1409 IC: 3048A-1409 Page 58 of 58 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 From IC Safety Code 6, Section 2.2 Table 5 Column 4, S = 10 W/m^2 RESULTS END OF REPORT ModeBandMPEOutputAntennaFCC PowerIC Power DistancePowerGainDensityDensity (cm)(dBm)(dBi)(mW/cm^2)(W/m^2) FHSS2.4 GHz20.0 4.72 5.000.00190.0186
