C3K1481Wireless Headset

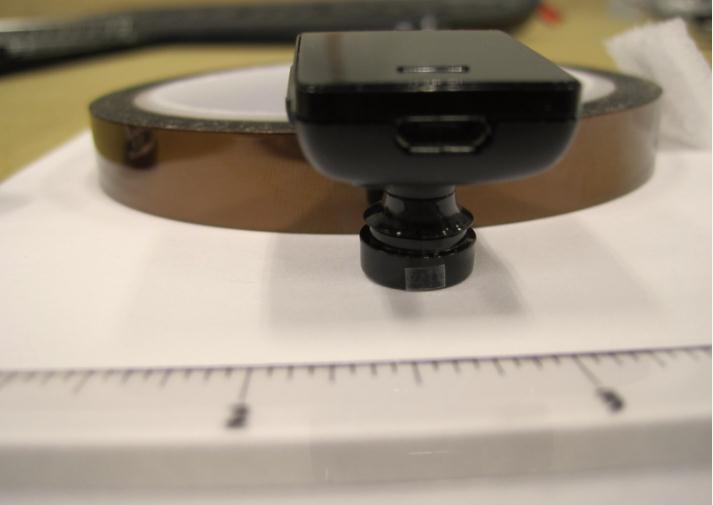

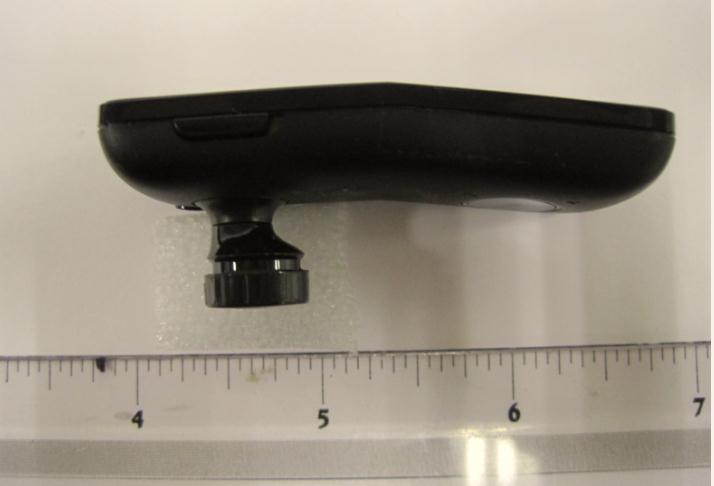

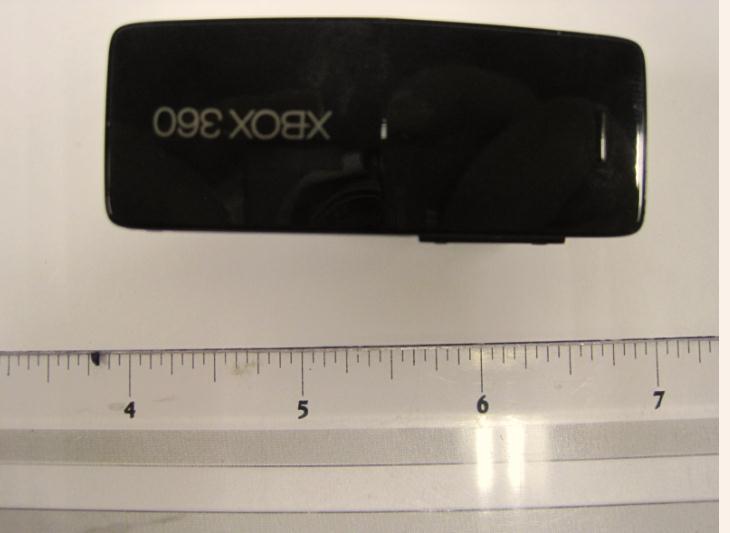

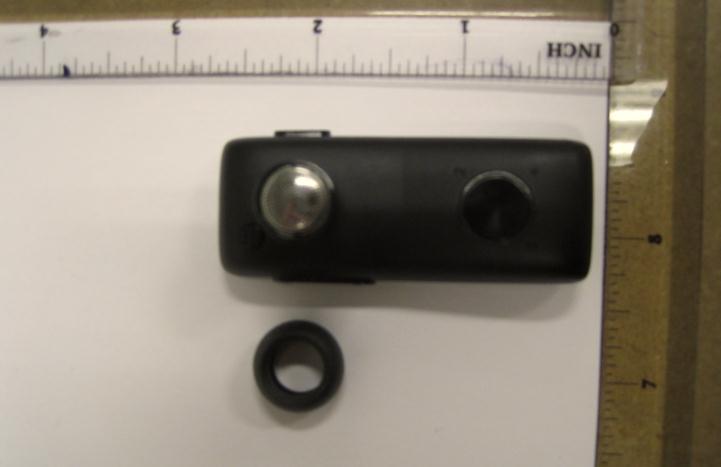

1481-external photos Page 1of 3 Microsoft Corporation Model: 1481 External Photographs 1481-external photos Page 2of 3 1481-external photos Page 3of 3

Label location Wireless Headset, Model: 1481 Laser etched markings on product as indicated. Model: 1481 FCC ID: C3K1481 IC: 3048A-1481

1481-external photos Page 1of 3 Microsoft Corporation Model: 1481 Internal Photographs 1481-external photos Page 2of 3 1481-external photos Page 3of 3

RF Exposure Assessment Applicant: Microsoft Corp. Product Description: Wireless Headset FCC ID: C3K1481 RF exposure category: Portable device based upon section 2.1093 definition Assessment: Based upon KDB 447498, for portable excluded from RF routine evaluation, when the output power is below the power threshold of 60 / f( GHz), then SAR evaluation is not required. F(GHZ) is middle channel in GHz. Frequency range: FHSS: 2402 – 2482 MHz; Bluetooth: 2402‐ 2480 MHz Output power: FHSS: 1.94 mW; Bluetooth: 4.236 mW Co‐located condition: FHSS and Bluetooth radio cannot transmit simultaneously. Power Threshold for SAR exclusion: 60 / 2.42= 24.79 mW Conclusion: RF conducted output power of FHSS and Bluetooth radios are below the low power threshold thus SAR evaluation is not required.

Microsoft Corporation Wireless Headset – BT, Model: 1481 Report No. MCSO1576 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2011 Northwest EMC, Inc Ill roc22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: August 5, 2011 Microsoft Corporation Model: 1481 Emissions Test Description Specification Test Method Pass/Fail Spurious Radiated Emissions FCC 15.247:2011 ANSI C63.10:2009 Pass Occupied Bandwidth FCC 15.247:2011 ANSI C63.10:2009 Pass Output Power FCC 15.247:2011 ANSI C63.10:2009 Pass Power Spectral Density FCC 15.247:2011 ANSI C63.10:2009 Pass Spurious Conducted Emissions FCC 15.247:2011 ANSI C63.10:2009 Pass Band Edge Compliance FCC 15.247:2011 ANSI C63.10:2009 Pass Powerline Conducted Emissions FCC 15.207:2011 ANSI C63.10:2009 Pass Channel Spacing FCC 15.247:2011 ANSI C63.10:2009 Pass Dwell Time FCC 15.247:2011 ANSI C63.10:2009 Pass Number of Hopping Frequencies FCC 15.247:2011 ANSI C63.10:2009 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc.; 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834D-2). Approved By: Dean Ghizzone, President NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Barometric Pressure The recorded barometric pressure has been normalized to sea level. Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the National Voluntary Laboratory Accreditation Program (NVLAP) for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. NVLAP is administered by the National Institute of Standards and Technology (NIST), an agency of the U.S. Commerce Department. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). Accreditations and Authorizations VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T- 1658, and R-2318, Irvine: R-1943, G-85, C-2766, and T-1659, Sultan: R-871, G-83, C-3265, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technolo…

Text truncated - open the document above for the full version.

Microsoft Corporation Wireless Headset – FHSS 2.4GHz, Model: 1481 Report No. MCSO1576.1 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2011 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: July 19, 2011 Microsoft Corporation Model: 1481 Emissions Test Description Specification Test Method Pass/Fail Spurious Radiated Emissions FCC 15.247:2011 ANSI C63.10:2009 Pass Occupied Bandwidth FCC 15.247:2011 ANSI C63.10:2009 Pass Output Power FCC 15.247:2011 ANSI C63.10:2009 Pass Band Edge Compliance FCC 15.247:2011 ANSI C63.10:2009 Pass Spurious Conducted Emissions FCC 15.247:2011 ANSI C63.10:2009 Pass Channel Spacing FCC 15.247:2011 ANSI C63.10:2009 Pass Number of Hopping Frequencies FCC 15.247:2011 ANSI C63.10:2009 Pass Dwell Time FCC 15.247:2011 ANSI C63.10:2009 Pass Powerline Conducted Emissions FCC 15.207:2011 ANSI C63.10:2009 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc.; 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834D-2). Approved By: Dean Ghizzone, President NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Barometric Pressure The recorded barometric pressure has been normalized to sea level. Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the National Voluntary Laboratory Accreditation Program (NVLAP) for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. NVLAP is administered by the National Institute of Standards and Technology (NIST), an agency of the U.S. Commerce Department. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). Accreditations and Authorizations VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T- 1658, and R-2318, Irvine: R-1943, G-85, C-2766, and T-1659, Sultan: R-871, G-83, C-3265, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, t…

Text truncated - open the document above for the full version.

NORTHWEST EMC OP BT.jpg Channel Spacing XMit 2011.04.20 NORTHWEST EMC OP BT.jpg Dwell Time XMit 2010.11.03 NORTHWEST EMC OP BT.jpg Number of Hopping Frequencies XMit 2011.04.20 NORTHWEST EMC OP BT.jpg Occupied Bandwidth XMit 2011.04.20 NORTHWEST EMC EV06 - Bluetooth 002.jpg Output Power XMit 2011.04.20 NORTHWEST EMC OP BT.jpg Band Edge Compliance XMit 2011.04.20 NORTHWEST EMC OP BT.jpg Band Edge Compliance XMit 2011.04.20 NORTHWEST EMC OP BT.jpg Spurious Conducted Emissions XMit 2011.04.20 NORTHWEST EMC OP BT.jpg Power Spectral Density XMit 2011.04.20 NORTHWEST EMC Spurious Radiated Emissions PSA 2011.05.11 NORTHWEST EMC Spurious Radiated Emissions PSA 2011.05.11 NORTHWEST EMC Spurious Radiated Emissions PSA 2011.05.11 NORTHWEST EMC CE (1).jpg CE (2).jpg Powerline Conducted Emissions PSA-ESCI 2010.04.06 NORTHWEST EMC CE (3).jpg CE.JPG Powerline Conducted Emissions PSA-ESCI 2010.04.06

NORTHWEST EMC Channel Separation Xbox.jpg Channel Spacing XMit 2010.11.03 NORTHWEST EMC Dwell Time Xbox.jpg Dwell Time XMit 2010.11.03 NORTHWEST EMC Hopping Channels Xbox.jpg Number Of Hopping Frequencies XMit 2010.11.03 NORTHWEST EMC SCB Xbox.jpg Occupied Bandwidth XMit 2011.04.20 NORTHWEST EMC OP Xbox 001.jpg Output Power XMit 2011.04.20 NORTHWEST EMC Channel Separation Xbox.jpg Band Edge Compliance XMit 2010.11.03 NORTHWEST EMC SCB Xbox.jpg Spurious Conducted Emissions XMit 2011.04.20 NORTHWEST EMC SCB Xbox.jpg Power Spectral Density XMit 2011.04.20 NORTHWEST EMC Spurious Radiated Emissions PSA 2011.05.11 NORTHWEST EMC Spurious Radiated Emissions PSA 2011.05.11 NORTHWEST EMC Spurious Radiated Emissions PSA 2011.05.11 NORTHWEST EMC CE (1).jpg CE (2).jpg Powerline Conducted Emissions PSA-ESCI 2010.04.06 NORTHWEST EMC CE (3).jpg CE.JPG Powerline Conducted Emissions PSA-ESCI 2010.04.06 NORTHWEST EMC Receiver Spurious Emissions PSA 2011.05.11 NORTHWEST EMC Receiver Spurious Emissions PSA 2011.05.11 NORTHWEST EMC Receiver Spurious Emissions PSA 2011.05.11
