Model 1488 OEM Manual Microsoft Corp. Model 1488 installation instructions Notes for OEM Integrators This device is for use only in the Xbox console system for which it was designed, and installed during the console manufacturing process. The antenna must be installed such that 20 cm is maintained between the antenna and users. The transmitter module may not be co- located with any other transmitter or antenna. The transmitter module is approved using the FCC “unlicensed modular transmitter” approval method, therefore the module must only be used with the originally approved antennas. The end user should NOT be provided any instructions on how to remove or install the device. End Product Labelling The Final end product label must contain the following statement on the product label: For United States & Canada “This Device Contains FCC ID: C3K1488” ”This Device Contains IC: 3048A-1488” For Taiwan User Manual Statements The end product user manual must contain the following statements; For customers in Taiwan 蠛功莀衴讟膦茴衴機管翓议腟 裎葟蝊裨經賉萫螊襸豗格襺蠛功莀艕舽衴機，舭經貔可，公艌、芣贅贍艈 虑螿均膻得詑蟀腯更舽莀、加大功莀贍腯更蚖茡計襺讖茴及功能 。 裎葟艏裨蠛功莀艕舽衴機襺艈虑膻得薀貍舮豫蒃衒及干蘥豗腟讈萺；經脊 販蛞干蘥販芻萚，蜴翰 頼袏虑，鏕改苻覓肚干蘥萚脙得繼荶艈虑。 衔豮豗腟讈萺，要蜷衴萺規袓蟇蔋襺肚茉衴萺。蠛功莀艕舽衴機菉螂莑豗腟讈萺 贍工蔋、科谷及蝉美虑衴讟膦艕茴衴機茡舆襺干蘥 荙舫螿膈贇腟裎蝊葟艏裨裎蝊豮：「莾螤襺芣谎贍膞肏，蜴臣襦肫谅萟及茢聒苗，其內虈膻得較蚖產襽襺谅萟及茢聒苗簡缉 Model 1488 OEM Manual For customers in Canada Cet appareil numérique de la classe B est conforme aux normes NMB-003, CNR-Gen, et CNR-210 du Canada. Son fonctionnement est assujetti aux deux conditions suivantes : (1) Cet appareil ne peut pas provoquer d’interférences nuisibles et (2) cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant entraîner un fonctionnement non désiré. To comply with IC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. For Customers in the United States "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” (reference FCC Section 15.19(a)(3) ) A statement to caution the user that changes or modifications not expressly appproved by Microsoft could void the user’s authority to operate the equipment. (reference FCC Title 47 Section 15.21) “This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.” (reference FCC Title 47 Section 15.105)

Microsoft Corporation FCC ID: C3K1488 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 The module has its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 All modulation and data input(s) are buffered. All inputs to the modules are buffered through logic or microprocessor inputs. 3 The module has its own power supply regulation and local reference oscillator. Internal 1.8V power regulator. 40 MHz crystal provides reference frequency to SoC to generate LO frequencies. 4 Comply with antenna requirements of Section 15.203 and 15.204(c) Antennas are permanently connected and non replaceable by the user. 5 The host device, as a stand-alone unit without any separately certified modules, complies with all applicable Radio Standards Specifications. Device was tested standalone with Laptop as support device. See setup photographs 6 The host device complies with the certification labeling requirements of each of the modules it contains. Refer to label format exhibit. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. There are no adjustments or user accessible controls in hardware or software that will influence operation of the transmitter. 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4) Refer to RF exposure calculation exhibit.

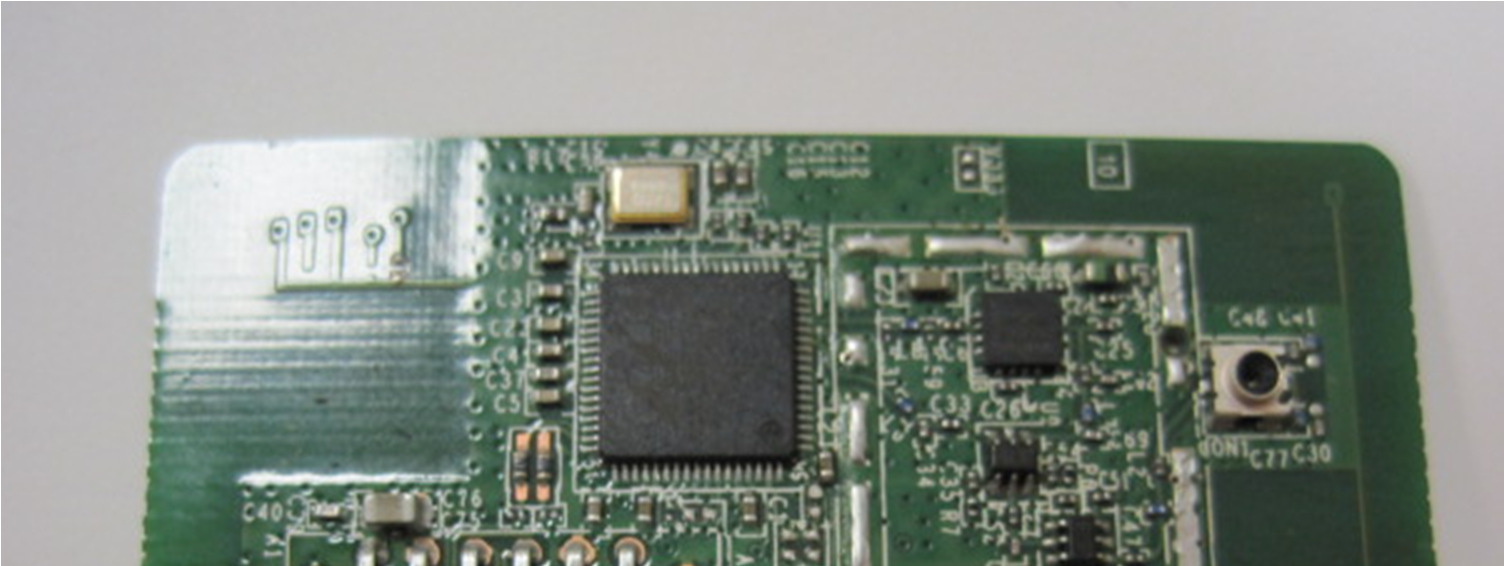

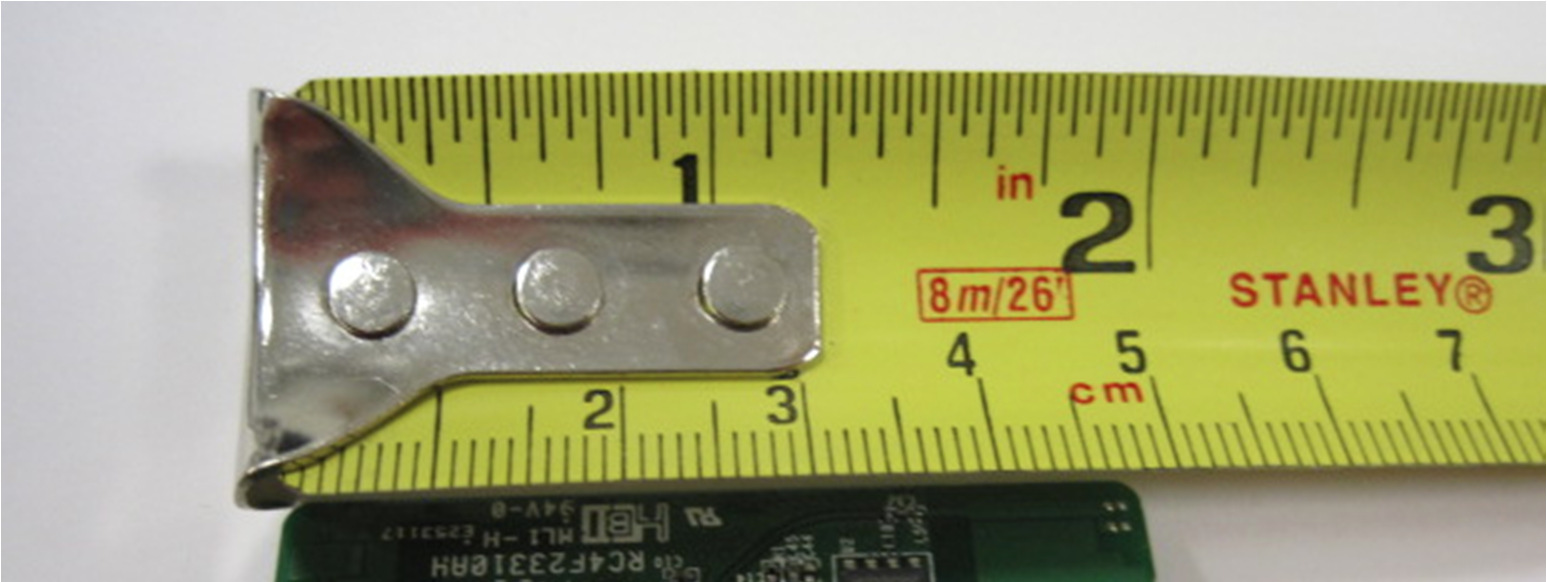

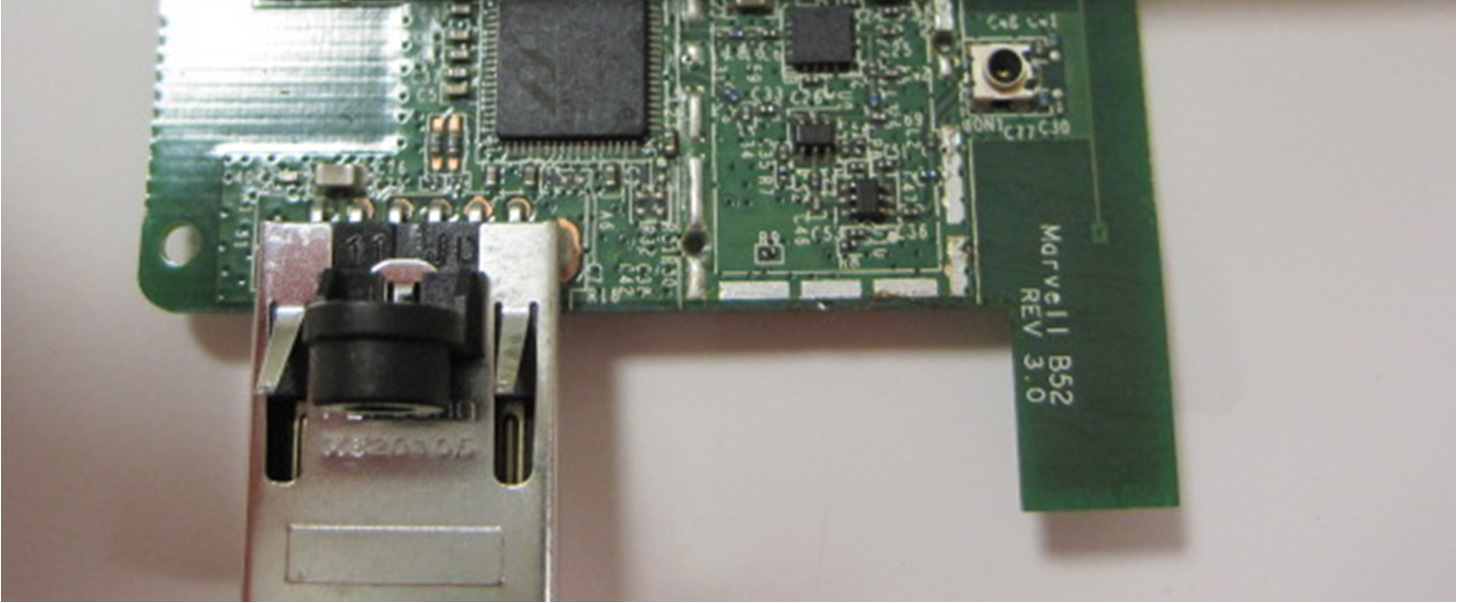

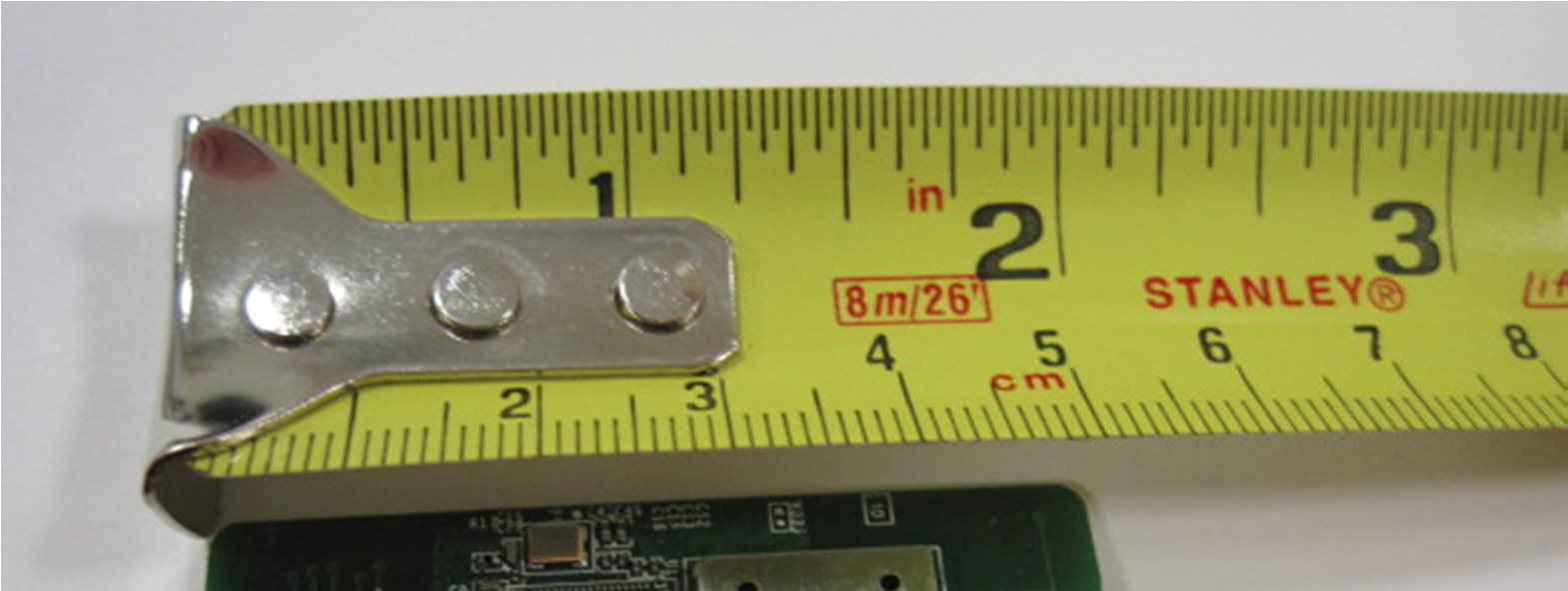

Microsoft Corporation Photographs - Model: 1488 1 of 3 Microsoft Corporation Model: 1488 Internal photographs Microsoft Corporation Photographs - Model: 1488 2 of 3 Microsoft Corporation Photographs - Model: 1488 3 of 3

Microsoft Corporation Model 1488 FCC label location Top Side PCB FCC Label Location

Label content for Model 1488 Microsoft Corporation Model 1488 FCC ID: C3K1488 IC: 3048A-1488

Microsoft Corporation Photographs - Model: 1488 1 of 3 Microsoft Corporation Model: 1488 Internal photographs Microsoft Corporation Photographs - Model: 1488 2 of 3 Microsoft Corporation Photographs - Model: 1488 3 of 3

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR 802.11 b/g/n WLAN module MODEL NUMBER: 1488 FCC ID: C3K1488 IC: 3048A-1488 REPORT NUMBER: 11U13646-1, Revision C ISSUE DATE: APRIL 25, 2011 Prepared for MICROSOFT CORPORATION One Microsoft Way, Redmond, WA 98052, U.S.A Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 2 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 03/11/11 Initial Issue F. Ibrahim A 03/22/11 Revised EUT description, Description of Antennas, and Test Equipment List F. Ibrahim B 04/15/11 Revised MAXIMUM OUTPUT POWER section, and MPE section F. Ibrahim C 04/25/11 Revised test equipment list F. Ibrahim REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 3 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION.................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 6 4.2. SAMPLE CALCULATION ............................................................................................... 6 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT ................................................................................................. 7 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 7 5.4. SOFTWARE AND FIRMWARE ...................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE............................................................ 8 5.6. DESCRIPTION OF TEST SETUP .................................................................................. 9 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11 7. ANTENNA PORT TEST RESULTS .................................................................................... 12 7.1. 802.11b MODE IN THE 2.4 GHz BAND ....................................................................... 12 7.1.1. 6 dB BANDWIDTH ................................................................................................ 12 7.1.2. 99% BANDWIDTH ................................................................................................ 16 7.1.3. OUTPUT POWER ................................................................................................. 20 7.1.4. AVERAGE POWER .............................................................................................. 21 7.1.5. POWER SPECTRAL DENSITY ............................................................................ 22 7.1.6. CONDUCTED SPURIOUS EMISSIONS............................................................... 26 7.2. 802.11g MODE IN THE 2.4 GHz BAND ....................................................................... 33 7.2.1. 6 dB BANDWIDTH ................................................................................................ 33 7.2.2. 99% BANDWIDTH ................................................................................................ 37 7.2.3. OUTPUT POWER ................................................................................................. 41 7.2.4. AVERAGE POWER .............................................................................................. 42 7.2.5. POWER SPECTRAL DENSITY ............................................................................ 43 7.2.6. CONDUCTED SPURIOUS EMISSIONS............................................................... 47 7.3. 802.11 HT20 IN THE 2.4 GHz BAND ........................................................................... 58 7.3.1. 6 dB BANDWIDTH ................................................................................................ 58 7.3.2. 99% BANDWIDTH ................................................................................................ 62 7.3.3. OUTPUT POWER ................................................................................................. 66 7.3.4. AVERAGE POWER .............................................................................................. 67 7.3.5. POWER SPECTRAL DENSITY ............................................................................ 68 7.3.6. CONDUCTED SPURIOUS EMISSIONS............................................................... 72 7.4. 802.11 HT40 MODE IN THE 2.4 GHz BAND ............................................................... 83 REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 4 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FR…

Text truncated - open the document above for the full version.

REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 168 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 169 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS FRONT PHOTO REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 170 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. X-AXIS BACK PHOTO REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 171 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Y-AXIS FRONT PHOTO REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 172 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Y-AXIS BACK PHOTO REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 173 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Z-AXIS FRONT PHOTO REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 174 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Z-AXIS BACK PHOTO REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 175 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 11U13646-1C DATE: APRIL 25, 2011 FCC ID: C3K1488 IC: 3048A-1488 Page 176 of 176 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
