C3K1628Wireless Display Adapter

CLEANING & USAGE INSTRUCTIONS Always handle your device with care to maintain its appearance. To clean, wipe the outer surface with a soft, lint-free cloth. This symbol identifies safety and health messages in this Device Guide. Read this guide for important safety and health information for the product that you have purchased. WARNING: Read Safety & Health Info Read this guide for important safety and health information and the terms of the Limited Warranty that apply to the Microsoft ® device that you have purchased. Keep all printed guides for future reference. Failure to follow instructions and properly set up, use, and care for this product can increase the risk of serious injury or death, or damage to the device or devices. For an online version of this guide go to: www.surface.com/support Warning: Do Not Attempt Repairs Do not attempt to take apart, open, service, or modify the product, accessories, or power supply. Doing so could present the risk of electric shock or other hazard. Any evidence of any attempt to open and/or modify this device, including any peeling, puncturing, or removal of any of the labels, will void the Limited Warranty. Warning: Small Children This device and its accessories are not toys. Do not allow small children to play with them because they could hurt themselves or others, damage the device, or use services that increase your mobile device bill. Keep the device and all its parts and accessories out of the reach of small children. Caution: Cable and Cord Safety Arrange all cables and cords so that people and pets are not likely to trip over or accidentally pull on them as they move around or walk through the area. Do not allow children to play with cables and cords. Warning: Battery Safety This device contains a built-in NiMH battery, improper use of which may result in explosion. Do not heat, open, puncture, mutilate, or dispose of the product in fire. Do not leave the device in direct sunlight for an extended period of time, which could cause melting or battery damage. The battery in this device is not user replaceable and should only be replaced by Microsoft or a Microsoft Authorized Service Provider. See www.surface.com/ suppor t for additional details. Warning: Use Near Water To reduce the risk of fire or shock, do not use this device near water and do not expose it to rain or moisture. Do not attempt to dry device with a hair dryer or a microwave oven. Warning: Airbag Avoidance For vehicles equipped with airbags, do not place the device or other objects on or near the airbags. If an airbag deploys, objects placed on or near the airbag could cause serious personal injury or even death. Warning: Choking Hazard This device may contain small parts which may be a choking hazard to children under 3. Keep small parts away from children. Warning: Coin Cell Safety Notice KEEP OUT OF REACH OF CHILDREN. DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD. This product may contain coin/button cell batteries. If a coin/button cell battery is swallowed, it can cause severe inter nal burns and perforation of soft tissue in just 2 hours and can lead to serious injury or death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Coin batteries must be removed immediately if swallowed. Warning: Follow Instructions to Avoid Interference Problems Turn off your mobile device in any location where posted notices instruct you to do so. In an aircraft, turn off your device whenever instructed to do so by airline staff, or prior to packing a wireless device in luggage. This device offers an “airplane mode”. Please consult airline staff about using it in flight. Warning: Potentially Explosive Atmospheres Areas with potentially explosive atmospheres are often, but not always, posted and can include fueling areas, such as below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or metal powders. When you are in such an area, turn off your mobile device, and do not remove or install battery chargers, AC adapters, or any other accessory. In such areas, sparks can occur and cause an explosion or fire. Caution: Parts of this device are magnetic. It may attract metallic materials. To reduce the potential risk of sparks, verify the electrical connection area is free of metallic objects before interconnecting devices. In order to reduce the likelihood of magnetic fields interfering with compass readings, disrupting the proper operation of pacemakers, or corrupting magnetically stored data, do not place credit cards or other magnetic storage media or magnetically sensitive devices near this device. Caution: Personal Medical Devices Radio-frequency emissions from electronic equipment can negatively affect the operation of other electronic equipment, causing them to malfunction. Although the device is designed, tested, and manufactured to comply with regulations governing radio frequency emission in countries such as the United States, Canada, the European Union, and Japan, the wireless transmitters and electrical circuits in the device may cause interference in other electronic equipment. Therefore, please take the following precautions: Pacemakers The Health Industry Manufacturers Association recommends that a minimum separation of 15 cm ( 6 inches) be maintained between a wireless device and a pacemaker to avoid potential interference with the pacemaker . Persons with pacemakers • Should always keep the device more than 15 cm (6 inches) from the pacemaker when the wireless device is turned on. • Should not carry in the breast pocket. • If you have any reason to suspect that interference is taking place, turn the device off immediately. Other Medical Devices If you use any other per…

Text truncated - open the document above for the full version.

; © 2014 Microsoft Corporation surface.com/support surface.com/userguides BlackPMS 10394C Set upNote: You can wirelessly connect your Surface or other Miracast™ enabled device to a TV or monitor (available HDMI port and USB power required).1. Connect your Surface Wireless Display Adapter to the HDMI and USB ports on the side or back of your TV or monitor. 2. On the TV, set the channel to the HDMI source. Black HDMI USB Note: Use the included HDMI cable if you need to extend the Surface Wireless Display Adapter to fit your TV or monitor. CyanBlack Pair the adapter to Surface3. On Surface, swipe in from the right edge of the screen, and tap Devices . 4. Tap Project > Add a wireless display . 5. Tap Surface Wireless Display Adapter in the list. Black Connect Surface to your TV 6. Enter the PIN shown on the TV or monitor. The same image should appear on both screens.Note: • If the adapter didn’t connect, swipe in from the right edge of the screen, then tap Devices > Project > Surface Wireless Display Adapter > Disconnect > Connect . Black Black Download settings app • For adapter updates and additional settings, download Surface Wireless Display Adapter from the Windows Store. Notes: • For best performance, keep Surface within 20 feet of the TV or monitor. • The adapter must always be plugged into both the HDMI and USB ports. The adapter is powered through the USB port. Black Set upNote: You can wirelessly connect your Surface or other Miracast™ enabled device to a TV or monitor (available HDMI port and USB power required).1. Branchez l’adaptateur d’affichage sans fil Surface sur les ports HDMI et USB situés sur le côté ou à l’arrière de votre téléviseur ou de votre moniteur. 2. On the TV, set the channel to the HDMI source. Black HDMI USB Note: Use the included HDMI cable if you need to extend the Surface Wireless Display Adapter to fit your TV or monitor. CyanBlack Associer l’adaptateur à Surface3. Sur la tablette Surface, effectuez un balayage à partir du côté droit de l’écran et appuyez sur Périphériques . 4. Appuyez sur Projection > Ajouter un écran sans fil . 5. Appuyez sur Adaptateur d’affichage sans fil Surface à partir de la liste. Black Connecter Surface à votre téléviseur 6. Saisissez le NIP affiché à l’écran du téléviseur. The same image should appear on both screens.Note: • If the adapter didn’t connect, swipe in from the right edge of the screen, then tap Devices > Project > Surface Wireless Display Adapter > Disconnect > Connect . Black Black Télécharger l’application de paramètres• Pour obtenir des mises à jour et des paramètres supplémentaires pour l’adaptateur, téléchargez l’application Adaptateur d’affichage sans fil Surface à partir du Windows Store. Notes: • For best performance, keep Surface within 20 feet of the TV or monitor. • The adapter must always be plugged into both the HDMI and USB ports. The adapter is powered through the USB port. Black Set upNote: You can wirelessly connect your Surface or other Miracast™ enabled device to a TV or monitor (available HDMI port and USB power required).1. Conecta el adaptador inalámbrico Surface a los puertos HDMI y USB ubicados en la parte lateral o posterior del televisor o monitor. 2. En el televisor, establece el canal en la fuente HDMI. Black HDMI USB Note: Use the included HDMI cable if you need to extend the Surface Wireless Display Adapter to fit your TV or monitor. CyanBlack Conectar el adaptador a Surface3. En Surface, desliza el dedo rápidamente desde el borde derecho de la pantalla y pulsa Dispositivos . 4. Pulsa Proyecto > Agregar una pantalla inalámbrica . 5. Pulsa Surface Wireless Display Adapter en la lista. Black Connect Surface to your TV 6. Escribe el código PIN que se muestra en el televisor . The same image should appear on both screens.Note: • If the adapter didn’t connect, swipe in from the right edge of the screen, then tap Devices > Project > Surface Wireless Display Adapter > Disconnect > Connect . Black Black Descargar la aplicación de configuración • Para obtener actualizaciones del adaptador y configuraciones adicionales, descarga el Surface Wireless Display Adapter desde la Tienda Windows. Notes: • For best performance, keep Surface within 20 feet of the TV or monitor. • The adapter must always be plugged into both the HDMI and USB ports. The adapter is powered through the USB port. Black

Microsoft Corporation Tel 425-882 8080 One Microsoft Way Fax 425 936 7329 Redmond, WA 98052-6399 http://www.microsoft.com/ Microsoft Declaration for no non-US channel operation February 26, 2014 We, Microsoft declare that the device does not support any non-US channels in all the operational mode(s) for the following product. The device does not support channels 12 &13 in USA. FCC ID: C3K1628 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Bill Huang Compliance Engineer, EMC and Safety Safety, Compliance, & Sustainability Phone: +86(755) 86118714 Email: [email protected]

Microsoft Corporation Tel 425-882 8080 One Microsoft Way Fax 425 936 7329 Redmond, WA 98052-6399 http://www.microsoft.com/ Microsoft Corporation is an equal opportunity employer. Microsoft January 20, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Confidentiality Request FCC ID: C3K1628 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely , ---------------------------------------------- Bill Huang Compliance Engineer, EMC and Safety Safety, Compliance, & Sustainability Phone: +86(755) 86118714 Email: [email protected]

Date: 2014-08-28 FCC ID: C3K1628 A U T H O R I Z A T I O N L E T T E R To whom it may concern: We, the undersigned, hereby authorize Andrea Hsia, Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Andrea Hsia, Senior Specialist of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------- Bill Huang Compliance Engineer, EMC and Safety Safety, Compliance, & Sustainability Phone: +86(755) 86118714 Email: [email protected]

Microsoft Corporation is an equal opportunity employer. Subject: Authorized signatories October 23, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 A G E N C Y A U T H O R I Z A T I O N L E T T E R F O R M I C R O S O F T E M P L O Y E E S To whom it may concern, We, the undersigned, Microsoft® Corporation hereby authorize the following, to act on our behalf, as our agent, in all matters relating to all processes required according to FCC Part 15 for Microsoft® Corporation products (Grantee Code:C3K): Hasnain Syed Brad Sybouts Kitty Tam Anindita Mitra David Johnson Michael Boucher Pamela Galvan Sajay Jose Jennifer Liu Elaine Reeves Jojo Malliyakal Wei Sun Zachary Gray Daniel Salinas Shoaib Khan Johnny Deng Robert Towne Chip Schulman Eugene Wong Bill Huang Albert Huang Tim Calland Joy Alegria Ellis Lee Angus McGill If you have any questions regarding the authorization, please don’t hesitate to contact me. Sincerely, Stephen M. Stegner Compliance Engineer Microsoft Corporation

Microsoft Corporation Tel 425-882 8080 One Microsoft Way Fax 425 936 7329 Redmond, WA 98052-6399 http://www.microsoft.com/ Microsoft Date: 2014-02-12 FCC ID: C3K1628 Declaration Letter We, Microsoft ® Corporation declare that the EUT (model: 1628) is for HDMI display only and Notebook cannot recognize the dongle when it is plugged into the Notebook. Also, we will not release device driver for direct NB application(s) or similar. If you have any questions regarding the authorization, please do not hesitate to contact us. Thank you! ----------------------------------- Bill Huang Compliance Engineer, EMC and Safety Safety, Compliance, & Sustainability Phone: +86(755) 86118714 Email: [email protected]

Date: 2014-08-28 FCC ID: C3K1628 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 2014/10/31 in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Bill Huang Compliance Engineer, EMC and Safety Safety, Compliance, & Sustainability Phone: +86(755) 86118714 Email: [email protected]

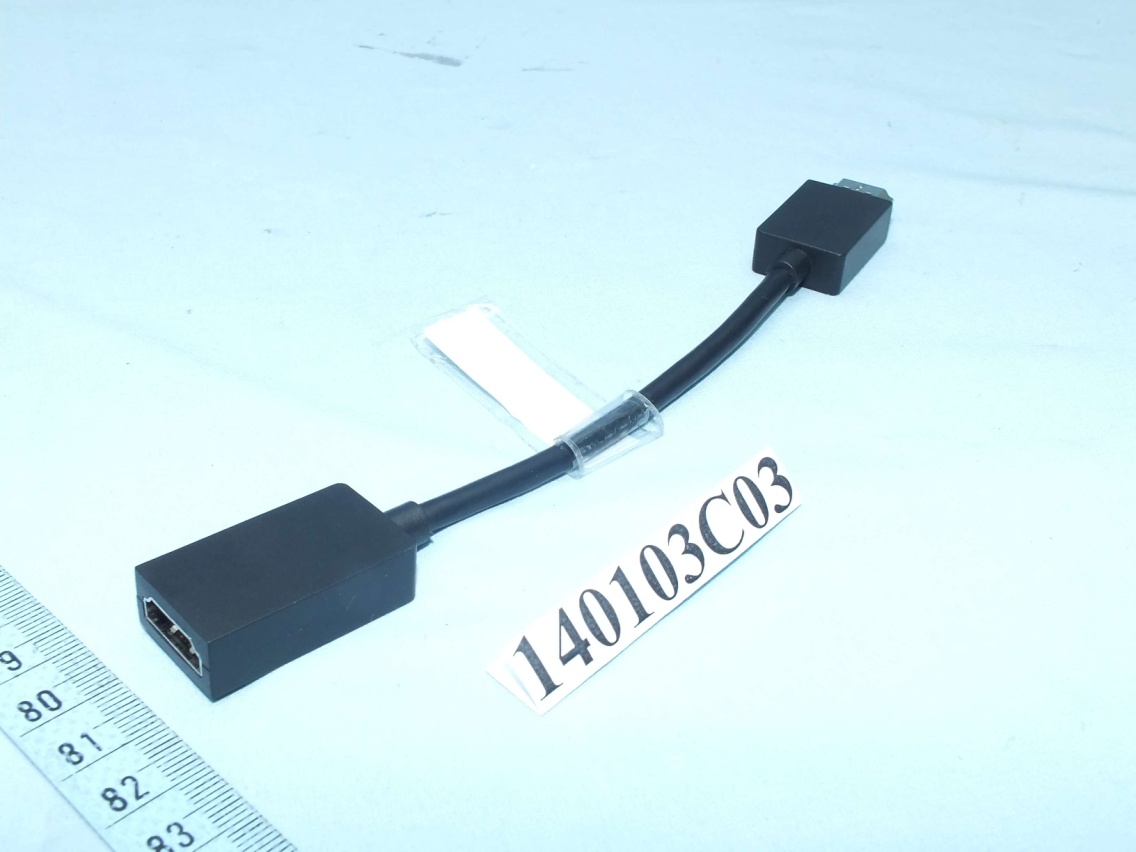

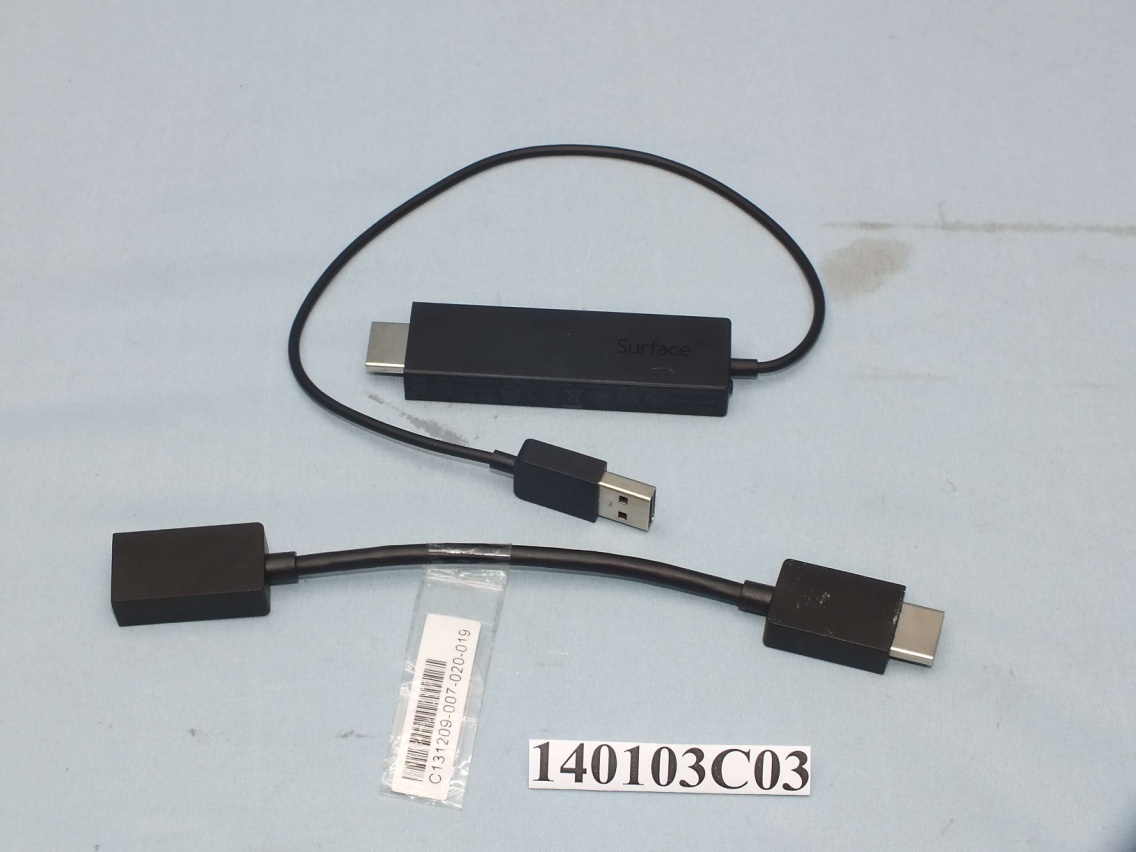

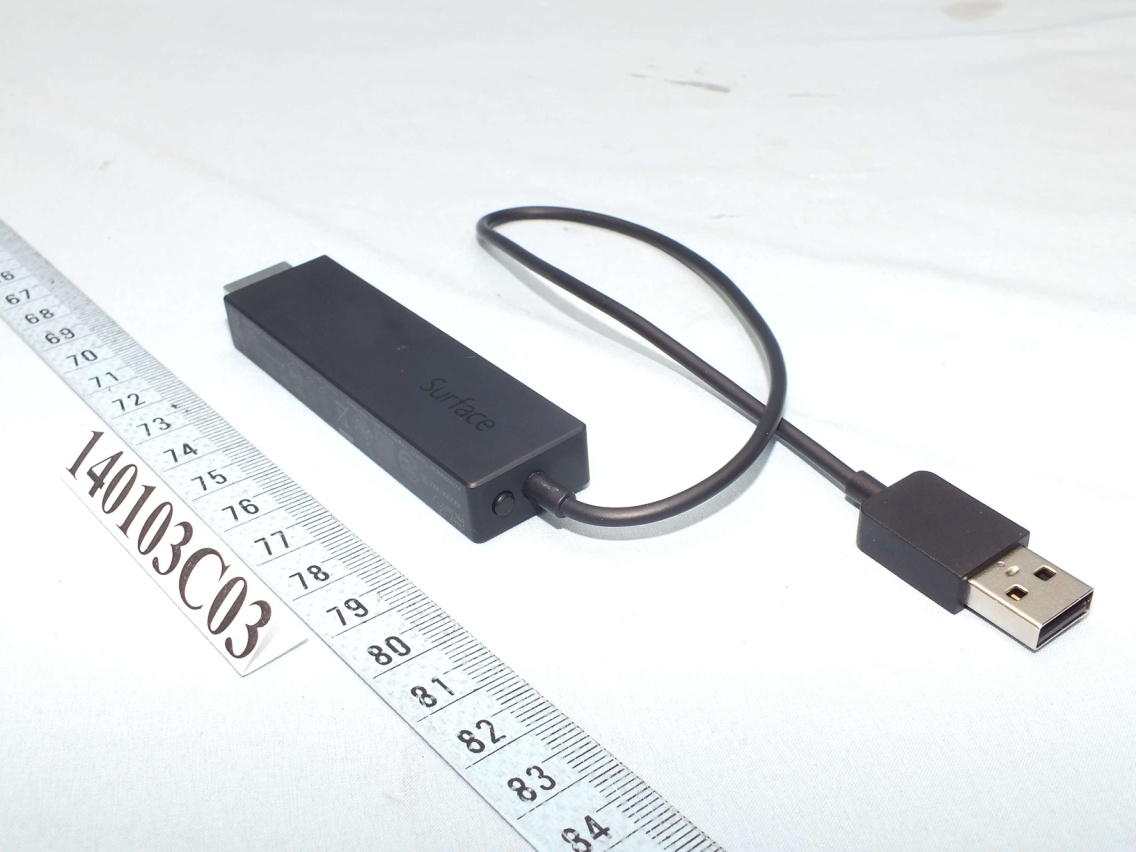

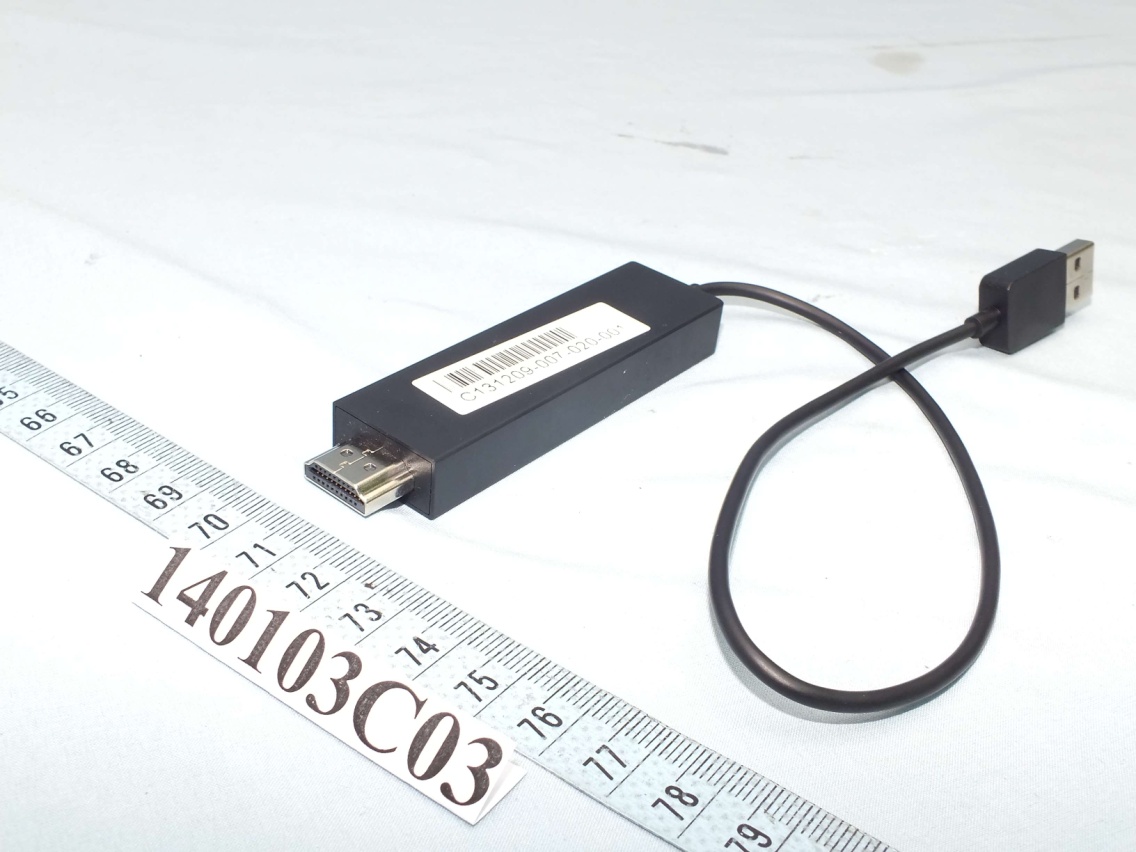

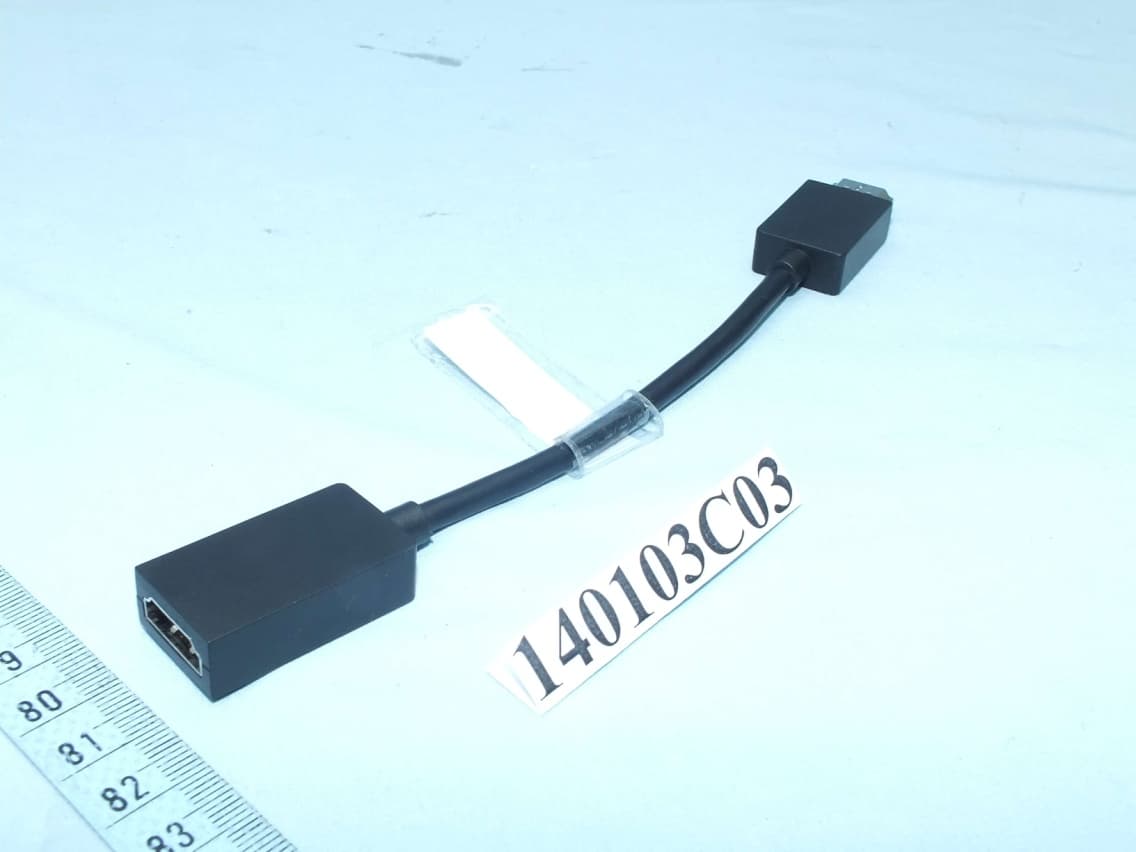

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3
