C3K1926Portable Computing Device

CYAN MAGENTAYELLOWBLACK 1-162631.indd 127.11.19 02:34 1 2 3 4 6 7 85 Volume Volumen Windows Hello camera Caméra Windows Hello Cámara de Windows Hello Front-facing camera Caméra à l’avant Cámara frontal Power button Bouton d’alimentation Botón de encendido Headphone jack Prise de casque Conexión de auriculares USB-C Surface Connect port Port Surface Connect Puerto Surface Connect microSD™ card reader Lecteur de carte microSD™ Lector de tarjeta microSD™ 1-162631.indd 227.11.19 02:34 2 1 3 7 8 6 5 4 1-162631.indd 327.11.19 02:34 Getting started 1. Plug in your Surface Go. 2. Press the power button. 3. Windows will guide you through the setup process. Choose your language preference, then connect to Wi-Fi. 4. Sign in with a Microsoft account. If you already have a Microsoft account, use it to sign in and you’ll be able to sync your settings and content across multiple devices. If you need to set one up, remember that you can use any email address. For more information on the benefits of using a Microsoft account with Surface, visit microsoft.com/account. For help with setup or troubleshooting, visit support.microsoft.com. English 1-162631.indd 427.11.19 02:34 Windows Hello If you haven’t already, set up Windows Hello using the integrated camera on your Surface Go. 1. Select the Start button, then select Settings . 2. Go to Accounts > Sign-in Options. 3. Under Manage how you sign in to your device, select Windows Hello Face > Set up, and then follow the instructions. 1-162631.indd 527.11.19 02:34 To troubleshoot or learn more Visit aka.ms/SurfaceGoHelp to learn more about your Surface Go. If you’d like to learn more about Windows, visit aka.ms/WindowsHelp. To learn more about the accessibility features of your Surface Go, go to the online user guide at aka.ms/Windows-Accessibility. Battery health All rechargeable batteries wear out with time. To maintain your battery health and performance, follow these tips: • Once a month, let your battery drain below half way before charging it. • Avoid having your device plugged in 24/7. • Store your device in a cool and dry environment. • If you plan to store your device for a long time, charge the battery to 50% every six months. 1-162631.indd 627.11.19 02:34 Important safety information Read the detailed safety information for your Surface device at aka.ms/surface-safety or in the Surface app. To open the Surface app, select the Start button, enter Surface in the search box, then select Surface app. • Opening and/or repairing your device can present electric shock, device damage, fire, and personal injury risks, and other hazards. Microsoft recommends that you seek professional assistance for device repairs, and that you use caution if undertaking do-it-yourself repairs. • Do not expose your device to rain, snow or other types of moisture. Do not use your device near water or in a damp or excessively humid location (e.g., near a shower, bath tub, sink, or swimming pool, or in a damp basement). • Always select and use an appropriate AC power supply for your device. We recommend you use genuine Microsoft power supply units and AC power cords. A genuine Microsoft power supply unit was provided with your device. • Use only AC power provided by a standard (mains) wall outlet. Do not use non-standard power sources, such as generators or inverters, even if the voltage and frequency appear acceptable. • Do not overload your wall outlet, extension cord, power strip, or other electrical receptacle. • For devices with folding or removable AC adapter prongs, see the Surface app or aka.ms/surface-safety for more information regarding use. • Avoid prolonged skin contact with the DC connector when the PSU is plugged into a power source because it may cause discomfort or injury. • Arrange all cables and cords so that people and pets are not likely to trip over or accidentally pull on them as they move around or walk through the area. Do not allow children to play with cables and cords. 1-162631.indd 727.11.19 02:34 • Protect cords from being pinched or sharply bent, particularly where they connect to a wall power (mains) outlet, the power supply unit, and your device. • If a power cord becomes warm, frayed, cracked or damaged in any way, stop using it immediately. • For devices equipped with power cords with removable prongs and a universal power supply, make sure the prong assembly is properly configured for the power outlet and fully seated into the power supply before plugging the AC power supply into a power (mains) outlet. • Improper use of your device’s battery may result in fire or explosion. Do not heat, open, puncture, mutilate, or dispose of your device or its battery in fire. Do not leave or charge your device in direct sunlight for an extended period of time. Doing so may cause damage or melt the battery. Please see the Surface app or aka.ms/surface-safety for more information about: • Hearing conservation • Interference with medical devices • Awareness of surroundings • Broken glass • Heat related concerns • Photosensitive seizures • Choking hazard/small parts • Musculoskeletal disorders Recycling and regulatory information You can find important recycling and regulatory information about your Surface online at aka.ms/surface-regulatory or in Surface app using the following steps: Open the Surface app, select Safety, regulatory, and warranty info tab, and select Regulatory information tab. 1-162631.indd 827.11.19 02:34 Limited hardware warranty & agreement With the Manufacturer’s Limited Hardware Warranty & Agreement, you get: • One year of warranty for hardware defects and malfunctions. • 90 days of technical support for preinstalled software from the experts at the Microsoft Answer Desk for Surface. To see the full terms of the Limited Warranty & Agreement, go to aka.ms/surface-warranty. Or you can find it in the Surface app. • Select the Start button and enter Surface in the search box, then select the Surface app in the list of results. If you live i…

Text truncated - open the document above for the full version.

Microsoft Corporation is an equal opportunity employer. [01/09/2020] Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program. b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Microsoft Corporation is an equal opportunity employer. e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate that products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate nor report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Nisha Nandakumar Compliance Engineer, Microsoft Corporation.

Microsoft Corporation is an equal opportunity employer. 02/17/2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality for FCC ID: [C3K1926] To Whom It May Concern: Pursuant to the provisions of the Commission’s rules 47 CFR sections 0.457(d) and 0.459, we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. • Block diagram • Schematics • Theory of Operation The above-mentioned documents contain detailed system and equipment descriptions that are considered as proprietary information in the operation of the equipment. Public disclosure of the above documents might be harmful to our company and would give competitors an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04- 1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we are requesting the commission to grant short-term confidentiality on the following attachments until August 17 th 2020. • External Photos • Test Setup Photos • Internal Photos • User Manual It is our understanding that all measurement test reports, FCC ID label format and Microsoft Corporation is an equal opportunity employer. correspondence during certification review process cannot be granted as confidential documents and the information will be available for public review once the grant of equipment authorization is issued. Sincerely, Nisha Nandakumar RF Test Engineer, Microsoft Corporation.

Microsoft Corporation is an equal opportunity employer. Subject: Authorized signatories February 26, 2019 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 AGENCY AUTHORIZATION LETTER FOR MICROSOFT EMPLOYEES To whom it may concern, I, the undersigned hereby authorize the following, to act on my behalf, as the agent(s), in all matters relating to all processes for FCC equipment authorization for Microsoft® Corporation (Grantee Code: C3K). Hasnain Syed Anindita Mitra David Johnson Michael Boucher Kyle Chen Chaitrali Limaye Wei Sun Zachary Gray Daniel Salinas Vishwas Varadanahalli Narayan Albert Huang Mengni Yin Choon Sian Ooi Nisha Nandakumar If you have any questions regarding the authorization, please don’t hesitate to contact me. Sincerely, Hasnain Syed Sr. Director, EMC/SI & RF Compliance Microsoft Corporation Email: [email protected]

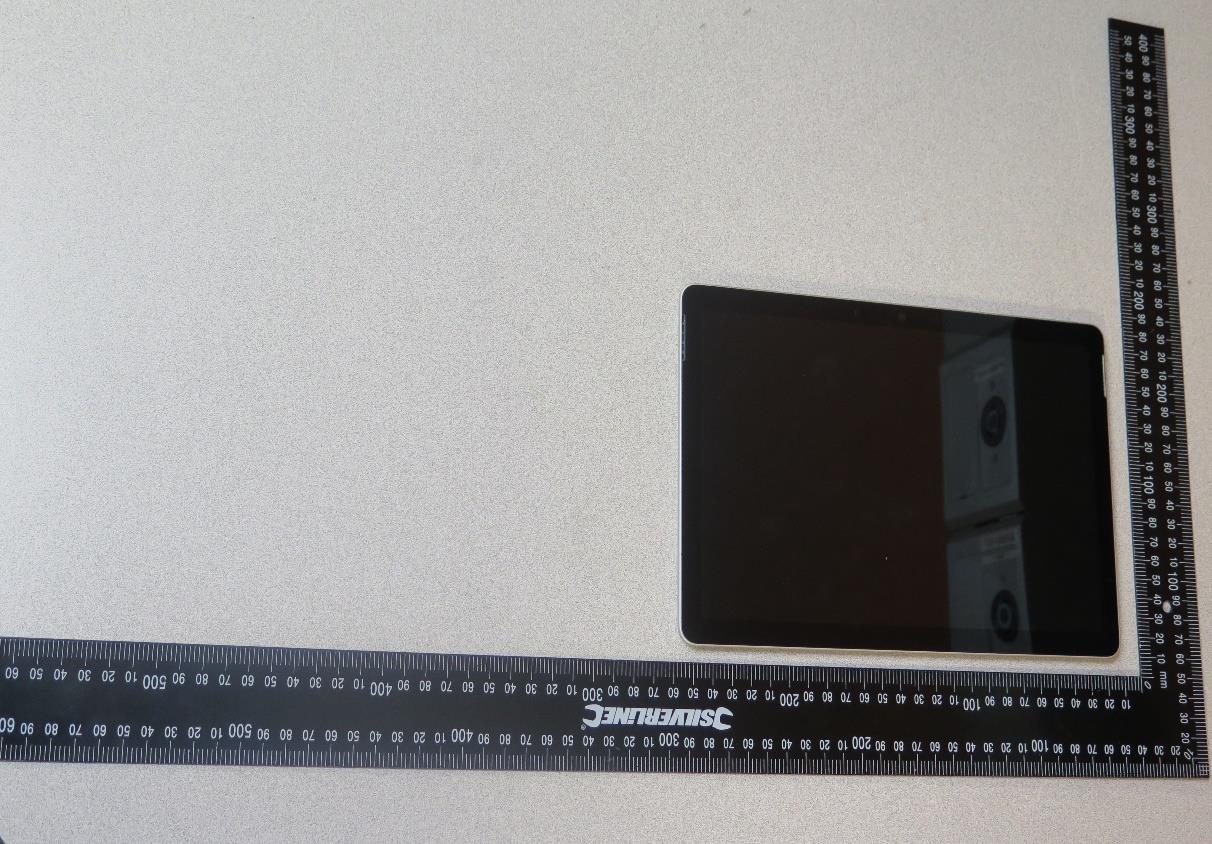

1 EUT- View 1 EUT-View 2 2 EUT-View 3 EUT-View 4

Microsoft Corporation is an equal opportunity employer. A. Information to be displayed 1. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information on E- label In Manual FCC ID number Yes DoC logo No 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) Yes Class A / B Digital Device user manual statements 1 Yes DoC declaration 1 Yes Caution to the user that changes, or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment 1 Yes Describe any other FCC regulatory information included in e-label 1 1 If the e-label includes information typically included in the manual then the e- label shall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to 784748 D02 e labelling v01 section II D 3(b) Image of the e-label is provided below: . Model 1926, CAN ICES-3 (B)/NMB-3(B), FCC ID C3K1926, Contains FCC ID C3K1901 as Change of ID to PD9AX200D2L, IC 3048A-1926, Contains IC 3048A-1901. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Microsoft Corporation is an equal opportunity employer. B. Access to the required information on the e-label 1. Users can access the information in no more than three steps in a device’s menu. The actual steps are: • Launch the app -> Select Safety, Regulatory and Warranty Info tab -> Select Regulatory information tab No special access codes or permissions are required to go through the above steps beyond entering a user-defined password to protect against unauthorized access to the device. 2. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. 3. Users are provided specific instructions on how to access the information. The information is provided in the Quick Start Guide, page number 10. Image is provided below Recycling and regulatory information You can find important recycling and regulatory information about your device online at aka.ms/device-regulatory or in Device app using the following steps: Open the Device app, select Safety, regulatory, and warranty info tab, and select Regulatory information tab. C. Labeling for Importation and Purchasing Products utilizing e-labels are required to have a physical label on the product at the time of importation, marketing and sales. For devices imported in bulk and not packaged individually, a removable adhesive label or, for devices in protective bags, a label on the bags is acceptable for this purpose. Any removable label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. For devices imported already in individual packages ready for sale, the information may alternatively be provided on the package. It shall contain: 1. The FCC ID and/or the DoC logo (if applicable); and 2. Any other information required by specific rule to be provided on the surface of the product unless such information is permitted to be included in the User’s manual or other packaging inserts. Microsoft Corporation is an equal opportunity employer. Where is the label located? The label is printed on the packaging or flyer. The flyer is included in the packaging. Is the label removable? No, the label is not removable. What information will be on the label? Information On Package/Product? IC Certification number Yes Model identification number (model number) Yes RSS GEN or other mandatory user information required to be on the surface of the device Yes Provide sample of information to be displayed embedded in this document or as a separate document. D. Other considerations 1. The above information must be programmed by the responsible party and the information must be secured in such a manner that third parties cannot modify it. The user cannot modify information and the information is pre-programmed by the grantee. 2. All the applicable regulatory information required on the packaging or user instructions must be provided according to the rules even if it is displayed electronically. All other information is provided in the user manual. Microsoft Corporation is an equal opportunity employer. Nisha Nandakumar RF Test Engineer, Microsoft Corporation.

1 Figure 1 EUT with external housing off- showing main logic board Figure 2 Main logic board-without shield cans-Top View Internal Circuit External Housing 2 Wi-Fi/BT RF section Figure 3 Main logic board-without shield cans-Back View Figure 4 Close up Wi-Fi RF section 3 Figure 5 Close up Wi-Fi RF Module -Top View Figure 6 Wi-Fi Antenna- Close-up-Top View WIFI/BT Section WIFI/BT-Chain 1-Aux WIFI Only Chain 2-Main 4 Figure 7 NFC Section- -Bottom View Figure 8 NFC Section- Close-up-Top View NFC 5 Figure 9 NFC Antenna- Close-up-Top View

Report No.: ER/2019/90088 Page: 1 of 52 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT PARTIAL REPORT OF Applicant: Microsoft Corporation One Microsoft Way, Redmond, WA 98052-6399 USA Product Name: Portable Computing Device Brand Name: Microsoft Model No.: 1926 Model Difference: N/A FCC ID: C3K1926 IC: 3048A-1926 Report Number: ER/2019/90088 FCC Rule Part: §15.407, Cat: NII, §15.247, Cat: DSS, DTS, §15.225 IC Rule: RSS-247 issue 2 Feb. 2017, RSS-210 issue 10Annex B B.6 Dec. 2019 Issue Date: Apr. 14, 2020 Date of Test: Sep. 30, 2019 ~ Dec. 26, 2019 Date of EUT Received: Sep. 30, 2019 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. Electronics & Communication Labor- atory The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10:2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits. The test results of this report relate only to the tested sample identified in this report. Approved By: Jazz Huang / Asst. Supervisor Report No.: ER/2019/90088 Page: 2 of 52 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Revision Histor y Report Number Revision Description Issue Date Remark ER/2019/90088 Rev.00 Original. Apr. 14, 2020 Revised By: Karen Huang Report No.: ER/2019/90088 Page: 3 of 52 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Contents 1 GENERAL INFORMATIOqN ....................................................................................................... 4 2 SYSTEM TEST CONFIGURATION ..…

Text truncated - open the document above for the full version.

Report No.: T191120N03 Page 1 of 48 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C AND INDUSTRY CANADA RSS 210 REQUIREMENT OF Applicant: Microsoft Corporation One Microsoft Way, Redmond, WA 98052-6399 USA Product Name: Portable Computing Device Brand Name: Microsoft Model No.: 1926 Model Difference: N/A FCC ID: C3K1926 IC: 3048A-1926 Report Number: T191120N03 FCC Rule Part: 15.225 IC Rule: RSS-210 issue 10 Annex B B.6 Dec. 2019 Issue Date: Apr. 13, 2020 Date of Test: Nov. 21, 2019 Date of EUT Received: Nov. 20, 2019 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10:2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits. The test results of this report relate only to the tested sample identified in this report. Tested By: Ted Huang / Engineer Leo Wang / Asst. Engineer Approved By: Eric Huang / Section Manager Report No.: T191120N03 Page 2 of 48 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com Revision History Report Number Revision Description Effected Page Issue Date Revised By T191120N03 Rev.00 Initial creation of document All Apr. 13, 2020 Gina Lin Report No.: T191120N03 Page 3 of 48 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com Contents 1 GENERAL INFORMATION .................................................................................................... 4 2 SYSTEM TEST CONFIGURATION ........................................................................................ 6 3 SUMMARY OF TEST RESULTS ............................................................................................ 8 4 DESCRIPTION OF TEST MODES .......................................................................................... 8 5 MEASUREMENT UNCERTAINTY .......................................................................................... 9 6 CONDUCTED EMISSION TEST ........................................................................................... 10 7 RADIATED TEST ITEMS ...................................................................................................... 16 8 FREQUENCY STABILITY .................................................................................................... 36 9 20 DB & 99% OCCUPIED BANDWIDTH MEASUREMENT ................................................ 40 10 ANTENNA REQUIREMENT ................................................................................................. 42 PHOTOGRAPHS OF SET UP ....................................................................................................... 43 PHOTOGRAPHS OF EUT ............................................................................................................ 48 Report No.: T191120N03 Page 4 of 48 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com 1 GENERAL INFORMATION 1.1 Product Description General: Product Name: Portable Computing Device Brand Name: Microsoft Model No.: 1926 Model Difference: N/A HW Version (Product ) EV2 SW Version (Product ) Windows 10 Pro HW Version (Radio ) EV2 SW Version (Radio ) 99.0.49.7/21.60.1.1 Radio Test Tool & Version DRTU 11.1941.0-10270 NFC Driver Version 12.0.5.0 Power Supply: 7.66Vdc from Rechargeable Lithium-Ion Polymer Batter y or 15V from AC/DC Adapter Battery: Model No.: DYNU01, Supplier: DYNAPACK Adapter: Model No.: 1735, Supplier: LITEON Note: This report is for host FCC ID: C3K1926 which contains the module FCC ID: C3K1901. This report is for host IC: 3048A-1926 which contains the module IC: 3048A-1901. NFC: Operating Frequency: 13.56MHz Transmit Power: < 84dBuV/m at 30m. Number of Channels: 1 Antenna Type: Loop Antenna Modulation Type: ASK Report No.: T191120N03 Page 5 of 48 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com 1.2 Test Methodology of Applied Standards FCC Part 15, Subpart C §15.225 RSS-210 issue 10 Annex B B.6 Dec. 2019 RSS-Gen. issue 5 Amendment 1, Mar. 2019 ANSI C63.10:2013 Note: All test items have been performed and recorded as per the above standards. 1.3 Test Facility Compliance Certification Services Inc. Tainan Laboratory No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) OATS: Compliance Certification Services Inc. Tainan Laboratory No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) FCC Designation Number: TW1109 ISED#: 2324H 1.4 Special Accessories AC Adapter is used while the test is conducted and there is no other accessory attached. This is the worst case condition. 1.5 Equipment Modifications There was no modification incorporated into the EUT. Report No.: T191120N03 Page 6 of 48 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com 2 SYSTEM TEST CONFIGURATION 2.1 EUT Configuration The EUT is configured to operate in a continuous transmission mode. EUT placement and various angles were checked to find worst mode where the emission characteristics are maximized. 2.2 EUT Exercise Enable EUT NFC function via Windows and use a tag next to the EUT NFC antenna to manipulate the EUT into continuous transmit mode. 2.3 Test Procedure 2.3.1 Conducted Emissions EUT is a placed on turn table which is 0.8 m above ground plane. Connected to the public utility (AC) power line, the spacing between EUT is 10cm. Power cable were bundl…

Text truncated - open the document above for the full version.

Report No.: T191120N03 Page 43 of 49 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com PHOTOGRAPHS OF SET UP Radiated Emission Set up Photos (Below 30MHz) - 1 Report No.: T191120N03 Page 44 of 49 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com Radiated Emission Set up Photos (Below 30MHz) - 2 Report No.: T191120N03 Page 45 of 49 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com Radiated Emission Set up Photos (Below 1GHz) - 1 Report No.: T191120N03 Page 46 of 49 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com Radiated Emission Setup Photos (Below 30MHz, OATS) Report No.: T191120N03 Page 47 of 49 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 8 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com AC Power-line Conducted Emi…

Text truncated - open the document above for the full version.
