Microsoft Corporation One Microsoft Way, Redmond WA 98052-6399, U.S.A Tel: +1 425 706-2697 E-mail: [email protected] March 20, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification for FCC ID: C3KMN700 and C3KMN720 be provided with confidential status. • Schematics • Block Diagrams • Bill of Materials Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Stephen Stegner EMC/Safety Engineer Microsoft Corporation

EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 (with WLAN Radio Model# BCM94306MP) FCC ID: C3KMN700 IC: 3048A-MN700 Cover_letter_MN-700 Page 1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com Statement The Microsoft Broadband Networking Wireless Base Station Model# MN-700 contains WLAN Radio Model# BCM94306MP. BCM94306MP is a 54gMiniPCI wireless LAN card in the 2.4 GHz frequency range using up to 54 Mbit/sec data rate and OFDM modulation technique. This card also acts as 802.11b product using DSSS modulation technique if the data rate is below 11 Mbit/sec. All the parameters were checked at different data rates. The test report reflects the worst-case of data rate and modulation technique. Antenna: Antenna Model Peak Antenna gain CAF28947 3.0dBi EMC/Radio Test report: EMC test report no. “EMC_416FCC15.247_2002”, covers full testing as per FCC 15.247. RF Exposure: MPE calculation is provided at 20cm distance from human body.

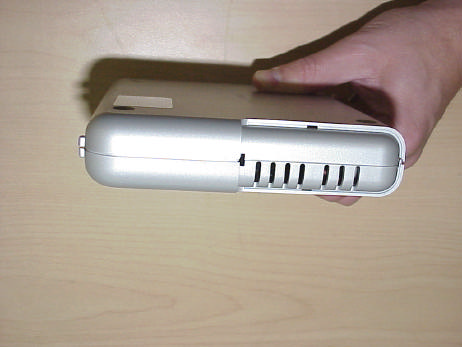

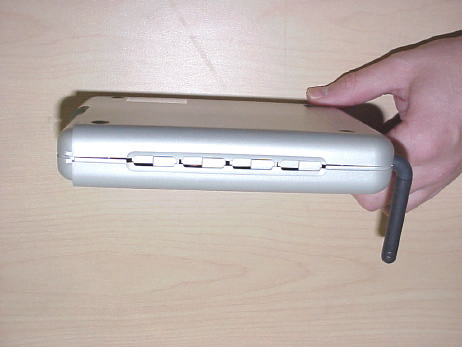

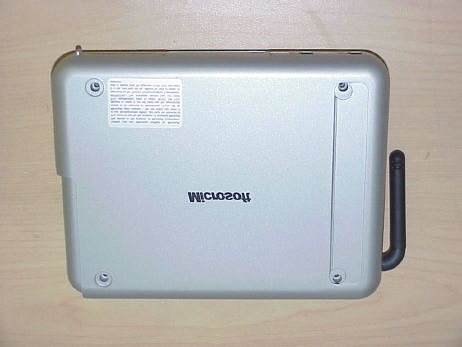

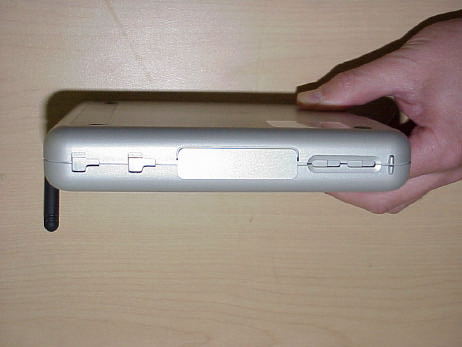

EXTERNAL PHOTOS EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 EUT – Top view EUT – Bottom view EXTERNAL PHOTOS EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 EUT – Profile-1 EUT – Profile-2 EXTERNAL PHOTOS EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 EUT – Profile-3 EUT – Profile-4

LABEL LOCATION EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 Label Location

This would go on later for the EU and AU/NZ Tested to Comply With FCC Standards For Home or Office Use FCC ID:C3KMN700 IC:3048A-MN700 US C Made in Taiwan Microsoft Corporation Microsoft Broadband Networking Wireless Base Station Model:MN-700 12V, 1A 2.4GHz | 54g Polarity: Input rating:

INTERNAL PHOTOS EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 EUT – Open view PCB – Top view INTERNAL PHOTOS EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 PCB – Bottom view PCB – Top view without WLAN INTERNAL PHOTOS EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 PCB WLAN - Top view INTERNAL PHOTOS EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 PCB WLAN - Bottom view

EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 (with WLAN Radio Model# BCM94306MP) FCC ID: C3KMN700 IC: 3048A-MN700 Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 (4) Where EIRP = Effective Isotropically radiated power Calculation: EIRP: 28.55dBm (716.14mW) Duty factor = Tx on / Tx on +Tx off = 140.2 / 661.32 = 0.21 Source based time averaged power: EIRP + 10log(0.21) = 28.55 dBm – 6.77 dBm = 21.78 dBm (150.66 mW) Calculated at distance of 20cm Power density = 150.66 / (4 x pi x 20 2 ) = 0.03 mW/cm 2 Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_416FCC15.247_2003 FCC Part 15.247 for DSSS systems / CANADA RSS-210 EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 CETECOM Inc. Test report no.: EMC_416FCC15.247_2003 Issue date:2003-06-18 Page 2 (55) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_416FCC15.247_2003 Issue date:2003-06-18 Page 3 (55) 1.3 Details of applicant Name : Microsoft Corporation Street : One Microsoft Way City / Zip Code : Redmond, WA 98052-6399 Country : USA Contact : Stephen Stegner Telephone : +1 425 706 2697 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2002-11-15 Date of receipt test item : 2002-11-15 Date of test : 2002-11-21, 2002-12-11/15, 2003-01-17, 2003-06-11 1.5 Test item Manufacturer : Accton Technology Corporation Street : 1, Creation 3 rd Rd., Science-based Industrial Park City / Zip Code : Hsinchu, 300 Country : Taiwan, R.O.C Telephone : 886 3 577 0270 Model No.(EUT) : MN-700 Description : The Microsoft Broadband Networking Wireless Base Station with WLAN Model# BCM94306MP FCC ID : C3KMN700 IC ID : 3048A-MN700 Additional information Frequency : 2412MHz – 2462MHz Type of modulation : DSSS / OFDM (orthognal frequency division multiplexing) Number of channels : 11 Antenna : 3dBi Power supply WLAN : 3.3 VDC from Host Power supply AP : 12VDC (AC Adaptor input 120VDC) Output power : 25.55dBm (359mW) conducted peak power (For EIRP and Source-based time-averaged output please see page no.11) Extreme temp. Tolerance : 0 o C to +70 o C 1.6 Test standards: FCC Part 15 §15.247 / CANADA RSS-210 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. CETECOM Inc. Test report no.: EMC_416FCC15.247_2003 Issue date:2003-06-18 Page 4 (55) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-06-18 EMC & Radio Lothar Schmidt (EMC Manager) Date Section Name Signature Responsible for test report and project leader: 2003-06-18 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_416FCC15.247_2003 Issue date:2003-06-18 Page 5 (55) 2.2 Test report TEST REPORT Test report no. : EMC_416FCC15.247_2003 FCC Part 15.247 for DSSS systems / CANADA RSS-210 EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 CETECOM Inc. Test report no.: EMC_416FCC15.247_2003 Issue date:2003-06-18 Page 6 (55) TEST REPORT REFERENCE LIST OF MEASUREMENTS PAGE SPECTRUM BANDWIDTH OF DSSS SYSTEM §15.247(a) (2) 7 OUTPUT POWER § 15.247 (b) (1) 11 POWER SPECTRAL DENSITY §15.247 (d) 21 BAND EDGE COMPLIANCE §15.247 (c) 29 EMISSION LIMITATIONS §15.247 (c) (1) 33 CONDUCTED EMISSIONS §15.107/207 47 RECEIVER SPURIOUS RADIATION §15.209 48 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 53 BLOCK DIAGRAMS 54 NOTE: During testing EUT was set to transmit on different data rates in both 802.11b & 54g modes. Device acts as 802.11b product using DSSS modulation technique if the data rate is below 11 Mbit/sec. and 54g product using OFDM if data rate is above 11Mbit/sec upto 54Mbit/sec. The test report reflects the worst-case of data rate and modulation technique. CETECOM Inc. Test report no.: EMC_416FCC15.247_2003 Issue date:2003-06-18 Page 7 (55) SPECTRUM BANDWIDTH OF DSSS SYSTEM §15.247(a) (2) 6 dB bandwidth TEST CONDITIONS 6 dB BANDWIDTH (MHz) Frequency (MHz) 2412 2437 2462 T nom (23)°C V nom (3.3)VDC 16.38 16.53 16.43 LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwith shall shall be at least 500 KHz CETECOM Inc. Test report no.: EMC_416FCC15.247_2003 Issue date:2003-06-18 Page 8 (55) SPECTRUM BANDWIDTH OF DSSS SYSTEM §15.247(a) (2) 6 dB bandwidth Lowest Channel: 2412MHz CETECOM Inc. Test report no.: EMC_416FCC15.247_2003 Issue date:2003-06-18 Page 9 (55) SPECTRUM BANDWIDTH OF DSSSS SYSTEM §15.247(a) (2) 6 dB bandwidth Mid Channel: 2437MHz CETECOM Inc. Test report no.: EMC_416FCC15.247_2003 Issue date:2003-06-18 Page 10 (55) SPECTRUM BANDWIDTH OF DSSS SYSTEM §15.247(a) (2) 6 dB bandwidth Highest Channel: 2462MHz CETECOM Inc. Test report no.: EMC_416FCC15.247_2003 Issue date:2003-06-18 Page 11 (55) OUTPUT POW…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 Test setup – Radiated measurements Test setup – AC Line conducted emissions TEST SETUP PHOTOS EUT: The Microsoft Broadband Networking Wireless Base Station Model: MN-700 FCC ID: C3KMN700 IC: 3048A-MN700 Test setup – Conducted measurements
