C3KMN730Broadband Networking Wireless PCI Adapter

Caution For use with UL Listed, CSA and GS approved personal computers. Not intended for use in machinery, medical or industrial applications. Do not use onboard an aircraft or in hazardous locations such as a gas station or other explosive environment. For indoor use only. Do not touch or re-orient the antenna while the device is transmitting Device should be located at least 20 cm (8 inches) away from any human body in order to meet FCC exposure limits. Exposure time should be limited if the distance is less. Avertissement N’utilisez qu’avec des composantes homologuées UL, CSA ou TUV. Ne pas utiliser ce dispositif dans une application industrielle ou médicale. Ne pas utiliser dans un avion ou en présence de vapeur explosive (station-service). N’utiliser qu’à l’intérieur. Ne touchez pas à l’antenne lorsque l’appareil est en fonction Autre composantes: Ce dispositif doit être à plus de 20cm (8 pouces) de toute personne sinon l’utilisateur devrait limiter le temps d’exposition. Information in this document, including URL and other Internet Web site references, is subject to change without notice. Unless otherwise noted, the example companies, organizations, products, domain names, e-mail addresses, logos, people, places, and events depicted herein are fictitious, and no association with any real company, organization, product, domain name, e-mail address, logo, person, place, or event is intended or should be inferred. Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in, or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the express written permission of Microsoft Corporation. Microsoft may have patents, patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. Except as expressly provided in any written license agreement from Microsoft, the furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property. © 2003 Microsoft Corporation. All rights reserved. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. UPnP is a trademark of UPnP Implementers Corp. Wi-Fi is a registered trademark and Wi-Fi Protected Access is a trademark of Wi-Fi Alliance. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. My Network Settings Use this page to record your network settings. Workgroup or domain name: ______________________________________ Base Station password: __________________________________________ (Default=admin) Wireless Settings Record the information used to configure a computer for wireless access to your network here. All computers accessing your network with a wireless connection need to use the same wireless settings. Wireless network name (SSID): ____________________________________ WEP key or WPA passphrase: ______________________________________ Wireless channel (ad-hoc networks only): ____________________________ Wide Area Network Settings Complete this section only if your network has a base station (gateway or router). You can obtain this information from your Internet service provider (ISP). Your ISP may not require all of the settings listed below. Dynamic IP (DHCP) Settings Complete this section only if your ISP uses a DHCP connection. Host name: _____________________________________________________ Adapter MAC address: ____________________________________________ Static IP Address Settings Complete this section only if your ISP has assigned you a specific IP address. Static IP address: ________________________________________________ Subnet mask: ___________________________________________________ IP gateway address: ______________________________________________ Primary DNS server: ______________________________________________ Secondary DNS server: ___________________________________________ PPPoE Settings Complete this section only if your ISP uses PPPoE. User name: _____________________________________________________ Password: ______________________________________________________ Service name: ___________________________________________________ Filename: G_PCI_Adapt_TOC.doc Project: H1_top Template: BBN_A5_1col_ltr.dot Author: Kaarin Dolliver Last Saved By: S&T Revision #: 5 Page: 1 of 4 Printed: 06/22/03 01:11 AM contents 1 | Introduction: Welcome to Wireless-G ..................................................................................1 About Your Wireless PCI Adapter................................................................................... 1 About Wireless (Radio) Connections ............................................................................. 3 Types of Wireless Networks........................................................................................ 3 Placement of Wireless Components .......................................................................... 4 Adjusting the Antenna................................................................................................. 5 Understanding Wireless Transmission Standards .................................................... 5 2 | Setup: Using the Setup Wizard .............................................................................................7 Step 1: Gather Components, Tools, and Information ............................................... 7 Step 2: Run the Setup Wizard .................................................................................... 8 Step 3: Install the Adapter in Your Computer............................................................ 9 Step 4: Configure the Adapter..................................................................................10 Step 5: …

Text truncated - open the document above for the full version.

Microsoft Corporation One Microsoft Way, Redmond WA 98052-6399, U.S.A Tel: +1 425 706-2697 E-mail: [email protected] April 20, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We, the undersigned, Microsoft Corporation hereby authorize Accton, to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: Model:MN-730 report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Accton within the scope of this authorization shall have the same affect as our own. This authorization shall expire on April 20, 2004. Sincerely, Stephen Stegner EMC/Safety Engineer Microsoft Corporation

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 7, 2003 RE: Microsoft Corporation FCC ID: C3KMN730 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The operational description mentions that this device is seeking a limited modular approval. However, please note that a modular approval letter was not supplied. Additionally, this device appears to be for use in any general computer with PCI slot which is also supported by the users manual. Please supply further information or correct the operational description as necessary. 2) Note 3 in the test report mentions 3 antennas, however it appears that only 1 antenna is used and was tested. Please explain. 3) Power spectral density tests require a sweep time of Span/3 kHz. For the settings used in the plots provided, this would yield a sweep time of 500 s. Note that 1 plot provided only used 10 s. Please provide an updated plot. 4) Page 1 of the users manual mentions that the device must be kept at least 5 cm from the end user. Page defines the distance as 20 cm. Since this device is classified as mobile and not portable, this distance should specify 20 cm. Please correct page 1 of the users manual to state 20 cm. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Hi, For your question in attached comment: 1) Done ! The EUT is not submitted to a limited modular approval. So the revised operational description has been submitted to you. 2) Done ! The EUT has only one antenna. Due to our typing error. The revised report has been submitted to you. 3) Done! We already put an updated plot in the test report. The revised report has been submitted to you. 4) Done! The revised users manual has been submitted to you. Thanks! Best Regards, Amanda Chu / ¦¶ªÚ½Ë(Embedded image moved to file: pic16687.gif) ~~~~~~~~~~~~~~~~~~~~~~~~~ Certification Specialist ADT Corp. (Hsin Chu Office) TEL: 03-5935343 ext. 1737 FAX: 03-5935342 ~~~~~~~~~~~~~~~~~~~~~~~~~ ----- Âà§eªÌ Amanda Chu/ADT ©ó 2003/07/08 01:46 PM ----- Eric Lin(ªL¤å Ùy/·s¦ËÅçÃÒªA°È ¦¬¥ó¤H¡G Amanda Chu/ADT@ADT, Bruce Shiau/ADT@ADT ³B) °Æ¥»§Û°e¡G ¥D¦®¡G Review of Microsoft Corporation, FCC ID: C3KMN730 2003/07/07 02:06 PM please check, ªL¤åÙy / Eric Lin ADT Corp. Hsinchu Div. Subject: Review of Microsoft Corporation, FCC ID: C3KMN730 To: [email protected] Cc: [email protected], [email protected], [email protected], [email protected] Page 1 of 3In 7/8/2003Printed for "Timothy R. Johnson" <[email protected]> TEL: 886-3-593-5343 FAX: 886-3-593-5342 e-mail: [email protected] web-site: www.adt.com.tw (Embedded image moved to file: pic12529.gif)(Embedded image moved to file: pic22549.gif) (Embedded image moved to file: pic17437.gif) ----- Âà§eªÌ Eric Lin/ADT ©ó 2003/07/07 02:03 PM ----- "Timothy R. Johnson" ¦¬¥ó¤H¡G [email protected] <tjohnson@America °Æ¥»§Û°e¡G [email protected] nTCB.com> ¥D¦®¡G Review of Microsoft Corporation, FCC ID: C3KMN730 2003/07/07 01:42 PM Eric, Attached are comments regarding review of this application. Please provide information as soon as possible. Thank You, Timothy R. Johnson NARTE Certified EMC Engineer No. EMC-002205-NE email: [email protected] alternate email: [email protected] (See attached file: ATCB Comments_070603.pdf) pic166871.gif Page 2 of 3In 7/8/2003Printed for "Timothy R. Johnson" <[email protected]> pic125291.gif pic225491.gif pic174371.gif =big5BQVRDQiBDb21tZW50c18wNzA2MDMucGRm=1.pdf Page 3 of 3In 7/8/2003Printed for "Timothy R. Johnson" <[email protected]>

Microsoft Corporation One Microsoft Way, Redmond WA 98052-6399, U.S.A Tel: +1 425 706-2697 E-mail: [email protected] April 20, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification for FCC ID: C3KMN730 be provided with confidential status. • Schematics • Block Diagrams • Bill of Materials Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Stephen Stegner EMC/Safety Engineer Microsoft Corporation

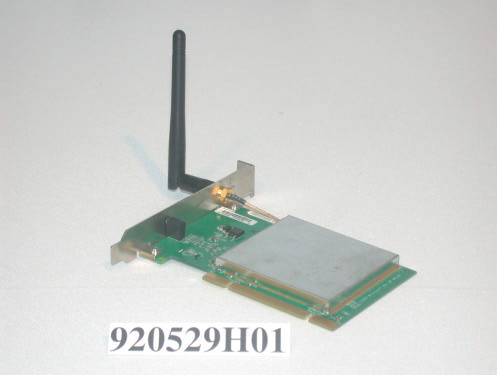

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: C3KMN730 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: C3KMN730 ADT No.920529H01 Operational Description This device is a Microsoft Broadband Networking Wireless PCI Adapter which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The transmitter of the EUT (Microsoft Broadband Networking Wireless PCI Adapter) is powered by from host equipment. The antenna types used in this product is Swivel dipole antenna with reverse SMA plug connector. The other instruction, please have a look at the users manual.

FCC ID: C3KMN730 Report No.: RF920529H01 1 Issued: Jun. 25, 2003 ADT No.: 920529H01 FCC TEST REPORT REPORT NO.: RF920529H01 MODEL NO.: MN-730 RECEIVED: May 29, 2003 TESTED: May 29 to Jun. 24, 2003 APPLICANT: Microsoft Corporation ADDRESS: One Microsoft Way, Redmond WA 98052-6399, U.S.A ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: C3KMN730 Report No.: RF920529H01 2 Issued: Jun. 25, 2003 ADT No.: 920529H01 Table of Contents 1 CERTIFICATION.......................................................................................................4 2 SUMMARY OF TEST RESULTS...........................................................................5 3 GENERAL INFORMATION.....................................................................................6 3.1 GENERAL DESCRIPTION OF EUT......................................................................6 3.2 DESCRIPTION OF TEST MODES........................................................................7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4 DESCRIPTION OF SUPPORT UNITS.................................................................8 4 TEST TYPES AND RESULTS................................................................................9 4.1 CONDUCTED EMISSION MEASUREMENT......................................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2 TEST INSTRUMENTS.............................................................................................9 4.1.3 TEST SETUP..........................................................................................................10 4.1.4 EUT OPERATING CONDITIONS........................................................................11 4.1.5 TEST RESULTS.....................................................................................................12 4.2 RADIATED EMISSION MEASUREMENT..........................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.....................................18 4.2.2 TEST INSTRUMENTS...........................................................................................19 4.2.3 TEST PROCEDURES...........................................................................................20 4.2.4 TEST SETUP..........................................................................................................21 4.2.5 EUT OPERATING CONDITIONS........................................................................21 4.2.6 TEST RESULTS.....................................................................................................22 4.2.7 TEST RESULTS - DSSS.......................................................................................23 4.2.8 TEST RESULTS -OFDM.......................................................................................26 4.3 6dB BANDWIDTH MEASUREMENT..................................................................29 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT.............................................29 4.3.2 TEST INSTRUMENTS...........................................................................................29 4.3.3 TEST PROCEDURE..............................................................................................30 4.3.4 TEST SETUP..........................................................................................................30 4.3.5 EUT OPERATING CONDITIONS........................................................................30 4.3.6 TEST RESULTS-DSSS.........................................................................................31 4.3.7 TEST RESULTS-OFDM........................................................................................35 4.4 MAXIMUM PEAK OUTPUT POWER..................................................................39 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............39 4.4.2 INSTRUMENTS......................................................................................................39 4.4.3 TEST PROCEDURES...........................................................................................40 FCC ID: C3KMN730 Report No.: RF920529H01 3 Issued: Jun. 25, 2003 ADT No.: 920529H01 4.4.4 TEST SETUP..........................................................................................................40 4.4.5 EUT OPERATING CONDITIONS........................................................................40 4.4.6 TEST RESULTS-DSSS.........................................................................................41 4.4.7 TEST RESULTS-OFDM........................................................................................41 4.5 POWER SPECTRAL DENSITY MEASUREMENT...........................................42 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT......................42 4.5.2 TEST INSTRUMENTS...........................................................................................42 4.5.3 TEST PROCEDURE..............................................................................................43 4.5.4 TEST SETUP..........................................................................................................43 4.5.5 EUT OPERATING CONDITIONS........................................................................43 4.5.6 TEST RESULTS-DSSS.........................................................................................44 4.5.7 TEST RESULTS-OFDM..............…

Text truncated - open the document above for the full version.

FCC ID: C3KMN730 Report No.: RF920529H0160Issued: Jun. 25, 2003 ADT No.: 920529H01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: C3KMN730 Report No.: RF920529H0161Issued: Jun. 25, 2003 ADT No.: 920529H01 RADIATED EMISSION TEST
