C5O-PRS-1000Personal Response System the Terminal Unit

B&S Media. Co., Ltd. Personal Response System the Terminal Unit User’s Manual 2012-02-02 Contents Start..............................................................................................................................................................................................3 Device...........................................................................................................................................................................................3 The Basic.....................................................................................................................................................................................4 Power on...........................................................................................................................................................................4 Power off..........................................................................................................................................................................4 Sleep mode......................................................................................................................................................................4 Server Connection.................................................................................................................................................................4 Connecting.......................................................................................................................................................................4 Re- Connecting..............................................................................................................................................................4 Cutting off Connection..............................................................................................................................................4 Attendance................................................................................................................................................................................4 Receiving question...............................................................................................................................................................5 Answering.................................................................................................................................................................................5 Yes/No................................................................................................................................................................................5 Multiple Choice Question........................................................................................................................................5 Short Answer or Essay Question..........................................................................................................................5 Answering Short Answer/Assay Question................................................................................................................6 Mode Change Input....................................................................................................................................................6 Input Korean...................................................................................................................................................................6 Symbol Input..................................................................................................................................................................6 Spec..............................................................................................................................................................................................7 Customer Support & A/S..................................................................................................................................................9 Product Warranty...............................................................................................................................................................10 Start - A-class Device: This device is for business use and registered Electromagnetic Waves Conformance. So seller or user take notice of it. If you sell or buy wrongly, exchange it for thing for home use. Device This is a device which transmits and receives data by 2.4GHz GFSK RF Frequency. Transmits and receives data by 2.4GHz GFSK RF Frequency with PRS-1000D Receiver Front Bottom 1. USB Charge Port 1. Screen 2. Yes Input Key 3. No Input Key 4. DirectionKey 5. Enter/Attendance Input Key 6. Tx/Blank Input Key 7. Power Key 8. Kor./Eng./Num./Symbol Input Key 9. Complex Fucntion Input Key 10. Cancel/Delete Input Key The Basic Power on Press Power Key for more than 1 sec. Power off Press Power Key for more than 1 sec. Sleep mode If there is no key input for approximately 30 seconds, light automatically turns off. At this point, if you press power key again in short, light turns on. Server Connection Connecting Once power turns on, it automatically searches server. After server permits certification of Tool (user), connection is completed. Re- Connecting Enter main menu screen and Select menu of connection If you press SHIFT key (complex function key), it starts connecting with server again. Cutting off Connection If it receive specific signal after lecture ends, connecting ends up. Or, if you turn Tool power off, connecting ends up. Attendance 1) Press ‘Attendance’ key on keyboard. 2) Selected answer appears on screen of Tool. 3) Once press ‘SEND’ key in short, transmission starts. 4) Once transmission is completed, ‘transmission success’ appears. 5) The sentence disappears and it switches waiting screen again if press ‘CLEAR’ key. Receiving question If teacher sends a question, the Terminal Unit automatically shows the contents on the screen. At this moment, teacher has to input …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 April 10, 2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, B&S Media. Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Personal Response System the Terminal Unit / PRS-1000 (FCC ID: C5O-PRS-1000) We affirm that between SIEMIC and B&S Media. Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Jong Pill, Youn / General Manager B&S Media. Co., Ltd. #703 JnK Digital Tower, 111, Digitalro-26gil, Guro-gu, Seoul, Korea

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 April 10, 2012 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: C5O-PRS-1000 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jong Pill, Youn / General Manager B&S Media. Co., Ltd. #703 JnK Digital Tower, 111, Digitalro-26gil, Guro-gu, Seoul, Korea

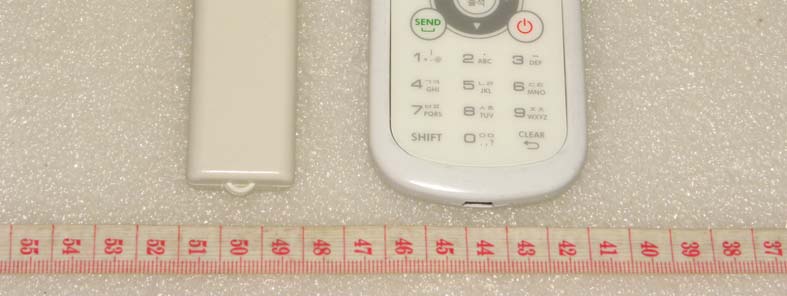

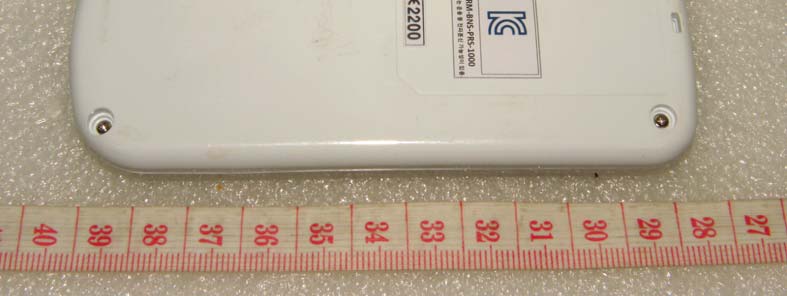

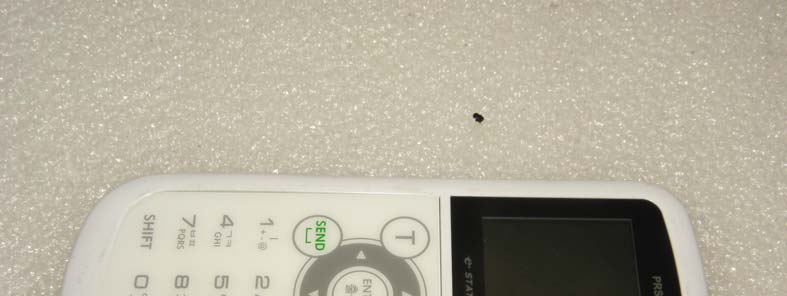

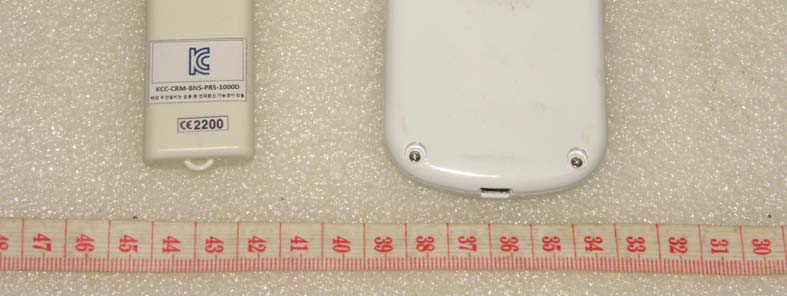

Appendix C. External Photographs Report no. ETLE120323.0370, Page C1 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 View of total construct Appendix C. External Photographs Report no. ETLE120323.0370, Page C2 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE120323.0370, Page C3 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLE120323.0370, Page C4 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 Side view of EUT

Appendix A. FCC ID Label and Location Report no. ETLE120323.0370, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. B&S Media. Co., Ltd. Personal Response System the Terminal Unit FCC ID : C5O-PRS-1000 Model No. : PRS-1000 Serial No. : Proto type This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: B&S Media. Co., Ltd. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE120323.0370, Page D1 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 Inside view of EUT with Rechargeable Li-ion battery Appendix D. Internal Photographs Report no. ETLE120323.0370, Page D2 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 Top side view of main board with Chip Antenna Chip Antenna Appendix D. Internal Photographs Report no. ETLE120323.0370, Page D3 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE120323.0370, Page D4 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 Top side view of Chip Antenna Appendix D. Internal Photographs Report no. ETLE120323.0370, Page D5 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 Top side view of sub board Appendix D. Internal Photographs Report no. ETLE120323.0370, Page D6 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 Bottom side view of sub board

Appendix J. Radio Frequency Exposure Report no. ETLE120323.0370, Page J1 of J1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: C5O-PRS-1000 According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Frequency Range Frequency [MHz] 60/f SAR Limitation [mW] 2 442 24.570 Maximum measured transmitter power: Output Power [dBm] [mW] Max Antenna Gain [dBi] EIRP [mW] -7.730 0.169 2.700 0.314 Conclusion: No Stand Alone SAR is required.

Report no. ETLE120323.0370, Page 2 of 31 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:C5O-PRS-1000 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 6 dB Bandwidth 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Power Spectral Density 5.6 Spurious Emissions 5.7 Conducted Emissions Test 5.8 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Appendix J. Radio Frequency Exposure Report no. ETLE120323.0370, Page 3 of 31 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:C5O-PRS-1000 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Personal Response System the Terminal Unit  Model Number : PRS-1000  S/N : Proto type  Freq. Range : 2 442 MHz  Number of Channels : 1  Modulation Technique : FHSS (GFSK)  Frequency Channel : 2 442 MHz (1 Ch)  Air Data Rate : 1 Mbps  Antenna Type : Chip Antenna (Integral)  Antenna Gain : 2.70 dBi max  RF Power : 0.169 mW  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.4-2003  FCC Classification : DTS (Part 15 Digital Transmission System)  Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : B&S Media. Co., Ltd. Address : #703 JnK Digital Tower, 111, Digitalro-26gil, Guro-gu, Seoul, Korea Attention : Jong Pill, Youn / General Manager Report no. ETLE120323.0370, Page 4 of 31 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:C5O-PRS-1000 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the B&S Media. Co., Ltd. Model: PRS-1000 Report no. ETLE120323.0370, Page 5 of 31 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:C5O-PRS-1000 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Personal Response System the Terminal Unit (model: PRS-1000). 2.2 General Specification Item Note MCU PIC24FJ128 16 bit microcontroller Graphic LCD 1.8 inch TFT LCD 80 Word RF Tx/Rx 2.4 GHz GFSK Operating Freq 2 442 MHz 1 CH Keypad 21 EA Memory 1 MByte Battery 3.7 V, 700 mAh Rechargeable Li-ion Battery USB Connector Charge connector DC 5 V SIZE 55 mm x 120 mm x 10 mm W x H x D Report no. ETLE120323.0370, Page 6 of 31 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:C5O-PRS-1000 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C63.4-2003 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with § 13 in ANSI C63.4-2003 "Measurement of Intentional radiators” The measurements were performed over the frequency range of 30 MHz to 40 GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak, Quasi-peak, Average" within a bandwidth of 120 kHz and above 1 GHz is 1 MHz. Preliminary measurements were made at 3 m using broadband antennas, and spectrum analyzer to determine the frequency producing the maximum emission in shielded room. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turntable azimuth and height with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30 MHz to 1 000 MHz using Log-Bicon antenna. Above 1 GHz, linearly polarized double ridge horn antennas were used. Final measurements were made open site at 3 m. The test equipment was laced on a wooden turn-table. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating condition. Each frequency found during pre-scan measurements was re-examined by manual. The detector function was set to CISPR Quasi-peak mode and the bandwidth of the receiver was set to 120 kHz or 1 MHz depending on the frequency of type of signal. The EUT, support equi…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE120323.0370, Page B1 of B4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:C5O-PRS-1000 Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE120323.0370, Page B2 of B4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:C5O-PRS-1000 Radiated Emission Test Setup (Above 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE120323.0370, Page B3 of B4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:C5O-PRS-1000 Radiated Emission Test Setup (Below 30 MHz) Appendix B. Test Setup Photographs Report no. ETLE120323.0370, Page B4 of B4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:C5O-PRS-1000 Conducted Emission Test Setup
