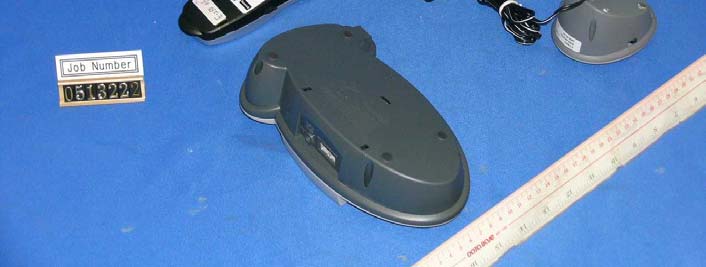

INTERTEK TESTING SERVICES External Photos FCC ID: CAC677001 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: CAC677001 external photos - 2 of 2

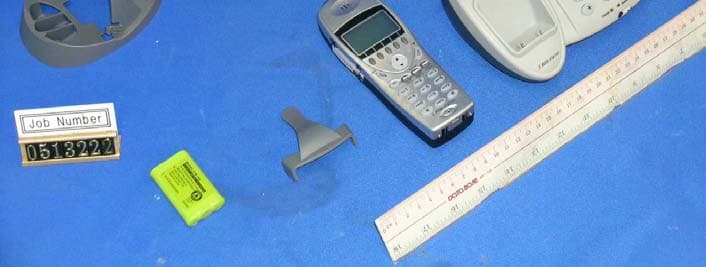

INTERTEK TESTING SERVICES Internal photos FCC ID: CAC677001 internal photos - 1 of 10 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: CAC677001 internal photos - 2 of 10 Base Unit Main PCB solder side Base Line Filter front side INTERTEK TESTING SERVICES Internal photos FCC ID: CAC677001 internal photos - 3 of 10 Base Line Filter rear side Base Keypad and LCD Display front side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: CAC677001 internal photos - 4 of 10 Base Keypad and LCD Display front side (View 2) Base Keypad and LCD Display rear side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: CAC677001 internal photos - 5 of 10 Base Keypad and LCD Display rear side (View 2) Base Keypad and LCD Display rear side (View 3) INTERTEK TESTING SERVICES Internal photos FCC ID: CAC677001 internal photos - 6 of 10 Base Unit Oscillator PCB comp side (View 1) Base Unit Oscillator PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: CAC677001 internal photos - 7 of 10 Base Unit Oscillator PCB comp side (View 3) INTERTEK TESTING SERVICES Internal photos FCC ID: CAC677001 internal photos - 8 of 10 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: CAC677001 internal photos - 9 of 10 Handset Main PCB display side Handset Oscillator PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: CAC677001 internal photos - 10 of 10 Handset Oscillator PCB comp side (View 2) Handset Oscillator PCB comp side (View 3)

INTERTEK TESTING SERVICES FCC ID: CAC677001 RF exposure - 1 of 1 For Specific Absorption Rate (SAR) evaluation of the handset, with reference to TCB Exclusions List revised on July 17, 2002, portable transmitters with output power less than low threshold and operating within 2.5cm from person’s body can be certified by TCB without the SAR evaluation. The output power for portable transmitters is defined as the higher of the conducted or radiated (EIRP) source-based time averaging output power. And the low threshold is equal to (60/f GHz ) mW for d < 2.5cm, where f GHz is mid-band frequency in GHz, and d is the distance from the portable transmitter to a person’s body, excluding hands, wrists, feet, and ankles. For the handset of the tested model of CY-677, the measured peak conducted power was 105.68 mW. The maximum source-based time averaging duty factor in single slot operation is 9.6%. The conducted source-based time averaging output power = (105.68 * 0.096) mW = 10.15 mW The measured maximum field strength (FS) was 115.3 dB μ V/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. From these data, the radiated (EIRP) source-based time-averaging output power can be calculated by: The radiated power = (FS*D) 2 / 30 mW = 101.65 mW The radiated (EIRP) source-based time-averaging output power = (101.65 * 0.096) mW = 9.76 mW The low threshold in the 5725 – 5850MHz band is 10.36 mW. From the above calculation, output power obtained in both method is less than low threshold, it is concluded that the handset can be certified by TCB without the SAR evaluation.
           !" -                  2

-      3


  - $--                   3. 4,5-%((-     6789:76
  #           )   - *       ; (  $--

                     )
  1)       )
               )                       )  /








       )





  -            )





  -      <=


!#    $%$ &  '( )' *! +!%, %$  - !  % $  - "   ./) 0 / 1/))2#  %  - + &  '  +  $-%"  1+# +  $   !  *% 3 -   -%  $%$ $!% 3  !4 !     !"


• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Website: www.hk.intertek-etlsemko.com Cybiotronics Limited Application For Certification 5.8GHz Frequency Hopping Spread Spectrum Cordless Phone with Caller ID and Speakerphone (FCC ID: CAC677001) 05132221 TL/Ann Choy September 1, 2005 INTERTEK TESTING SERVICES FCC ID: CAC677001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labelling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Security Code Information EXHIBIT 10: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: CAC677001 ii MEASUREMENT/TECHNICAL REPORT Cybiotronics Limited MODEL: CY-677(XXX), BS-677(XXX), SBC 677(XXX), CYBIOLINK 677(XXX), CY-677B(XXX), BS-677B(XXX), SBC 677B(XXX), CYBIOLINK 677B(XXX), CY-671(XXX), BS-671(XXX), SBC 671(XXX), CYBIOLINK 671(XXX) FCC ID: CAC677001 This report concerns (check one) Original Grant X Class II Change Equipment Type: DSS-Part 15 Spread Spectrum Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : dae Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10- 01-04 Edition] provision. Report prepared by: Tommy Leung Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: CAC677001 iii Table of Contents 1.0 Summary of test results ....................................................................................2 2.0 General Description .................................................................................................... 4 2.1 Product Description ................................................................................................... 4 2.2 Related Submittal(s) Grants....................................................................................... 5 2.3 Test Methodology ...................................................................................................... 5 2.4 Test Facility ............................................................................................................... 5 3.0 System Test Configuration ........................................................................................ 7 3.1 Justification................................................................................................................ 7 3.2 EUT Exercising Software........................................................................................... 7 3.3 Support Equipment List and Description.................................................................... 8 3.4 Measurement Uncertainty .............................................................................................. 9 3.5 Equipment Modification ............................................................................................. 9 4.0 Measurement Results............................................................................................... 11 4.1 Maximum Conducted Output Power at Antenna Terminals...................................... 11 4.2 Maximum 20 dB RF Bandwidth................................................................................ 13 4.3 Minimum Number of Hopping Frequencies ................................................................. 15 4.4 Minimum Hopping Channel Carrier Frequency Separation ........................................ 16 4.5 Average Time of Occupancy.................................................................................... 18 4.6 Out of Band Conducted Emissions .............................................................................. 19 4.7 Out of Band Radiated Emissions ............................................................................. 20 4.8 Transmitter Radiated Emissions in Restricted Bands............................................... 21 4.9 Field Strength Calculation ........................................................................................ 22 4.10 Radiated Emission Configuration Photograph - Base Unit ....................................... 23 4.11 Radiated Emission Data - Base Unit ...................................................................... 24 4.12 Radiated Emission Configuration Photograph - Handset ....................................... 28 4.13 Radiated Emission Data - Handset ........................................................................ 29 4.14 AC Line Conducted Emission................................................................................. 33 4.15 Line Conducted Configuration Photograph - Base Unit .......................................... 34 4.16 Line Conducted Emission Configuration Data ........................................................ 35 4.17 Radiated Emission from Digital Section of Transceiver............................................. 36 4.18 Transmitter Duty Cycle Calculation and Measurements......................................... 39 5.0 Equipment Photographs ....................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Maximum 20dB RF Bandwidth Plots FCC ID: CAC677001 20dB - 1 of 3 A0 Plot B2A Plot B2B INTERTEK TESTING SERVICES Maximum 20dB RF Bandwidth Plots FCC ID: CAC677001 20dB - 2 of 3 A0 Plot B2C Plot H2A INTERTEK TESTING SERVICES Maximum 20dB RF Bandwidth Plots FCC ID: CAC677001 20dB - 3 of 3 A0 Plot H2B Plot H2C

INTERTEK TESTING SERVICES Average Channel Occupancy Time Plots FCC ID: CAC677001 avetime - 1 of 4 A0 Plot B5A Plot B5B INTERTEK TESTING SERVICES Average Channel Occupancy Time Plots FCC ID: CAC677001 avetime - 2 of 4 A0 Plot B5C Plot B5D INTERTEK TESTING SERVICES Average Channel Occupancy Time Plots FCC ID: CAC677001 avetime - 3 of 4 A0 Plot B5E Plot H5A INTERTEK TESTING SERVICES Average Channel Occupancy Time Plots FCC ID: CAC677001 avetime - 4 of 4 A0 Plot H5B Plot H5C

INTERTEK TESTING SERVICES Minimum Number Hopping Frequencies Plots FCC ID: CAC677001 chno - 1 of 4 A0 Plot B3A Plot B3B INTERTEK TESTING SERVICES Minimum Number Hopping Frequencies Plots FCC ID: CAC677001 chno - 2 of 4 A0 Plot B3C Plot B3D INTERTEK TESTING SERVICES Minimum Number Hopping Frequencies Plots FCC ID: CAC677001 chno - 3 of 4 A0 Plot H3A Plot H3B INTERTEK TESTING SERVICES Minimum Number Hopping Frequencies Plots FCC ID: CAC677001 chno - 4 of 4 A0 Plot H3C Plot H3D

INTERTEK TESTING SERVICES Transmitter Duty Cycle Calculation and Measurement Plots FCC ID: CAC677001 dcc - 1 of 2 A0 Plot B7A Plot B7B INTERTEK TESTING SERVICES Transmitter Duty Cycle Calculation and Measurement Plots FCC ID: CAC677001 dcc - 2 of 2 A0 Plot H7

Report No.: 05132221 Talk (1 Handset) Mode Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:05132221 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 05132221 Talk (1 Handset) Mode Ctrl No.: N/A Tested By:Hong, Report No.:05132221 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results

INTERTEK TESTING SERVICES Minimum Hopping Channel Carrier Frequency Separation Plots FCC ID: CAC677001 fsepa - 1 of 1 A0 Plot B4 Plot H4

INTERTEK TESTING SERVICES Maximum Conducted Output Power at Antenna Terminals Plots FCC ID: CAC677001 maxop - 1 of 3 A0 Plot B1A Plot B1B INTERTEK TESTING SERVICES Maximum Conducted Output Power at Antenna Terminals Plots FCC ID: CAC677001 maxop - 2 of 3 A0 Plot B1C Plot H1A INTERTEK TESTING SERVICES Maximum Conducted Output Power at Antenna Terminals Plots FCC ID: CAC677001 maxop - 3 of 3 A0 Plot H1B Plot H1C

INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: CAC677001 obantcon - 1 of 8 A0 Plot B6A1 Plot B6A2 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: CAC677001 obantcon - 2 of 8 A0 Plot B6B1 Plot B6B2 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: CAC677001 obantcon - 3 of 8 A0 Plot B6C1 Plot B6C2 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: CAC677001 obantcon - 4 of 8 A0 Plot B6D1 Plot B6D2 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: CAC677001 obantcon - 5 of 8 A0 Plot H6A1 Plot H6A2 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: CAC677001 obantcon - 6 of 8 A0 Plot H6B1 Plot H6B2 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: CAC677001 obantcon - 7 of 8 A0 Plot H6C1 Plot H6C2 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: CAC677001 obantcon - 8 of 8 A0 Plot H6D1 Plot H6D2

Attention: Application Examiner Re: Request for confidentiality Applicant: Cybiotronics Limited FCC ID: CAC677001 To whom it may concern, Permanent Confidentiality Request is hereby submitted by Cybiotronics Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Cybiotronics Limited has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Angel Lam Product Manager Cybiotronics Limited

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID : CAC677001 config photos (radiated emission – base unit) - 1 of 1 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID : CAC677001 config photos (radiated emission - handset) - 1 of 1 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID : CAC677001 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID : CAC677001 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
