CCEDRC500LCRFMAIN ENTRANCE CAMERA WITH 13.56MHz RFID

-Feature- •8-wire Common Method (Interphone) •4-wire Common Method (Videophone) •RF/ID Feature (Optional) •Surveillance Monitor Support Model No.DRC-481L(C)/RF DRC-500L(C)/RF DRC-481LDRC-500L (Common Method) Main Entrance Camera T ha nk you for purcha s ing our C O MMAX product. P lea s e ca refully rea d this U s erÕs G uide (in pa rticula r, preca utions for s a fety) before us ing the product a nd follow the ins tructions to us e your productexa ctly. T he compa ny is not res pons ible for a ny s a fety a ccidents ca us ed in a bnorma l opera tion of the product. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to prov ide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by t he manufacturer r esponsible [ CAUTION ] for compliance could void the user's authority to operate the equipment. [FCC compliance Information] This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that may cause undesired operation. [FCC WARNING] This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. Class B device - 1- Table of Contents 1. Greetings.......................................................................................4 2. Before Getting Started.....................................................................4 3. Overview.......................................................................................5 4. PIN Types....................................................................................10 5. Setting PIN....................................................................................11 6.Household PIN Confirmation...............................................................14 7.Configuring Building and Serial Numbers in the Main Entrance Interphone.........15 8. Using Remote Cardkeys (RF/ID) - Optional.............................................17 9. Surveillance Monitor Configuration......................................................23 10. Door Release Time Setup..................................................................24 11. Page Tone Selection........................................................................25 12. Wiring Method Selection..................................................................26 13. Video Out Impedance Adjustment......................................................27 14. Household Interphone Diagnosis.........................................................28 15. Household Number Registration.........................................................30 16. Paging the Household.....................................................................32 17. Paging the Guardhouse.....................................................................32 18. Door Release Using the Household PIN................................................33 19. Door Release Using the Building (Management) PIN.................................33 20. Appendix (Various Program Summaries).............................................34 21. Wiring Method..............................................................................36 22. Specifications..............................................................................51 - 2 - Please follow the things described below in order to prevent any danger or property damage. Warning Caution Safety Warning & Caution Prohibition. No disassembly No touch Must follow strictly. Shows plugging out the power cord without an exception Shows the warning and caution for an electric shock. Shows the warning and caution for a fire. It may cause a serious damage or injury if violated. It may cause a minor damage or injury if violated. Power & Installation Warning Please dont use several products at the same time on one power socket. It may cause a fire due to an abnormal overheating. Please dont bend the power cable excessively or it may cause an electric shock. fire when using a damaged power cable. Please dont handle the power cable with a wet hand. It may cause an electric shock. Please plug out the power cable from the socket when not using it for a long period of time. It may shorten the product lifespan or cause a fire. Please dont install the product in the place where there is much oil, smoke or humidity. It may cause an electric shock or fire. Please dont install the product with the lightening and thunder. It may cause an electric shock or fire. Please dont use and connect this product with other products with different rated voltage It may cause a disorder or fire. When installing the product that generates heat, please install the product away from the wall (10cm) for the ventil…

Text truncated - open the document above for the full version.

513-11, Sangdaewon-Dong, Jungwon-Gu, Sungnam-Si, Kyunggi-Do, 462-120, KOREA April 2, 2007 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re: COMMAX Co., Ltd. FCC ID: CCEDRC500LCRF Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, COMMAX Co., Ltd. hereby requests confidentiality of the Block diagram(Block Diagrm_CCEDRC500LCRF.pdf), Schematics(Schematic_ CCEDRC500LCRF.pdf), Parts list(Part List_ CCEDRC500LCRF.pdf) and Operational description(Operational Description_ CCEDRC500LCRF.pdf). These documents contain detailed system and equipment description and related information about the product which COMMAX Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, COMMAX Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Ji-Soo, KIM Assistant Manager

513-11, Sangdaewon-Dong, Jungwon-Gu, Sungnam-Si, Kyunggi-Do, 462-120, KOREA April 2, 2007 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re: COMMAX Co., Ltd. FCC ID: CCEDRC500LCRF Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, COMMAX Co., Ltd. requests short-term confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos(Test Photo_CCEDRC500LCRF.pdf) External photos(Ext Photo_CCEDRC500LCRF.pdf) Internal photos(Int Photo_CCEDRC500LCRF.pdf)) User’s manual(User Manual_CCEDRC500LCRF.pdf)) These documents contain detailed system and equipment descriptions and related information about the product, which COMMAX Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, COMMAX Co., Ltd. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Ji-Soo, KIM Assistant Manager

FCCID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 1 FCCID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 2 FCCID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 3

FCC ID: CCEDRC500LCRF FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE.)

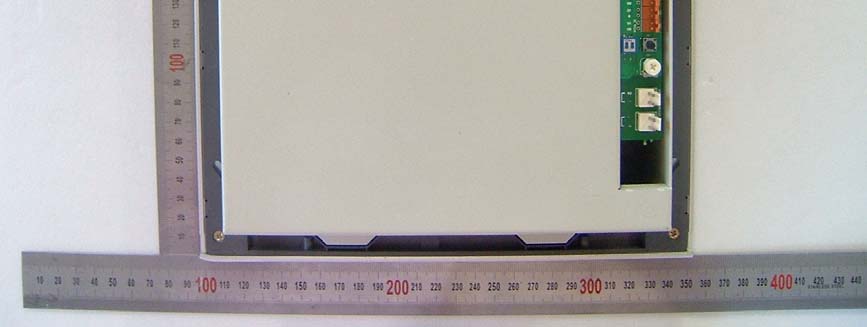

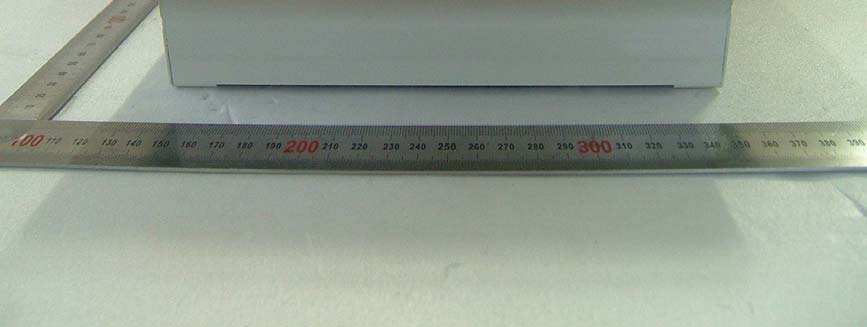

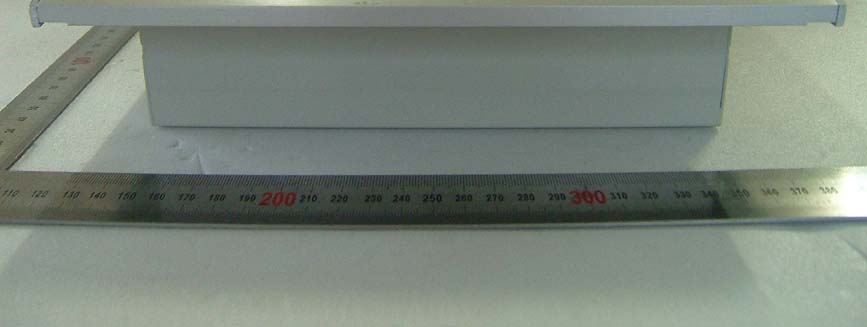

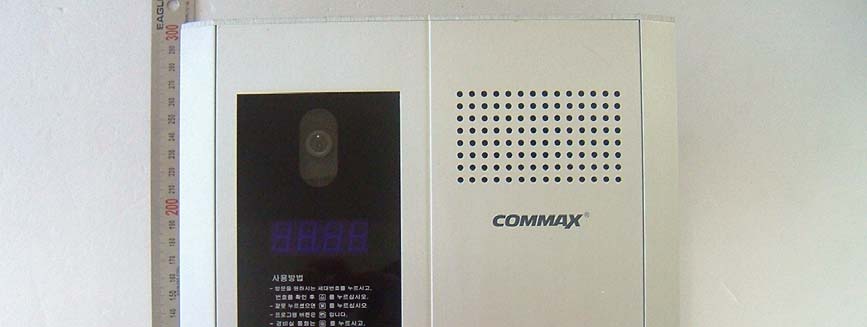

FCC ID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 1 FCC ID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 2 FCC ID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 3 FCC ID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 4 FCC ID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 5 FCC ID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 6 FCC ID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 7 FCC ID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 8 FCC ID: CCEDRC500LCRF Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 8

DEMC#DR50110704F FCC ID: CCEDRC500LCRF Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 1 of 13 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 15C Certification Dates of Tests: April 2 ~ 9, 2006 Test Report S/N:DR50110704F Test Site : DIGITAL EMC CO., LTD. FCC ID. APPLICANT FCC Classification : Low Power Communication Device Transmitter Device name : Main Entrance Camera with 13.56MHz RFID Manufacturer : COMMAX Co. Ltd Model name : DRC-500LC/RF Brand name : COMMAX Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15.225 Subpart C; ANSI C-63.4-2003 Frequency band : 13.56 MHz Data of issue : April 10, 2007 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. CCEDRC500LCRF COMMAX Co., Ltd DEMC#DR50110704F FCC ID: CCEDRC500LCRF Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 2 of 13 TABLE OF CONTENTS 1. GENERAL INFORMATION’S --------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM --------------------------------------------------------------- 3. TEST REPORT ---------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------- 3.2 TRANSMITTER REQUIREMENTS ---------------------------------------------------------------- 3.2.1 RADIATED EMISSION ------------------------------------------------------------------------- 3.2.2 ADDITIONAL PROVISIONS THO THE GENERAL RADIATED EMISSION LIMITATIONS --- 3.2.3 FREQUENCU TOLERENCE ------------------------------------------------------------------- ANNEX TEST EQUIPMENT USED FOR TESTS ----------------------------------------------------- 3 4 5 5 6 6 8 9 11 DEMC#DR50110704F FCC ID: CCEDRC500LCRF Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 3 of 13 1. General information’s This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer April 10, 2007 Won -Jong LEE Data Name Signature Report Reviewed By: manager April 10, 2007 Harvey Sung Data Name Signature Ordering party: Company name : COMMAX Co., Ltd Address : 513-11, Sangdaewon-Dong, Jungwon-Gu, Sungnam-Si Zip code : 462-120 City/town : Kyunggi-Do Country : Korea Date of order : March 9, 2007 DEMC#DR50110704F FCC ID: CCEDRC500LCRF Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 4 of 13 2. Information’s about test item CCEDRC500LCRF 2.1 Equipment information Equipment model name DRC-500LC/RF Type of equipment Main Entrance Camera with 13.56MHz RFID Frequency band 13.56 MHz Type of Modulation ASK Physical channel 1 CH Power DC 15 V 2.2 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : DC 15 V 2.3 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - - - - - - - - - 2.4 EMI Suppression Device(s)/Modifications None DEMC#DR50110704F FCC ID: CCEDRC500LCRF Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 5 of 13 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Status (note 1) Transmitter requirements 15.225(a) Radiated Emission - The field strength of any emission within the band 13.553 – 13.567 MHz. C 15.225(b), (c), (d) / 15.209 Radiated Emission - Out of Band Emissions C 15.225(e) Frequency Tolerance C 15.215 Additional provisions to the general radiated emission limitations. C 15.207 Conducted Emissions Limits NA Note 1: C= Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts 15.225, 15.215, 15.205; ANSI C-63.4-2003 DEMC#DR50110704F FCC ID: CCEDRC500LCRF Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 6 of 13 3.2 Transmitter requirements 3.2.1 Radiated Emission Procedure: The EUT was placed on a 0.8m high wooden table inside a shielded enclosure. An antenna was placed near the EUT and measurements of frequencies and amplitudes of field strengths were recorded for reference during final measurements. For final radiated testing, measurements were performed in a OATS. Measurements were performed with the EUT oriented in 3 orthogonal axis and rotated 360 degrees to determine worst-case orientation for maximum emissions. The spectrum analyzer is set to: Frequency Range = 9 KHz ~ 1GHz RBW = 9KHz (9KHz ~ 30MHz) = 120 kHz ( 30MHz ~ 1 GHz) VBW ≥ RBW Trace = max hold Detector function = peak / Quasi-peak / average Sweep = auto Measurement Data: Complies - Refer to the Next page Minimum Standard: FCC Part 15.225 / 15.209 Rule Part Frequency (MHz) Limit 13.553 ~ 13.567 15848 uV/m@30m 13.410 ~ 13.553 13.567 ~ 13.710 334 uV/m@30m 13.110 ~ 13.410 13.710 ~ 14.010 106 uV/m@30m Part 15. 225 14.010 ~ 30.000 30 uV/m@30m 0.009 ~ 0.490 2400/F(KHz)uV/m@300 0.490 ~1.705 24000/F(KHz)uV/m@30 1.705 ~ 30 30 uV/m@30 30 ~ 88 100 ** uV/m@3m 88 ~ 216 150 ** uV/m@3m 216 ~ 960 200 ** uV/m@3m Part 15. 209 Above 960 500 uV/m@3m ** Except as provided in 15.209(g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88MHz, 174-216MHz or 470-806MHz. However, operation within these frequency bands is permitted under other sections of this Part, e.g. 15.231 and 15.241. DEM…
