CDJPPT8846LA4137PDA w/ WLAN PC Card Module

Olympus Optical Co Ltd

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Sep 03, 2002
Application Purpose: Original Equipment
Date of Application: Sep 02, 2002
Equipment Note: PDA w/ WLAN PC Card Module
Frequency Range: 2412.00000000 - 2462.00000000
Company: Olympus Optical Co Ltd
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WARNING: FCC RF EXPOSURE GUIDELINES Caution: RF Devices OLYMPUS' RF products are designed to be compliant with the rules and regulations in the locations into which they are sold and will be labeled as required. The majority of OLYMPUS' RF devices are type approved and do not requlre the user to obtain license or authorization before using the equipment. Any changes or modifications to OLYMPUS' equipment not expressly approved by OLYMPUS could void the use's authority to operate the equipment. Laser Devices OLYMPUS products using lasers comply with US 21CFR.Sub-J. parts 1040.81010. and IEC60825- 1:1993+A1:1997 +A2:2001. The laser classification Is marked on one of the labels on the product. Class 1 Laser devlces are not cdhsidered to be hazardous when used for their intended purpose. The following statement Is requlred to comply with US and international regulations: Caution:' Use of controls or adjustments or performance of procedures other that those specified herein may result in hazardous laser light exposure.' Class 2 laser scanners use a low power. visible light diode. As with any very bright light source, such as the sun, the user should avold staring directly Into the light beam. Momentary exposure lo a Class 2 laser is not know to be harmful. 1 Quick Reference Scanner Labeling -. I / 7- .1:199S +Al; 1997 +A2.2001 IOIEL:Pll0xx-xxxxxxrx Sh:W 1

Attestation Statements

July 29, 2002 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 Re: Symbol Technologies FCC ID: CDJPPT8846LA4137 Confidentiality Dear Reviewer, Symbol Technologies (“Symbol”), requests that the Block Diagram, Schematics, and operational Description exhibits of the referenced application be withheld from routine availability for public inspection pursuant to Section 0.459 of the Commissions Rules an Freedom of Information Act (“FOIA) Exemption 4, 5 U.S.C. 552 (b) (4). ‘These exhibits consist of “trade secrets (or) commercial or financial information obtained from a person and privileged or confidential” 5 U.S.C. 552 (b) (4), and is therefore entitled to protection from disclosure under FOIA. The documents in question contain trade secrets: detailed technical descriptions, specifications and schematics for a product to be offered for sale. This information would give Symbol’s competitors an unearned and unwarranted competitive advantage. The documents contain “commercial information” within the scope of FOIA exemption 4. This information is the product of Symbol’s investment of money, personnel, and other resources. The result of the investment is a fairly earned position in the marketplace. Premature release of the information threatens substantial and unwarranted harm to Symbol’s competitive position. These materials provide particulars on the product design. For these reasons, Symbol has taken pains to keep this technical information confidential, and intends to continue doing so. Symbol customarily witholds this information from persons outside the employ of Symbol and certain of its suppliers and contractors, and even within these groups routinely limits access to persons having a particular need for the information. If the Commissions were to make these documents public, it would be giving away hard won fruits of Symbols labors without compensation. The filing fee that is required for this confidentiality request is included in the check that accompanies this application. If there are any questions about this request, please call me at the number above. Thank you for your attention. Respectfully Submitted, Sandy Mazzola

Cover Letter(s)

July 30, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: OLYMPUS OPTICAL Co., Ltd. FCC ID: CDJPPT8846LA4137 Gentlemen: Attached herewith, on behalf of OLYMPUS OPTICAL Co., Ltd. is an application for Part 15.247 Certification of the following Handheld PC. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Symbol Technologies Inc.

Cover Letter(s)

October 29, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Stan Lyles SUBJECT: Olympus Optical Co., Ltd. FCC ID: CDJPPT8846LA4137 731 Confirmation No.: TC472296 Request for Tech. Info.: 10/02/2002 Correspondence Ref. Num.: 5334 Dear Tim: Transmitted herewith, on behalf of Olympus Optical Co., Ltd., is an amendment provided in response to the request for technical information dated October 2, 2002. 1. Please find attached the revised Users Manual. 2. Please find attached the revised SAR Report. 3. The previous SAR Data Plots were inadvertently submitted (0.089W). Please find attached new SAR Data Plots corresponding to the 0.1 W power. 4. The previous Calibration Certificate was inadvertently submitted. Please find attached the Probe Calibration Certificate corresponding to the probe used in the SAR evaluation. 5. The contact is Toshio Kijima ([email protected]). If you have any further questions, please do not hesitate to contact us. cc: Olympus Optical Co., Ltd.

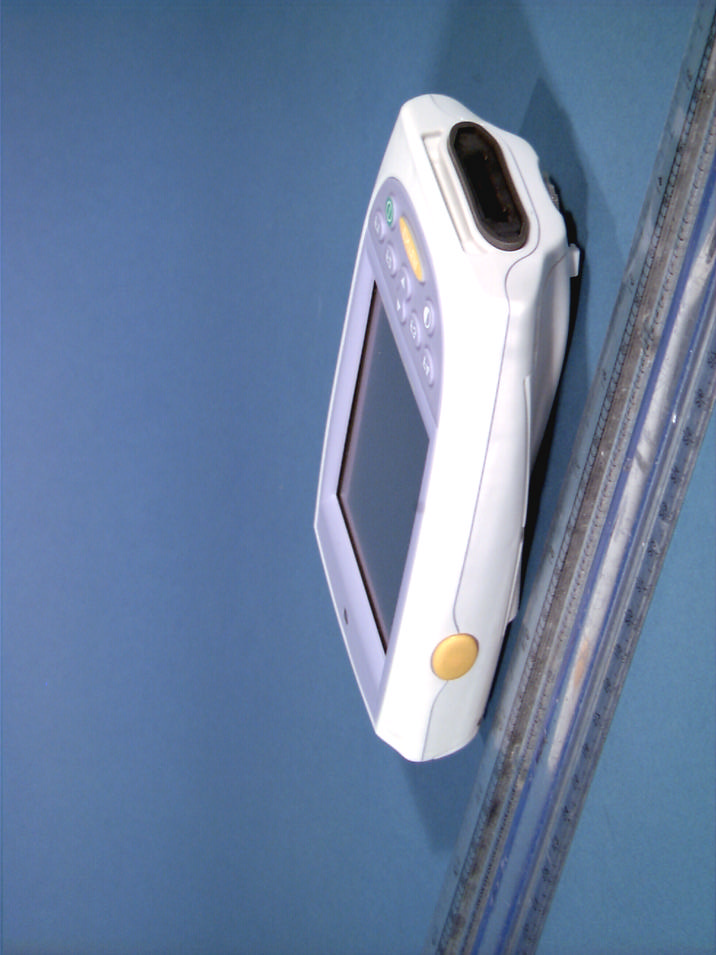

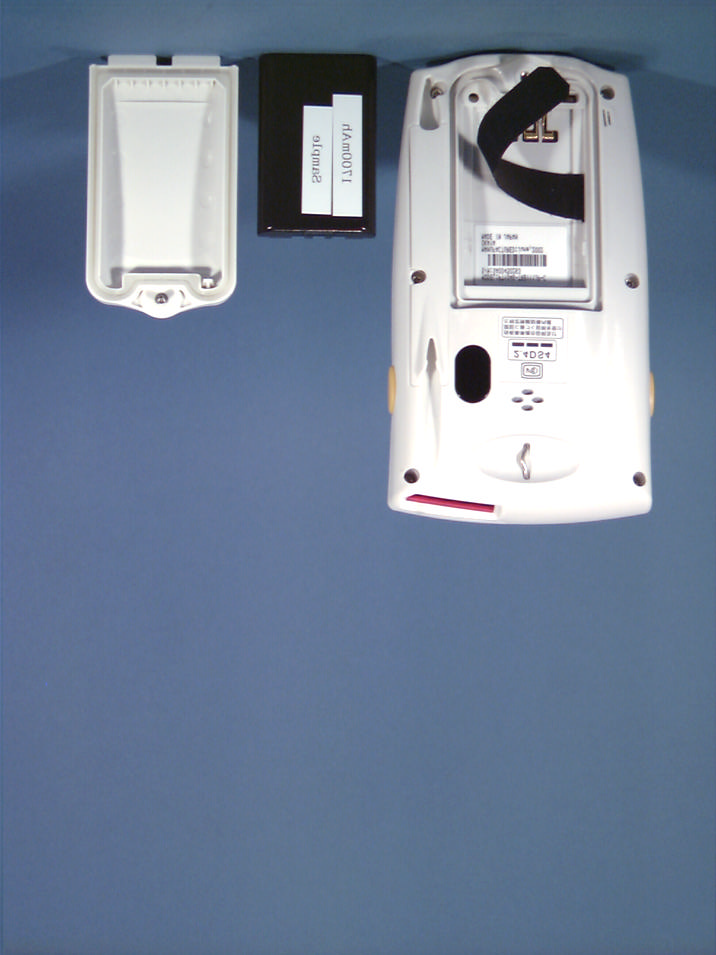

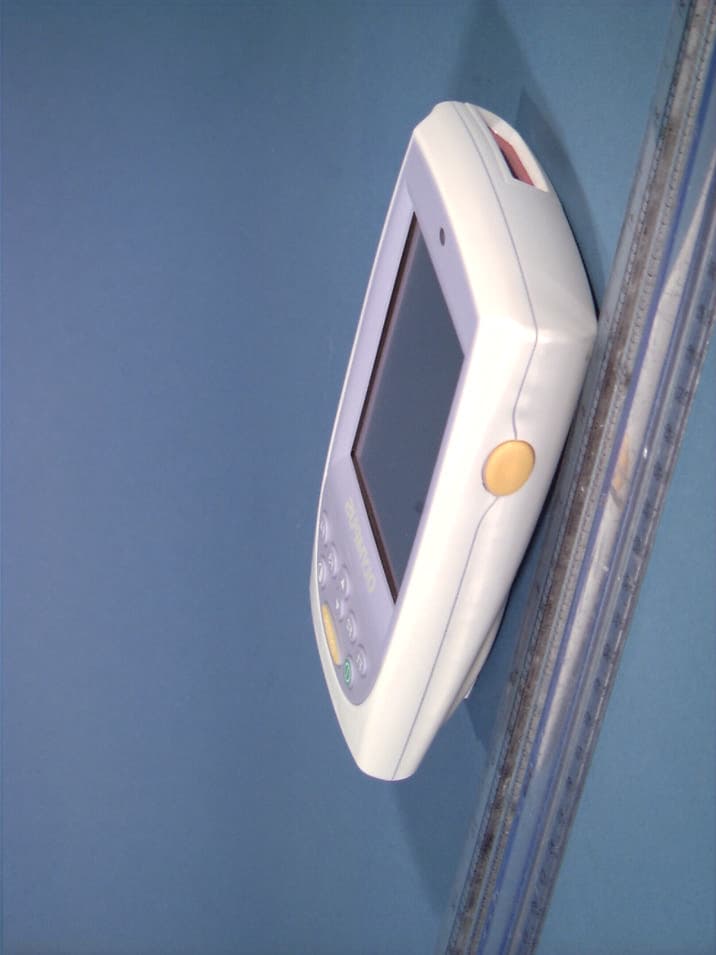

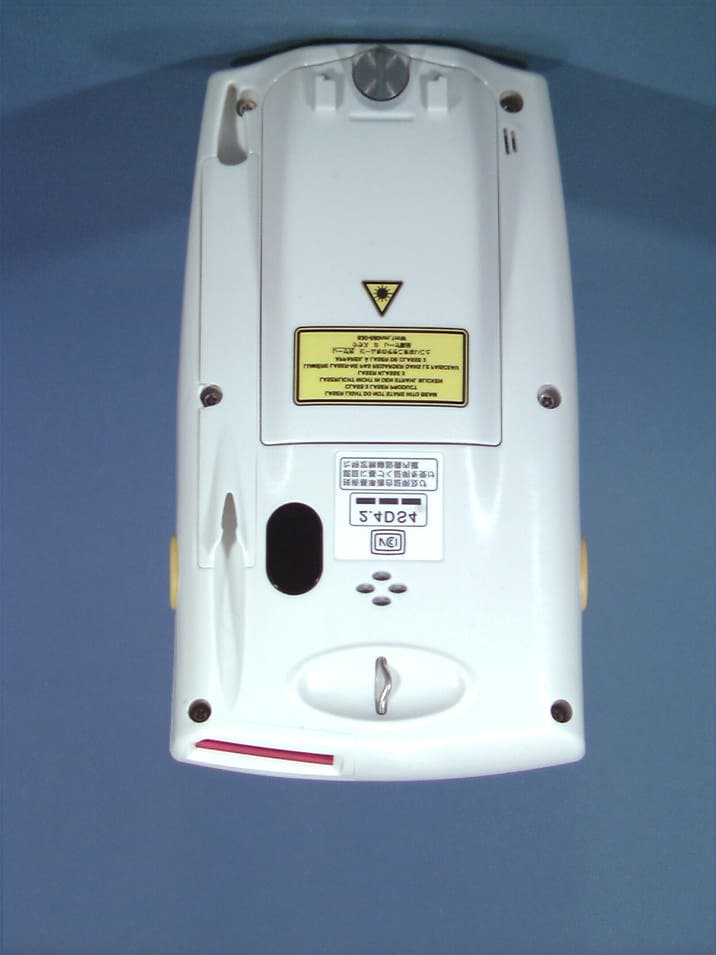

External Photos

ID Label/Location Info

© 2002 PCTEST Lab FCC ID LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

© 2002 PCTEST Lab Olympus FCC ID: CDJPPT8846LA4137 Handheld PC DSSS (Model: PPT8846) © 2002 PCTEST Lab Olympus FCC ID: CDJPPT8846LA4137 Handheld PC DSSS (Model: PPT8846) © 2002 PCTEST Lab Olympus FCC ID: CDJPPT8846LA4137 Handheld PC DSSS (Model: PPT8846) © 2002 PCTEST Lab Olympus FCC ID: CDJPPT8846LA4137 Handheld PC DSSS (Model: PPT8846) © 2002 PCTEST Lab Olympus FCC ID: CDJPPT8846LA4137 Handheld PC DSSS (Model: PPT8846) © 2002 PCTEST Lab Olympus FCC ID: CDJPPT8846LA4137 Handheld PC DSSS (Model: PPT8846) © 2002 PCTEST Lab Olympus FCC ID: CDJPPT8846LA4137 Handheld PC DSSS (Model: PPT8846) © 2002 PCTEST Lab Olympus FCC ID: CDJPPT8846LA4137 Handheld PC DSSS (Model: PPT8846) © 2002 PCTEST Lab Olympus FCC ID: CDJPPT8846LA4137 Handheld PC DSSS (Model: PPT8846)

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT SAR EVALUATION REPORT Reviewed by: Quality Manager SAR Filename: SAR.220730396.CDJ Test Dates: July 30-31, 2002 EUT Type: Handheld PC FCC ID: CDJPPT8846LA4137 Page 1 of 21 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Olympus Optical Co., Ltd. Dates of Tests: July 30-31, 2002 2951 Ichikawa-cho, Hachioji-shi Test Report S/N: SAR.220730396.CDJ Tokyo, 192-8507, Japan Test Site: PCTEST Lab, Columbia MD Attn: Toshio Kijima, Manager Quality Assurance FCC ID: CDJPPT8846LA4137 APPLICANT: Olympus Optical Co., Ltd. EUT Type: Handheld PC Tx Frequency: 2412 — 2462 MHz (DSSS) Rx Frequency: 2412 — 2462 MHz (DSSS) Max. RF Output Power: 0.100W Conducted Max. SAR Measurement: 0.43 W/kg over 1 gm (Body) 0.24 W/kg over 10 gm (Hand) Trade Name/Model(s): PPT8846 FCC Classification: Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): §2.1093; ET Docket 96.326 Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.22040424182.ACJ PCTEST SAR TEST REPORT SAR EVALUATION REPORT Reviewed by: Quality Manager SAR Filename: SAR.220730396.CDJ Test Dates: July 30-31, 2002 EUT Type: Handheld PC FCC ID: CDJPPT8846LA4137 Page 2 of 21 © 2002 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 6 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Body Holster /Belt Clip Configurations.................................................................. 11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 12 Uncontrolled Environment .................................................................................... 12 Controlled Environment ........................................................................................ 12 11. MEASUREMENT UNCERTAINTIES ....................................................................... 13 12. SYSTEM VERIFICATION ....................................................................................... 14 Tissue Verification...................................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

SAR Data Report 02073002 Start : 30-Jul-02 11:15:22 am End : 30-Jul-02 11:22:14 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : OLYMPUS Model Number : PPT8846 Serial Number : SA00450263 Frequency : 2412 MHz Transmit Pwr : 0.089 W Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.500 Tissue Conductivity : 1.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Muscle Calibrated Dielectric : 49.200 Calibrated Conductivity : 1.950 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.500 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: DSSS MODE CH-01 (BACK) BODY CF=1; Amb. Temp= 22.2 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=20.0 y=38.0 = 0.11 W/kg Zoom Scan - Max Peak SAR Value at x=13.0 y=38.0 z=0.0 = 0.24 W/kg Max 1g SAR at x=16.0 y=39.0 z=0.0 = 0.12 W/kg Max 10g SAR at x=15.0 y=40.0 z=0.0 = 0.07 W/kg -0.02 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 0.24 0.26 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:13.0 y:38.0 1g SAR Values 0.1248 0.1173 0.1099 0.1024 0.0950 0.0875 0.0800 0.0726 0.0651 0.0577 0.0502 SAR Data Report 02073003 Start : 30-Jul-02 11:26:49 am End : 30-Jul-02 11:33:43 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : OLYMPUS Model Number : PPT8846 Serial Number : SA00450263 Frequency : 2412 MHz Transmit Pwr : 0.089 W Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.500 Tissue Conductivity : 1.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Muscle Calibrated Dielectric : 49.200 Calibrated Conductivity : 1.950 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.500 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: DSSS MODE CH-01 (BACK) HAND CF=1; Amb. Temp= 22.2 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=18.0 y=40.0 = 0.12 W/kg Zoom Scan - Max Peak SAR Value at x=19.0 y=41.0 z=0.0 = 0.28 W/kg Max 1g SAR at x=18.0 y=40.0 z=0.0 = 0.14 W/kg Max 10g SAR at x=16.0 y=39.0 z=0.0 = 0.08 W/kg 0.00 0.10 0.20 0.30 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:19.0 y:41.0 1g SAR Values 0.1431 0.1361 0.1291 0.1222 0.1152 0.1083 0.1013 0.0944 0.0874 0.0805 0.0735 SAR Data Report 02073011 Start : 30-Jul-02 02:38:31 pm End : 30-Jul-02 02:45:20 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : OLYMPUS Model Number : PPT8846 Serial Number : SA00450263 Frequency : 2412 MHz Transmit Pwr : 0.089 W Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.500 Tissue Conductivity : 1.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Muscle Calibrated Dielectric : 49.200 Calibrated Conductivity : 1.950 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.500 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: DSSS MODE CH-1 - SCREEN BODY CF=1; Amb. Temp= 22.2 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=9.0 y=49.0 = 0.40 W/kg Zoom Scan - Max Peak SAR Value at x=0.0 y=49.0 z=0.0 = 0.83 W/kg Max 1g SAR at x=4.0 y=50.0 z=0.0 = 0.43 W/kg Max 10g SAR at x=8.0 y=50.0 z=0.0 = 0.22 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:0.0 y:49.0 1g SAR Values 0.433 0.408 0.383 0.358 0.334 0.309 0.284 0.259 0.234 0.210 0.185 SAR Data Report 02073010 Start : 30-Jul-02 02:26:53 pm End : 30-Jul-02 02:33:43 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : OLYMPUS Model Number : PPT8846 Serial Number : SA00450263 Frequency : 2412 MHz Transmit Pwr : 0.089 W Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.500 Tissue Conductivity : 1.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Muscle Calibrated Dielectric : 49.200 Calibrated Conductivity : 1.950 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.500 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: DSSS MODE CH-1 - SCREEN HAND CF=1; Amb. Temp= 22.2 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=9.0 y=48.0 = 0.43 W/kg Zoom Scan - Max Peak SAR Value at x=8.0 y=49.0 z=0.0 = 0.92 W/kg Max 1g SAR at x=8.0 y=50.0 z=0.0 = 0.49 W/kg Max 10g SAR at x=8.0 y=50.0 z=0.0 = 0.24 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:8.0 y:49.0 1g SAR Values 0.495 0.465 0.435 0.405 0.375 0.344 0.314 0.284 0.254 0.224 0.194

RF Exposure Info

File: 02-04-2002.cal Date: 04-Feb-02 01:20:16 pm Probe Name: PCT002 Frequency:835 MHz Comment:PCTEST TEM CAL Amp 1 Setting: 20.000 Amp 2 Setting: 20.000 Amp 3 Setting: 20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) File: 02-04-2002.cal2 Date: 04-Feb-02 03:18 :09 pm Probe Name: PCT002 Frequency:1900 MHz Comment:PCTEST TEM CAL Amp 1 Setting:20.000 Amp 2 Setting:20.000 Amp 3 Setting:20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) Conversion Factor Assessment for IDX SAR Measurement System S/N: PCT002 835 MHz Brain ε r = 40.7 ± 5% σ = 0.89 ± 5% mho/m Conversion Factor = 5.8 ± 7% (k=2) 1900 MHz Brain ε r = 40.2 ± 5% σ = 1.41 ± 5% mho/m Conversion Factor = 4.7 ± 7% (k=2) Probe calibration 1900 MHz Brain (WG 1900) 0 1 2 3 4 5 6 7 8 0510152025303540 z in mm SAR in mW/cm^3 / W Analytical Measurements Probe Calibration 835 MHz Brain (WG 835) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0510152025303540 z in mm SAR in (mW/cm^3)/W Analytical Measurements

RF Exposure Info

SAR Data Report 02073001 Start : 30-Jul-02 9:38:28 am End : 30-Jul-02 9:44:27 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Dipole Frequency : 2450 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Antenna Posn. : Validation Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 39.340 Tissue Conductivity : 1.770 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 2450 MHz Validation CF=1; Amb. Temp= 22.2 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=3.0 y=3.0 = 11.55 W/kg Zoom Scan - Max Peak SAR Value at x=4.0 y=2.0 z=0.0 = 26.22 W/kg Max 1g SAR at x=4.0 y=3.0 z=0.0 = 13.26 W/kg Max 10g SAR at x=4.0 y=2.0 z=0.0 = 6.05 W/kg Validation Results at 0.25 W: Peak Nominal = 26.1, Error: 0.67 % 1g Nominal = 13.1, Error: 1.21 % 10g Nominal = 6.0, Error: 0.90 % 0 1 2 3 4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:2.0 y:-7.0 1g SAR Values 13.14 12.31 11.47 10.64 9.81 8.98 8.14 7.31 6.48 5.65 4.81

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT SAR EVALUATION REPORT Reviewed by: Quality Manager SAR Filename: SAR.220730396.CDJ Test Dates: July 30-31, 2002 EUT Type: Handheld PC FCC ID: CDJPPT8846LA4137 Page 1 of 21 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Olympus Optical Co., Ltd. Dates of Tests: July 30-31, 2002 2951 Ichikawa-cho, Hachioji-shi Test Report S/N: SAR.220730396.CDJ Tokyo, 192-8507, Japan Test Site: PCTEST Lab, Columbia MD Attn: Toshio Kijima, Manager Quality Assurance FCC ID: CDJPPT8846LA4137 APPLICANT: Olympus Optical Co., Ltd. EUT Type: Handheld PC Tx Frequency: 2412 – 2462 MHz (DSSS) Rx Frequency: 2412 – 2462 MHz (DSSS) Max. RF Output Power: 0.100W Conducted Max. SAR Measurement: 0.51 W/kg over 1 gm (Body) Trade Name/Model(s): PPT8846 FCC Classification: Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): §2.1093; ET Docket 96.326 Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.22040424182.ACJ PCTEST SAR TEST REPORT SAR EVALUATION REPORT Reviewed by: Quality Manager SAR Filename: SAR.220730396.CDJ Test Dates: July 30-31, 2002 EUT Type: Handheld PC FCC ID: CDJPPT8846LA4137 Page 2 of 21 © 2002 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS TABLE OF CONTENTS.............................................................................................................2 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITION.................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................12 11. MEASUREMENT UNCERTAINTIES...................................................................................13 12. SYSTEM VERIFICATION..................................................................................................14 13. SAR TEST DATA SUMMARY.......................................................................................15-19 16. CONCLUSION...............................................................................................................19 17. REFERENCES..................................................................................................................20 PCTEST SAR TEST REPORT SAR EVALUATION REPORT Reviewed by: Quality Manager SAR Filename: SAR.220730396.CDJ Test Dates: July 30-31, 2002 EUT Type: Handheld PC FCC ID: CDJPPT8846LA4137 Page 3 of 21 © 2002 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[6] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivati…

Text truncated - open the document above for the full version.

RF Exposure Info

SAR Data Report 02073008 Start : 30-Jul-02 12:15:05 pm End : 30-Jul-02 12:21:53 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : OLYMPUS Model Number : PPT8846 Serial Number : SA00450263 Frequency : 2412 MHz Transmit Pwr : 0.100 W Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.500 Tissue Conductivity : 1.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Muscle Calibrated Dielectric : 49.200 Calibrated Conductivity : 1.950 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.500 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: DSSS MODE CH-01 BODY CF=1; Amb. Temp= 22.2 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=19.0 y=38.0 = 0.10 W/kg Zoom Scan - Max Peak SAR Value at x=12.0 y=46.0 z=0.0 = 0.26 W/kg Max 1g SAR at x=14.0 y=45.0 z=0.0 = 0.13 W/kg Max 10g SAR at x=15.0 y=40.0 z=0.0 = 0.08 W/kg 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:12.0 y:46.0 1g SAR Values 0.0774 0.0730 0.0686 0.0641 0.0597 0.0553 0.0508 0.0464 0.0420 0.0375 0.0331 SAR Data Report 02073020 Start : 30-Jul-02 03:55:42 pm End : 30-Jul-02 04:02:36 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : OLYMPUS Model Number : PPT8846 Serial Number : SA00450263 Frequency : 2412 MHz Transmit Pwr : 0.100 W Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.500 Tissue Conductivity : 1.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Muscle Calibrated Dielectric : 49.200 Calibrated Conductivity : 1.950 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.500 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: DSSS MODE CH-1 - SCREEN BODY CF=1; Amb. Temp= 22.2 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=9.0 y=46.0 = 0.41 W/kg Zoom Scan - Max Peak SAR Value at x=-1.0 y=47.0 z=0.0 = 0.88 W/kg Max 1g SAR at x=1.0 y=47.0 z=0.0 = 0.51 W/kg Max 10g SAR at x=5.0 y=47.0 z=0.0 = 0.24 W/kg -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-1.0 y:47.0 1g SAR Values 0.385…

Text truncated - open the document above for the full version.

Contact Information

Applicant

I Soya

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	100.00 mW

Confidentiality

Long Term

Grant Notes

Output power is conducted. This device is authorized for use only with Olympus PT1000 PDA as described in this filing. SAR compliance for hand-held operating configurations is limited to the configurations tested for this filing. The highest reported SAR value is - Hand-held: 0.24 W/kg.
