CEG12-468AM/FM/TVWX POCKET RADIO

Please read this user’s guide before installing, setting up, and using your new product www.radioshack.com Pocket Radio User’s Guide what’s included Your RadioShack AM/FM Pocket Radio requires three AA batteries (not supplied, available at RadioShack or online at www.radioshack.com) for power. 1. Remove the battery compartment cover. Replace when fi nished. 2. Place batteries in the compartment as indicated by the polarity symbols (+ and -) marked inside. installing batteriesinstalling batteriesinstalling 12-468 AM/FM/TV/WX pocket radio battery notes • Dispose of old batteries promptly and properly. Do not burn or bury them. • Use only fresh batteries of the required size and recommended type. • Do not mix old and new batteries or batteries of different types, capacities, or chemistries. • If you do not plan to use your radio for a month or longer, remove the batteries. Batteries can leak chemicals that may destroy electronic parts. • Keep batteries out of reach of children. They can be fatal if swallowed. ©2005. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. 12-468 01A05 Printed in China Thank you for purchasing your AM/FM/TV/WX Pocket Radio from RadioShack. NOTE: ST LED lights up when an earphone is inserted into the earphone jack and the MONO/STEREO switch is set to STEREO. listening safely To protect your hearing, follow these guidelines when you use ear phones or head phones. • Set the volume to the lowest setting before you begin listening with your ear phones. After you begin listening, set the volume to a comfortable level. • Do not listen at extremely high volume levels. Extended high-volume listening can lead to permanent hearing loss. • Once you set the volume do not increase it. Over time, your ears adapt to the volume level, so a volume level that does not cause discomfort might still damage your hearing. traffi c safety Do not wear ear phones or head phones while operating a motor vehicle or riding a bicycle. This can create a traffi c hazard a nd could be illegal in some areas. Even though some earphones or headphones let you hear some outside sounds when listening at normal volume levels, they can still present a traffi c hazard. NOTE: ST LED lights up when an earphone is inserted using your pocket radio retractable antenna ON/OFF/VOL Rotate to turn th e radio on or off and adjust volume. TUNING Rotate to select ra dio station. ear phone jack DYNAMIC BASS switch Turn dynamic bass on or off. • Keep your radio dry. If it gets wet, wipe it dry immediately. • Use and store your radio only in room temperature environments. • Handle the radio carefully. Do not drop it. • Keep your radio away from dust and dirt, and wipe it with a damp cloth occasionally to keep it looking new. • Modifying or tampering with your radio’s internal components can cause a malfunction and might void your FCC authorization to operate it. • Keep your radio dry. If it gets wet, wipe it dry immediately. caring for your pocket radiocaring for your pocket radiocaring for This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your radio. Changes or modifi cations not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, the FCC wants you to know NOTE: Actual product may vary from images found here. AM/FM/TV1/TV2/WX switch MONO/STEREO switch This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. For complete warranty details and exclusions, check with your local RadioShack store. RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/04 This product is warranted by RadioShack against manufacturing defects in material and workmanship under limited 90-day warranty 12-468[2].indd 12005/2/1 ¤U¤È 03:26:44

BLOCK DIAGRAM TV2 BA442C Front end FM FRONT END RF +IF +DET FM IF + DET LS2111FN TV1 LA1186 Front end IC2 IC6 RF RF FM RF WX RFWX MIX WX OSC IFDET Q2Q3 Q1 Q5 Q4 Q11Q2 FM OSC AM OSC OSC OSC SPK Earphone DC 4.5V VR IC1 AMP LS2822

Unit A 6/F, Wider Ind Bldg, 58, Tsun Yip Street, Kwun Tong, Kowloon, HK TEL: (852) 23410355 FAX: (852) 23422694

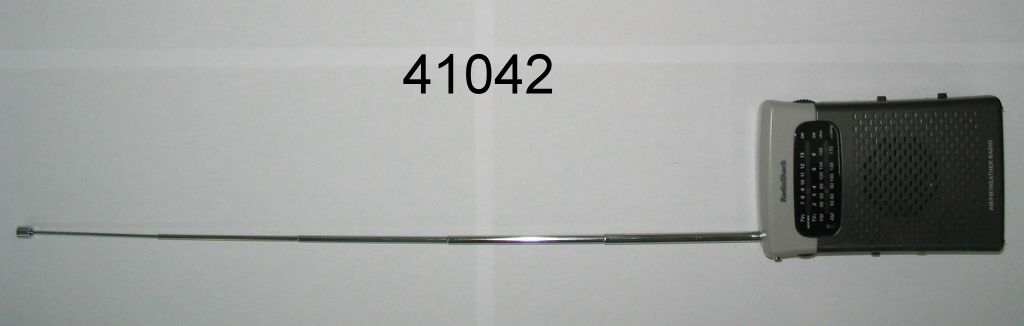

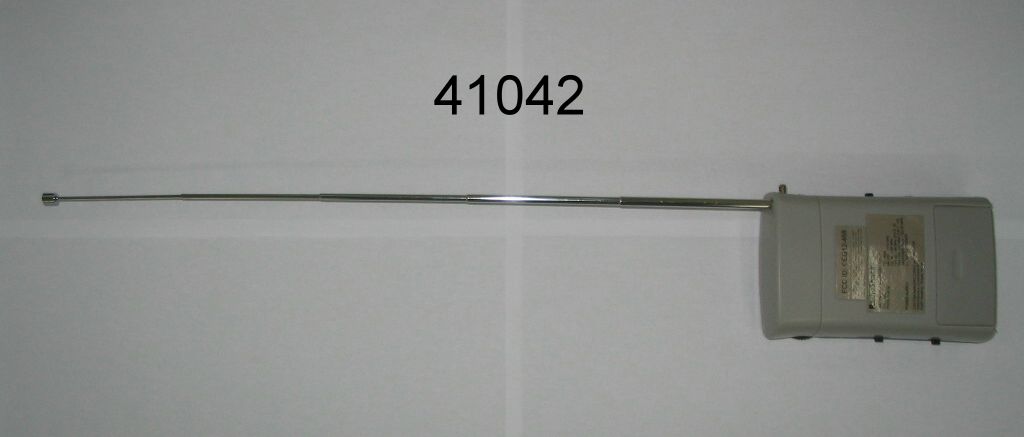

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 41042/5/200F FCC – Test Report No. 41042/5/200F Date: 2005-03-09 Page 2 of 19 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 2001 Product : AM/FM/TV/WX Pocket Radio Product Class : Communication Receiver (Super Hetrodyne) Brand Name : Radio Shack Model : 12-468 Importer : CITY ELECTRONICS LTD FCC – Test Report No. 41042/5/200F Date: 2005-03-09 Page 3 of 19 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure (> 30MHz) 8. Radiated Emission Testprocedure (9kHz – 30MHz) 9-18. Interference Radiation (Datasheet) 19. Notes for Radiation Measurement (acc. to ANSI C63.4 - 2001) FCC – Test Report No. 41042/5/200F Date: 2005-03-09 Page 4 of 19 LABORATORY - REPORT APPLICANT: ADDRESS: CITY ELECTRONICS LTD Unit A, 6/F., Wider Industrial Building 58 Tsun Yip Street, Kwun Tong, Kowloon, HONG KONG DATE OF SAMPLE RECEIVED: 2005-01-13 DATE OF TESTING: 2005-03-04 DESCRIPTION OF SAMPLE: Product: AM/FM/TV/WX Pocket Radio Product class: Communication Receiver (Super Hetrodyne) Brand name: Radio Shack Model number: 12-468 Rating: DC 4.5V ('AA' Size Battery x 3) INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B – ‘Unintentional Radiators’ RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark: 1. Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests. 2. The conducted emissions test (if applicable) has considered the limits in Sections 15.107 and 15.207 adopted under FCC 02-157 (ETDocket 98-80). The product may be marketed after July 11, 2005, and is not affected by the 15.37(j) transition provisions. FCC – Test Report No. 41042/5/200F Date: 2005-03-09 Page 5 of 19 Summary of Test Results Interference Radiation: Test result: O.K. Test data: See attached data sheet Interference Voltage: Test result: N.A. Test data: N.A. PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 41042/5/200F Date: 2005-03-09 Page 6 of 19 TEST EQUIPMENT LIST Equipment Manufacturer Model Serial No. Remark Test Receiver Rohde & Schwarz ESH 3 863497/015 150KHz – 30MHz Test Receiver Rohde & Schwarz ESH 3 892580/006 9KHz – 30MHz Test Receiver Rohde & Schwarz ESVP 860688/022 25MHz – 1,000 MHz Test Receiver Rohde & Schwarz ESVP 863512/012 25MHz – 1,000 MHz Test Receiver Rohde & Schwarz ESHS30 839667/002 9KHz – 30MHz Test Receiver Rohde & Schwarz ESVS30 828525/006 25MHz – 1000MHz Spectrum Analyzer with Q. Peak Advantest R3132 140101852 9KHz – 3GHz Spectrum Analyzer with Q. Peak Tektronix 2712 B023006 0.15MHz – 1000MHz Interface for Spectrum 2712 Tektronix TD3F14A -- -- Impulse Limiter Rohde & Schwarz ESH-3-Z2 -- -- Artificial Mains Network (LISN) Schwarzbeck NSLK 8127 8127312 2 x 10A, 50Ω, 50μH 9KHz-30MHz Artificial Mains Network (LISN) Schwarzbeck NSLK 8127 8127309 2 x 10A, 50Ω, 50μH 9KHz-30MHz Antenna System Schwarzbeck BBA 9106 / UHALP 9107 -- 30MHz – 1000MHz Antenna Mast System Schwarzbeck AM9104 -- Max. 4 meters height Loop Antenna Rohde & Schwarz HFH2-Z2 871336/48 9KHz-30MHz Turntable with Controller Drehtisch DT312 -- φ120 cm FCC – Test Report No. 41042/5/200F Date: 2005-03-09 Page 7 of 19 Radiated Emission Testprocedure (> 30MHz) Test receiver ESVP R & S Equipment under test (on turntable) Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 41042/5/200F Date: 2005-03-09 Page 8 of 19 Radiated Emission Test Procedure ( 9kHz – 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Test Receiver ESH3 Rohde & Schwarz Equipment under test (on turntable) 141 U1 Interference Radiation 30MHz to 1000MHzDate : 2005-03-09 According: FCC Part 15 Subpart B (15.109)Page 9 of 19 IECC Ref:41042/5/200F Model:12-468 Test Equipment Applicant:CITY ELECTRONICS LTD Receiver: ESVP Rohde & Schwarz Antenna: Schwarzbeck BBA 9106 Ser.Nr.:1 and UHALP 9107 Oper. Mode:FM Mode InterFreq:10.7 MHz Receiving - frequency (MHz) Oscillator- frequency (MHz) Har- monics Reading dBμV Polari- zation Correction - factor (dB) Testresult dBμV/m Limit dB(μV/m) 89.8100.5121H10.431.443.5 201.0220H16.536.543.5 301.5318H16.334.346.0 402.04<16H18.3<34.346.0 502.55<16H19.7<35.746.0 603.06<16H20.9<36.946.0 703.57<16H22.4<38.446.0 804.08<16H23.8<39.846.0 904.59<16H25.1<41.146.0 98.3109.0122H11.733.743.5 218.0220H17.037.046.0 327.0318H16.834.846.0 436.04<16H18.8<34.846.0 545.05<16H20.2<36.246.0 654.06<16H21.7<37.746.0 763.07<16H23.2<39.246.0 872.08<16H24.7<40.746.0 981.09<16H26.2<42.254.0 108.0118.7121H12.733.743.5 237.4220H17.437.446.0 356.1318H17.535.546.0 474.84<16H19.4<35.446.0 593.55<16H20.8<36.846.0 712.26<16H22.6<38.646.0 830.97<16H24.1<40.146.0 949.68<16H25.8<41.846.0 The measurements indicate that the test unit meets the FCC requirements. 141 U1 Interference Radiation 30MHz to 1000MHzDate : 2005-03-09 According: FCC Part 15 Subpart B (15.109)Page 10 of 19 IECC Ref:41042/5/200F Model:12-468 Test Equipment Applicant:CITY ELECTRONICS LTD Receiver: ESVP Rohde & Schwarz Antenna: Schwarzbeck BBA 9106 Ser.Nr.:1 and UHALP 9107 Oper. Mode:FM Mode InterFreq:10.7 MHz Receiving - frequency (MHz) Oscillator- frequency (MHz) Har- monics Reading dBμV Polari- zation Correction - factor (dB) Testresult dBμV/m Limit dB(μV/m) 89.8100.5120V10.430.443.5 201.0218V16.534.543.5 301.53<16V16.3<32.346.0 402.04<16V18.3<34.346.0 502.55<16V19.7<35.746.0 603.06<16V20.9<36.946.0 703.57<16V22.4<3…
