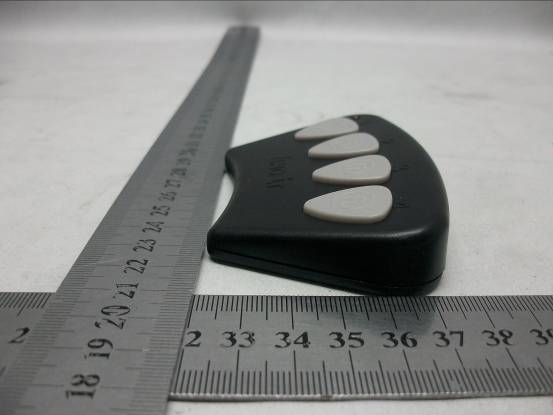

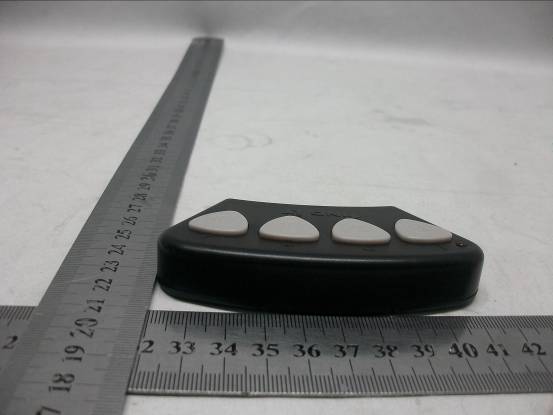

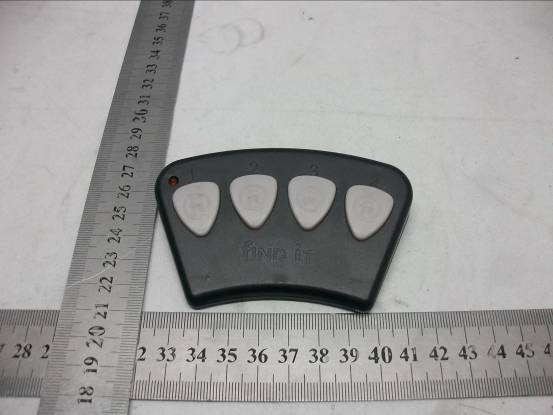

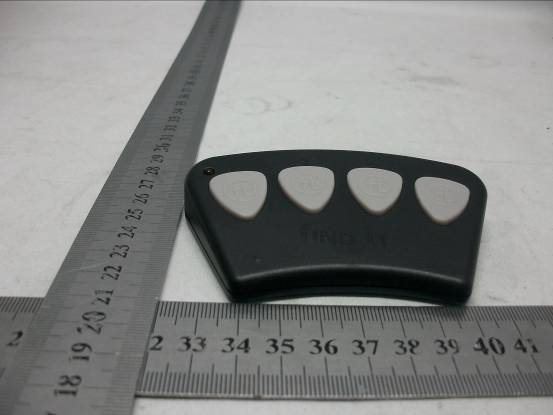

CEO-FI-104Wireless Electronic Key Finder

Transmitter Circuit schematic description: When S1-S4 any key is pressed, the U1 internal code encoding the output signal, Q4, and SB1 the 433.92MHz high-frequency carrier signal is coded signal transmission produced by the U1. Signal modulation, Emission (Q2,Q3,Q4,SB1) 433.92MHZ Crystal Output coded signal (U1) Switch control and coding (S1,S2,S3,S4，Q1)

Goodfellas Group LLC. March 01, 2012 Federal Communications commission Authorization and Evaluation Division 7435 Oakland Mills Road Colunbla, MD 21046 To Whom It May Concern: We , Goodfellas Group LLC Hereby authorize Most Technology Service Co., Ltd. Located at No.5, Langshan 2 nd Rd., North Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China on our behalf, to apply to the Federal communications Commission on our equipment, Any and all acts carried out by Most Technology Service Co., Ltd. On our behalf shall have the same effect as acts of our own, This authorization expires on March 01, 2013 This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Hybrinix Technology Sdn.Bhd. are not subject to a denial of federal benefits pursuant to section 5301 of the Anti-Drug Act of 1988, 21 usc853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Name: John VanHall Title: (Manager ) Company: Goodfellas Group LLC Date: March 01, 2012

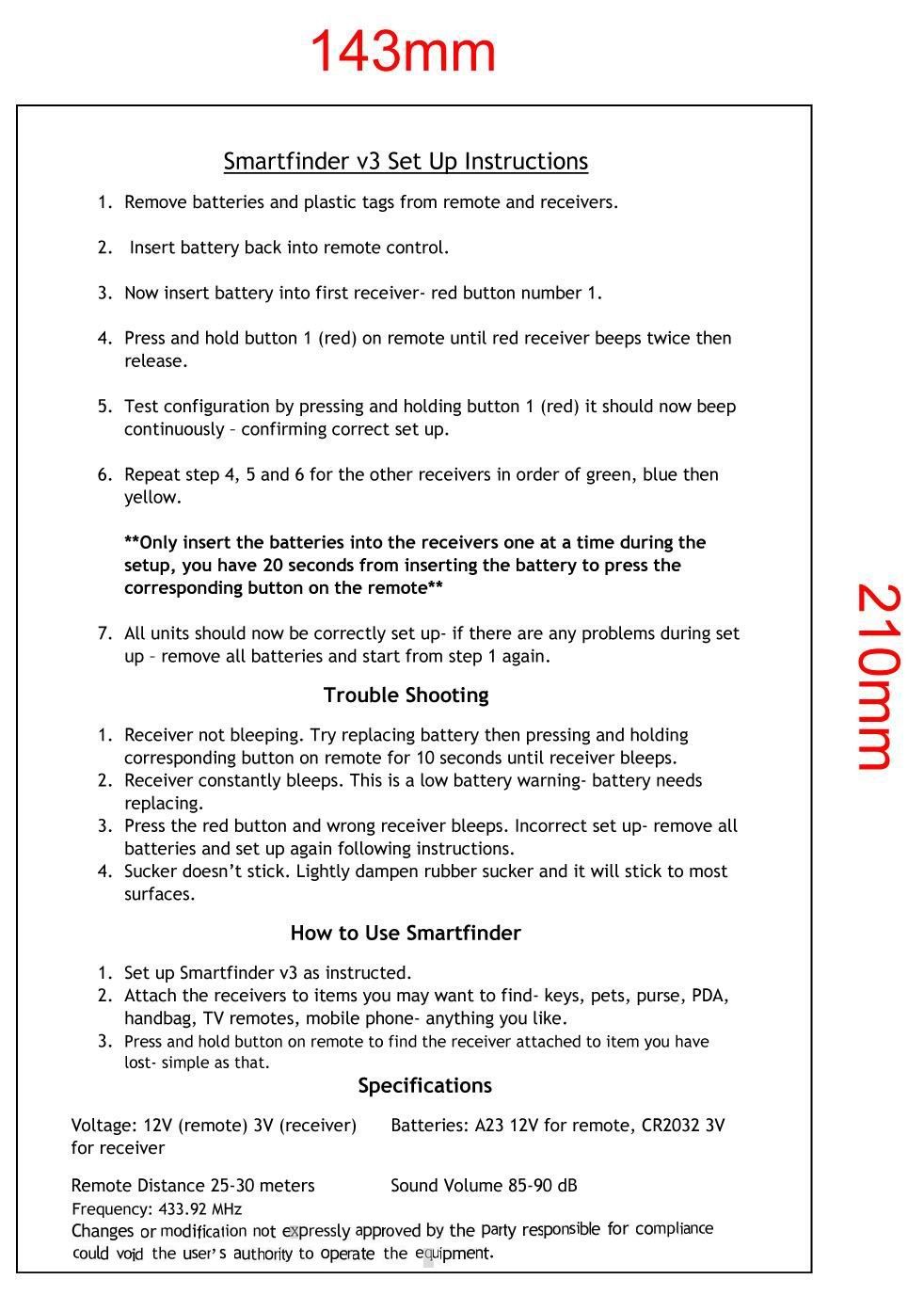

FCC ID: CEO-FI-104 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation.

Transmitter Circuit schematic description: When S1-S4 any key is pressed, the UI internal encoding outputs encoding signal, and then Q4 and SB1 generate the 433.92MHz high-frequency carrier signal that transmits coded signal produced by the U1 A description of the circuit functions: The circuit is through triggering switch control circuit S1-S4, then after the encoding of the signal, and thus outputing signal to Q4 and SB1 circuit that generates the specific signal of 433.92MHz. The circuit triggering and transmitting antenna transmits signal to the receiver to achieve emission purposes, and the receiving antenna will receive the signals. Signal modulation, Emission (Q2,Q3,Q4,SB1) 433.92MHZ Crystal Output coded signal (U1) Switch control and coding (S1,S2,S3,S4，Q1)

SM-104 To finder material list Tr a n s m i t ter Component name Component modes/specifications The amount of remarks IC-SMD EV1527 1 U1 Transistor-SMD KTC9015 1 Q1 Transistor-SMD SS8050-Y1 1 Q2 Transistor-SMD S9018LT1-J8 1 Q3 Transistor-SMD 2SC4226 1 Q4 Chip resistor 330K-0603 1 R9 Chip resistor 100K-0603 1 R6 Chip resistor 68K-0603 1 R11 Chip resistor 51K-0603 1 R10 Chip resistor 15K-0603 1 R13 Chip resistor 4.7K-0603 4 R1-R4 Chip resistor 3.9K-0603 1 R5 Chip resistor 560R-0603 1 R12 Chip resistor 680R-0603 1 R8 Chip resistor 10R-0805 1 R7 Chip capacitors 1P-0805 1 C8 Chip capacitors 2P-0805 2 C5,C9 Chip capacitors 4P-0805 1 C4 Chip capacitors 6P-0805 1 C6 Chip capacitors 100P-0805 1 C7 Chip capacitors 104P-0805 1 C2 Chip capacitors 106P-0805 1 C1 PCB backplane SM104-2 1 LED-DIP ∮2mm-Round-Red red 1 D1 Hollow inducatance 0.7*3.5*1.5T 2 L1,L3 Hollow inducatance 0.7*5.0*1.5T 1 L4 Color ring inductance 10UH-1/2W 1 L2 SAW filter HR433A+/-75K(TO-39) 1 SB Tact Switch-DIP 6*6*4.5-160gram 4 S1,S2,S3,S4 Environment protection wire(ROHS) 9/1.05*60mm black line 1 Environment protection wire(ROHS) 9/1.05*60mm red line 1 Screw PA2.0*7 5 Screw PA2*5 4 VR-M cells VR-M-01- positive 1 VR-M cells VR-M-02- negative 1 Triangle hanging ring(Environment protection ROHS) Triangle hanging ring(Environment protection ROHS) 1 SM104 transmitter surface shell SM104 transmitter surface shell 1 SM104 launch the device bottom shell SM104 launch the device bottom shell 1 SM104 transmitter battery door The SM104 receiver battery door 1 -4 key SM104 transmitter PVC paste 75.65*75.65(cross/4 keys PC material+gum) 1

11 22 33 44 D D C C B B A A Ti tl e Nu mb er Revi sio n Size A4 Date: 2011-5-25 Sheet of Fil e: C:\ Docu men ts and Set ti ngs \.. \Sheet1 .Sch Drawn By: 1 2 3 45 6 7 8 U1 ev1527 R927 0K Q1 90 15 R868 0R R53. 9K R24. 7K S3 S4 S2 12 V R44. 7K R610 0K R34. 7K C1 10 6 R13 7. 5K R1051 K Q2 80 50 D 13 2 SB1 43 3MHz Q390 18 C4 4p F R1168 K R12 1. 2K R7 10R L1 3. 5* 1.5 *0 .6 C5 2p F C6 5P C7 10 0p F C81p F C9 2pF L2 10 uH Q442 26 L33. 5*1 .5* 0.7 L4 5* 1.5 *0 .7 E1 C210 4 S1 R14. 7K D1 C3 *

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : Goodfellas Group LLC Address : 9125 Woodhall Crossing N Brooklyn Park, MN 55443 USA Product Name : Wireless electronic key finder Model Name : FI-104 Brand Name : N/A FCC ID : CEO-FI-104 Report No. : MTE/EAH/D12020150 Date of Issue : March. 02, 2012 Issued by :Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 27 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: CEO-FI-104 Report No.: MTE/EAH/D12020150 Page 2 of 27 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 3 2. GENERAL INFORMATION ............................................................................................................................ 4 2.1 Product Information ...................................................................................................................................... 4 2.2 Objective ...................................................................................................................................................... 5 2.3 Test Standards and Results .......................................................................................................................... 5 2.4 Environmental Conditions............................................................................................................................. 5 3. TEST METHODOLOGY................................................................................................................................. 6 3.1 TEST FACILITY............................................................................................................................................ 6 3.2 GENERAL TEST PROCEDURES ................................................................................................................ 6 4 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................ 7 4.1 SETUP CONFIGURATION OF EUT............................................................................................................. 7 4.2 SUPPORT EQUIPMENT.............................................................................................................................. 7 4.3 TEST EQUIPMENT LIST ............................................................................................................................. 8 5. 47 CFR Part 15 C Requirements.................................................................................................................. 9 5.1 Radiated Emission ....................................................................................................................................... 9 5.2 20dB Bandwidth ......................................................................................................................................... 15 5.3 Transmission Cease Time .......................................................................................................................... 16 5.4 Antenna Requirement................................................................................................................................. 18 APPENDIX 1 .................................................................................................................................................... 19 PHOTOGRAPHS OF TEST SETUP ................................................................................................................ 19 APPENDIX 2 .................................................................................................................................................... 22 PHOTOGRAPHS OF EUT ............................................................................................................................... 22 FCC ID: CEO-FI-104 Report No.: MTE/EAH/D12020150 Page 3 of 27 1．VERIFICATION OF CONFORMITY Equipment Under Test: Wireless electronic key finder Brand Name: N/A Model Number: FI-104 FCC ID： CEO-FI-104 Goodfellas Group LLC Applicant: 9125 Woodhall Crossing NBrooklyn Park,MN 55443,USA Shenzhen Qiyao Plastic&Electronic Manufacturer: 6 th BLD,4# Chuangye,NO.2 Zhangbei Village,Ailian,Longgang District,Shenzhen Technical Standards: 47 CFR Part 15 Subpart C File Number: MTE/EAH/D12020150 Date of test: Feb. 26-29, 2012 Deviation: None Condition of Test Sample: Normal Test Result: PASS The above equipment was tested by Most Technology Service Co., Ltd. for compliance with the requirements set forth in FCC rules and the Technical Standards mentioned above. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment and the level of the immunity endurance of the equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Prepare by (+ signature): Dona Liu Feb. 26-29, 2012 Review by (+ signature): Elva Wong March. 02, 2012 Approved by (+ signature): Yvette Zhou March. 02, 2012 FCC ID: CEO-FI-104 Report No.: MTE/EAH/D12020150 Page 4 of 27 2. GENERAL INFORMATION 2.1 Product Information Product Wireless electronic key finder Brand Name N/A Model Number FI-104 Series Model Name: N/A Difference description: N/A Power Supply DC 12V by battery Frequency Range 433.92 MHz Channel Number: 1 Modulation Technique ASK Temperature Range -10°C- 50°C …
