CKLHWP-120Single-Mode Cellular CDMA WLL Terminal

© 2000 PCTEST Lab ATTACHMENT M – USER’S MANUAL i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. To comply with FCC RF exposure requirements, a minimum separation distance of 2.5 cm (1.0 inches) must be maintained between the user/bystander and the back of the unit, including the antenna. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before use

© 2000 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S)

© 2000 PCTEST Lab ATTACHMENT A – COVER LETTER(S) December 8, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: HYUNDAI Electronics Industries, Co., Ltd. FCC ID: CKLHWP-120 Part 22 Certification Gentlemen: Attached herewith, on behalf of HYUNDAI Electronics Industries, Co., Ltd. is an application for Part 22 Certification of the following: FCC ID: CKLHWP-120 TRADE / MODEL(s): HYUNDAI HWP-120 Equipment Class: Non-Broadcast Station Transmitter (TNB) Equipment Type: Single-Mode Cellular CDMA WLL Terminal Tx Freq. Range: 824.70 – 848.31 MHz Rx Freq. Range: 869.70 – 893.31 MHz Max. RF Output Power: 0.33 W ERP (25.16 dBm) Attached is the Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Ja Beom Koo Quality Management Dept. Systems Quality Assurance Office

© 2000 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz)

© 2000 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz)

© 2000 PCTEST Lab ATTACHMENT L – OPERATIONAL DESCRIPTION

© 2000 PCTEST Lab ATTACHMENT O – SAR TEST DATA File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00120407_ZOOM.VLT Start : 4-Dec-100 01:05:18 pm End : 4-Dec-100 01:12:36 pm Radio Type : HYUNDAI Model Number : HWP-120 Serial Number : 01 Frequency : 824.70 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : HYUNDAI SINGLE MODE WLL BODY SAR CHAN 1013 Conducted 25.0 CDMA MODE WLL 2.5 cm spacing Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -3.000, Y = 0.750, Z = 0.000 (cm) Value = 20.269 Measured Values (volts) = 1.931E-002 1.638E-002 1.414E-002 1.192E-002 1.001E-002 8.286E-003 6.987E-003 6.435E-003 6.423E-003 6.519E-003 6.560E-003 6.528E-003 5.744E-003 4.740E-003 3.667E-003 2.536E-003 1.770E-003 1.762E-003 2.156E-003 2.895E-003 3.550E-003 Calc. Voltage @ Surface (Vs) = 0.0226 Voltage @ 1.00 cm (Vt) = 0.0119 Ave. Voltage (Vs+Vt)/2 = 0.0172 Ave. SAR over 1 g (mW/g) = 1.4276 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 00120407_ZOOM Start : 4-Dec-100 01:05:18 pm End : 4-Dec-100 01:12:36 pm HYUNDAI/HWP-120/01;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 00120407_ZOOM Start : 4-Dec-100 01:05:18 pm End : 4-Dec-100 01:12:36 pm HYUNDAI/HWP-120/01;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.678 1.616 1.554 1.492 1.430 1.368 1.306 1.244 1.182 1.120 File : 00120407_ZOOM Start : 4-Dec-100 01:05:18 pm End : 4-Dec-100 01:12:36 pm HYUNDAI/HWP-120/01;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.678 1.616 1.554 1.492 1.430 1.368 1.306 1.244 1.182 1.120 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00120408_ZOOM.VLT Start : 4-Dec-100 01:28:17 pm End : 4-Dec-100 01:35:36 pm Radio Type : HYUNDAI Model Number : HWP-120 Serial Number : 01 Frequency : 835.89 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : HYUNDAI SINGLE MODE WLL BODY SAR CHAN 0363 Conducted 25.0 CDMA MODE WLL 2.5 cm spacing Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -3.000, Y = 0.750, Z = 0.000 (cm) Value = 20.680 Measured Values (volts) = 1.965E-002 1.688E-002 1.467E-002 1.274E-002 1.072E-002 9.061E-003 7.472E-003 6.638E-003 6.409E-003 6.685E-003 6.655E-003 6.788E-003 6.185E-003 5.274E-003 3.987E-003 2.822E-003 2.077E-003 1.832E-003 2.204E-003 2.832E-003 3.597E-003 Calc. Voltage @ Surface (Vs) = 0.0227 Voltage @ 1.00 cm (Vt) = 0.0127 Ave. Voltage (Vs+Vt)/2 = 0.0177 Ave. SAR over 1 g (mW/g) = 1.4686 File : 00120408_AREA Start : 4-Dec-100 01:19:53 pm End : 4-Dec-100 01:28:17 pm HYUNDAI/HWP-120/01;835.89MHz;W;Helical/Internal; Body/Abdomen;AREA;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.59 1.42 1.25 1.09 0.92 0.75 0.58 0.42 0.25 0.08 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 00120408_ZOOM Start : 4-Dec-100 01:28:17 pm End : 4-Dec-100 01:35:36 pm HYUNDAI/HWP-120/01;835.89MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 00120408_ZOOM Start : 4-Dec-100 01:28:17 pm End : 4-Dec-100 01:35:36 pm HYUNDAI/HWP-120/01;835.89MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.712 1.649 1.586 1.523 1.460 1.397 1.334 1.271 1.208 1.145 File : 00120408_ZOOM Start : 4-Dec-100 01:28:17 pm End : 4-Dec-100 01:35:36 pm HYUNDAI/HWP-120/01;835.89MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.712 1.649 1.586 1.523 1.460 1.397 1.334 1.271 1.208 1.145 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00120417_ZOOM.VLT Start : 4-Dec-100 03:17:56 pm End : 4-Dec-100 03:27:54 pm Radio Type : HYUNDAI Model Number : HWP-120 Serial Number : 01 Frequency : 848.31 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : HYUNDAI SINGLE MODE WLL BODY SAR CHAN 0777 Conducted 25.0 CDMA MODE WLL 2.5 cm spacing Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -3.250, Y = 0.500, Z = 0.000 (cm) Value = 17.783 Measured Values (volts) = 1.743E-002 1.501E-002 1.335E-002 1.158E-002 9.913E-003 8.088E-003 6.730E-003 5.724E-003 5.206E-003 5.152E-003 5.290E-003 5.403E-003 5.306E-003 4.862E-003 3.948E-003 3.035E-003 2.215E-003 1.672E-003 1.609E-003 2.055E-003 2.587E-003 Calc. Voltage @ Surface (Vs) = 0.0199 Voltage @ 1.00 cm (Vt) = 0.0116 Ave. Voltage (Vs+Vt)/2 = 0.0158 Ave. SAR over 1 g (mW/g) = 1.3040 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 00120417_ZOOM Start : 4-Dec-100 03:17:56 pm End : 4-Dec-100 03:27:54 pm HYUNDAI/HWP-120/01;848.31MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 00120417_ZOOM Start : 4-Dec-100 03:17:56 pm End : 4-Dec-100 03:27:54 pm HYUNDAI/HWP-120/01;848.31MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.472 1.417 1.36…

Text truncated - open the document above for the full version.

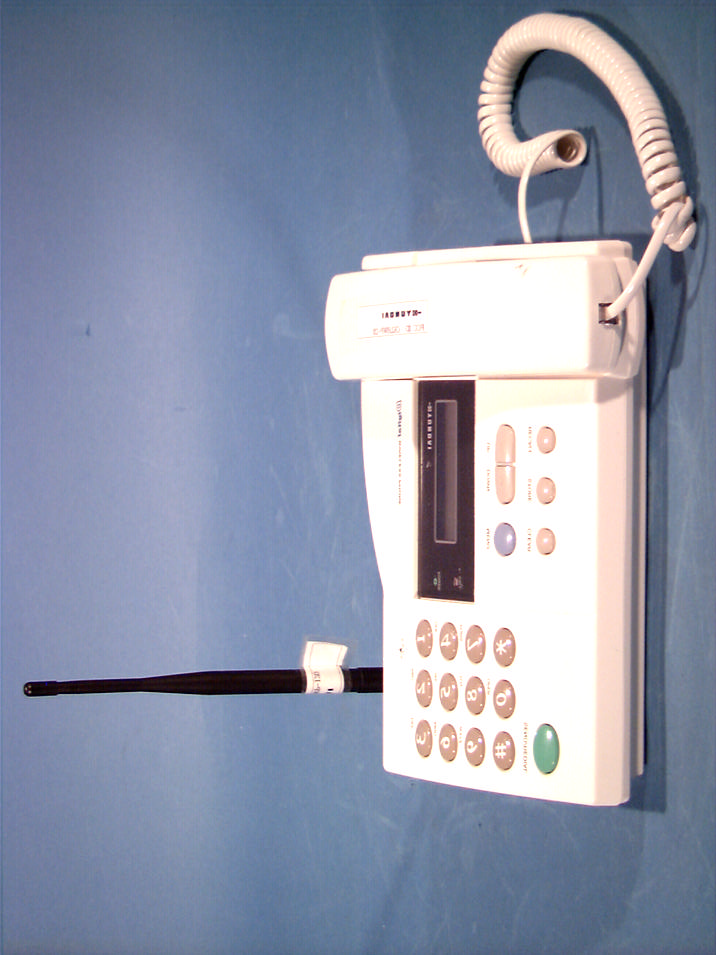

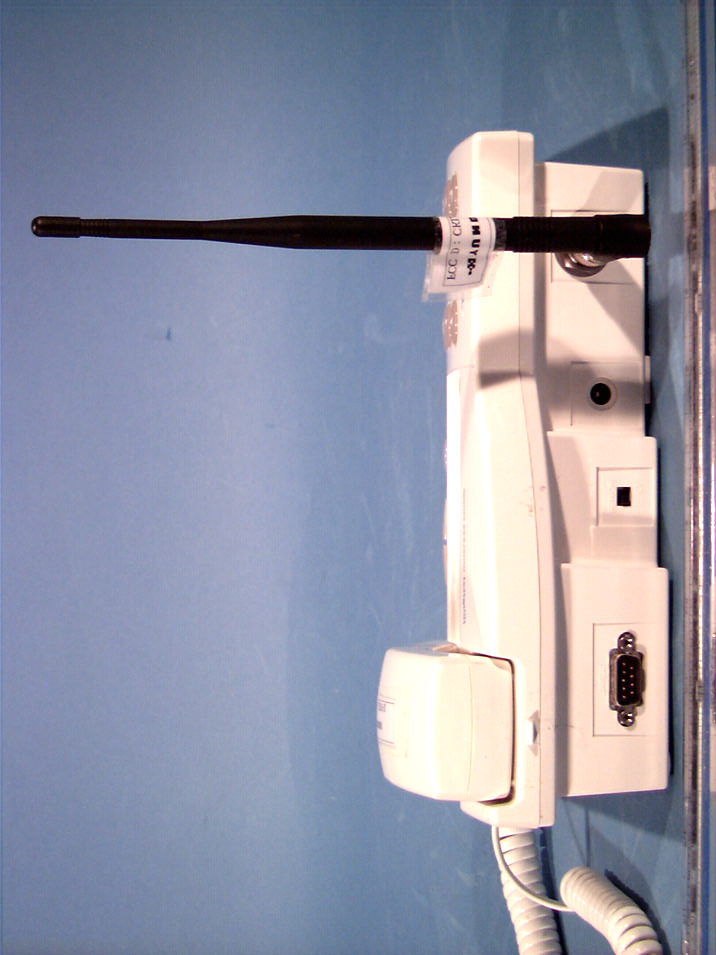

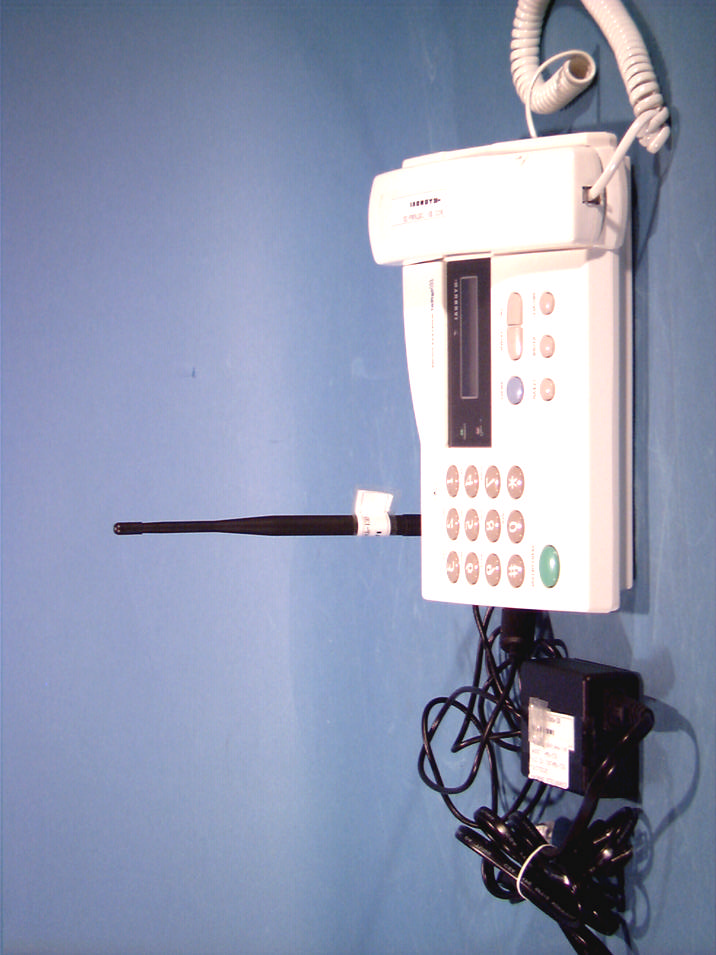

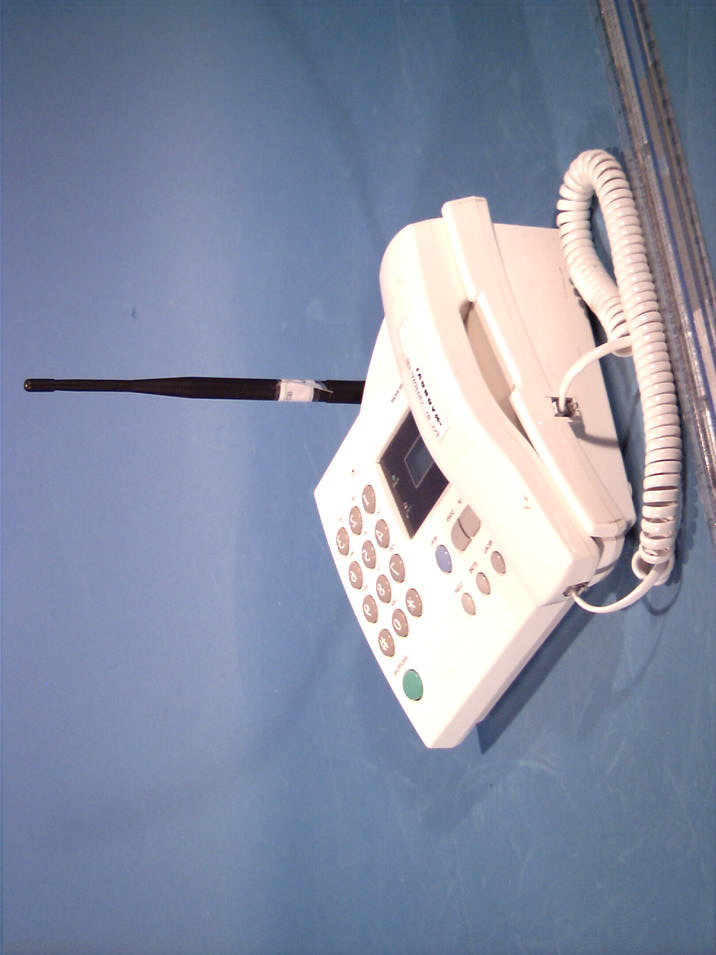

© 2000 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz)

© 2000 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Electronics Industries, Co., Ltd. Dates of Tests: December 4-5, 2000 San 136-1, Ami-Ri, Bubal-Eub Test Report S/N: SAR.201122586.CKL Ichon-Si, Kyungki-Do, KOREA 467-701 Test Site: PCTEST Lab, Columbia, MD Attn: Mr. Ja Beom Koo Quality Management Dept. Systems Quality Assurance Office FCC ID CKLHWP-120 APPLICANT HYUNDAI Electronics Industries, Co., Ltd. EUT Type: Single-Mode Cellular CDMA WLL Terminal Tx Frequency: 824.70 – 848.31 MHz Rx Frequency: 869.70 – 893.31 MHz Max. RF Output Power: 0.33 W ERP (25.16 dBm) Trade Name/Model(s): HYUNDAI HWP-120 FCC Classification: Non-Broadcast Station Transmitter (TNB) Application Type: Certification Serial Number: n/a (pre production) FCC Rule Part(s): 2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 201122586.CKL SAR Measurement Report FCC Part 22 Certification © 2000 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE SYSTEM 5-6 6.1 PHANTOM & EQUIVALENT TISSUES 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE EUT 10 10.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 11 11.1 MEASUREMENT UNCERTAINTIES 12 12.1 TEST DATA SUMMARY 13 13.1 SAR TEST EQUIPMENT LIST 14 14.1 CONCLUSION / REFERENCES 15 Test Report S/N: SAR.201122586.CKL SAR Measurement Report Test Dates: December 4-5, 2000 FCC Part 22 Certification © 2000 PCTEST Lab Cellular CDMA WLL Terminal 1 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant: HYUNDAI Electronics Industries, Co., Ltd. Address: San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kyungki-Do, KOREA 467-701 Attention: Mr. Ja Beom Koo Quality Management Dept. System Quality Assurance Office • EUT Type: Single-Mode Cellular CDMA WLL Terminal • FCC Rule Part(s): § 2.1093, Docket 96-326 • Trade Name: HYUNDAI • FCC IDENTIFIER: CKLHWP-120 • Model(s): HWP-120 • S/N: Pre-production • Tx Frequency: 824.70 ~ 848.31 MHz • Rx Frequency: 869.70 ~ 893.31 MHz • Application Type: Certification • FCC Classification: Non-Broadcast Station Transmitter (TNE) • Max. RF Output Power: 0.33 W ERP (25.16 dBm) • Modulation: CDMA • Antenna Type: Helical (λ/2) • Antenna Dimensions: 23.4 cm. (Length) • Dates of Tests: December 4-5, 2000 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.201122586.CKL 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Test Report S/N: SAR.201122586.CKL SAR Measurement Report Test Dates: December 4-5, 2000 FCC Part 22 Certification © 2000 PCTEST Lab Cellular CDMA WLL Terminal 2 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab ATTACHMENT C – TEST REPORT © 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification HYUNDAI Electronics Industries Co., Ltd. Dates of Tests: December 4-5, 2000 San 136-1, Ami-Ri, Bubal-Eub Test Report S/N: 22.201122587.CKL Ichon-Si, Kyungki-Do, KOREA 467-701 Test Site: PCTEST Lab, Columbia MD Attn: Mr. Ja Beom Koo Quality Management Dept. System Quality Assurance Office FCC ID CKLHWP-120 APPLICANT HYUNDAI Electronics Industries Co., Ltd. Classification: Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): §22.901(d), §2 EUT Type: Single-Mode Cellular CDMA WLL Terminal Trade Name/Model(s): HYUNDAI HWP-120 Tx Frequency Range: 824.70 ~ 848.31 MHz Rx Frequency Range: 869.70 ~ 893.31 MHz Max. RF Output Power: 0.33 W ERP (25.16 dBm) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 201122587.CKL Certification © 2000 PCTEST Engineering Laboratory, Inc. FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS PER §2.1033(d) 3 4.1 DESCRIPTION OF TESTS 4-6 5.1 EFFECTIVE RADIATED POWER OUTPUT 7 6.1 RADIATED MEASUREMENTS 8-10 7.1 FREQUENCY STABILITY 11-12 8.1 PLOTS OF EMISSIONS 13 9.1 LIST OF TEST EQUIPMENT 14 10.1 SAMPLE CALCULATIONS 15 11.1 CONCLUSION 16 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22.201122587.CKL FCC Part 22 Test Dates: December 4-5, 2000 Certification © 2000 PCTEST Lab Cellular CDMA WLL Terminal 1 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849MHz) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033(a) General Information Applicant Name: HYUNDAI Electronics Industries Co., Ltd. Address: San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kyungki-Do, KOREA 467-701 Attention: Mr. Ja Beom Koo Quality Management Dept. System Quality Assurance Office • FCC ID: CKLHWP-120 • Trade Name/Model(s): HYUNDAI HWP-120 • Quantity: Quantity production is planned • Emission Designator: 1M25F9W • Tx Freq. Range: 824.70 – 848.31 MHz Rx Freq. Range: 869.70 – 893.31 MHz • Equipment Class: Non-Broadcast Station Transmitter (TNB) • Equipment Type: Single-Mode Cellular CDMA WLL Terminal • Modulation: CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. RF Output Power: 0.33W ERP (25.16 dBm) • FCC Rule Part(s): § 22.901(d), §2 • Battery Pack: 8.4 VDC Ni-Cd • Dates of Tests: December 4-5, 2000 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.201122587.CKL Test Report S/N: 22.201122587.CKL FCC Part 22 Test Dates: December 4-5, 2000 Certification © 2000 PCTEST Lab Cellular CDMA WLL Terminal 2 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849MHz) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at 3-meter test range (see Figure 2). The equipment under test is placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level is recorded. For readings above 1GHZ, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna is taken into consideration. Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Figure 2. 3-meter Outdoor Test Site Test Report S/N: 22.201122587.CKL FCC Part 22 Test Dates: Decembe…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab ATTACHMENT D – TEST PLOTS

© 2000 PCTEST Lab ATTACHMENT F – TEST SETUP PHOTOGRAPHS © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz) © 2000 PCTEST Lab Cellular CDMA WLL Terminal NVLAP Lab Code: 100431-0 HYUNDAI FCC ID: CKLHWP-120 (Tx 824-849 MHz)
