CNJNT70861Walkie Talkies

Model: 7086 WALKIE TALKIES RECEIVER DISTANCE OF 325ft Frequency 49.860MHz FCC ID : CNJNT70861 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications of this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Product Features battery operated – 2 X 9 Volt (not included) ON/OFF button switch PUSH to talk, release to listen. Communication range is approximately 325 feet How to Operate 1) Open the battery compartment with a screwdriver and snap in a 9-Volt battery, close the door firmly. 2) Turn the ON/OFF switch to ON position and then press the PUSH TO TALK button to transmit. 3) speak in a normal voice level into the mic located in the front 4) Release the PUSH TO TALK button to receive transmissions 5) Best receptions are obtained when the flexible antenna is held at vertical position. Battery Instruction and Replacement Change battery when the sound is weak After use, always turn the ON/OFF switch to the OFF position. Remove the batteries when the toy is not in use. Replacement of batteries must be done by adult This toy requires 2 x 9V type batteries. To replace batteries, unscrew the cover using a screwdriver. Note the polarity of batteries, remove and replace with new batteries. Do not use rechargeable batteries. Do not mix used and new batteries. Do not mix alkaline, standard (Carbon-Zinc) or rechargeable (NICKEL-CADMIUM) batteries. Used batteries are to be removed from the battery compartment. COLOR OF CONTENT MAY VARY. PLEASE KEEP THE PACKAGING, IT CONTAINS IMPORTANT INFORMATION. Complies with ASTM F963 Standard Consumer Safety Specification for Toy Safety. Made in China for Kmart Corporation Hoffman Estates, IL 60179 Check out the entire line of Just Kidz Toys At www.Kmart.com/Justkidz Bar code UPC: 0018948070863 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

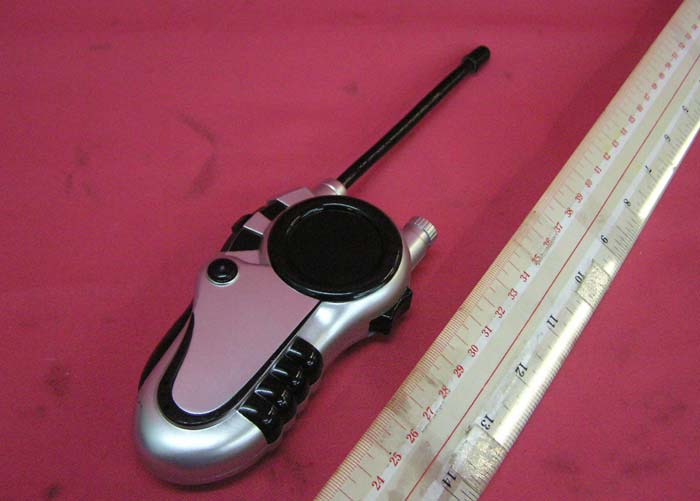

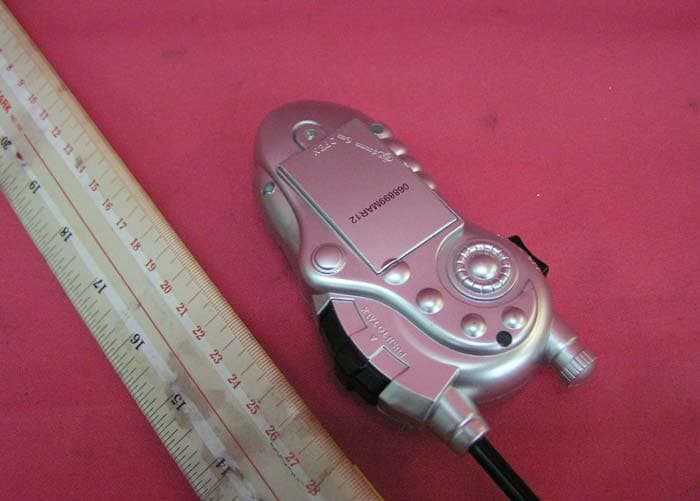

INTERTEK TESTING SERVICE Report No.: HK12030295-1 FCC ID: CNJNT70861 Equipment Photographs Model : 7086 (External)

INTERTEK TESTING SERVICE Report No.: HK12030295-1 FCC ID: CNJNT70861 Equipment Photographs Model: 7086 (Internal) INTERTEK TESTING SERVICE Report No.: HK12030295-1 FCC ID: CNJNT70861 Equipment Photographs Model: 7086 (Internal) INTERTEK TESTING SERVICE Report No.: HK12030295-1 FCC ID: CNJNT70861 Equipment Photographs Model: 7086 (Internal)

Technical Description: The brief circuit description is listed as follows: XTAL and associated circuit act as 49.860MHz oscillator S9018 and associated circuit act as modulator / super-regenerative receiver. S9013, S9014 and associated circuit act as audio signal amplifier. Antenna Used: An external, integral antenna has been used.

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12030295-1 Newtoys & Novelty (HK) Limited Application For Certification (Original Grant) (FCC ID: CNJNT70861) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: April 12, 2012 INTERTEK TESTING SERVICES Report No.: HK12030295-1 FCC ID: CNJNT70861 i GENERAL INFORMATION Newtoys & Novelty (HK) Limited BRAND NAME: JUSTKIZ, MODEL: 7086 FCC ID: CNJNT70861 Grantee: Newtoys & Novelty (HK) Limited Grantee Address: Units 808-9, 8/F., Peninsula Centre, 67 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Emily Wong Tel: (852) 2302 0201 Fax: (852) 2302 0206 e-mail: [email protected] Manufacturer: Guangdong Yinrun Industry Co., Ltd. Manufacturer Address: Laimei Zone, Chenghai, Shantou City, Guangdong, China. Brand Name: JUSTKIZ Model: 7086 Type of EUT: Transciever Description of EUT: Walkie Talkies Serial Number: N/A FCC ID: CNJNT70861 Date of Sample Submitted: March 06, 2012 Date of Test: March 06, 2012 to April 06, 2012 Report No.: HK12030295-1 Report Date: April 12, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12030295-1 FCC ID: CNJNT70861 ii SUMMARY OF TEST RESULT Newtoys & Novelty (HK) Limited BRAND NAME: JUSTKIZ, MODEL: 7086 FCC ID: CNJNT70861 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12030295-1 FCC ID: CNJNT70861 iii Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ................................................................................................. 1 1.2 Related Submittal(s) Grants .................................................................................... 1 1.3 Test Methodology.................................................................................................... 1 1.4 Test Facility ............................................................................................................. 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification ............................................................................................................. 2 2.2 EUT Exercising Software ........................................................................................ 2 2.3 Special Accessories ................................................................................................ 2 2.4 Equipment Modification ........................................................................................... 2 2.5 Measurement Uncertainty ....................................................................................... 2 2.6 Support Equipment List and Descript…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12030295-1 Sample No.: 1/4 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement (Pass/Fail) INTERTEK TESTING SERVICES Report No.: HK12030295-1 Sample No.: 1/4 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK12030295-1 FCC ID: CNJNT70861 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 7086 -1 INTERTEK TESTING SERVICE Report No: HK12030295-1 FCC ID: CNJNT70861 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 7086 -1
