CNOHH1202PART 18 SUBPART C RF LIGHTING DEVICES--Fluorescent Lamp Ballast

User’s Manual FCC Note: “This light device has been tested and found to comply with the limits for Consumer RF Lighting device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45 – 30MHz.” * Reorient or relocated the equipment position * Increase the separation between the equipment and the other electronic equipments * Connect the equipment into other circuit different from other electronic equipments are connected * Consult the dealer or an experienced electronic equipments technician for help Caution: 1. Use only on 120V/60Hz 2. Turn off the switch when replacing and cleaning 3. Wipe lamp with a dry duster. 4. Do not use any chemical duster or solvent such as benzene or thinner. 5. Do not spray insecticide on this lamp. 6. Suitable for indoor use. Reliable operating temperature is -10-100 F. Do not use with dimmers or other control devices.

Block Diagram FOR MODEL: T2 HALF SPIRAL CFL ‐ 13W， T2 HALF SPIRAL CFL ‐ 18W T2 HALF SPIRAL CFL ‐ 23W T3 HALF SPIRAL CFL ‐ 13W T3 HALF SPIRAL CFL ‐ 18W T3 HALF SPIRAL CFL ‐ 23W INPUT: 120V/60Hz FUNDAMENTAL OPERATION FREQUENCY IS 41.7KHz AC Rectifier & EMC filter Starting Circuit Half Bridge Inverter Tube Lighting

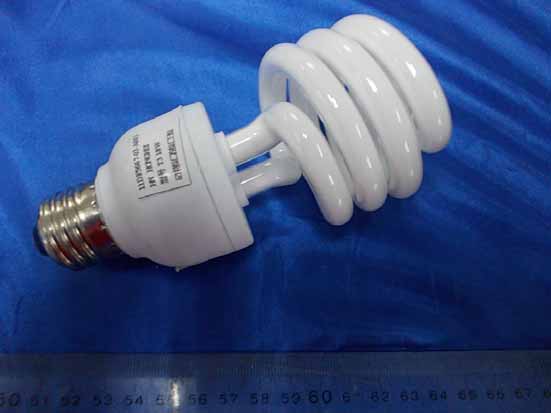

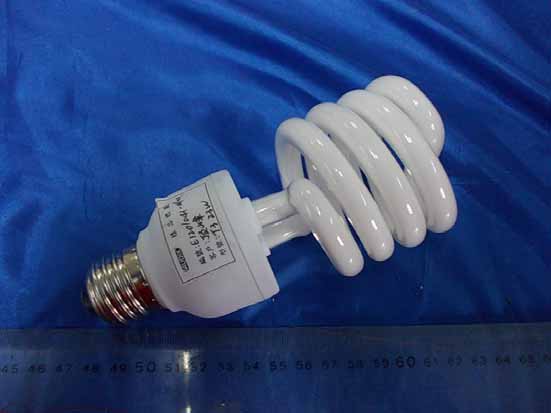

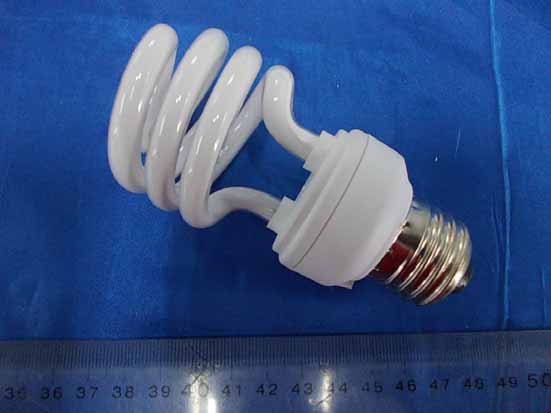

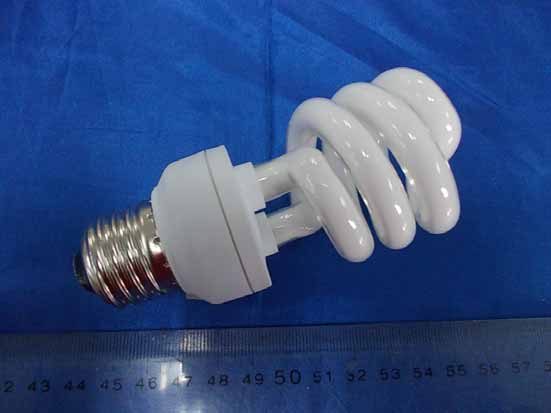

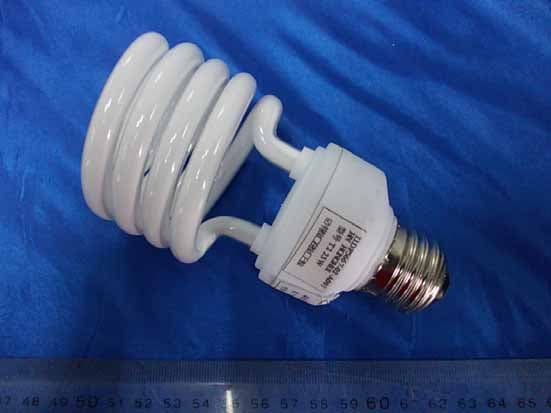

FIGURE 1 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 13W) GENERAL APPEARANCE F IGURE 2 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 18W) GENERAL APPEARANCE FIGURE 3 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 23W) GENERAL APPEARANCE F IGURE 4 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 13W) GENERAL APPEARANCE FIGURE 5 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 18W) GENERAL APPEARANCE F IGURE 6 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 23W) GENERAL APPEARANCE

Label Location Information Refer to the below red arrow: Location HAINING HONGHUI FCC ID: CNOHH1202

FIGURE 1 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 13W) COVER REMOVED FIGURE 2 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 13W) MAIN BOARD (COMPONENT SIDE) F IGURE 3 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 13W) MAIN BOARD (SOLDERED SIDE) FIGURE 4 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 18W) COVER REMOVED FIGURE 5 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 18W) MAIN BOARD (COMPONENT SIDE) F IGURE 6 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 18W) MAIN BOARD (SOLDERED SIDE) FIGURE 7 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 23W) COVER REMOVED FIGURE 8 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 23W) MAIN BOARD (COMPONENT SIDE) F IGURE 9 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T2 HALF SPIRAL CFL - 23W) MAIN BOARD (SOLDERED SIDE) FIGURE 10 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 13W) COVER REMOVED FIGURE 11 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 13W) MAIN BOARD (COMPONENT SIDE) F IGURE 12 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 13W) MAIN BOARD (SOLDERED SIDE) FIGURE 13 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 18W) COVER REMOVED FIGURE 14 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 18W) MAIN BOARD (COMPONENT SIDE) F IGURE 15 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 18W) MAIN BOARD (SOLDERED SIDE) FIGURE 16 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 23W) COVER REMOVED FIGURE 17 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 23W) MAIN BOARD (COMPONENT SIDE) F IGURE 18 FLUORESCENT SELF-BALLASTED LAMPS (M/N: T3 HALF SPIRAL CFL - 23W) MAIN BOARD (SOLDERED SIDE)

Operating instructions： Energy-saving lamps practice is a compact, bring their own ballast fluorescent lamp, energy-saving lamp was lit up first after the electronic ballast to tube filament heating, filament beginning launch electronic (as in the filament with some electronic powder), electronic collision in filling in the tube argon atom, argon atom achieved after collision impact energy and internal mercury atoms, mercury atoms in absorbing energy transition after ionization produced, in the tube a plasma. Tube ends voltage directly through the plasma conduction and sent out the nm ultraviolet ray, ultraviolet light up phosphors, because when the temperature of the filament fluorescent light work in about 1160K, the temperature of the work than incandescent lamp 2200K-2700 K is much lower, so its life also big progress, to hours, because it uses the high efficiency electronic ballast, also does not exist incandescent lamp that current heating, phosphor energy conversion efficiency is very high also, arrived at each tile above 50 lumens, so save electric energy.

11 22 33 44 55 66 D D C C B B A A Title Number Revision Size B Date: 2012-04-19 Sheet of File: C:\Users\..\T2 半螺旋 18 23W.Sch Drawn By: C1 104/400V C3152/630V C7222/1200V C4CAP C6 472/1250V C5 473/400V D11N4007D31N4007 D21N4007D41N4007 D51N4007 2A/250V FUS L0 6X8 L1 EE19 8T 3T 3T Q1 100SD Q2 100SD R1 560kR R7 0R R320R R5 100R R8 0R R4 20R R6 100R R2 560kR DB + C2 22uF/250V PortPort T2 HALF SPIRAL CFL - 13W MT T2 HALF SPIRAL CFL - 18WT2 HALF SPIRAL CFL - 23W 11 22 33 44 55 66 D D C C B B A A Title Number Revision Size B Date: 2012-04-19 Sheet of File: C:\Users\..\T3 半螺旋 18 23W.Sch Drawn By: C1 104/400V C3152/630V C7272/1200V C4CAP C6 562/1250V C5 473/400V D11N4007D31N4007 D21N4007D41N4007 D51N4007 1.6A/250V FUS L0 8X10 L1 EE19 8T 3T 3T Q1 100SD Q2 100SD R1 560kR R7 0R R320R R5 100R R8 0R R4 20R R6 100R R2 560kR DB + C2 33uF/250V PortPort T3 HALF SPIRAL CFL - 13W MT T3 HALF SPIRAL CFL - 18WT3 HALF SPIRAL CFL - 23W

Haining Honghui Energy-saving Lights Electric Equipment Co., Ltd. FCC ID: CNOHH1202 Page 1 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12031 Prepared For : Haining Honghui Energy-saving Lights Electric Equipment Co., Ltd. Sanlian Village of Xieqiao Town, Haining City, Zhejiang Province, China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F12031 Date of Test : Jan 16 – Feb 20, 2012 Date of Report : Feb 29, 2012 Application for FCC Certificate On Behalf of Haining Honghui Energy-saving Lights Electric Equipment Co., Ltd. Fluorescent self-ballasted lamps Model No. : T2 HALF SPIRAL CFL - 13W T2 HALF SPIRAL CFL - 18W T2 HALF SPIRAL CFL - 23W T3 HALF SPIRAL CFL - 13W T3 HALF SPIRAL CFL - 18W T3 HALF SPIRAL CFL - 23W Serial No.: E1201036-01/02 E1201038-02/02 E1201040-02/02 E1201037-02/02 E1201039-01/02 E1201041-01/02 FCC ID : CNOHH1202 Haining Honghui Energy-saving Lights Electric Equipment Co., Ltd. FCC ID: CNOHH1202 Page 2 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12031 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 4 2 GENERAL INFORMATION .......................................................................................................... 5 2.1 Description of Equipment Under Test ........................................................................................ 5 2.2 Description of Test Facility ........................................................................................................ 6 2.3 Measurement Uncertainty .......................................................................................................... 6 3 CONDUCTED EMISSION TEST .................................................................................................. 7 3.1 Test Equipment ........................................................................................................................... 7 3.2 Block Diagram of Test Setup ..................................................................................................... 7 3.3 Conducted Emission Limits (FCC Part 18 Consumer Equipment) ............................................ 7 3.4 Test Configuration ...................................................................................................................... 7 3.5 Operating Condition of EUT ...................................................................................................... 8 3.6 Test Procedures .......................................................................................................................... 8 3.7 Test Results ................................................................................................................................ 8 4 MAGNETIC FIELD EMISSION TEST ...................................................................................... 15 4.1 Test Equipment ......................................................................................................................... 15 4.2 Block Diagram of Test Setup ................................................................................................... 15 4.3 Magnetic Field Emission Limit (FCC Part 18 305(b))............................................................. 16 4.4 Test Configuration .................................................................................................................... 16 4.5 Operating Condition of EUT .................................................................................................... 16 4.6 Test Procedures ........................................................................................................................ 16 4.7 Test Results .............................................................................................................................. 17 5 RADIATED EMISSION TEST ..................................................................................................... 24 5.1 Test Equipment ......................................................................................................................... 24 5.2 Block Diagram of Test Setup ................................................................................................... 24 5.3 Radiated Emission Limit (FCC Part 18.305(c) Consumer Equipment) ................................... 25 5.4 Test Configuration .................................................................................................................... 25 5.5 Operating Condition of EUT .................................................................................................... 25 5.6 Test Procedures ........................................................................................................................ 25 5.7 Test Results .............................................................................................................................. 26 6 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 33 Haining Honghui Energy-saving Lights Electric Equipment Co., Ltd. FCC ID: CNOHH1202 Page 3 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12031 TEST REPORT FOR FCC CERTIFICATE Applicant : Haining Honghui Energy-saving Lights Electric Equipment Co., Ltd. Manufacturer : Haining Honghui Energy-saving Lights Electric Equipment Co., Ltd. EUT Description : Fluorescent self-ballasted lamps (A) Model No. : Refer to Sec.2.1. (B) Serial No. : Refer to Sec.2.1. (C) Power Supply : 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 SUBPART C RF LIGHTING DEVICES OCTOBER 2010 AND MP-5/1986 The device described above is tested by Audix Te…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test 2. Magnetic Field Emission Test HORIZONTAL POLARIZATION V ERTICAL POLARIZATION 3. Radiated Electromagnetic Emission Test FRONT VIEW OF RADIATED EMISSION TEST BACK VIEW OF RADIATED EMISSION TEST SETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION (M/N: T2 HALF SPIRAL CFL – 13W) SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION (M/N: T2 HALF SPIRAL CFL – 13W)
