CO3BPLC7734G LTE CPE

Page 1 / 48 Copyright©2013 Franklin Wireless, Corp. C773 User Guide 4G LTE Broadband Wireless 11n CPE Router Franklin Wireless C773 (O) User Guide www.franklinwireless.com Version 1.4.3 / 08.06.2013 ⓒ 2013FRANKLIN . FRANKLIN and the logo are trademarks of FRANKLIN. Other marks are the property of their respective owners. Page 2 / 48 Copyright©2013 Franklin Wireless, Corp. Contents Chapter 1 C773 Overview General Features ----------------------------------------------------------------------------------------------------- 4 What’s in the box? ------------------------------------------------------------------------------------------------- 4 Components ---------------------------------------------------------------------------------------------------------- 5 Service Status Indicator (LED) Description ------------------------------------------------------------------------ 6 Network Access ------------------------------------------------------------------------------------------------------ 7 Chapter 2 Getting Started Installing the 4G LTE SIM Card ------------------------------------------------------------------------------------ 8 Installing the Antenna ----------------------------------------------------------------------------------------------- 9 Charging the battery ------------------------------------------------------------------------------------------------ 9 Hooking up your telephone --------------------------------------------------------------------------------------- 11 Plug-in the Power Adapter and Turn on the device------------------------------------------------------------ 11 External Antenna for Voice Call Service and GPS--------------------------------------------------------------- 12 Activating your device ------------------------------------------------------------------------------------------------- 13 Connecting to the Router --------------------------------------------------------------------------------------------- 15 WPS Configuration --------------------------------------------------------------------------------------------------- 16 Device Specification ----------------------------------------------------------------------------------------------------18 Chapter 3 Browser Interface and Settings for Wi-Fi and LAN service Login ---------------------------------------------------------------------------------------------------------------------19 Home Screen Menu---------------------------------------------------------------------------------------------------- 19 Quick Setup Menu --------------------------------------------------------------------------------------------------- 20 Statistics Menu ------------------------------------------------------------------------------------------------------- 20 WWAN Menu --------------------------------------------------------------------------------------------------------- 21 LAN Menu -------------------------------------------------------------------------------------------------------------- 23 Wireless Menu -------------------------------------------------------------------------------------------------------- 26 Firewall Menu --------------------------------------------------------------------------------------------------------- 30 Content Sharing Menu ---------------------------------------------------------------------------------------------- 30 Page 3 / 48 Copyright©2013 Franklin Wireless, Corp. System Menu ---------------------------------------------------------------------------------------------------------- 34 Chapter 4 Interface and Settings for Voice Call Service User Menu ------------------------------------------------------------------------------------------------------------- 35 Ring / Sound Menu -------------------------------------------------------------------------------------------------- 36 Tools Menu ------------------------------------------------------------------------------------------------------------ 37 Time Menu ------------------------------------------------------------------------------------------------------------ 38 Setting Menu ---------------------------------------------------------------------------------------------------------- 39 Chapter 5 Troubleshooting Troubleshooting ----------------------------------------------------------------------------------------------------- 41 Chapter 6 Glossary Glossary --------------------------------------------------------------------------------------------------------------- 45 Page 4 / 48 Copyright©2013 Franklin Wireless, Corp. Chapter 1 C773 Overview General Features · 4G LTE High-Speed Wireless Data · LAN (RJ-45) and Wi-Fi Connectivity · Home Phone Voice Connectivity (RJ-11) · Manage Wired and Wireless Network Activity · An Easy-to-use web-based interface that allows you to manage, monitor, and customizes your LAN, Wi-Fi and 4G LTE connection. · Advanced Antenna Design · External Antenna Port for Voice Call Service and Standalone GPS What’s in the box? The following items are included: · C773Router · 1050mAh Standard Lithium Ion Battery · A/C Power Adapter · Quick Start Guide · RJ-45 Ethernet LAN Cable · RJ-11 POTS Telephone Line Cable Page 5 / 48 Copyright©2013 Franklin Wireless, Corp. Components Front Panel Back Panel ⓐ Power LED ⓑ LAN LED ⓒ Voice Call & Voice Mail & Wi-Fi & LTE LED ⓓ Power On/Off Button ⓔ Battery Cover ⓕ RJ-11 POTS Telephone Line Ports (1-2) ⓖ RJ-45 Ethernet LAN Ports (1-4) ⓗ A/C Power Connector ⓘ Reset Button ⓙ WPS Button ⓚ CDMA Extension Antenna Port (MCX Connector Type) ⓛ LTE Secondary Antenna ⓜ LTE Primary Antenna ⓝ GPS Antenna Port (MCX Connector Type) ⓞ USB Port Page 6 / 48 Copyright©2013 Franklin Wireless, Corp. Service Status Indicator (LED) Description No LED Indicator Description Remark LED Color Solid/Blinking 1 Power No Light - Device is powered off Solid Low battery(battery bar level = 1) Battery is critically low. Please plug in immediately. Blinking External power removed Please plug in, otherw…

Text truncated - open the document above for the full version.

BIT & PULSE CO., LTD 2F Baegang B/D, 666-14 Sinsa-dong, Gangnam-gu, Seoul, 135-897, Korea Date: September 23, 2013 Attestation Letter for FCCID: CO3BPLC773 Product Name: 4G LTE CPE Model Name: C773 To whom it may concern: We hereby declare that this device is designed for use in CDMA 1x, LTE/CDMA 1x EVDO(Rev. A) and 2.4GHz WLAN. - CDMA 1x  Transmitting Frequency Range & Receiving Frequency Range ◦ Cellular band: 824.64 ~ 848.37MHz & 869.64 ~ 893.37MHz ◦ PCS band: 1851.25 ~ 1908.75MHz & 1931.25 ~ 1988.75MHz - 2.4GHz WLAN 802.11b/g/n(HT20/HT40)  Transmitting/Receiving Frequency Range ◦ 802.11b/g: 2412 ~ 2462MHz(1 TX / 1 RX : SISO) ◦ 802.11n: 2422 ~ 2452MHz(2 TX / 2 RX : MIMO) (HT20/HT40) - LTE/CDMA 1x EVDO(Rev. A) ▪ LTE  Transmitting Frequency Range & Receiving Frequency Range: ◦ Band 13: 782MHz & 751MHz ◦ Band 4: 1715 ~ 1750MHz & 1715 ~ 1750MHz ◦ Band 25: 1855 ~ 1910MHz & 1935 ~ 1990MHz ▪ CDMA 1x EVDO(Rev. A)  Transmitting Frequency Range & Receiving Frequency Range ◦ Cellular band: 824.64 ~ 848.37MHz & 869.64 ~ 893.37MHz ◦ PCS band: 1851.25 ~ 1908.75MHz & 1931.25 ~ 1988.75MHz For LTE function, this device supports modulation type (QPSK, 16QAM), channel bandwidth (only 10MHz) and RX diversity(1TX/2TX). Sincerely, Deputy General Manager Wanyong Chung

BIT & PULSE CO., LTD 2F Baegang B/D, 666-14 Sinsa-dong, Gangnam-gu Seoul, 135-897 South Korea Date: September 12, 2013 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA LETTER OF AUTHORIZATION We, the undersigned, hereby authorize Harvey Sung of Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: CO3BPLC773 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of Digital EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from BIT & PULSE CO., LTD Sincerely, Wanyong Chung Deputy General Manager

BIT & PULSE CO., LTD 2F Baegang B/D, 666-14 Sinsa-dong, Gangnam-gu Seoul, 135-897 South Korea Date: September 12, 2013 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: CO3BPLC773 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, BIT & PULSE CO., LTD hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give BIT & PULSE CO., LTD temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Part Lists and Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual Note: The pictures on the label location do not require any long term or short term confidentiality. The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Wanyong Chung Deputy General Manager

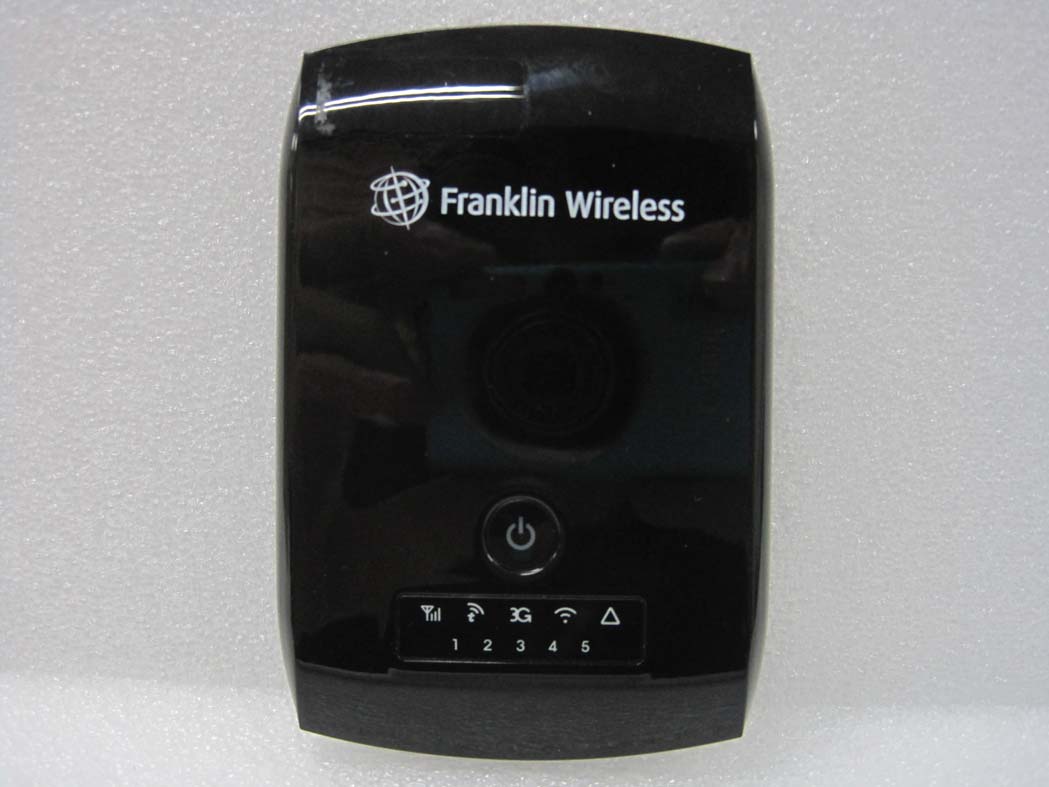

FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. View 1 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. View 2 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. View 3

FCC ID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page1 / 11 View 1 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page2 / 11 View 2 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page3 / 11 View 3 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page4 / 11 View 4 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page5 / 11 View 5 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page6 / 11 View 6 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page7 / 11 View 7 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page8 / 11 View 8 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page9 / 11 View 9 FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page10 / 11 View 10 <External ANTENNA> <Internal ANTENNA> FCCID: CO3BPLC773 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Page11 / 11 View 11 <WIFI ANTENNA>

▪ ▪ ▪ EIRP calculation using target power and tolerance ± &dBm ) ▪ =dBm dBm dBm = The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) - FCCID: CO3BPLC773BIT & PULSE CO., LTD MPE Calculation : LTE Band 13 Frequency range : 782 MHz Maximum antenna gain(PK): 0.59 - Target power :21 dBm1 dB ( Max. 22 dBm Min. 20 22.59 dBm Measured ERP : 20.94 dBm - Measured conducted output power 21.12 - Max. EIRP : 21.82 ( Max. EIRP = Conversion EIRP + ( Target power + Positive tolerance - Measured conducted output power Maximum EIRP = 22.59dBm181.552mW the antenna(20cm) Requirment =0.521 Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note 181.552 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) Conclusion : The exposure condition of this device is compliant with FCC rules. - Conversion EIRP = Measured ERP + 2.1 23.09 dBi - EIRP = Target power + positive tolerance + Maximum antenna peak gain(dB 0.036119 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of ▪ ~ ▪ ▪ EIRP calculation using target power and tolerance ± &dBm ) ▪ dBm dBm = The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) dBm Max.- Target power : Measured EIRP : 1 dB ( 22.28 dBm BIT & PULSE CO., LTD MPE Calculation : R = Distance to the center of the radiation of the antenna(20cm) Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note dBm 23.50223.873 Conclusion : The exposure condition of this device is compliant with FCC rules. LTE Band 4 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) 0.044539 mW/cm 2 223.873 EIRP = Equivalent Isotropic Radiated Power(mW) 20.77- Measured conducted output power dBm Min. 19 Maximum EIRP = mW 22.51 ( Max. EIRP = Measured EIRP + ( Target power + Positive tolerance - Measured conducted output power ) 21 Frequency range : CO3BPLC773 2.50 dBi 20 dBm Maximum antenna gain(PK): Requirment = - Max. EIRP : 1.000 - EIRP = Target power + positive tolerance + Maximum antenna peak gain(dB 23.50 - FCCID: 1715 MHz1750 MHz ▪ ~ ▪ ▪ EIRP calculation using target power and tolerance ± &dBm ) ▪ dBm dBm = The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) - FCCID: CO3BPLC773BIT & PULSE CO., LTD MPE Calculation : LTE Band 25 Frequency range : 1855 MHz1910 MHz Maximum antenna gain(PK): 3.14 dBi - Target power :19 dBm1 dB ( Max. 20 dBm Min. 18 - EIRP = Target power + positive tolerance + Maximum antenna peak gain(dB 23.14 dBm Measured EIRP : 20.99 dBm - Measured conducted output power 19.17 - Max. EIRP : 21.82 ( Max. EIRP = Measured EIRP + ( Target power + Positive tolerance - Measured conducted output power ) Maximum EIRP = 23.14dBm206.063mW Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note 206.063 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) Conclusion : The exposure condition of this device is compliant with FCC rules. 0.040995 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Requirment =1.000 ▪ ~ ▪ ▪ EIRP calculation using target power and tolerance ± &dBm ) ▪ =dBm dBm dBm = The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) - FCCID: CO3BPLC773BIT & PULSE CO., LTD MPE Calculation : CDMA 1x Frequency range : 824.70 MHz 848.31 MHz Maximum antenna gain(PK): 0.81 dBi - Target power :23 dBm1 dB ( Max. 24 dBm Min. 22 - EIRP = Target power + positive tolerance + Maximum antenna peak gain(dB 24.81 dBm Measured ERP : 24.66 dBm - Conversion EIRP = Measured ERP + 2.1 26.81 - Measured conducted output power 23.82 - Max. EIRP : 24.84 ( Max. EIRP = Conversion EIRP + ( Target power + Positive tolerance - Measured conducted output power Maximum EIRP = 24.84dBm304.79mW Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note 304.790 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) Conclusion : The exposure condition of this device is compliant with FCC rules. 0.060637 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Requirment =0.549 ▪ ~ ▪ ▪ EIRP calculation using target power and tolerance ± &dBm ) ▪ dBm dBm = The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) - FCCID: CO3BPLC773BIT & PULSE CO., LTD MPE Calculation : CDMA 1x Frequency range : 1851.25 MHz 1908.75 MHz Maximum antenna gain(PK): 3.27 dBi - Target power :23 dBm1 dB ( Max. 24 dBm Min. 22 - EIRP = Target power + positive tolerance + Maximum antenna peak gain(dB 27.27 dBm Measured EIRP : 25.15 dBm - Measured conducted output power 23.93 - Max. EIRP : 25.22 ( Max. EIRP = Measured EIRP + ( Target power + Positive tolerance - Measured conducted output power ) Maximum EIRP = 27.27dBm533.335mW Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note 533.335 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) Conclusion : The exposure condition of this device is compliant with FCC rules. 0.106104 mW/cm 2 EIRP = Equiv…

Text truncated - open the document above for the full version.

FCCID: CO3BPLC773 DEMC1306-02017 Report No.: DRTFCC1309-0874 TRF-RF-210(00)101117 Page 2 / 55 Copyright ○ C 2013, Digital EMC Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1309-0874 Sep. 13, 2013Initial issue FCCID: CO3BPLC773 DEMC1306-02017 Report No.: DRTFCC1309-0874 TRF-RF-210(00)101117 Page 3 / 55 Copyright ○ C 2013, Digital EMC Co., Ltd. Table of Contents 1. GENERAL INFORMATION ......................................................... 4 2. INTRODUCTION ......................................................................... 5 2.1. EUT DESCRIPTION ............................................................................................ 5 2.2. MEASURING INSTRUMENT CALIBRATION .................................................... 5 2.3. TEST FACILITY .................................................................................................. 5 3. DESCRIPTION OF TESTS .......................................................... 6 3.1 ERP&EIRP ........................................................................................................... 6 3.2 PEAK TO AVERAGE RATIO ............................................................................... 7 3.3 OCCUPIED BANDWIDTH. .................................................................................. 8 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL. ............ 9 3.5 RADIATED SPURIOUS EMISSIONS ................................................................ 10 3.6 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ........ 11 4. LIST OF TEST EQUIPMENT ..................................................... 12 5. SUMMARY OF TEST RESULTS ............................................... 13 6. SAMPLE CALCULATION ......................................................... 14 7. TEST DATA ............................................................................... 15 7.1 CONDUCTED OUTPUT POWER ...................................................................... 15 7.2 PEAKTOAVERAGE RATIO ............................................................................... 16 7.3 OCCUPIED BANDWIDTH ................................................................................. 16 7.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ........... 16 7.5BAND EDGE ....................................................................................................... 16 7.6 EFFECTIVE RADIATED POWER ...................................................................... 17 7.7 EQUIVALENT ISOTROPIC RADIATED POWER .............................................. 18 7.8 RADIATED SPURIOUS EMISSIONS ................................................................ 19 7.8.1 RADIATED SPURIOUS EMISSIONS (Cellular CDMA) ............................... 19 7.8.2 RADIATED SPURIOUS EMISSIONS (WCDMA850) .................................... 20 7.8.3 RADIATED SPURIOUS EMISSIONS (Cellular CDMA) ............................... 21 7.8.4 RADIATED SPURIOUS EMISSIONS (PCS CDMA EVDO) .......................... 22 7.9 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ........ 23 7.9.1 FREQUENCY STABILITY (Cellular CDMA) ................................................. 23 7.9.2 FREQUENCY STABILITY (WCDMA850) ..................................................... 24 7.9.3 FREQUENCY STABILITY (Cellular CDMA) ................................................. 25 7.9.4 FREQUENCY STABILITY (PCS CDMA EVDO) ........................................... 26 8. TEST PLOTS ............................................................................. 27 8.1 Peak to Average Ratio .................................................................................... 27 8.2 Occupied Bandwidth 99 % Bandwidth ......................................................... 28 8.3 Spurious Emissions at Antenna Terminal .................................................... 36 8.4 Band Edge ....................................................................................................... 48 FCCID: CO3BPLC773 DEMC1306-02017 Report No.: DRTFCC1309-0874 TRF-RF-210(00)101117 Page 4 / 55 Copyright ○ C 2013, Digital EMC Co., Ltd. 1. GENERAL INFORMATION Applicant Name: BIT & PULSE CO., LTD Address: 2F Baegang B/D, 666-14 Sinsa-dong, Gangnam-gu, Seoul 135-897, Korea FCC ID : CO3BPLC773 FCC Classification : Licensed Non-Broadcast Station Transmitter (TNB) EUT Type : 4G LTE CPE Model Name : C773 Add Model Name : N/A Supplying power : Switching Adaptor - MODEL: FJ-SW1202000U - INPUT : 100-240V 50/60Hz 0.6Amax - OUTPUT : 12V & 2000mA Antenna Information : Cellular & PCS band for CDMA 1x : Internal Antenna Cellular & PCS band for CDMA 1x EVDO(Rev. A) : External Antenna Tx Frequency : Cellular band CDMA 1x 824.70MHz ~ 848.31 MHz Cellular band CDMA 1x EVDO(Rev. A): 824.70 MHz ~ 848.31 MHz PCS band CDMA 1x 1851.25 MHz ~ 1908.75 MHz PCS band CDMA 1x EVDO(Rev. A): 1851.25 MHz ~ 1908.75 MHz Rx Frequency : Cellular band CDMA 1x 869.70 ~ 893.31 MHz Cellular band CDMA 1x EVDO(Rev. A): 869.70 ~ 893.31 MHz PCS band CDMA 1x 1931.25 MHz ~ 1988.75 MHz PCS band CDMA 1x EVDO(Rev. A): 1931.25 MHz ~ 1988.75 MHz Max. RF Output Power : Cellular band CDMA 1x 0.292 W ERP(24.66 dBm) Cellular band CDMA 1x EVDO(Rev. A): 0.221 W ERP(23.44 dBm) PCS band CDMA 1x 0.327 W EIRP(25.15 dBm) PCS band CDMA 1x EVDO(Rev. A): 0.226 W EIRP(23.54 dBm) Emission Designator(s) : Cellular band CDMA 1x 1M28F9W Cellular band CDMA 1x EVDO(Rev. A): 1M28F9W PCS band CDMA 1x 1M28F9W PCS band CDMA 1x EVDO(Rev. A): 1M29F9W FCCID: CO3BPLC773 DEMC1306-02017 Report No.: DRTFCC1309-0874 TRF-RF-210(00)101117 Page 5 / 55 Copyright ○ C 2013, Digital EMC Co., Ltd. 2. INTRODUCTION 2.1. EUT DESCRIPTION The Equipment Under Test(EUT) supports CDMA and EVDO(Rev. A) of Cellular/PCS bands and LTE(Band 4, 13, 25) with 2.4GHz WLAN. The EUT has below 3 transceivers. 1. CDMA 1x 2. LTE/CDMA 1x EVDO(Rev. A) 3. 2.4GHz WLAN 2.2. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests docum…

Text truncated - open the document above for the full version.

DEM C TRF-R 8. TE C1306-02017 RF-210(00)1 EST PLO 8.1 Pea CDMA 1x CDMA EV 7 01117 OTS ak to Aver x &PCS b VDO 1x EV Co rage Ratio band Chan VDO(Rev. A opyright ○ C 2 o nel: 600 A)&PCS ba 2013, Digita and Chann l EMC Co., L nel: 600 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 2 74 27 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 8.2 Oc CDMA 1x CDMA 1x 7 01117 ccupied Ba x&Cellular b x&Cellular b Co andwidth band Chan band Chan opyright ○ C 2 99 % Band nnel: 1013 nnel: 384 2013, Digita dwidth l EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 2 74 28 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x 7 01117 x&Cellular b Co band Chan opyright ○ C 2 nnel: 777 2013, Digita l EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 2 74 29 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x EVDO(Re x EVDO(Re Co ev. A)&Cell ev. A)&Cell opyright ○ C 2 lular band lular band 2013, Digita Channel: 1 Channel: 3 l EMC Co., L 1013 384 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 3 74 30 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x 7 01117 x EVDO(Re Co ev. A)&Cell opyright ○ C 2 lular band 2013, Digita Channel: 7 l EMC Co., L 777 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 3 74 31 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x &PCS b x &PCS b Co band Chan band Chan opyright ○ C 2 nel: 25 nel: 600 2013, Digital EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 3 74 32 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x 7 01117 x &PCS b Co band Chan opyright ○ C 2 nel: 1175 2013, Digita l EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 3 74 33 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x EVDO(Re x EVDO(Re Co ev. A) &P ev. A) &P opyright ○ C 2 CS band C CS band C 2013, Digita Channel: 2 Channel: 6 l EMC Co., L 25 600 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 3 74 34 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x 7 01117 x EVDO(Re Co ev. A) &P opyright ○ C 2 CS band C 2013, Digita Channel: 1 l EMC Co., L 175 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 3 74 35 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 8.3 Sp CDMA 1x CDMA 1x 7 01117 urious Em x &Cellula x &Cellula Co missions a ar band Ch ar band Ch opyright ○ C 2 at Antenna hannel: 101 hannel: 101 2013, Digita a Termina 13 13 l EMC Co., L l FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 3 74 36 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x &Cellula x &Cellula Co ar band Ch ar band Ch opyright ○ C 2 hannel: 384 hannel: 384 2013, Digita 4 4 l EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 3 74 37 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x &Cellula x &Cellula Co ar band Ch ar band Ch opyright ○ C 2 hannel: 777 hannel: 777 2013, Digita 7 7 l EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 3 74 38 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x EVDO(Re x EVDO(Re Co ev. A) &C ev. A) &C opyright ○ C 2 Cellular ban Cellular ban 2013, Digita nd Channe nd Channe l EMC Co., L el: 1013 el: 1013 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 3 74 39 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x EVDO(Re x EVDO(Re Co ev. A) &C ev. A) &C opyright ○ C 2 Cellular ban Cellular ban 2013, Digita nd Channe nd Channe l EMC Co., L el: 384 el: 384 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 4 74 40 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x EVDO(Re x EVDO(Re Co ev. A) &C ev. A) &C opyright ○ C 2 Cellular ban Cellular ban 2013, Digita nd Channe nd Channe l EMC Co., L el: 777 el: 777 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 4 74 41 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x &PCS b x &PCS b Co band Chan band Chan opyright ○ C 2 nel: 25 nel: 25 2013, Digital EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 4 74 42 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x &PCS b x &PCS b Co band Chan band Chan opyright ○ C 2 nel: 600 nel: 600 2013, Digital EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 4 74 43 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x &PCS b x &PCS b Co band Chan band Chan opyright ○ C 2 nel: 1175 nel: 1175 2013, Digital EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 4 74 44 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x EVDO(Re x EVDO(Re Co ev. A) &P ev. A) &P opyright ○ C 2 CS band C CS band C 2013, Digita Channel: 2 Channel: 2 l EMC Co., L 25 25 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 4 74 45 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x EVDO(Re x EVDO(Re Co ev. A) &P ev. A) &P opyright ○ C 2 CS band C CS band C 2013, Digita Channel: 6 Channel: 6 l EMC Co., L 600 600 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 4 74 46 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x EVDO(Re x EVDO(Re Co ev. A) &P ev. A) &P opyright ○ C 2 CS band C CS band C 2013, Digita Channel: 1 Channel: 1 l EMC Co., L 175 175 FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 4 74 47 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 8.4 Ba CDMA 1x CDMA 1x 7 01117 nd Edge x &Cellula x &Cellula Co ar band Ch ar band Ch opyright ○ C 2 hannel: 101 hannel: 101 2013, Digita 13 13 l EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 4 74 48 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x &Cellula x &Cellula Co ar band Ch ar band Ch opyright ○ C 2 hannel: 777 hannel: 777 2013, Digita 7 7 l EMC Co., L FCCID: Report Ltd. CO3 B No.: DRTF BPLC773 CC1309-08 7 Page 4 74 49 / 55 DEM C TRF-R C1306-02017 RF-210(00)1 CDMA 1x CDMA 1x 7 01117 x EVDO(Re x EVDO(Re Co ev. A) &C ev. A) &C opyright ○ C 2 Cellular ban Cellular ban 2013, Digita…

Text truncated - open the document above for the full version.

FCCID: CO3BPLC773 DEMC1306-02017 Report No.: DRTFCC1309-0883 Page 2 / 41 Copyright ○ C 2013, Digital EMC Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1309-0883 Sep. 13, 2013Initial issue FCCID: CO3BPLC773 DEMC1306-02017 Report No.: DRTFCC1309-0883 Page 3 / 41 Copyright ○ C 2013, Digital EMC Co., Ltd. Table of Contents 1. GENERAL INFORMATION ............................................................................ 4 2. INTRODUCTION ..........................................................…
