COP-LTHB315PRECISION MULTI-FUNCTION OCCUPANCY SENSOR

TOOLS NEEDED FOR INSTALLATION nDouble-sided tape (provided) nIf a screw mount installation is required you will need: 2#Screw Driver Two Screws(T3X10) COMPONENTS AND DIMENSIONS (mm) INSTALLATION INSTRUCTIONS Preparation prior installation Choose the right sensor model that is suitable for the application (Detection range, angle, energy requirement etc.) Take out the sensor from the packaging box. Charge the sensor by placing the sensor (the solar cell) under a direct light source (sunlight, window, light bulb, etc.) Make sure the controller/gateway working with the sensor is installed as instructed in the documents of the devices. Identify the optimal installation location of the sensor according to the following guidelines (note sensor head figures before Installation Instructions. Figure 1 corresponds to LTHA/B and Figure 2 corresponds to LTHC). (1)Ensure the sensing zone for the motion is covered by the sensor detection range Ensure minimal Lux-time is availabe at the location selected n n n n (2) nThe installation kit comes with a sensor with back plate, T-bar installation adaptor, and a pre-cut double-sided tape. nThe Smart Occupancy Sensor can either be installed by using the double-sided tape provided, or by using two screws through the back plate. · If the device is required to operate where insufficient light is available, an optional CR2032 coin battery can be installed to allow operation for up to 7 years. Note: 1、Remember that this device harvests ambient light. It is important to ensure that the solar cells are directed to a light source. 2、The solar cell identified with Lux symbol is used to measure and report the ambient Lux level, this solar cell shall be pointed to the zone where the light level is expected to be monitored and controlled. 3、The sensor PIR head is pivoted to allow aiming the sensing element to disirable zone for maximal performance. SPECIFICATIONS Radio Frequency: 315.0 MHz Energy Source: Ambient Light Energy Storage: Super Capacitor Startup Time: 1 Min at 100 Lux Operating Temperature: 0°C to 60°C Relative Humidity: 5% to 95% RH Non Condensing Maximal Tx Interval: 60 Minutes (Heart Beat) Minimal Tx Interval: 5 Seconds in test mode Min Tx Interval in Normal Operation Min Lux Sampling period 3 Minutes PIR Detection Range: LTHA/LTHB: 0 to 5 m; Angle:82° - 94° LTHC: 0 to 12 m; Angle: 92°-102° Radio Range: Typically 30 Meters Indoor Lux Measurement Range: LTHB/LTHC: 1 to 1000 Lux Bridge Time: Up to 6 Days in darkness LTHE: 0 to 7m;Angle: 132°-146° 117.0 70.0 30.6 WARNINGS AND CAUTIONS nThis device is intended for indoor installation in a dry environment. nRadio transmission range tests should be performed prior to installation. nUse a cloth to clean the switch since solvents can damage the plastic. nAvoid installing on a metal surface. measurement can dim, turn off, or turn on designated lights for energy conservation. After motion is detected and the message from the sensor is sent to the controller, for energy conservation purposes the sensor will go on sleep mode for 60 seconds. After a 60-second sleep period, the sensor will be kept on until a new motion is detected. This sleep mode function enables the sensor to save energy for extreme environments where lux levels are low, and the sensor is unable to charge. To ensure that the Smart Occupancy Sensor is properly working and functioning, it sends out an energy status of the super capacitor to a controller every 50 to 58 minutes. This pulse messaging is referred to as a heartbeat. This automatic sensor report system helps monitors the super capacitor’s voltage levels that help provide valuable information for maintenance, troubleshooting, and security applications. For example, if a sensor is blocked and unable to charge or if its super capacitor is discharged it will notify the central system that this sensor is not properly working. PIR Sensor Learn Button LED Indicator Solar cell Panel The LTHA/B need to be place between 0 to 5 meters. The LTHC needs to be placed between 0 to 12 meters. 60 Seconds Precision Multi-Function Occupancy Sensor we do more with less Lutuo’s Smart Occupancy Sensor obtains energy from ambient light through its solar cell panel, this energy is then stored in a super capacitor that provides power to the sensor when an ambient energy source is not available. When fully charged, the Smart Occupancy Sensor can continue to operate for up to six days in total darkness. This intelligent sensor can be used in a stand-alone application, or it can easily be integrated into a centralized system for energy management and building automation. The Smart Occupancy Sensor is a compound sensor, meaning that it not only detects motion of a human body, but also measures ambient illumination levels. The integration of Lux level sensing and motion detecting allows this sensor to make energy conservation decisions. For example, if ambient light levels are above a preset threshold and motion is detected, the lights will remain off. This scenario is also the case if light levels range in the middle or below a desired Lux threshold. The Lux LTHB315 LTHC315 LTHE LTHB315 LTHC315 Shenzhen Lutuo Technology Co., Ltd 深圳绿拓科技有限公司 www.lutuotech.com Tel: +86-755-86591090 Fax: +86-755-86591081 Post code:518055 TROUBLESHOOTING Device is Not Charging a. The device is blocked; expose the sensor to ambient light. b. The solar cell panel is dusty. Device is Not Responding a. The Super Capacitor is discharged. If it is discharged, the indicator, located on the sensor, will not blink when the learn button is pushed. WARRANTY STATEMENT Lutuo’s limited warranty covers the original consumer for a period of five years beginning on the purchase date. Lutuo will repair or replace, at its option, products that fail to perform as intended if returned prepaid accompanied with proof of purchase date. This warranty excludes any liability for product installation, removal, or re-commissioning. All warranty liability is void if the pr…

Text truncated - open the document above for the full version.

Block Diagram Smart Human Sensor System Block Diagram Antenna ENERGY SAVING AND CHARGING CIRCUIT HUMAN SENSOR PROCESS UNIT STM300C （MCU） ENERGY SAMPLING CIRCUIT ISP PORT PART 315MHz Crystal

Shenzhen Lutuo Technology Co.,Ltd Suite806, Sangtai Building, University Town, Lishan Road, Nanshan District, Shenzhen518055, China Tel: 86-755-86635155 Fax: 86-755-86635125 AGENCY AUTHORIZATION LETTER FCC ID：COP-LTHB315 Date: March 20, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Electromagnetic Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Electromagnetic Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on March 19, 2013. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Shenzhen Lutuo Technology Co.,Ltd are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, --------------------------------- Mike Wang/ R&D Vice Manager

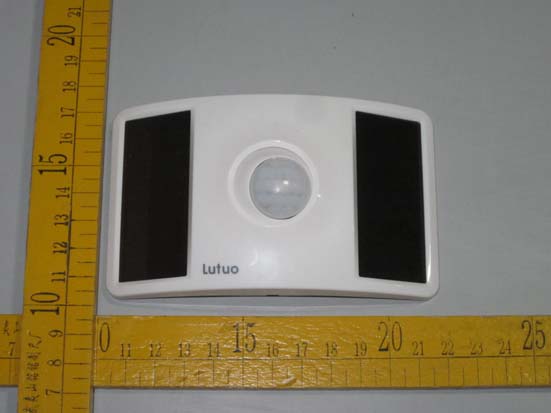

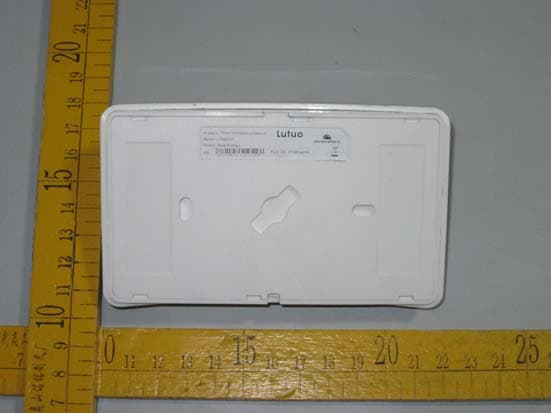

6. External and Internal Photos of the EUT External Photos

FCC ID Label Information 1. Label Location: 2. FCC ID Label: Shenzhen Lutuo Technology Co.,Ltd Model: LTHB315 FCC ID：COP-LTHB315 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

LTHB315 Operation Description The smart human sensor is a kind of wireless, no battery, and low-power product based on the Enocean wireless communication protocol, and the energy mainly generated by solar-cell panel. It sets the illumination measurement and human reaction, and can be install on the woodiness material, glass, cement and so on. It can be used meeting room, warehouse, toilets and many other occasions (but need to be used mating with controllers) the hardware system is mainly composed with STM300C processor, human sensor, solar collection circuit and other parts .no need battery, motive power and control wire, and more environmental protection, more hommization and energy conservation. Hardware system block diagram Product Specification： Antenna： Whip antenna Frequency：315.0 MHz Data transmission rate/Modulation type:125kbps/ASK Acceptance sensitivity（25°C）：‐94dBm Current drain： Depth sleep mode：1μA Acceptance mode：30mA sending mode：26mA Smart Human Sensor System Block Diagram Antenna ENERGY SAVING AND CHARGING CIRCUIT HUMAN SENSOR PROCESS UNIT STM300C （MCU） ENERGY SAMPLING CIRCUIT ISP PORT PART

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Device STM300(c)/TCM300(c) GND 1 UVDD 32 VDD 2 GND 31 VDD_LIM 3 WAKE1 34 RF_WHIP 4 WAKE0 33 GND 5 WXODIO 30 RF_50 6 WXIDIO 29 GND 7 GND 28 RVDD 8 RESET 27 ADIO0 9 GND 26 ADIO1 10 DVDD 25 ADIO2 11 GND 24 ADIO3 12 IOVDD 23 ADIO4 13 RSDADIO3 22 ADIO5 14 WSDADIO2 21 ADIO6 15 SCLKDIO1 20 ADIO7 16 SCSEDIO0 19 GND 17 PROG_EN 18 U1 STM300 U1_33_W0 E1 ANTENNA R26 10MΩ,1/10W R29 20M Ω ,1/10W Q2 BSS84 + C13 EECF5R5U10 5 + C14 470 uF/6.3V VDD 1 2 J2 KS-5520 Solar Panel R14 10M Ω ,1/10 W Q3 BSS84 R21 10MΩ,1/10W R23 20KΩ,1/10W R24 56K Ω ,1/10 W R25 100KΩ,1/10W R15 10M Ω ,1/10W Q4 BSS84 R22 3.3M Ω ,1/10 W R27 330KΩ,1/10W R28 180 K Ω ,1/10W SOLAR U1_30_CCO SOLAR CAP_V CAP_V U1_10_AD_C U1_12_CTL U1_ 9_ AD_S U1_ 10 _A D_C U1_ 12 _C TL U1_29_SCO U1_30_CCO U1_18_P_EN U1_19_SCS U1_20_SCL U1_21_WSD U1_22_RSD U1_21_WSD U1_27_RES U1_22_RSD U1_19_SCS U1_18_P_EN U1_27_RESU1_34_W1 U1_16_IO7 U1_20_SCL U1_ 16 _IO7 U1_16_IO7U1_15_IO6 U1_ 15 _IO6 UVDD DVDD VDD VDD C5 X7R,0.1uF/25 V R17 27Ω,1/10W 1 2 3 U2 PaPIRs Motion Sensor R13 10M Ω ,1/10W R1 56K Ω ,1/10 W VDD_IR R11 1.80MΩ,1/10W U1_33_W0 Power PIR Sensor Energy Sample MCU 12 34 56 78 910 1112 JP1 C1 X7R,0.1uF/25V VDD U1_29_SCO 1 2 3 6 5 4 Q1 SI1555 R2 10M Ω ,1/10W D6 LED R18 10K Ω ,1/10 W R8 10K Ω ,1/10 W ISP R3 10M Ω ,1/10W R20 27Ω,1/10W Q5 BC847CSMD Q7 BC847 CSMD VDD UVDD R12 1.80M Ω ,1/10W S1 LRN R32 100KΩ,1/10W U1_ 14 _IO5 U1_14_IO5 U1_9_AD_S C7 X7R,0.1uF/25V U1_34_W1 R34 10M Ω ,1/10W VDD R19 5.1KΩ,1/10W 1 2 J3 KS-5520 Solar Panel C3 X7R,0.1uF/25V C4 X7R,0.47uF /25V C11 X5R 0.47uF /10V C12 X7R,0.47uF /25V Ex_Supply U1_11_AD_B U1_ 11 _A D_B 1 1 3 3 1 3 D4A BAT854C W 2 3 D4B BAT854CW 1 1 3 313 D3A BAT854CW 23 D3B BAT854CW 1 1 3 313 D9A BAT854CW 23 D9B BAT854CW ww.lutuotech.com Title Model NO Rev Sheet of Size File Website: New_PIR_Sensor LTHB315 H1.0.2 11 B Design by: Checked by: Approved by: Date: Date: Date: 1 2 J1 23 D5B BAT854CW 3 2 D8B ZENER 3.9V R35 0Ω,1/10W R36 0Ω,1/10W L1 68nH L2 68nH 1 2 3 6 5 4 Q10 SI1555 R37 20MΩ,1/10W C9 X7R,22 nF/25V R38 0Ω,1/10W VDD + 1 - 2 BT1 CR203 2 R31 180 K Ω ,1/10W R30 200KΩ,1/10W 2 3 D12 B BAT854C W R41 10M Ω ,1/10W R42 20M Ω ,1/10W R33 10M Ω ,1/10 W R6 27Ω,1/10W R7 100KΩ,1/10W C6 X7R,0.47uF /25V 1 1 3 313 D10A BAT854CW U1_15_IO6 Q8 BSS138N R4 15K Ω ,1/10 W TP VDD_PIR TP CAP TP GND TP VDD TP High_Illu TP CAP_S TP Solar_AD R43 0K Ω ,1/10W Ex_Supply TP Wake_Up0 TP Wake_Up1 TP Solar_Volt TP Ex_Volt_Sample TP Solar_Volt_Sample E2 ANTENNA TP Powerboo t TP BT 23 D2B BAT854CW L3 L4 100nH L5 100nH L6 100nH L7 100nH Q6 BSS138N Q9 BSS138N R48 20KΩ,1/10W G 1 S 2 D 3 Q15 BSS84 VDD R49 1.5KΩ,1/10W R44 6.8K Ω ,1/10W Q16 BSS138N R46 10M Ω ,1/10W VDD 13 D1A BAT854CW D7 1.8V Company Name: * PIBT101 PIBT102 COBT1 PIC101 PIC102 COC1 PIC301 PIC302 COC3 PIC401 PIC402 COC4 PIC501 PIC502 COC5 PIC601 PIC602 COC6 PIC701PIC702 COC7 PIC901 PIC902 COC9 PIC1101 PIC1102 COC11 PIC1201 PIC1202 COC12 PIC1301 PIC1302 COC13 PIC1401 PIC1402 COC14 PID101PID103 COD1A PID202PID203 COD2B PID301PID303 COD3A PID302PID303 COD3B PID401 PID403 COD4A PID402 PID403 COD4B PID502PID503 COD5B PID601 PID602 COD6 PID70A PID70K COD7 PID802 PID803 COD8B PID901PID903 COD9A PID902PID903 COD9B PID1001PID1003 COD10A PID1202 PID1203 COD12B PIE101 COE1 PIE201 COE2 PIJ101 PIJ102 COJ1 PIJ201 PIJ202 COJ2 PIJ301 PIJ302 COJ3 PIJP101PIJP102 PIJP103PIJP104 PIJP105PIJP106 PIJP107PIJP108 PIJP109PIJP1010 PIJP1011PIJP1012 COJP1 PIL101PIL102 COL1 PIL201 PIL202 COL2 PIL301 PIL302 COL3 PIL401PIL402 COL4 PIL501PIL502 COL5 PIL601PIL602 COL6 PIL701PIL702 COL7 PIQ101 PIQ102 PIQ103PIQ104 PIQ105 PIQ106 COQ1 PIQ201 PIQ202PIQ203 COQ2 PIQ301 PIQ302PIQ303 COQ3 PIQ401 PIQ402PIQ403 COQ4 PIQ501 PIQ502 PIQ503 COQ5 PIQ601 PIQ602 PIQ603 COQ6 PIQ701 PIQ702 PIQ703 COQ7 PIQ801 PIQ802 PIQ803 COQ8 PIQ901 PIQ902 PIQ903 COQ9 PIQ1001 PIQ1002 PIQ1003PIQ1004 PIQ1005 PIQ1006 COQ10 PIQ1501 PIQ1502PIQ1503 COQ15 PIQ1601 PIQ1602 PIQ1603 COQ16 PIR101 PIR102 COR1 PIR201 PIR202 COR2 PIR301 PIR302 COR3 PIR401 PIR402 COR4 PIR601PIR602 COR6 PIR701PIR702 COR7 PIR801 PIR802 COR8 PIR1101PIR1102 COR11 PIR1201 PIR1202 COR12 PIR1301 PIR1302 COR13 PIR1401 PIR1402 COR14 PIR1501 PIR1502 COR15 PIR1701PIR1702 COR17 PIR1801 PIR1802 COR18 PIR1901PIR1902 COR19 PIR2001PIR2002 COR20 PIR2101PIR2102 COR21 PIR2201 PIR2202 COR22 PIR2301PIR2302 COR23 PIR2401 PIR2402 COR24 PIR2501PIR2502 COR25 PIR2601PIR2602 COR26 PIR2701PIR2702 COR27 PIR2801 PIR2802 COR28 PIR2901 PIR2902 COR29 PIR3001PIR3002 COR30 PIR3101 PIR3102 COR31 PIR3201PIR3202 COR32 PIR3301 PIR3302 COR33 PIR3401 PIR3402 COR34 PIR3501PIR3502 COR35 PIR3601PIR3602 COR36 PIR3701PIR3702 COR37 PIR3801PIR3802 COR38 PIR4101 PIR4102 COR41 PIR4201 PIR4202 COR42 PIR4301 PIR4302 COR43 PIR4401 PIR4402 COR44 PIR4601 PIR4602 COR46 PIR4801PIR4802 COR48 PIR4901PIR4902 COR49 PIS101 PIS102 COS1 PITP BT01 COTP BT PITP CAP01 COTP CAP PITP CAP0S01 COTP CAP0S PITP Ex0Volt0Sample01 COTP Ex0Volt0Sample PITP GND01 COTP GND PITP High0Illu01 COTP High0Illu PITP Powerboot01 COTP Powerboot PITP Solar0AD01 COTP Solar0AD PITP Solar0Volt01 COTP Solar0Volt PITP Solar0Volt0Sample01 COTP Solar0Volt0Sample PITP VDD01 COTP VDD PITP VDD0PIR01 COTP VDD0PIR PITP Wake0Up001 COTP Wake0Up0 PITP Wake0Up101 COTP Wake0Up1 PIU101 PIU102 PIU103 PIU104 PIU105 PIU106 PIU107 PIU108 PIU109PIU1010PIU1011PIU1012PIU1013PIU1014PIU1015PIU1016PIU1017 PIU1018 PIU1019 PIU1020 PIU1021 PIU1022 PIU1023 PIU1024 PIU1025 PIU1026PIU1027PIU1028PIU1029PIU1030PIU1031PIU1032PIU1033PIU1034 COU1 PIU201 PIU202 PIU203 COU2 PIC1301 PID301 PID403 PIQ402 PIR2201 PITP CAP01 NLCAP0V PIU1023 PIU1025 PID401 PID803 PIR1902 PIR3002 NLEx0Supply PIBT102 PIC101 PIC302 PIC401 PIC502 PIC601 PIC702 PIC902 PIC1102 PIC1201 PIC1302 PIC1402 PID70A PID802 PIJ102 PIJP1012 PIL201 PIL301 PIL501 PIL701 PIQ101 PIQ502 PIQ603 PIQ702 PIQ803 PIQ903 PIQ1603 PIR801 PIR1301 PIR1401 PIR1501 PIR1702 PIR1801 PIR2401 PIR2801 PIR2901 PIR3101 PIR3301 PIR3401 PIR3702 PIR4201 PIS102 PITP GND01 PIU101 PIU105 PIU107 PIU1017 PIU1024 PIU1026PIU1028PIU1031 PIU203 PIBT101 PID1202 PI…
