3.Outline of the system Directly and indirectly controls various Indicator, Side mirror and Relay control related to existing BCM function, controls start of vehicle when authentication of RKE key is successful, and performs warning and notation processing of data received from TPS sensor. 3.1. IBU NSMK BCM function is a function for user convenience / warning, and it can directly or indirectly control various indicators, sensor power, hot wire and relay control through communication or switch input. It also performs Immobilizer function. ● Terminal control function: IGN1, IGN2, ACC power control ● Immobilizer function: Perform function for RKE Key authentication ● Head lamp washer relay control function - Optional function ● Indicator control function ● Auto light control function ● Puddle & Pocket Lamp control function ● Solenoid control function (ATM) ● PAS power control function ● LIN communication ● Chassis CAN communication (500kbps) ● Body CAN communicaton (500kbps) 3.2 Transponder Antenna: Built in the Start Stop Button to communicate with the transponder by a base station and using wireless communication :(134.2kHz) 3.3Installation in vehicle The NSMK ECU is installed inside the vehicle. Fig. Outline of the System NSMK Transponder Driver RF Receiver RF ANT TP ANT Installation in vehicle BCM with RF Internal Antenna RF Receiver Transponder Antenna TX KEY Fig. Installation of the System FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of th e FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■Reorient or relocate the receiving antenna. ■In crease the separation between the equipment and receiver. ■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void yo ur authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Warning "This device complies with Industry Canada licence-exempt RSS standard(s)." Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC ID : CQOEG06331 IC : 1551E-EG06331

4 May 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: CQOEG06331 To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; DENSO Korea Corporation 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsangnam-do, Korea, 51176 i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours DENSO Korea Corporation 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsangnam-do, Korea, 51176 Senior Research Engineer DENSO Korea Corporation 82-55-220-9321 [email protected]

DENSO Korea Corporation 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsangnam-do, Korea, 51176 4 May 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: CQOEG06331 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, DENSO Korea Corporation hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to t he public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give DENSO Korea Corporation temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Part list Short‐Term 5 External Photos 6 Internal Photos 7 Test‐Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Senior Research Engineer DENSO Korea Corporation 82-55-220-9321 [email protected]

SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Declaration Applicant Legal Business Name DENSO Korea Corporation Address 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsangnam-do South Korea, 51176 Grantee Code CQO FCC ID CQOEG06331 Authorized Contact Name Chang-su Ha Contact Email [email protected] Contact Phone 82-55-220-9321 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database Applicant Declaration Rev:0.0 Applicant Signature: Date: May 4, 2021 Print Name: Chang-su Ha Title: Senior Research Engineer / DENSO Korea Corporation

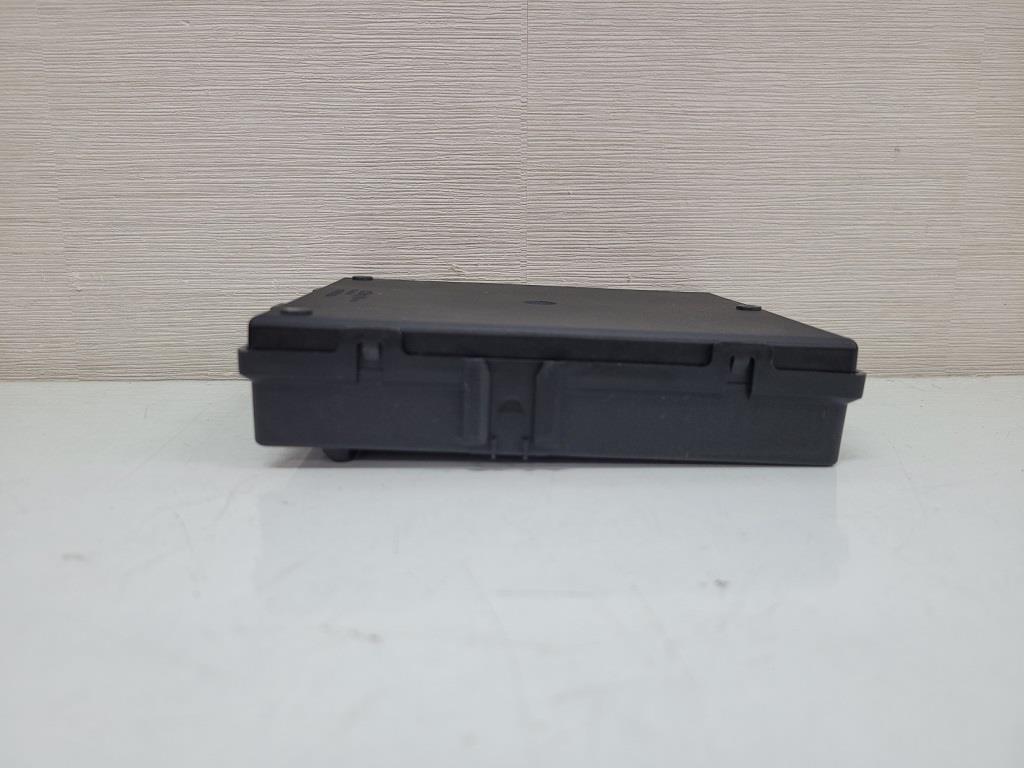

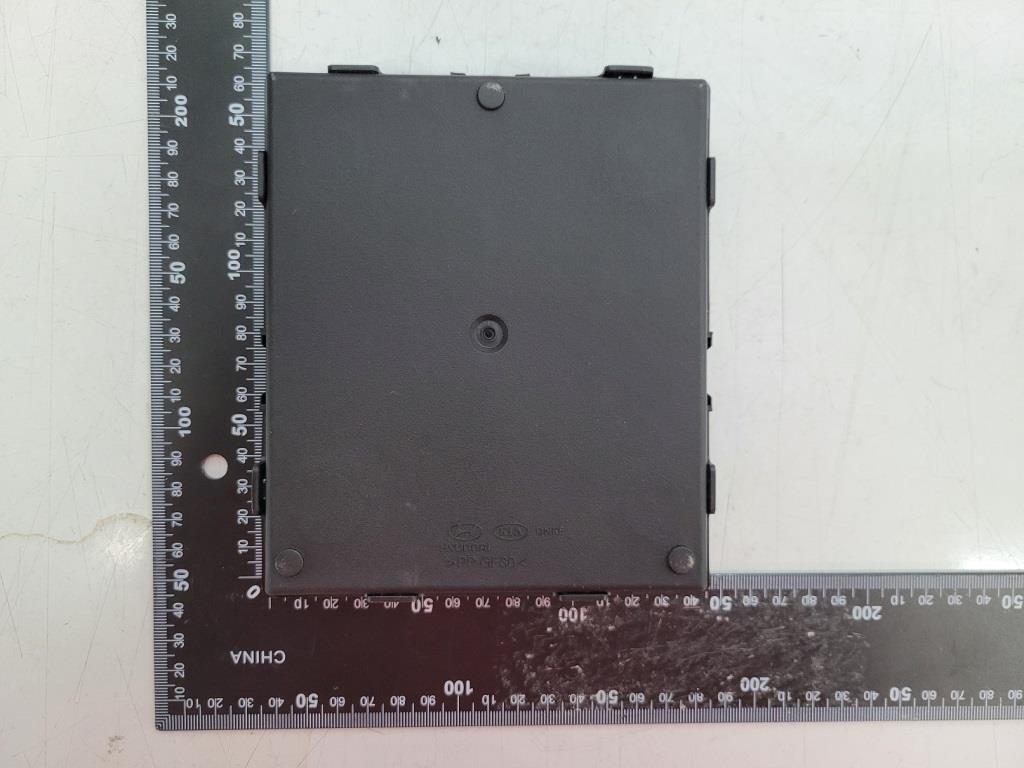

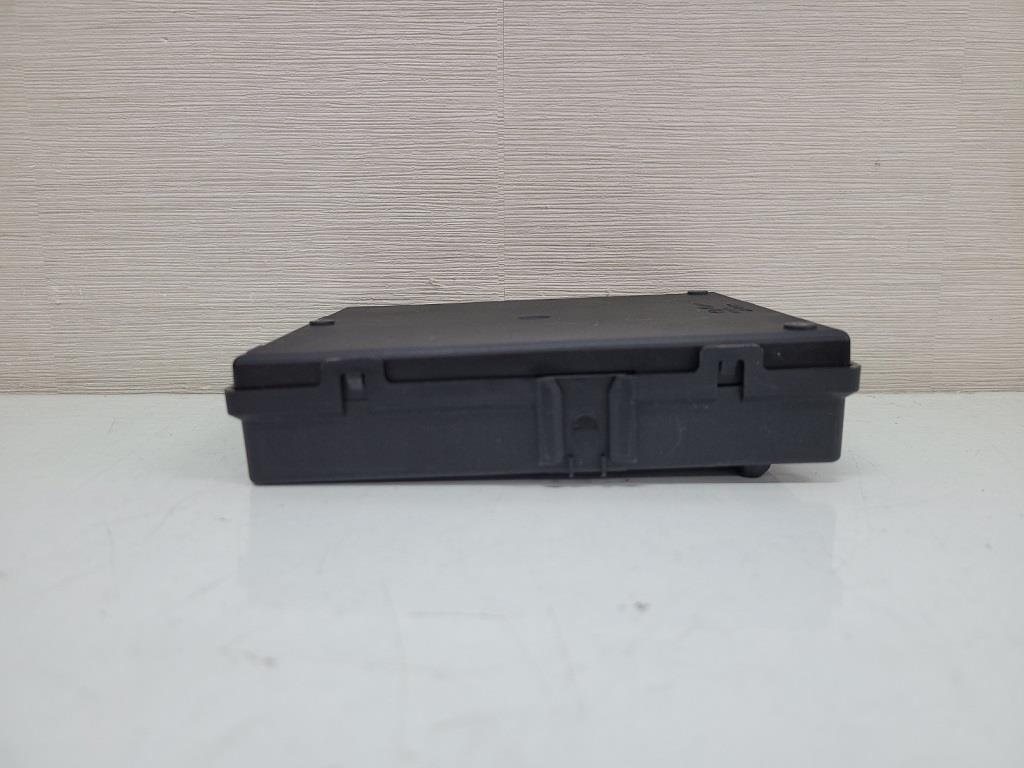

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label Format and Location <Front view of EUT> •Model : EG06330 • FCC ID : CQOEG06331 •IC : 1551E-EG06331 Model : EG06330 FCC ID : CQOEG06331 IC : 1551E-EG06331 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 7 cm 3.5 cm

Internal photos of EUT View of Test Zig and EUT Internal view of EUT Antenna EUT Zig Board Top view of Main PCB Bottom view of Main PCB

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002035 Page: 2 of 17 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental and Spurious Emission--------------------------- 6 3. 20 ㏈ Bandwidth -------------------------------------------------------------------------- 14 4. Occupied Bandwidth----------------------------------------------------------------------- 16 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002035 Page: 3 of 17 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : DENSO Korea Corporation Address : 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsangnam-do, Korea, 51176 Contact Person : Ha, Chang-su Phone No. : +82 55 220 9321 1.3. Details of Manufacturer Applicant : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product IBU Model Name EG06330 Serial Number 95400-M6032 Power Supply DC 12.0 V Frequency Range Tx: 134.20 ㎑, Rx: 433.92 ㎒ Antenna Type Tx Coil Antenna Rx PCB pattern antenna Antenna Serial Number 95425-M6000 H/W Version 1.0 S/W Version 1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002035 Page: 4 of 17 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Spectrum Analyzer R&S FSV30 103453 Nov. 04, 2020 Annual Nov. 04, 2021 Signal Generator R&S SMBV100A 255834 Jun. 03, 2020 Annual Jun. 03, 2021 DC Power Supply Agilent U8002A MY49030063 Feb. 02, 2021 Annual Feb. 02, 2022 EMI Test Receiver R&S ESU 100109 Feb. 19, 2021 Annual Feb. 19, 2022 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Dec. 22, 2020 Biennial Dec. 22, 2022 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/3 8330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/3 8330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MW X221-NMSNNMS (4 m) J1023142 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable RFONE SFX086-NMNM-10M (10 m) 20200324001 Dec. 01, 2020 Semi- annual Jun. 01, 2021 1.6. Sample Calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002035 Page: 5 of 17 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.7. Summary of Test Results The EUT has been tested according to the following specifications: Applied standard: FCC Part15 subpart C, IC RSS-210 Issue 10, RSS-Gen Issue 5 Section in FCC Section in IC Test Item(s) Result 15.209 RSS-210 Issue 10, 7.3, RSS-Gen Issue 5, 8.9 Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 2.1049 - 20 ㏈ Bandwidth Complied - RSS-Gen Issue 5 6.7 Occupied Bandwidth Complied 15.207 RSS-Gen Issue 5 8.8 AC Power Line Conducted Emission N/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation and which do not operate from the AC power lines. 1.8. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty Occupied Bandwidth ± 13.12 ㎑ Radiated Emission, 9 ㎑ to 30 ㎒ H ± 3.66 ㏈ V ± 3.66 ㏈ Radiated Emission, below 1 ㎓ H ± 4.90 ㏈ V ± 4.82 ㏈ Uncertainty figures are valid to a confidence level of 95 %. 1.9. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL002035 2021.05.03 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002035 Page: 6 of 17 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. Field Strength of Fundamental and Spurious Emission 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission below 30 ㎒. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002035 Page: 7 of 17 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.2. Limits 2.2.1. FCC According to §15.209(a), except as provided elsewhere in this subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table: Frequency (㎒) Field Strength (microvolts/meter) Measurement Distance (meter) 0.009-0.490 2 400/F(㎑) 300 0.490-1.705 24 000/F(㎑) 30 1.705-30.0 30 30 30-88 100** 3 88-216 150** 3 216-960 200** 3 Above 960 500 3 ** Exc…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓)
