D3ZSYS902-3900MHz TRANSCEIVER

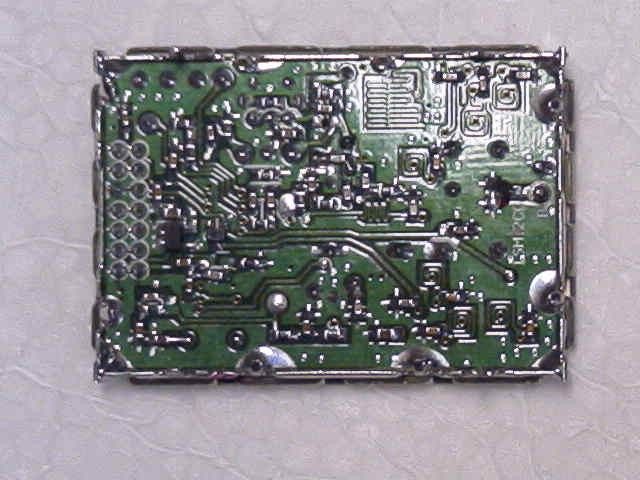

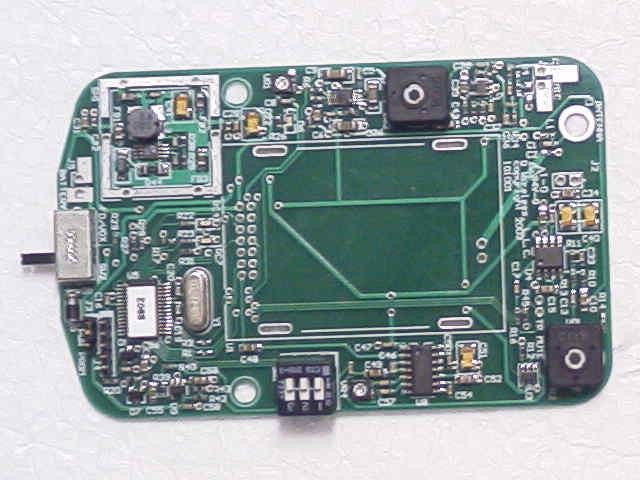

849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] June 23, 2004 Eric Dobson Timco Engineering, Inc. TCB SECTION Ref.: R COLUMBIA PRODUCTS CO., INC. FCC ID: D3ZSYS902-3 CORRESPONDENCE ID #: 12072 CONFIRMATION #: TC528279 Dear Eric: 1. I spoke with Mario regarding the testing of the master and slave and he said that they are electronically identical and have the same circuit board. The only difference is that the master has 2 earpieces so there is no need to test both. 2. There are photographs of the main board with the RF board removed and a photograph of the other side of the RF board in the file. Should you have any further questions, please let me know. Sincerely, Sharon Hoffman Enclosure

Samsung Electro-Mechanics America, Inc. 2895 Greenspoint Parkway, Suite 150 Hoffman Estates, IL 60195 Sharon Hoffman TIMCO ENGINEERING INC. 849 NW State Road 45 FCC Approvals Newberry, Florida 32669 Subject: R COLUMBIA'S FCC ID: D3ZSYS902-3 Dear Sharon, Thank you for your request of schematics for the following RF modules that we supplied to R-Columbia: RU0903B12KRA and RU0927H12KRA Unfortunately, the products are around 8 years old and now obsolete. We cannot locate the schematics in our database. The product was, however, used in many production cordless phones and other products by multiple customers over the years. These products passed regulatory agency approvals. It was not developed for specifically for R- Columbia. I’m sorry I could not directly address your request. Please let me know if you have any additional questions. Cordially, Jeffrey Moy Business Development Manager Samsung Electro-Mechanics America Copy: Irv Rozak

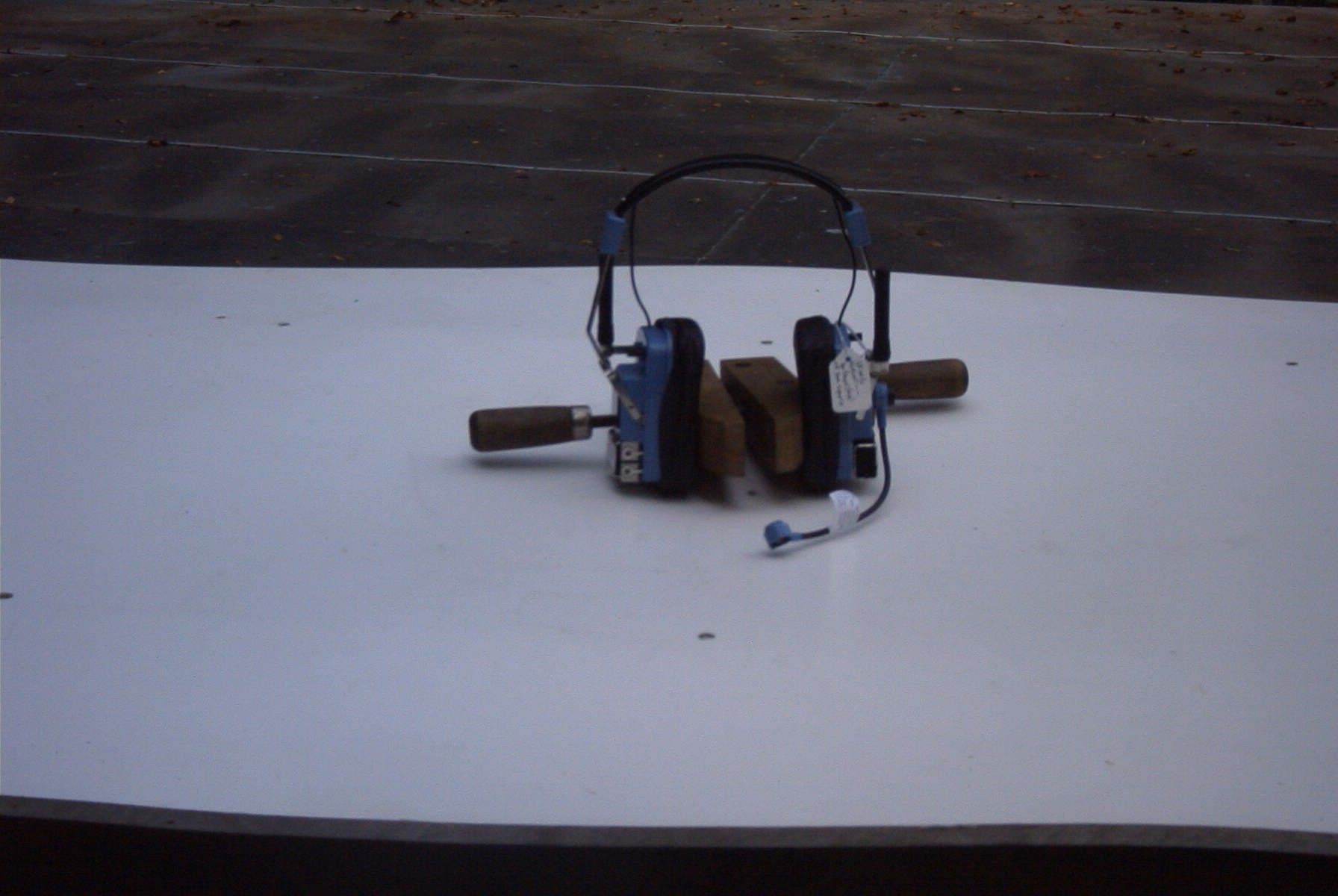

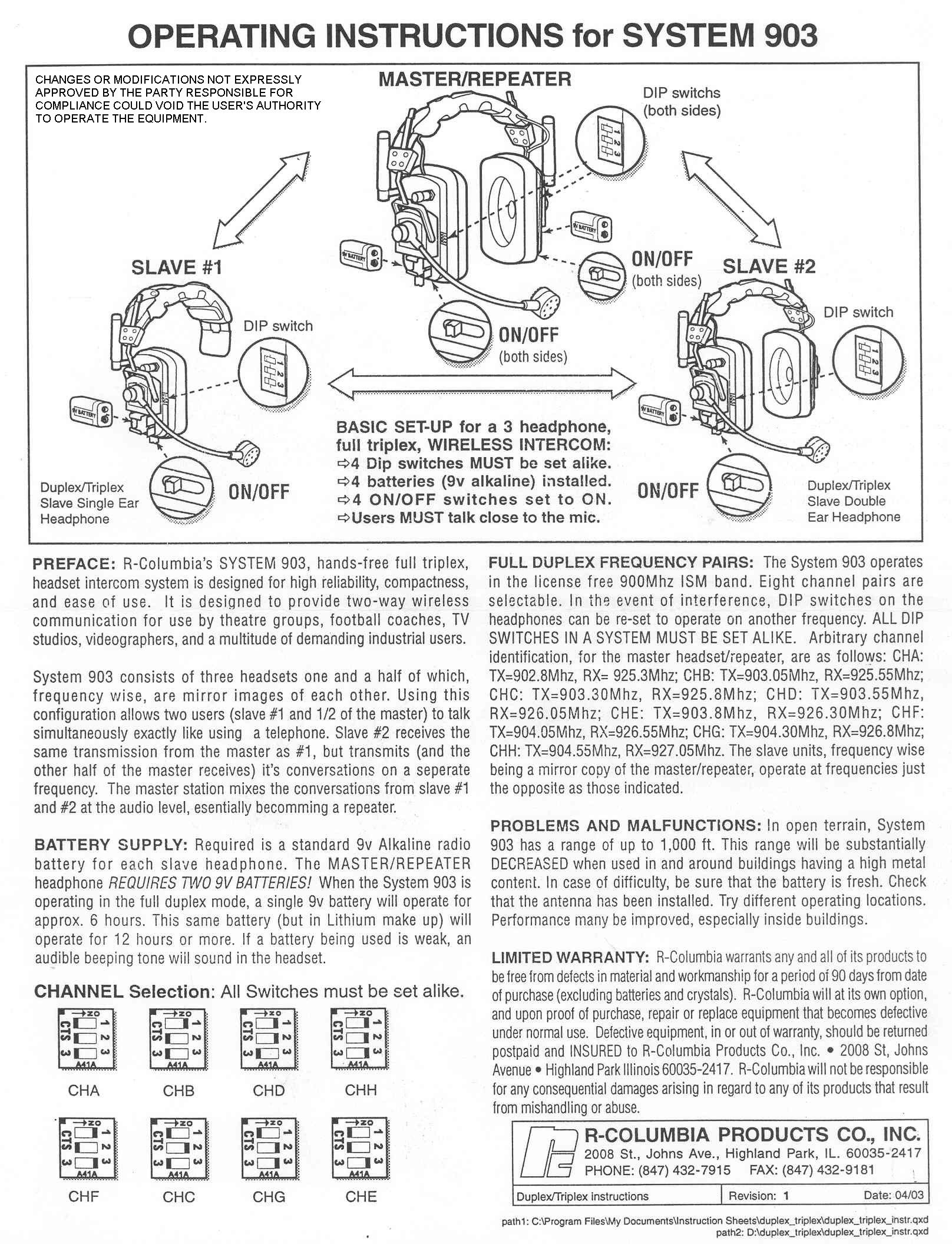

APPLICANT: R-COLUMBIA PRODUCTS CO., INC. FCC ID: D3ZSYS902-3 REPORT #: R/R-COLUMBIA_\836UT3\836UT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: R-COLUMBIA PRODUCTS CO., INC. FCC ID: D3ZSYS902-3 TEST REPORT CONTAINING: PAGE 1-4.........TEST EQUIPMENT LIST PAGE 5...........TEST PROCEDURE PAGE 6-7.........RADIATION INTERFERENCE TEST DATA PAGE 8...........OCCUPIED BANDWIDTH PAGE 9...........OCCUPIED BANDWIDTH PLOT EXHIBIT ATTACHMENTS: EXHIBIT 1.........LABEL SAMPLE EXHIBIT 2.........LABEL LOCATION EXHIBIT 3.........BLOCK DIAGRAM EXHIBIT 4.........SCHEMATIC EXHIBIT 5.........USERS MANUAL EXHIBIT 6.........EXTERNAL PHOTOGRAPHS EXHIBIT 7.........INTERNAL PHOTOGRAPHS EXHIBIT 8.........CIRCUIT DESCRIPTION EXHIBIT 9.........TEST SET UP PHOTOGRAPH APPLICANT: R-COLUMBIA PRODUCTS CO., INC. FCC ID: D3ZSYS902-3 REPORT #: R/R-COLUMBIA_\836UT3\836UT3TestReport.doc PAGE: 1 of 9 EMC Equipment List Last Update: 6/27/03 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 X 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 X Receiver, Beige Tower X Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 X RF Preselector HP 85685A 3221A01400 CAL 8/31/01 8/31/03 X Quasi-Peak Adapter HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Receiver, Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 RF Preselector HP 85685A 2926A00983 CAL 4/15/03 4/15/05 Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Receiver, Silver/Grey Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/14/02 10/14/04 RF Preselector HP 85685A 2620A00294 CAL 10/14/02 10/14/04 Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/14/02 10/14/04 Preamplifier HP 8449B 3008A01075 CHAR 1/28/02 1/28/04 Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CAL 3/4/03 3/4/05 Log-Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 APPLICANT: R-COLUMBIA PRODUCTS CO., INC. FCC ID: D3ZSYS902-3 REPORT #: R/R-COLUMBIA_\836UT3\836UT3TestReport.doc PAGE: 2 of 9 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CAL 9/26/02 9/26/05 X Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 2/17/03 2/17/05 Horn Antenna *(at 3 meters) Electro-Metrics EM-6961 6246 CAL 3/31/03 3/31/05 Horn Antenna *(at 10 meters) Electro-Metrics EM-6961 6246 CAL 6/4/03 6/4/05 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 Harmonic Mixer with Horn Antenna Oleson Microwave Labs M08HW/A F30425-1 CHAR 4/25/03 4/25/05 Harmonic Mixer with Horn Antenna Oleson Microwave Labs M12HW/A E30425-1 CHAR 4/25/03 4/25/05 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CHAR 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 System One Audio Precision System One SYS1-45868 CHAR 4/25/02 4/25/04 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CHAR 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 APPLICANT: R-COLUMBIA PRODUCTS CO., INC. FCC ID: D3ZSYS902-3 REPORT #: R/R-COLUMBIA_\836UT3\836UT3TestReport.doc PAGE: 3 of 9 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Power Meter HP 432A 1141A07655 CAL 4/15/03 4/15/05 Power Meter And Sensor Bird 4421-107 4022 0166 0218 CAL 4/16/03 4/16/05 Power Sensor HP 478A 72129 CAL 4/15/03 4/15/05 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 Thermometer Extech 4028 14871-2 CAL 3/7/03 3/7/05 X Hygro-Thermometer Extech 445703 0602 CAL 10/4/02 10/4/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Frequency Counter HP 5385A 2730A03025 CAL 3/7/03 3/7/05 Power Sensor Agilent Technologies 84811A 2551A02705 CHAR 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 2/15/02 2/15/04 Sweep Generator Wiltron 6648 101009 CAL 4/15/03 4/15/05 Sweep Generator Wiltron 6669M 007005 CAL 3/3/03 3/3/05 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/03 Modulation Meter Boonton 8220 10901AB CAL 4/15/03 4/15/05 Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/03 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/03 Notch Filter Lorch Microwave 5BRX-850/ X100-N AD-1 CHAR 4/17/03 4/17/05 High Pass Filter Unk 3768(5)-400 041 CHAR 12/17/02 12/17/04 High Pass Filter Microlab HA-10N CHAR 10/4/01 10/4/03 APPLICANT: R-COLUMBIA PRODUCTS CO., INC. FCC ID: D3ZSYS902-3 REPORT #: R/R-COLUMBIA_\836UT3\836UT3TestReport.doc PAGE: 4 of 9 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS High …
