DBSM/DBSMD Digital Transcorder DBSM-A1B1, DBSM/E01-A1B1, DBSMD-A1B1, DBSMD/E01-A1B1 Featuring Digital Hybrid Wireless ® Technology US Patent 7,225,135 INSTRUCTION MANUAL Rio Rancho, NM, USA www.lectrosonics.com Fill in for your records: Serial Number: Purchase Date: DBSM DBSMD NEED NEW PICS. THESE ARE PROTOTYPES DBSM-A1B1, DBSM/E01-A1B1, DBSMD-A1B1, DBSMD/E01-A1B1 LECTROSONICS, INC. 2 Introduction The design of the DBSM/DBSMD transmitter delivers the advanced technology and features of Digital Hy- brid Wireless ® in a Lectrosonics belt-pack transmitter at a modest cost. Digital Hybrid Wireless ® combines a 24-bit digital audio chain with an analog FM radio link to eliminate a compandor and its artifacts, yet preserve the extended operating range and noise rejection of the finest analog wireless systems. The housing is a rugged, machined aluminum pack- age with a standard Lectrosonics 5-pin input jack for use with electret lavaliere mics, dynamic mics, musical instrument pickups and line level signals. The LEDs on the keypad allow quick and accurate level settings without having to view the receiver. The unit is powered by AA batteries, and the antenna port uses a standard 50 ohm SMA connector. Switching power supplies provide constant voltages to the transmitter circuits from the beginning to the end of battery life, with output power remaining constant over the life of the battery. The input amplifier uses an ultra low noise op amp. Input gain is adjustable over a 44 dB range, with a DSP-controlled dual envelope input limiter providing a clean 30 dB range to prevent overload from signal peaks. About Digital Hybrid Wireless ® All wireless links suffer from channel noise to some degree, and all wireless microphone systems seek to minimize the impact of that noise on the desired signal. Conventional analog systems use compandors for enhanced dynamic range, at the cost of subtle artifacts (known as “pumping” and “breathing”). Wholly digital systems defeat the noise by sending the audio informa- tion in digital form, at the cost of some combination of power, bandwidth, operating range and resistance to interference. The Lectrosonics Digital Hybrid Wireless system over- comes channel noise in a dramatically new way, digitally encoding the audio in the transmitter and decoding it in the receiver, yet still sending the encoded informa- tion via an analog FM wireless link. This proprietary algorithm is not a digital implementation of an analog compandor but a technique which can be accomplished only in the digital domain. Since the RF link between transmitter and receiver is FM, channel noise will increase gradually with in- creased operating range and weak signal conditions, however, the Digital Hybrid Wireles system handles this situation elegantly with rarely audible audio artifacts as the receiver approaches its squelch threshold. In contrast, a purely digital system tends to drop the audio suddenly during brief dropouts and weak signal conditions. The Digital Hybrid Wireless system simply encodes the signal to use a noisy channel as efficiently and robustly as possible, yielding audio performance Table of Contents Introduction ............................................................................2 About Digital Hybrid Wireless ® ...............................................................................2 Servo Bias Input and Wiring ................................................3 DSP-controlled Input Limiter ................................................3 Recorder function .................................................................3 Compatibility withmicroSDHC memory cards ....................3 Features ..................................................................................4 Battery Status LED Indicator ...............................................4 Menu Shortcuts ....................................................................4 IR (infrared) Sync .................................................................4 Battery Installation ...............................................................5 Formatting SD Card ...............................................................5 IMPORTANT ..........................................................................5 iXML HEADER SUPPORT ..................................................5 Turning Power ON .................................................................6 Short Button Press ...............................................................6 Long Button Press ...............................................................6 Menu Shortcuts ....................................................................6 Transmitter Operating Instructions .....................................7 Recorder Operating Instructions .........................................7 SMWB Main Menu ..................................................................8 SMWB Power Button Menu ...................................................9 Setup Screen Details ............................................................10 Locking/Unlocking Changes to Settings...............................10 Main Window Indicators .......................................................10 Connecting the Signal Source .............................................10 Turning Control Panel LEDs ON/OFF ..................................10 Helpful Features on Receivers .............................................10 Files .....................................................................................10 Record or Stop ....................................................................11 Adjusting the Input Gain .......................................................11 Selecting Frequency ............................................................11 Selecting Frequency Using Two Buttons ..............................12 About Overlapping Frequency Bands ..................................12 Selecting the Low Frequency Roll-off .....................…

Text truncated - open the document above for the full version.

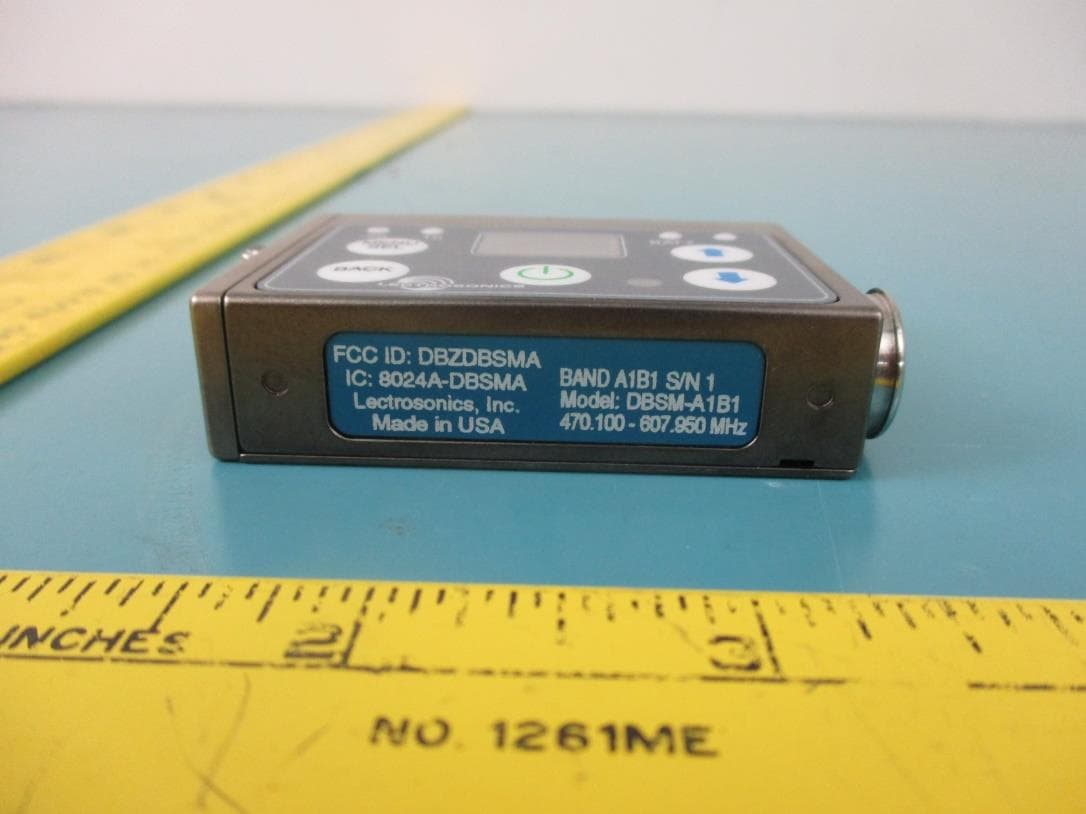

Lectrosonics, Inc. FCC ID: DBZDBSMA, IC: 8024A-DBSMA EUT External Photographs 1.1. EUT Front View Model: DBSM-A1B1 Model: DBSMD-A1B1 Lectrosonics, Inc. FCC ID: DBZDBSMA, IC: 8024A-DBSMA 1.2. EUT Rear View Model: DBSM-A1B1 Model: DBSMD-A1B1 Lectrosonics, Inc. FCC ID: DBZDBSMA, IC: 8024A-DBSMA 1.3. EUT Top View Model: DBSM-A1B1 Model: DBSMD-A1B1 Lectrosonics, Inc. FCC ID: DBZDBSMA, IC: 8024A-DBSMA 1.4. EUT Bottom View Model: DBSM-A1B1 Model: DBSMD-A1B1 Lectrosonics, Inc. FCC ID: DBZDBSMA, IC: 8024A-DBSMA 1.5. EUT Side View #1 Model: DBSM-A1B1 Model: DBSMD-A1B1 Lectrosonics, Inc. FCC ID: DBZDBSMA, IC: 8024A-DBSMA 1.6. EUT Side View #2 Model: DBSM-A1B1 Model: DBSMD-A1B1 Lectrosonics, Inc. FCC ID: DBZDBSMA, IC: 8024A-DBSMA 1.7. EUT Antenna View
