DD4-SBH2240Wireless Headphones

QUICK START GUIDE AONIC True Wireless Sound Isolating™ Headphones ChibiQS.indb 1ChibiQS.indb 14/9/2021 8:20:30 PM4/9/2021 8:20:30 PM 2 Printed in China ©2021 Shure Incorporated Model: SBH2240 27A49584 (Rev. 1) ChibiQS.indb 2ChibiQS.indb 24/9/2021 8:20:35 PM4/9/2021 8:20:35 PM 3 HEADPHONES UNFOLDING ChibiQS.indb 3ChibiQS.indb 34/9/2021 8:20:41 PM4/9/2021 8:20:41 PM 4 PAIR POWER ON AND 1 POWER ON Press 2s Flashing blue/red – PAIRING MODE 2 Select SHURE AONIC 40 on your device HOLD 2s NOTE: Headphones automatically enter pairing mode the first time you power them on or if not previously paired with a device. ChibiQS.indb 4ChibiQS.indb 44/9/2021 8:20:42 PM4/9/2021 8:20:42 PM 5 POWER BUTTON USING THE BATTERY STATUS Press two times (audible notification) PAIRING MODE Hold 5s from a powered-off state POWER ON/OFF Hold for 2s HOLD 5s 2X CLEAR PAIRED DEVICE LIST Hold 7s from a powered-off state HOLD 7s ChibiQS.indb 5ChibiQS.indb 54/9/2021 8:20:43 PM4/9/2021 8:20:43 PM 6 VOLUME CONTROLLING THE VOLUME DOWN Press VOLUME UP Press - + ChibiQS.indb 6ChibiQS.indb 64/9/2021 8:20:43 PM4/9/2021 8:20:43 PM 7 MUSIC/PHONE CONTROLLING THE CENTER BUTTON DECLINE Press and hold 2s END Press one time ANSWER Press one time HOLD 2s 1X 1X 1X PLAY/PAUSE 2X NEXT TRACK PREVIOUS TRACK 3X 6s 3X 2X HOLD FAST FORWARD RESTART TRACK VOICE ASSIST Press and hold 2s HOLD 2s ChibiQS.indb 7ChibiQS.indb 74/9/2021 8:20:43 PM4/9/2021 8:20:43 PM 8 TOGGLE BETWEEN ANC/ENVIRONMENT MODE Press one time 1X NOISE CONTROL BUTTON (some features only available when used with the PLAY app) CONTROL NOISE BYPASS ANC/ENVIRONMENT MODE Press and hold HOLD ACTIVE NOISE CANCELLATION Press one time (while in BYPASS mode) 1X MUTE/UNMUTE Press two times 2X ChibiQS.indb 8ChibiQS.indb 84/9/2021 8:20:44 PM4/9/2021 8:20:44 PM 9 CAB LES USING THE 3.5 MM AUDIO CABLE Connect to analog audio port USB-C CABLE • Charge the battery • Connect to digital audio CHARGING Red LOW BATTERY Flashing red FULLY CHARGED Off ChibiQS.indb 9ChibiQS.indb 94/9/2021 8:20:45 PM4/9/2021 8:20:45 PM 10 LED BEHAVIORS 2s PAIRING UNSUCCESSFUL Flashing blue PAIRING SUCCESSFUL Blue for 2s PAIRING MODE Flashing blue/red CHARGING Red LOW BATTERY Flashing red FULLY CHARGED Off ChibiQS.indb 10ChibiQS.indb 104/9/2021 8:20:45 PM4/9/2021 8:20:45 PM 11 HEADPHONES STORING THE ChibiQS.indb 11ChibiQS.indb 114/9/2021 8:20:48 PM4/9/2021 8:20:48 PM 12 SPECIFICATIONS Transducer Type Dynamic, Neodymium magnet Driver Size 50 mm Frequency Response 20 to 22,000 Hz Sensitivity @ 1 kHz 97.5 dB/mW Impedance @ 1 kHz 39 Ω Maximum Input Power 100 mW Weight 334 g (11.8 oz.) Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -10°C to 45°C (14°F to 113°F) Antenna Type Internal Monopole Gain +2.29 dBi Operating Frequency 2402 MHz-2480 MHz Modulation Type FHSS Supported Codecs ✦aptX TM ✦aptX HD ✦aptX Low Latency ✦SBC ✦AAC ✦LDAC HeadphonesBluetooth Cables USB-C to USB-A 1m 2.5 mm to 3.5 mm 1.5 m ChibiQS.indb 12ChibiQS.indb 124/9/2021 8:20:49 PM4/9/2021 8:20:49 PM 13 SHUREPLUS PLAY ™™ DOWNLOAD OUR MOBILE LISTENING APPDOWNLOAD OUR MOBILE LISTENING APP iOSANDROID ChibiQS.indb 13ChibiQS.indb 134/9/2021 8:20:49 PM4/9/2021 8:20:49 PM 14 WE GOT YOU. NEED HELP?NEED HELP? VISIT SHURE.COM ChibiQS.indb 14ChibiQS.indb 144/9/2021 8:20:49 PM4/9/2021 8:20:49 PM 15 ChibiQS.indb 15ChibiQS.indb 154/9/2021 8:20:49 PM4/9/2021 8:20:49 PM ChibiQS.indb 12ChibiQS.indb 124/9/2021 8:20:50 PM4/9/2021 8:20:50 PM WIRELESS HEADPHONES OWNER’S MANUAL Printed in China ©2021 Shure Incorporated 27A49585 (Rev. 1) Product Safety and Warranty Information WH Owners Manual.indb 1WH Owners Manual.indb 14/8/2021 3:41:08 PM4/8/2021 3:41:08 PM Model: SBH2240 WH Owners Manual.indb 2WH Owners Manual.indb 24/8/2021 3:41:09 PM4/8/2021 3:41:09 PM 3 Before using this product, please read and save the enclosed warnings and safety instructions. WARNING FOR ALL EARPHONES! Use, clean, and maintain earphones according to manufacturer’s instructions. SAFETY PRECAUTIONS The possible results of incorrect use are marked by one of the two symbols— "WARNING" and "CAUTION"— depending on the imminence of the danger and the severity of the damage. WARNING: Ignoring these warnings may cause severe injury or death as a result of incorrect operation. CAUTION: Ignoring these cautions may cause moderate injury or property damage as a result of incorrect operation. WARNING • If water or other foreign objects enter the inside of the device, fire or electric shock may result. • Do not attempt to modify this product. Doing so could result in personal injury and/or product failure. • Do not use when a failure to hear your surroundings could be dangerous, such as while driving, or when biking, walking, or jogging where traffic is present and accidents could occur. • Keep this product and its accessories out of reach of children. Handling or use by children may pose a risk of death or serious injury. Contains small parts and cords that may pose risk of choking or strangulation. • Stop using the earphones and consult a medical professional if you experience irritation, excessive wax buildup, or other discomfort. CAUTION • Never disassemble or modify the device, as failures may result. • Do not subject to extreme force and do not pull on the cable or failures may result. • Keep the earphone dry and avoid exposure to extreme temperatures and humidity. Safety Information SAFETY PRECAUTIONS WH Owners Manual.indb 3WH Owners Manual.indb 34/8/2021 3:41:09 PM4/8/2021 3:41:09 PM 4 • If you are currently receiving ear treatment, consult your physician before using this device. • High sound pressure • Hearing damage risk • To prevent possible hearing damage, do not listen at high volume levels for long periods. IMPORTANT SAFETY INSTRUCTIONS 1. READ these instructions. 2. KEEP these instructions. 3. HEED all warnings. 4. FOLLOW all instructions. 5. DO NOT use this apparatus near water. 6. CLEAN ONLY with dry cloth. 7. DO NOT block any ventilation openings. Install in accordance with the man…

Text truncated - open the document above for the full version.

Declaration of Authorization We Name: Shure Incorporated Address: 5800 West Touhy Avenue, Niles, IL 60714-4608, USA Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Wireless Headphones Type designation: SBH2240 Trademark: , FCC ID: DD4-SBH2240 IC: 616A-SBH2240 on our behalf. --------------------------------------------------- Signature: Craig Kozokar, EMC Project Engineer Date: 2021/06/22

Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: DD4-SBH2240 Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until (180 days): External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Signature: Name: Craig Kozokar Title: EMC Project Engineer TEL: 847-600-8652 Email: [email protected]

Date: June 22, 2021 Federal Communications Commission Authorization and Evaluation Division FCC ID: DD4-SBH2240 To Whom It May Concern: This letter is to ascertain that the following information of applicant, product with model(s) have been the units used for conducting FCC compliance testing, the SDoC part will be tested by FCC recognized test lab. Product: Wireless Headphones Model: SBH2240 If you have any question or concerns, pls. contact us. Signature: Name: Craig Kozokar Title: EMC Project Engineer TEL: 847-600-8652 Email: [email protected]

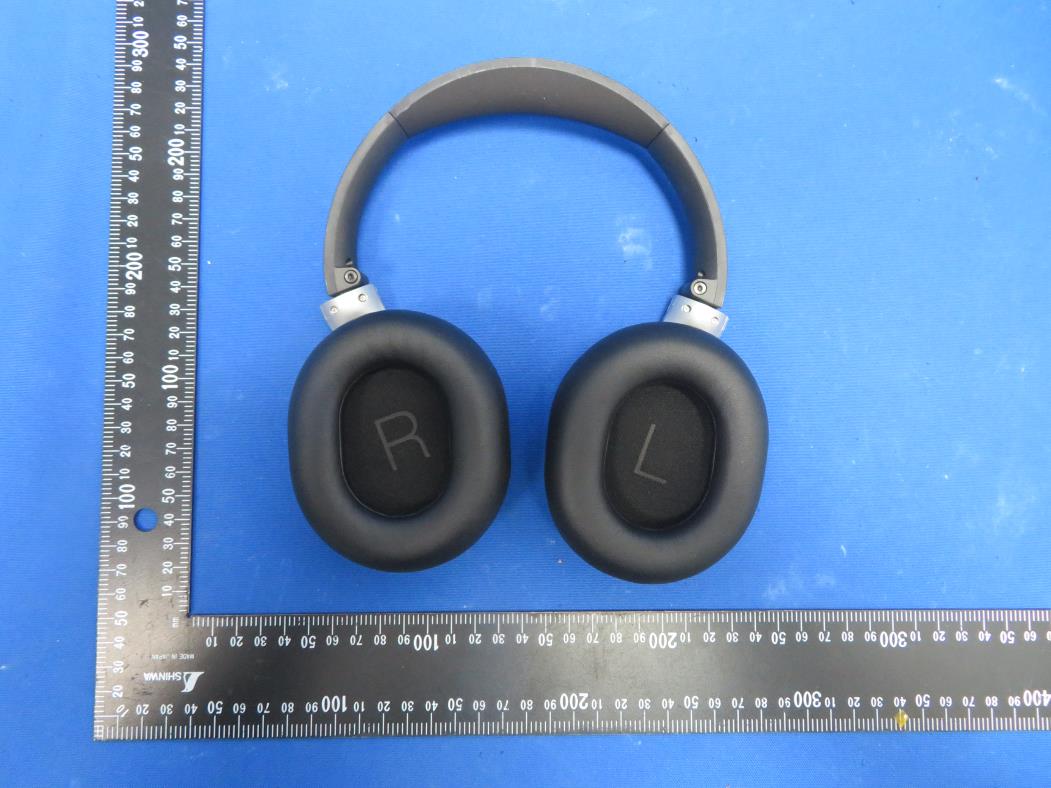

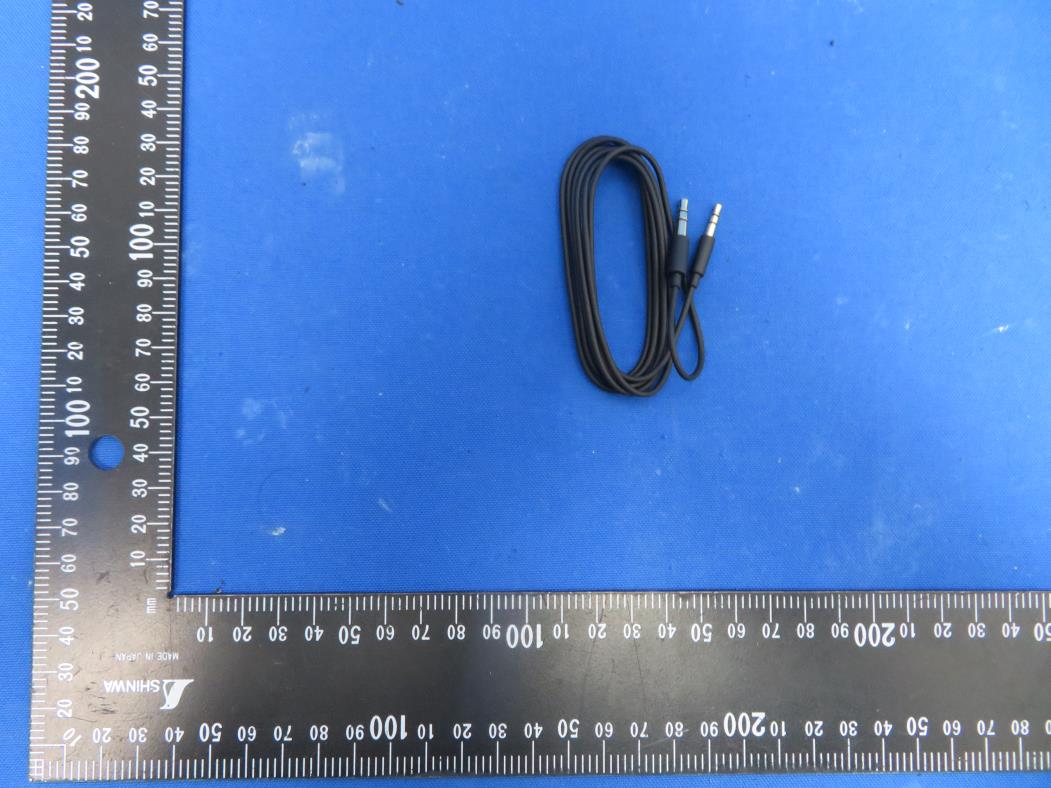

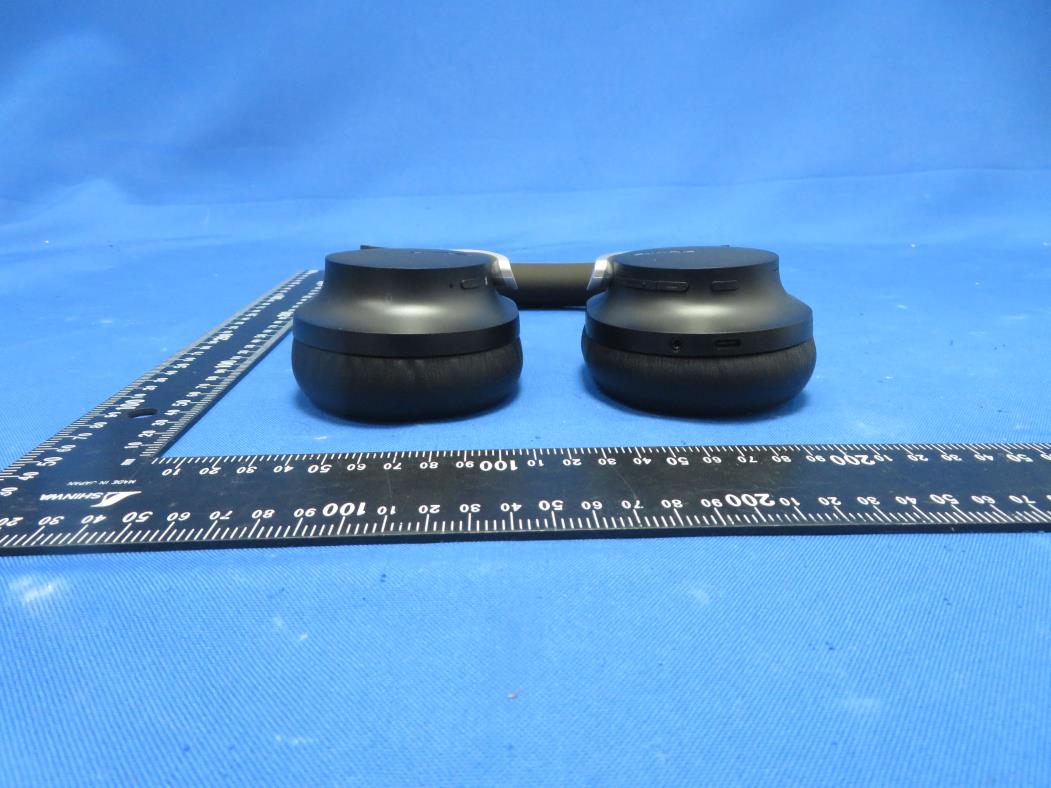

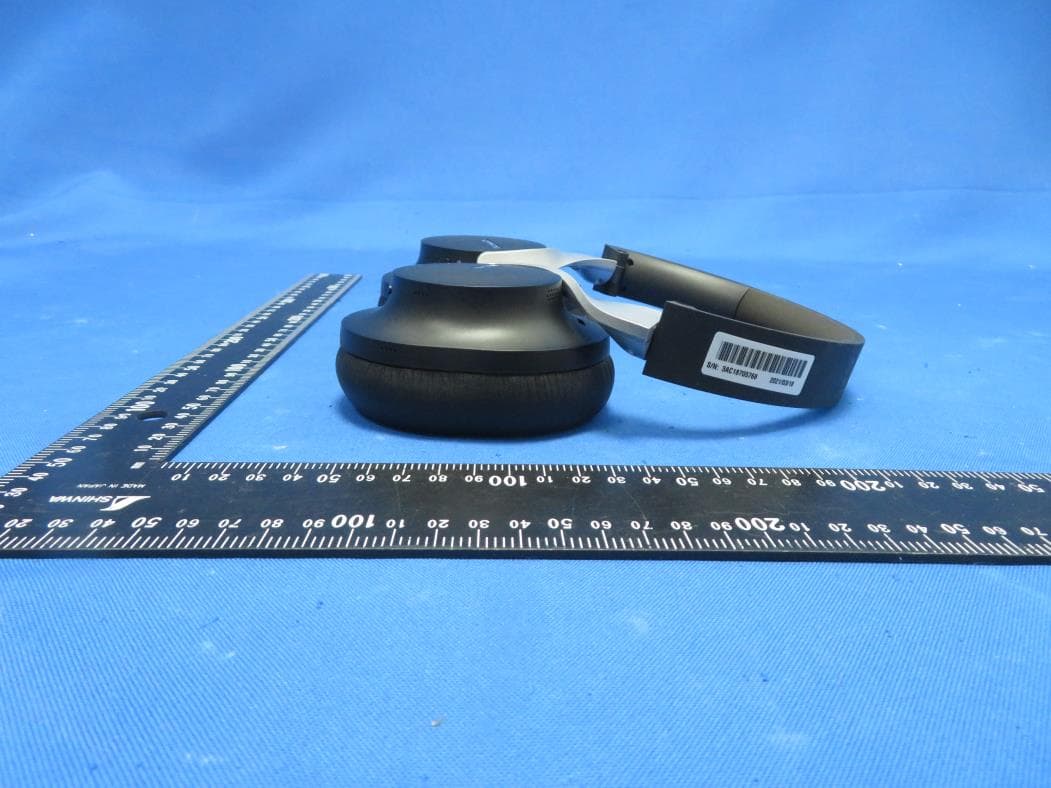

Report No.: 2106RSU001-UE 1 of 4 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2106RSU001-UE 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2106RSU001-UE 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2106RSU001-UE 4 of 4 (7) EUT Photo (8) EUT Photo

R-C-SHU-SBH2240 xxx-xxxxxx TA-xxxx/xxxx Type Accepted No.:xxx-xxxxxxxx FCC ID: DD4-SBH2240 IC: 616A-SBH2240 Input : 5V 0.5A Made in China CMIIT ID: xxxxxxxxxxx Model型號: SBH2240 Wireless Headphones 无线耳机 Shure Incorporated CNC ID:x-xxxxx HKxxx xx xxxxx SBH2240 xxxxxxxxxxxxxx xxxxx-xx-xxxxx xxxx-xx-x-xxxx IS 616 / IEC 60065 X-XXXXXXXX www.bis.gov.in Prototype not for sale xxxxx

Report No.: 2106RSU001-UE 1 of 6 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2106RSU001-UE 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 2106RSU001-UE 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 2106RSU001-UE 4 of 6 (7) EUT Photo (8) EUT Photo Report No.: 2106RSU001-UE 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 2106RSU001-UE 6 of 6 (11) EUT Photo (12) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2106RSU001-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 06-25-2021 1 of 7 RF Exposure Evaluation Declaration FCC ID: DD4-SBH2240 APPLICANT: Shure Incorporated Application Type: Certification Product: Wireless Headphones Model No.: SBH2240 Trademark: , FCC Rule Part(s): FCC Part 2 (Section 2.1091) Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2106RSU001-U3 2 of 7 Revision History Report No. Version Description Issue Date Note 2106RSU001-U3 Rev. 01 Initial Report 06-25-2021 Valid Report No.: 2106RSU001-U3 3 of 7 1. Product Information 1.1. Equipment Description Note: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. 1.2. RF Specification 1.3. Applied Standards KDB 447498 D01v06 Product Name Wireless Headphones Model No. SBH2240 Serial No. Conducted Sample: 3AC18705275 Radiated Sample: 3AC18705364 Operating Temperature 0 ~ 45 °C Bluetooth Version v5.1 dual mode Antenna Information Refer to clause 1.2 Power Type Internal Li-ion Battery Input or AC/DC Adapter Input Operating Frequency 2402~2480MHz Channel Number BR/EDR: 79 LE: 40 Type of modulation BR/EDR: GFSK, Pi/4 DQPSK, 8DPSK LE: GFSK Antenna Type Monopole Antenna Antenna Gain 2.29dBi Report No.: 2106RSU001-U3 4 of 7 2. RF Exposure Evaluation 2.1. Test Limit SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The equation and threshold in Note 1 must be applied to determine SAR test exclusion. MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Report No.: 2106RSU001-U3 5 of 7 Note: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where ⚫ f(GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation ⚫ The result is rounded to one decimal place for comparison ⚫ 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Report No.: 2106RSU001-U3 6 of 7 2.2. Test Result Product Wireless Headphones Test Item RF Exposure Evaluation Test Mode Frequency Band (MHz) Maximum Turn-up Output Power SAR Test Exclusion Threshold (mW) @ 15mm (dBm) (mW) Bluetooth-EDR 2402 ~ 2480 6.52 4.49 29 Bluetooth-LE 2402 ~ 2480 6.80 4.79 29 Note 1: The separation distance between the user and the device antenna is 15.6 mm, detail information refer to operation description. Note 2: Per FCC KDB 447498 D01v06, the SAR exclusion threshold for distances <50mm is defined by the following equation: Based on the maximum conducted power of Bluetoothand the antenna to use separation distance, Bluetooth SAR was not required; For Bluetooth-EDR, (4.49 / 5) * = 1.41 < 3.00 For Bluetooth-LE, (4.79 / 5) * = 1.51 < 3.00 So SAR test exclusion can be applied for Wireless Headphones; The End Report No.: 2106RSU001-U3 7 of 7 Appendix - EUT Photograph Refer to “2106RSU001-UE” file.
