DD4-SC7LWWireless lavalier microphone

MOVEMIC TM WIRELESS OWNERS MANUAL Product Safety and Warranty Information Printed in China ©2023 Shure Incorporated 27A53826 (Rev. 1) MoveMic-OM.indb 1MoveMic-OM.indb 18/10/2023 12:43:35 PM8/10/2023 12:43:35 PM 2 Regulatory Model: North America, South America, and Russia | MoveMic ClipLav: SC7LW Rest of World | MoveMic ClipLav: SC6LW Charge Case | SPCCW MoveMic-OM.indb 2MoveMic-OM.indb 28/10/2023 12:43:36 PM8/10/2023 12:43:36 PM 3 IMPORTANT SAFETY INSTRUCTIONS 1. READ these instructions. 2. KEEP these instructions. 3. HEED all warnings. 4. FOLLOW all instructions. 5. DO NOT use this apparatus near water. 6. CLEAN ONLY with dry cloth. 7. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. 8. DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not place any open flame sources on the product. 9. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10. ONLY USE attachments/accessories specified by the manufacturer. 11. UNPLUG this apparatus during lightning storms or when unused for long periods of time. 12. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 13. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the apparatus. 14. The MAINS plug or an appliance coupler shall remain readily operable. 15. The airborne noise of the Apparatus does not exceed 70dB (A). 16. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection. MoveMic-OM.indb 3MoveMic-OM.indb 38/10/2023 12:43:36 PM8/10/2023 12:43:36 PM 4 17. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 18. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure. 19. Operate this product within its specified operating temperature range. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. For Products That Use Bluetooth WARNING ✦Follow instructions from manufacturer. ✦Product battery may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat above 140°F (60°C), or incinerate. ✦Attention should be drawn to the environmental aspects of battery disposal. ✦Product shall not be exposed to excessive heat such as sunshine, fire, or the like. ✦Do NOT make unauthorized alterations to this product. CAUTION ✦Follow applicable laws regarding mobile phone and headphone use while driving. ✦This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device. ✦Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like ✦Batteries (battery pack or batteries installed) shall not be crushed or cut MoveMic-OM.indb 4MoveMic-OM.indb 48/10/2023 12:43:36 PM8/10/2023 12:43:36 PM 5 ✦Batteries (battery pack or batteries installed) shall not be subjected to extremely low air pressure ✦Risk of fire or explosion if the battery is replaced by an incorrect type Note: Battery replacement to be performed only by Shure authorized service personnel. Important Product Information LICENSING INFORMATION Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability depends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. Information to the user This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause interference with radio and television reception. Notice: The FCC regulations provide that changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and MoveMic-OM.indb 5MoveMic-OM.indb 58/10/2023 12:43:36 PM8/10/2023 12:43:36 PM 6 on, the user is encouraged to try to correct the interference by one or more of the following measures: ✦Reorient or relocate the receiving antenna. ✦Increase the separation between the equipment and the receiver. ✦Connect the equipment to an outlet on a circuit different from that to …

Text truncated - open the document above for the full version.

050523-17 rev 8 Certification Application Attestation Statements Date: August 5, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ______Shure Incorporated______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ______Shure Incorporated______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☐ - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: _____ Craig Kozokar ______ (Signature 2 ) (Print name) Title: _____ EMC Project Engineer _______ Company: _____ Shure Incorporated _____ Telephone: _____847-600-8652_____ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead.

U.S. Agent Designation for Service of Process TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: Shure Incorporated FRN #: 0030683478 Grantee Code: DD4 Contact Name: Craig Kozokar Street Address: 5800 West Touhy Avenue City/Province/Zip: Niles, IL 60714-4608, USA Telephone No: (847) 600-8652 Email: [email protected] Applicant Signature 1 : Date: 2023-06-26 Signed by (Printed Name/Title): Craig Kozokar / EMC Project Engineer 1 - Letters must be placed on appropriate letterhead. The signee for the applicant must be one of the following: Applicant (grantee) contact of record in the FCC’s authorization system, or authorized officers or employee of the applicant (grantee).

050222-17 Request for Confidentiality Date: August 5, 2023 Subject: Confidentiality Request for: _____DD4-SC7LW___ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and/or IC RSP-100, Section 12.4, the applicant requests that a part of the subject application(s) be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☒ Short Term --------------------------- External Photos ☒ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☒ Short Term --------------------------- Test Setup Photos ☒ Short Term ☐ Permanent * 1 User’s Manual _____ Shure Incorporated_______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: (specify ISED expiration date / date of marketing) . Sincerely, By: ______ Craig Kozokar______ (Signature/Title 2 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Cover Letter Date: August 5, 2023 Federal Communications Commission Authorization and Evaluation Division FCC ID: DD4-SC7LW Please be notified that we, the undersigned, Shure Incorporated declares that the product which bears the above FCC ID is also compliant with the FCC requirements for Supplier’s Declaration of Conformity(SDoC). And the SDoC procedure shall be carried out prior to marketing the device in the US. Sincerely, Signature： Print Name: Craig Kozokar Title: EMC Project Engineer Shure Incorporated

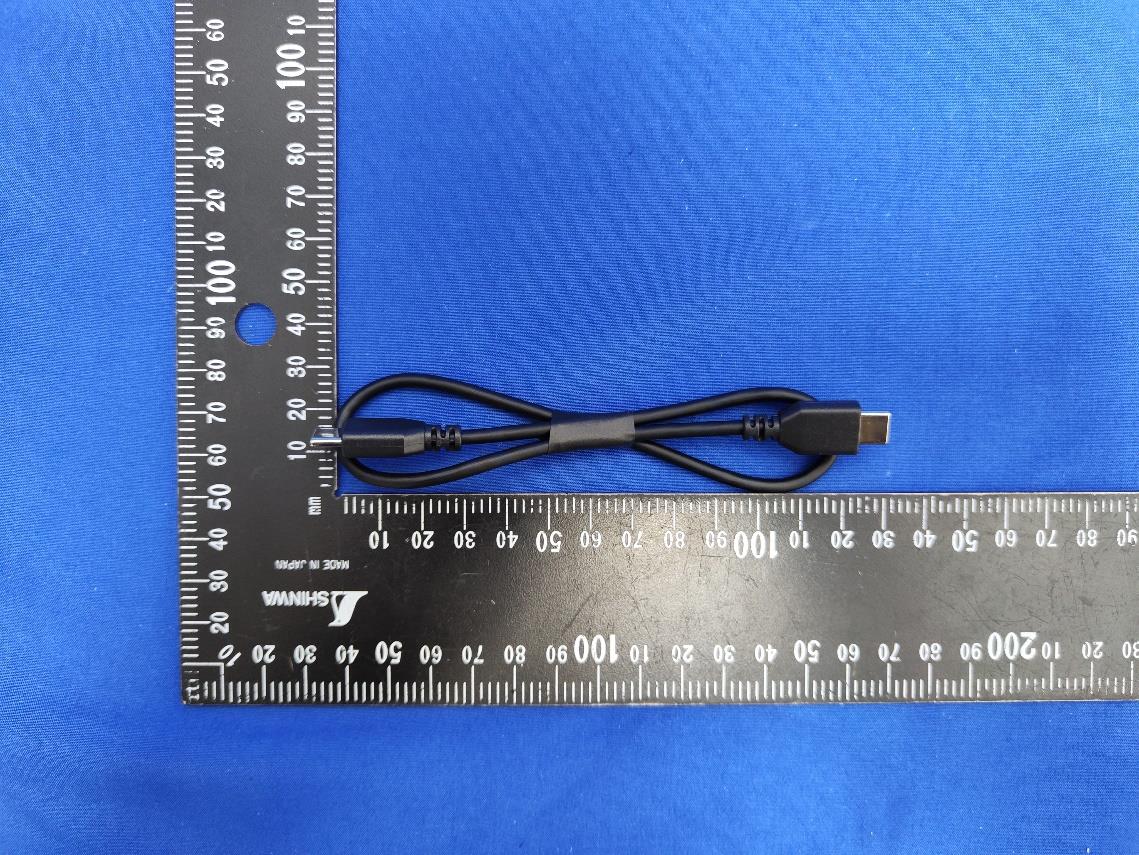

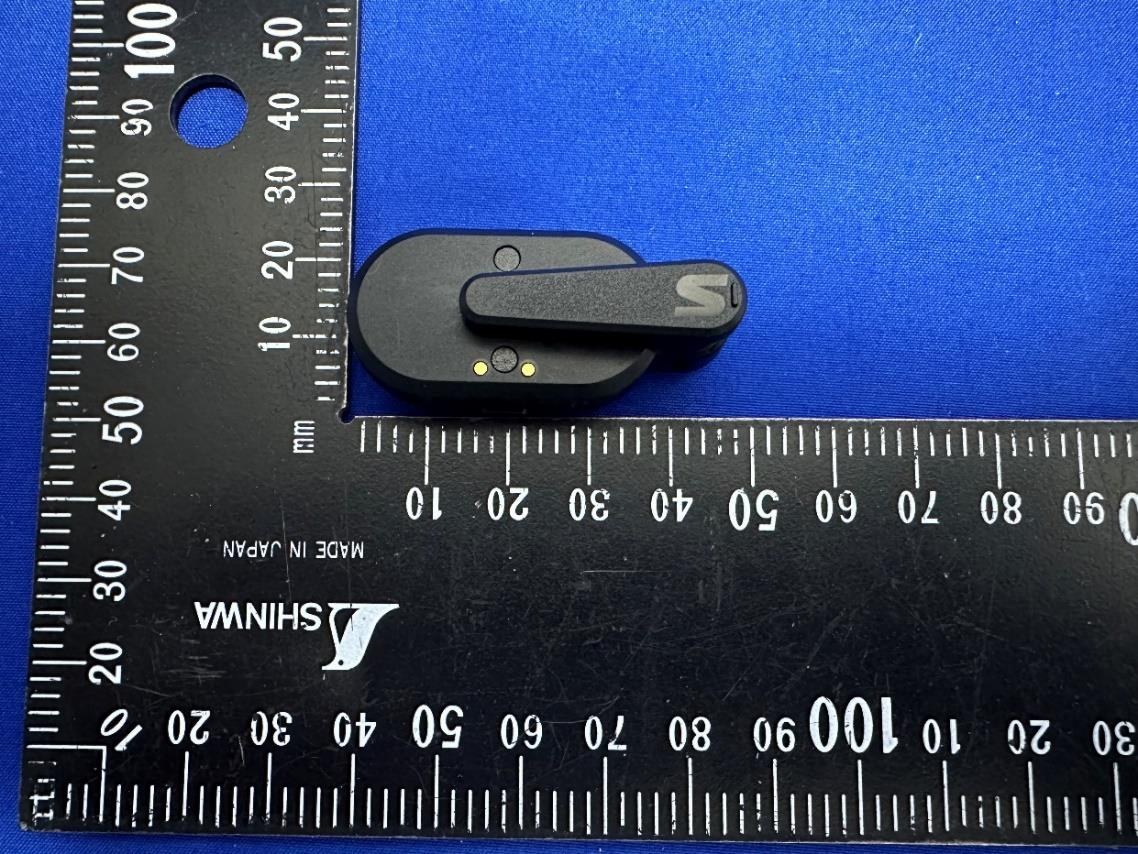

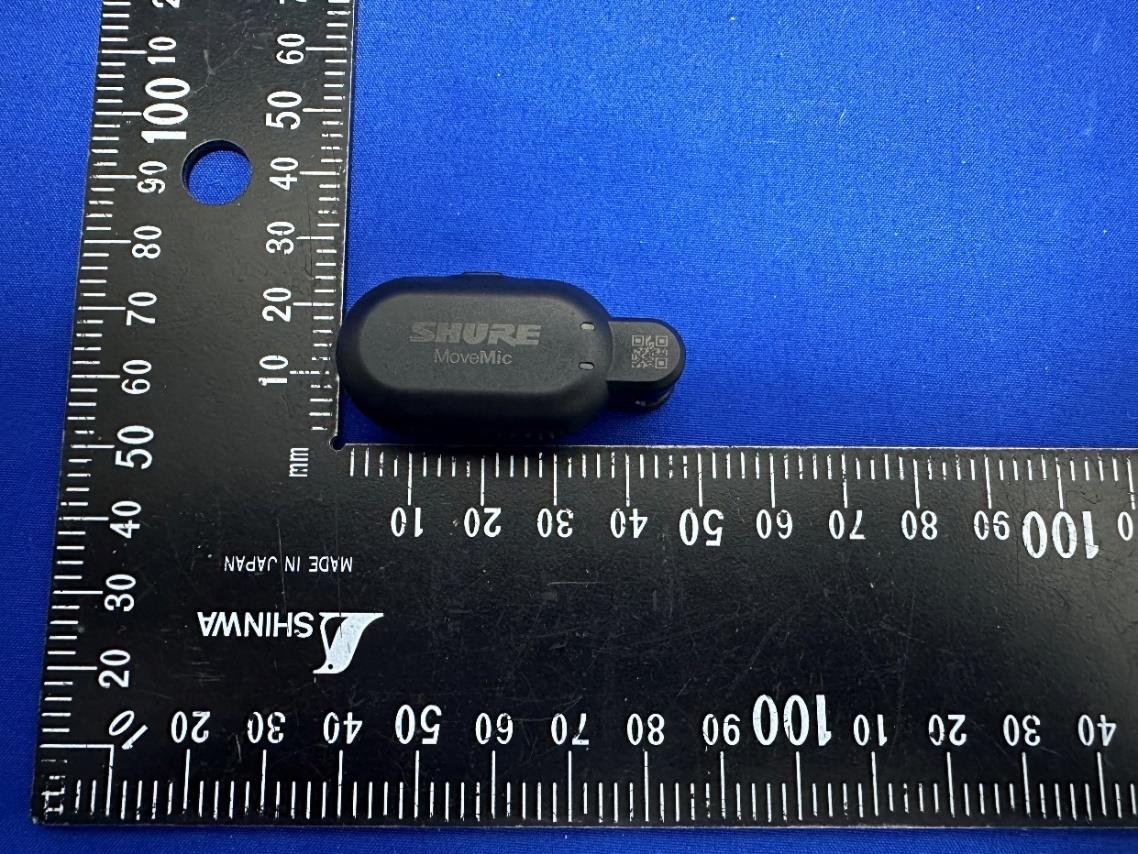

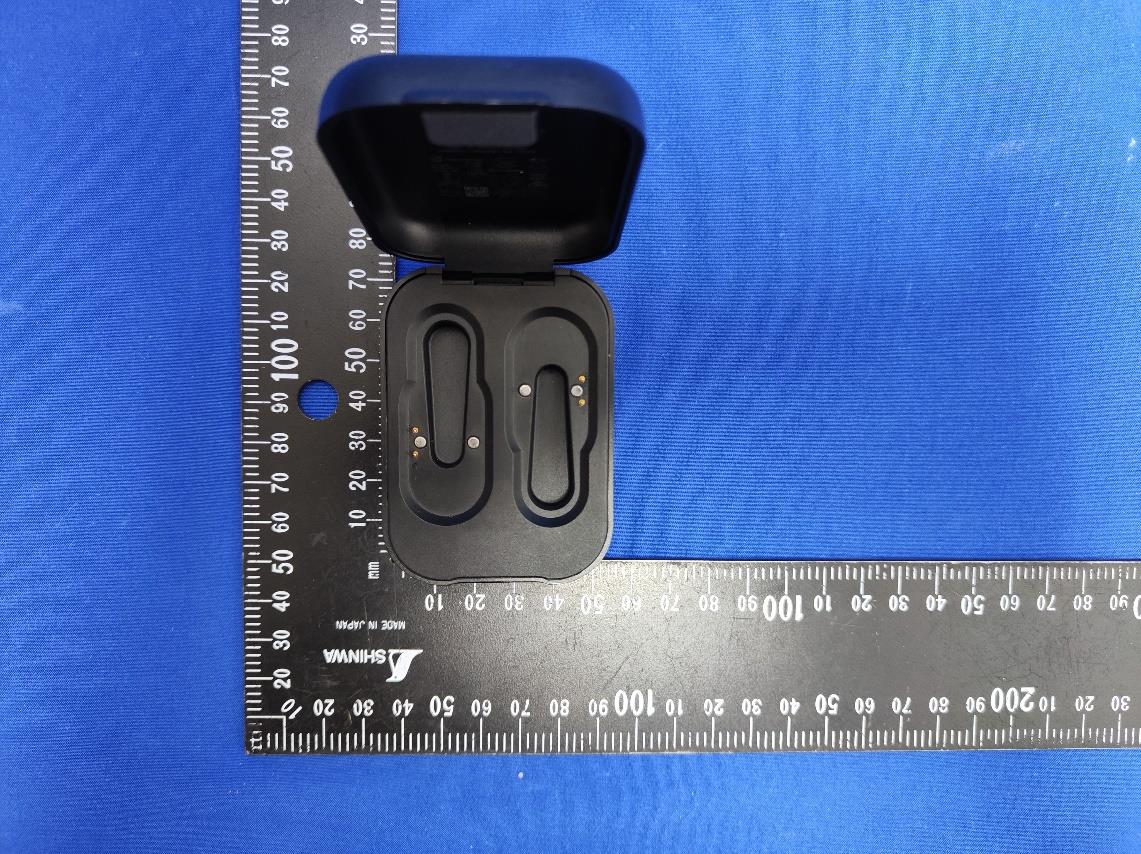

Report No.: 2303RSU016-UE 1 of 7 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2303RSU016-UE 2 of 7 (3) EUT Photo (4) EUT Photo (5) Report No.: 2303RSU016-UE 3 of 7 (6) EUT Photo (7) EUT Photo Report No.: 2303RSU016-UE 4 of 7 (8) EUT Photo (9) EUT Photo Report No.: 2303RSU016-UE 5 of 7 (10) EUT Photo (11) EUT Photo Report No.: 2303RSU016-UE 6 of 7 (12) EUT Photo (13) EUT Photo Report No.: 2303RSU016-UE 7 of 7 (14) EUT Photo (15) EUT Photo

FCC ID and IC ID will also be shown on the charging case of the Wireless Lavalier Microphone. See below:

Report No.: 2303RSU016-UE 1 of 6 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2303RSU016-UE 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 2303RSU016-UE 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 2303RSU016-UE 4 of 6 (7) EUT Photo (8) EUT Photo Report No.: 2303RSU016-UE 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 2303RSU016-UE 6 of 6 (11) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2303RSU016-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2023-07-28 Template Version:0.0 1 of 46 SAR MEASUREMENT REPORT FCC ID: DD4-SC7LW Applicant: Shure Incorporated Product: Wireless lavalier microphone Regulatory Model Number: SC7LW Brand Name: , FCC Rule Part(s): FCC 47 CFR Part 2.1093 Result: Complies Received Date: 2023-03-08 Test Date: 2023-04-11 ~ 2023-07-25 Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in IEEE1528, KDB 447498 and KDB 865664. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2303RSU016-U2 2 of 46 Revision History Report No. Version Description Issue Date Note 2303RSU016-U2 V01 Initial Report 2023-07-28 Valid Report No.: 2303RSU016-U2 3 of 46 CONTENTS Description Page 1. General Information ................................................................................................................................. 5 1.1. Applicant ........................................................................................................................................ 5 1.2. Manufacturer .................................................................................................................................. 5 1.3. Testing Facility ............................................................................................................................... 5 1.4. Product Information ........................................................................................................................ 6 1.5. Radio Specification under Test ...................................................................................................... 6 1.6. Antennas Details ............................................................................................................................ 6 2. Summary of Test Result .......................................................................................................................... 7 2.1. Test Standards ............................................................................................................................... 7 2.2. Environment Condition ................................................................................................................... 7 2.3. RF Exposure Limits ........................................................................................................................ 7 2.4. Test Result Summary .................................................................................................................... 8 3. Specific Absorption Rate (SAR) .............................................................................................................. 9 3.1. Introduction .................................................................................................................................... 9 3.2. Definition ........................................................................................................................................ 9 4. DASY6 Measurement System ............................................................................................................... 10 4.1. Introduction .................................................................................................................................. 10 4.2. DASY6 Measurement System Diagram ...................................................................................... 10 4.3. System Components Details ........................................................................................................ 11 5. The SAR Measurement Procedure ....................................................................................................... 22 5.1. Measurement Process Diagram .................................................................................................. 22 5.2. Test Position Definition ................................................................................................................ 23 5.3. Test Procedure ............................................................................................................................ 26 6. System Verificaiton ................................................................................................................................ 29 6.1. Tissue Check ............................................................................................................................... 29 6.2. System Check .............................................................................................................................. 32 7. Analysis and Results ............................................................................................................................. 34 7.1. Antennna Location ....................................................................................................................... 34 7.2. Conducted Power ........................................................................................................................ 34 7.3. SAR Test Results ......................................................................................................................... 35 8. Simultaneous Transmission Analysis .................................................................................................. 36 9. Test Equipment Used ............................................................................................................................. 37 Report No.: 2303RSU016-U2 4 of 46 10. Measurement Uncertainty...........................................…

Text truncated - open the document above for the full version.

Shure ClipLav Measurements of Shure Midway ClipLav For Regulatory Approval BLE (2402–2480 MHz) Shure Incorporated February 15 th , 2023 Prepared by Mark Kenkel, Ph.D. Shure ClipLav Table of Contents 1. ClipLav Microphone ............................................................................................................................. 1 1.1 CLipLav Loop 3D patterns ............................................................................................................ 1 2. Appendix ............................................................................................................................................... 4 Table of Figures Figure 1 – ClipLav (2402 MHz) 3D radiation patterns and scale .................................................................. 1 Figure 2 – ClipLav (2440 MHz) 3D radiation patterns and scale .................................................................. 2 Figure 3 – ClipLav (2480 MHz) 3D radiation patterns and scale .................................................................. 3 Figure 4 - Antenna reference angles ............................................................................................................ 4 Figure 5 – CLipLav Loop Antenna Location .................................................................................................. 4 Shure ClipLav 1. ClipLav Microphone 1.1 CLipLav Loop 3D patterns : • ClipLav Loop Antenna • Test frequency = 2402 MHz • Maximum gain = -0.1 dBi Figure 1 – ClipLav (2402 MHz) 3D radiation patterns and scale Shure ClipLav • CLIPLAV Dipole Antenna • Test frequency = 2440 MHz • Maximum gain = -1.0dBi -1.0 Figure 2 – ClipLav (2440 MHz) 3D radiation patterns and scale Shure ClipLav • Test frequency = 2480 MHz • Maximum gain = -0.8 dBi Figure 3 – ClipLav (2480 MHz) 3D radiation patterns and scale Shure ClipLav 2. Appendix Figure 4 - Antenna reference angles Figure 5 – CLipLav Loop Antenna Location The ClipLav uses a curved rectangular loop antenna that is 41.6mm long, and 4mm High. The antenna has an internal loop area of 39.6mm X 2.9mm or 114.84mm^2. Shure ClipLav

7 MRT Technology (Suzhou) Co., Ltd Report No.: 2303RSU016-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2023-07-26 Template Version:0.0 1 of 90 RF MEASUREMENT REPORT FCC ID: DD4-SC7LW Applicant: Shure Incorporated Product: Wireless lavalier microphone Regulatory Model Number (RMN): SC7LW Brand Name: , FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Result: Complies Received Date: 2023-03-08 Test Date: 2023-03-11 ~ 2023-07-25 Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2303RSU016-U1 2 of 90 Revision History Report No. Version Description Issue Date Note 2303RSU016-U1 V01 Initial Report 2023-07-26 Valid Report No.: 2303RSU016-U1 3 of 90 CONTENTS Description Page 1. General Information ................................................................................................................................ 5 1.1. Applicant ...................................................................................................................................... 5 1.2. Manufacturer ................................................................................................................................ 5 1.3. Testing Facility ............................................................................................................................. 5 1.4. Product Information ...................................................................................................................... 6 1.5. Radio Specification under Test .................................................................................................... 6 1.6. Working Frequencies ................................................................................................................... 7 2. Test Configuration ................................................................................................................................... 9 2.1. Test Mode..................................................................................................................................... 9 2.2. Test System Connection Diagram ............................................................................................... 9 2.3. Test Software ............................................................................................................................. 10 2.4. Applied Standards ...................................................................................................................... 10 2.5. Test Environment Condition ....................................................................................................... 10 3. Antenna Requirements ......................................................................................................................... 11 4. Measuring Instrument ........................................................................................................................... 12 5. Decision Rules and Measurement Uncertainty .................................................................................. 14 5.1. Decision Rules ........................................................................................................................... 14 5.2. Measurement Uncertainty .......................................................................................................... 14 6. Test Result .............................................................................................................................................. 15 6.1. Summary .................................................................................................................................... 15 6.2. 6dB Bandwidth Measurement .................................................................................................... 16 6.2.1. Test Limit .................................................................................................................................... 16 6.2.2. Test Procedure ........................................................................................................................... 16 6.2.3. Test Setting ................................................................................................................................ 16 6.2.4. Test Setup .................................................................................................................................. 16 6.2.5. Test Result ................................................................................................................................. 16 6.3. Output Power Measurement ...................................................................................................... 17 6.3.1. Test Limit .................................................................................................................................... 17 6.3.2. Test Procedure ........................................................................................................................... 17 6.3.3. Test Setting ................................................................................................................................ 17 6.3.4. Test Setup .................................................................................................................................. 17 6.3.5. Test Result ................................................................................................................................. 17 6.4. Power Spectral Density Measurem…

Text truncated - open the document above for the full version.

Report No.: 2303RSU016-U1 44 of 90 Channel 38 (2478MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission 30MHz ~ 25GHz Report No.: 2303RSU016-U1 45 of 90 Proprietary Mode 2Mbps Out-of-Band Emissions Channel 01 (2404MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission 30MHz ~ 25GHz Channel 13 (2444MHz) 100kHz PSD Reference Level Spurious Emission 30MHz ~ 25GHz Report No.: 2303RSU016-U1 46 of 90 Channel 24 (2478MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission 30MHz ~ 25GHz Report No.: 2303RSU016-U1 47 of 90 Proprietary Mode 1Mbps Out-of-Band Emissions Channel 00 (2402MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission 30MHz ~ 25GHz Channel 01 (2426MHz) 100kHz PSD Reference Level Spurious Emission 30MHz ~ 25GHz Report No.: 2303RSU016-U1 48 of 90 Channel 02 (2480MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission 30MHz ~ 25GHz Report No.: 2303RSU016-U1 49 of 90 A.6 Radiated Spurious Emission Test Result Test Site WZ-AC1/AC2 Test Engineer Charles Zhang/Bob Zhang Test Date 2023-03-22 Test Mode: BLE 1Mbps Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Test Channel Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 00 4799.5 42.3 2.9 45.2 74.0 -28.8 Peak Horizontal 7485.5 37.2 8.3 45.5 74.0 -28.5 Peak Horizontal 12007.5 40.1 12.3 52.4 74.0 -21.6 Peak Horizontal 12007.5 35.1 12.3 47.4 54.0 -6.6 Average Horizontal 5437.0 37.6 3.5 41.1 74.0 -32.9 Peak Vertical 7375.0 37.6 8.3 45.9 74.0 -28.1 Peak Vertical 10987.5 35.7 13.6 49.3 74.0 -24.7 Peak Vertical 19 4876.0 43.1 2.8 45.9 74.0 -28.1 Peak Horizontal 8148.5 36.5 8.7 45.2 74.0 -28.8 Peak Horizontal 12203.0 42.8 12.1 54.9 74.0 -19.1 Peak Horizontal 12203.0 38.9 12.1 51.0 54.0 -3.0 Average Horizontal 7315.5 37.5 7.9 45.4 74.0 -28.6 Peak Vertical 10732.5 35.3 13.5 48.8 74.0 -25.2 Peak Vertical 12203.0 36.5 12.1 48.6 74.0 -25.4 Peak Vertical 39 4961.0 45.0 3.1 48.1 74.0 -25.9 Peak Horizontal 10962.0 35.2 13.5 48.7 74.0 -25.3 Peak Horizontal 12398.5 41.3 11.8 53.1 74.0 -20.9 Peak Horizontal 12398.5 36.4 11.8 48.2 54.0 -5.8 Average Horizontal 7443.0 39.8 8.2 48.0 74.0 -26.0 Peak Vertical 10851.5 35.6 13.5 49.1 74.0 -24.9 Peak Vertical 12398.5 37.5 11.8 …

Text truncated - open the document above for the full version.
